Metal mesh primary filter 592*490*21 2600m³/h 0.87m²

Reference Price:US$from $3

Min. Order:1 unit

Short Description:

Metal mesh filter (double called aluminum mesh filter or stainless steel mesh air filter and metal hole mesh primary effect filter, etc.), the structure of which is composed of multi-level cross-longitudinal corrugated aluminum mesh or stainless steel mesh.

  • frame: ABS plastic frame
  • filter media: High temperature resistant ultrafine glass fiber filter paper
  • sealing glue: PU two-component polyurethane AB adhesive
  • divider: EVA hot melt adhesive
  • protective netting: Stainless Steel Square Wire Mesh
  • filtration efficiency: G1 G2 G3 G4
  • Maximum operating temperature: 280℃
  • Maximum operating humidity: 80%
  • accreditation: ANSI Z9.5 ASHRAE 110 ASTM E84 CAN/CSA C22.2 NFPA 45 SEFA 1 UL
  • Applicable area: USA Europe Malaysia Canada Middle East Indonesia
  • customs code: 84213990

Cleanroom

Metal mesh primary filter 592*490*21 2600m³/h 0.87m²

Choose your installation & validation options below

  • Quantity:

Choose your upgrade options

  • Quantity:

Summary

Cleanroom

Metal mesh primary filter 592*490*21 2600m³/h 0.87m²

Choose your installation & validation options below

Validation

Installation & Validation

Choose your upgrade options

Product Description

The Metal Mesh Primary Filter 592*490*21 is designed for efficient filtration with an airflow capacity of 2600m³/h and a filtration area of 0.87m². This filter is ideal for medium to large air systems, effectively capturing larger particles like dust and debris while maintaining optimal airflow and ensuring durability for long-term use.

Filter material

Aluminum mesh/stainless steel mesh

Frame material

Aluminum profile frame, aluminum plate folding frame, galvanized frame, stainless steel frame

Maximum operating temperature

400℃
Maximum operating humidity100%

Design Features

Ductless fume hoods are designed with several important features to ensure safety and functionality in laboratory environments. Key features include:

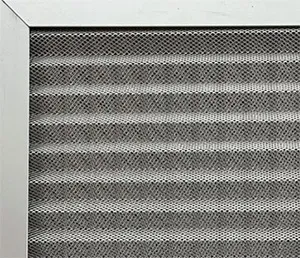

Metal mesh primary filter Durability.jpg

01
Durability

Long-lasting and resistant to wear and tear

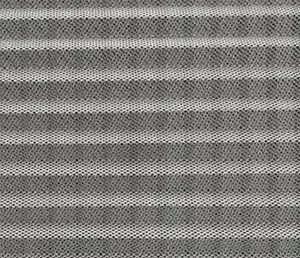

Metal mesh primary filter Reusable.jpg

02
Reusable

Can be easily cleaned and reused multiple times

Metal mesh primary filter Low Maintenance.jpg

03
Low Maintenance

Simple to clean and maintain for optimal performance

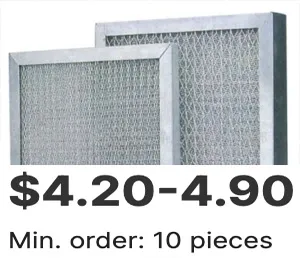

Metal mesh primary filter Cost-Effective.jpg

04
Cost-Effective

Provides long-term savings compared to disposable filters

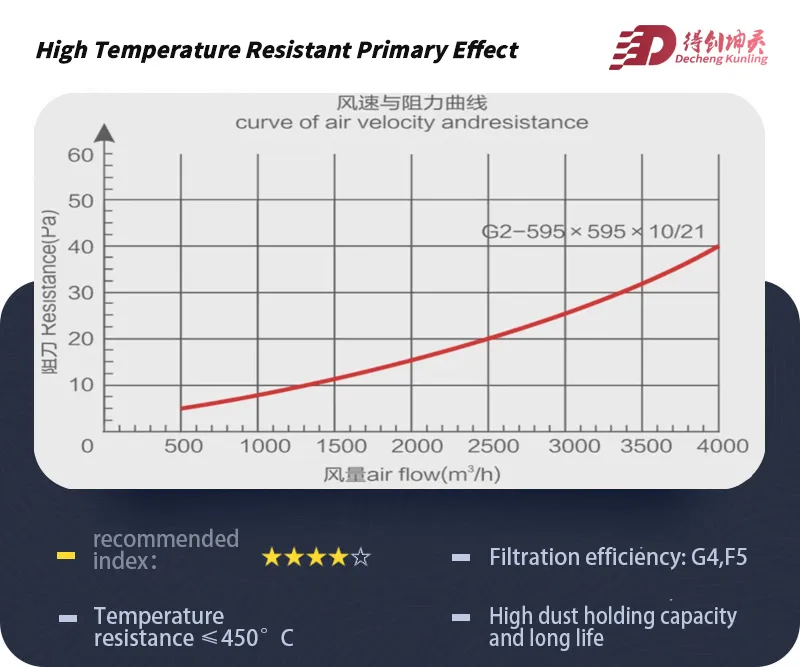

Linear diagram of airflow resistance.jpg

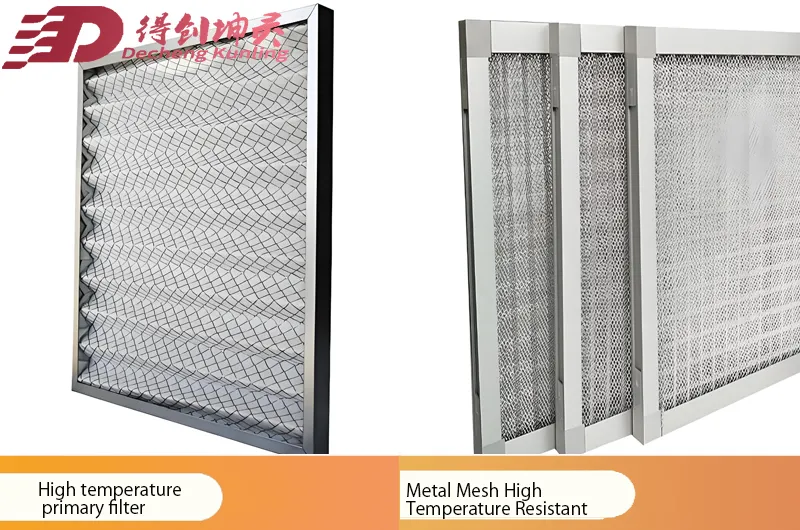

High Temperature Primary Filter2.jpg

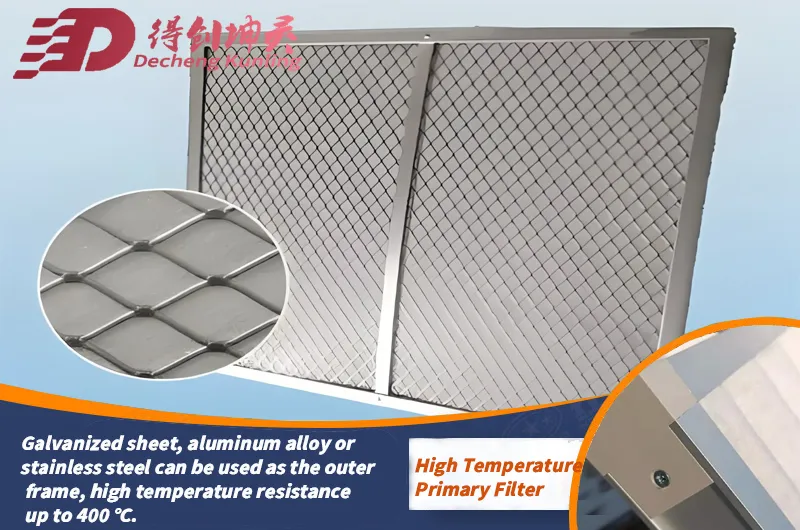

High Temperature Primary Filter1.jpg

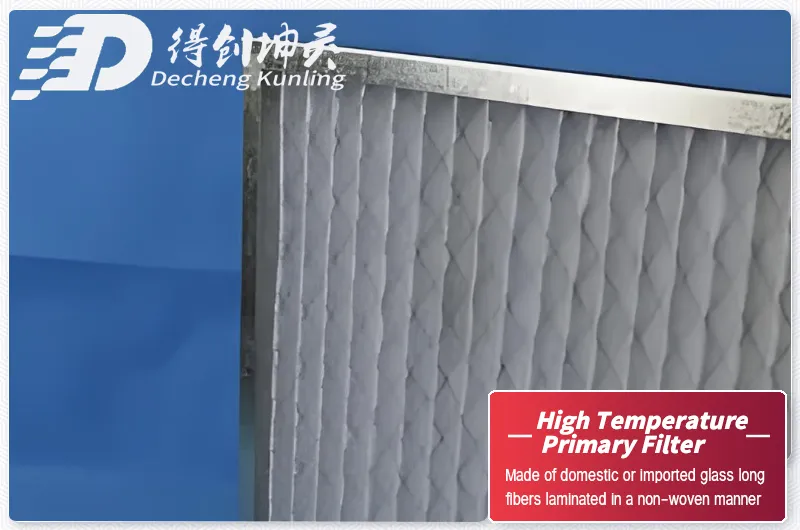

High Temperature Primary Filter4.jpg


Material composition

After the filter has been used for a period of time, it can be cleaned by air gun blowing and reused to save the operation cost to a large extent. The primary effect plate filter adopts mesh wire mesh or galvanized iron skeleton to support the filter material, which can meet the operation wind speed requirement of each ventilation system.

Product dimensions parameters

size
(WxHxD)(mm)
Rated air volume
(m³/h)

Filter are

a(m²)

Initial resistance

(Pa)

592*592*2132001.05< 20
592*287*2116000.51
592*490*2126000.87
592*592*4632003.15
592*287*4616001.53
592*490*4626002.61
592*592*5032003.86
592*287*5016001.87
592*490*5026003.2


FAQ

1. Are metal mesh primary filters eco-friendly?

Yes, metal mesh primary filters are eco-friendly due to their reusability. These filters can be cleaned and reused multiple times, reducing waste compared to disposable filters. Their long lifespan also contributes to sustainability, making them a more environmentally friendly choice in the long term.


2. What are the main types of metal mesh used in primary filters?

The main types of metal mesh used in primary filters include:

  • Stainless steel mesh

  • Aluminum mesh

  • Galvanized steel mesh

Each type offers different benefits in terms of durability and corrosion resistance, with stainless steel being the most durable and resistant to rust.


3. What are the top brands that make metal mesh primary filters?

Several brands are well-known for producing high-quality metal mesh primary filters, including:

  • Camfil

  • Honeywell

  • Nordfab

These brands are recognized for their durable filters that provide effective filtration solutions for various applications.


4. Where can I buy a metal mesh primary filter?

Metal mesh primary filters can be purchased from various online retailers, HVAC supply stores, and specialty filtration stores. Websites like Amazon, eBay, and specialized sites like Filterbuy or AirFiltersDelivered offer a wide selection of filters for both residential and commercial use.


5. Do metal mesh primary filters require special cleaning solutions?

No, metal mesh primary filters do not require special cleaning solutions. Typically, they can be cleaned with mild soap and water. For stubborn dirt, a soft brush or gentle scrubbing can be used. Avoid harsh chemicals, as they can damage the filter material.


6. Can a metal mesh primary filter be used in a warehouse setting?

Yes, metal mesh primary filters can be used in a warehouse setting. They are ideal for capturing larger particles such as dust and debris, which are common in industrial environments. They can help improve air quality by preventing contaminants from circulating through the ventilation system.


7. Can I clean a metal mesh primary filter with high-pressure water?

It is not recommended to clean a metal mesh primary filter with high-pressure water. The force from high-pressure water can damage the filter mesh or cause it to become misaligned. Instead, clean the filter using lukewarm water and a mild detergent, and use a soft brush for any stubborn dirt.


8. What is the best method for cleaning a metal mesh primary filter?

The best method for cleaning a metal mesh primary filter is to:

  • Remove the filter from the system

  • Rinse it with lukewarm water

  • Use a mild detergent and a soft brush for stubborn dirt

  • Allow it to dry completely before reinstalling

This ensures that the filter is properly cleaned without damaging the mesh material.


9. Are there any health risks associated with using a metal mesh primary filter?

Generally, there are no significant health risks associated with using a metal mesh primary filter, as long as it is maintained and cleaned regularly. However, if the filter is not cleaned and becomes clogged, it could lead to reduced airflow or the growth of mold, which could affect indoor air quality. Regular maintenance ensures the filter remains safe and effective.


10. What are the advantages of using a metal mesh primary filter over disposable filters?

Metal mesh primary filters offer several advantages over disposable filters, including:

  • Reusability: They can be cleaned and reused, reducing waste.

  • Cost-effectiveness: Their long lifespan means lower long-term costs.

  • Durability: Made from robust materials like stainless steel, they last longer than most disposable filters.

These benefits make metal mesh filters a more sustainable and economical option for air filtration systems.


11. Can a metal mesh primary filter help with mold removal?

Metal mesh primary filters are not specifically designed to remove mold. While they can capture larger particles such as dust and debris, they are not effective at trapping mold spores. For mold control, a HEPA or activated carbon filter would be more appropriate.


12. Do metal mesh primary filters improve HVAC system efficiency?

Yes, metal mesh primary filters can improve HVAC system efficiency by capturing larger particles and preventing them from clogging the system’s internal components. This can help maintain proper airflow and reduce the load on secondary filters, leading to more efficient operation and lower energy consumption.


13. Do metal mesh primary filters capture pollen effectively?

Yes, metal mesh primary filters can capture pollen effectively, especially in homes or environments with allergens. They work well for trapping larger particles like pollen, but for finer allergens, such as dust mites or mold spores, additional filtration may be necessary.


14. Are metal mesh primary filters compatible with all air purifiers?

Metal mesh primary filters are compatible with many air purifiers, but it’s important to check the specifications to ensure proper fit. These filters are typically used as pre-filters in air purifiers and can be paired with HEPA or carbon filters for enhanced performance.


15. Is a metal mesh primary filter suitable for industrial applications?

Yes, metal mesh primary filters are suitable for industrial applications. They are commonly used in HVAC systems, ventilation units, and air purifiers in factories, warehouses, and other industrial environments to capture larger particles like dust and debris. Their durability and reusability make them a practical choice for heavy-duty filtration needs.
