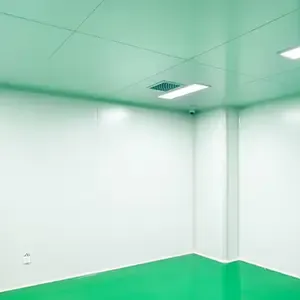

Cleanroom MGO Panels from Deiiang are designed as a stable, hygienic shell for modern cleanrooms. With a non‑combustible MGO core and smooth, easy‑clean surfaces, they combine fire resistance, moisture resistance and dimensional stability, making them well‑suited to pharmaceuticals, biotechnology, electronics, food and new energy facilities.
Compared with traditional wall materials, Cleanroom MGO Panels better withstand frequent disinfection, humidity and temperature changes without swelling, peeling or cracking. They help you maintain ISO / GMP compliance over the long term, reduce repair downtime, and keep particles and microbes away from critical processes.
Panels can be configured with different surface finishes (such as painted steel or stainless steel) and structures (sandwich or handmade) so engineering, QA and owners can balance risk level, cleaning methods and budget in a practical way.
Our professional team will provide you with customized cleanroom MGO Cleanroom Panel system solutions to meet your specific needs.
To start, simply select a manufacturing process and upload a 3D CAD file.
Within a few hours we'll send you design for manufacturability (DFM) analysis and real-time pricing.
Once you review your quote and place your order, we'll start the manufacturing process. We also offer finishing options.
Our digital manufacturing process allows us to produce parts in as fast as 1 day.
In simple terms, both are MGO cleanroom panels, but they’re made in different ways and used for slightly different project needs:
Cleanroom MGO sandwich panel
Better for large, standard modular cleanrooms: lower labor cost per m² and faster installation.
Cleanroom MGO handmade panel
Better for custom rooms, retrofits, special openings or where you need many non‑standard pieces.
How to choose?
Big project, standard layout, tight schedule → usually Cleanroom MGO sandwich panel.
Lots of special details, many windows/doors, renovation work → often Cleanroom MGO handmade panel is more practical.
If you share your layout and cleanroom class, we can recommend which MGO cleanroom panel type fits best and show test reports supporting ISO / GMP expectations.
Deiiang is a professional supplier and manufacturer of cleanroom building materials, providing you with one-stop integrated solutions for cleanroom building materials.

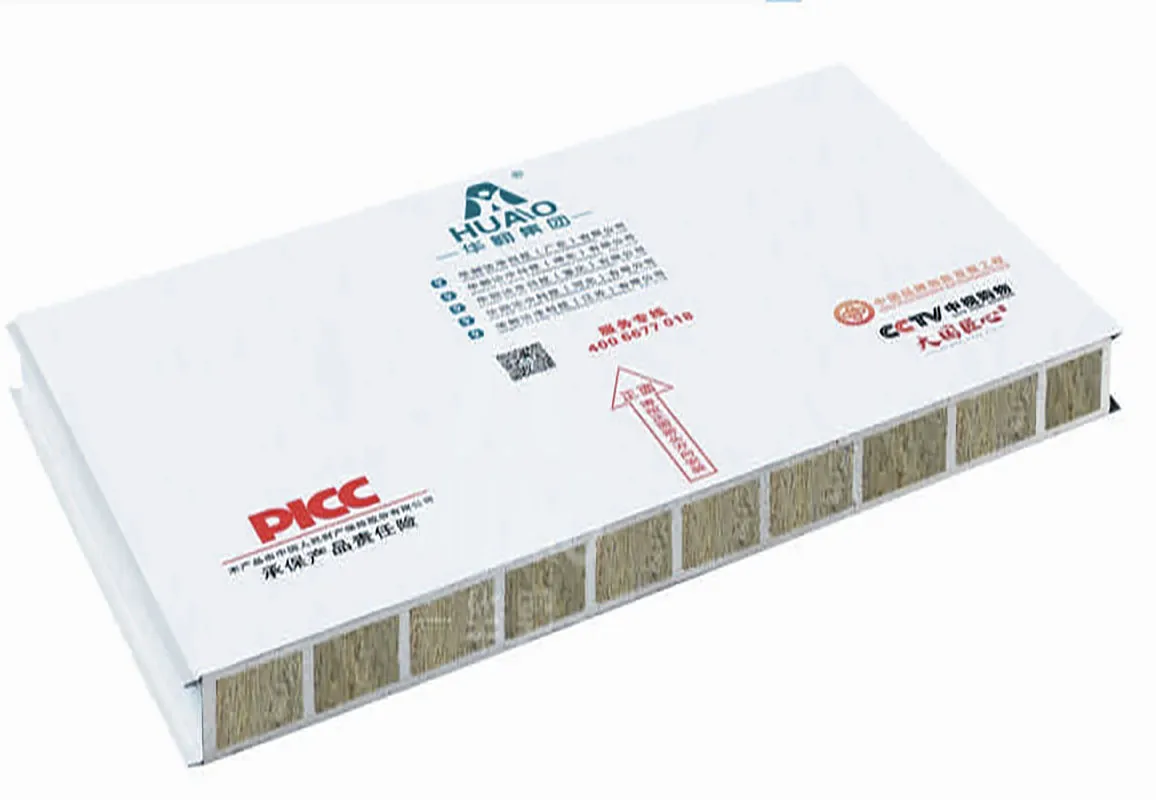

| Parameter | Specification |
|---|---|
| Effective Width | 980 mm |
| Thickness | 50 mm | 100 mm |
| Length | Custom |
| Structure and Application | Splicing of mouthpiece |
| Steel Plate Thickness | 0.376 mm | 0.426 mm | 0.476 mm |

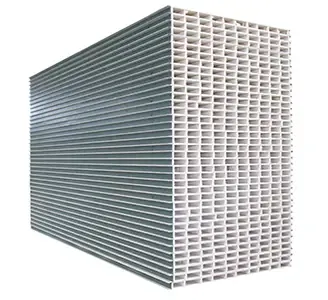

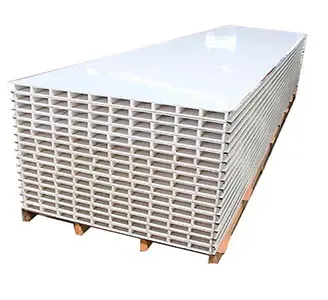

| Steel Plate Material | Painted Steel | SS304 |

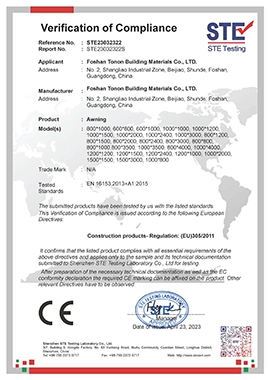

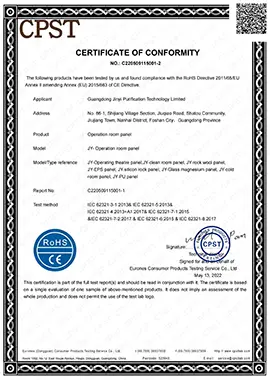

Operation room panel CE
PC Panels CE certification
Deiiang MGO Panel Quality Control Flowchart
MGO cleanroom panels are factory prefabricated wall and ceiling materials with magnesium oxide as the core substrate.
They outperform traditional gypsum boards and brick walls in fire resistance, moisture-proof performance and structural stability.
Fully compliant with ISO 14644 and industrial hygiene standards, these panels are widely applied in GMP pharmaceutical workshops, electronics cleanrooms, medical device factories and food processing facilities.
Our MGO wall panels follow ISO 14644-1 and 14644-2 that regulate cleanroom particle levels.
For pharmaceutical and biotech projects, they meet widely recognized GMP rules including FDA cGMP and WHO TRS.
On fire safety aspects, the products pass tests to EN 13501-1 and ASTM E84.
We can provide complete third-party inspection documents to help clients pass global project audits.
If you build cleanroom facilities, MGO composite panels outperform regular gypsum partitions in all key indicators.
They stand up well against fire and damp air, and barely warp even after years of continuous use. Smooth panel faces plus tight connecting seams greatly cut dust gathering issues.
Since these panels are pre-made in factory modules, installation on site takes far less time. There is almost no upkeep work needed after finishing construction, which helps owners save long-run expenses.
Lots of clients pick our MGO panels when building ISO 5 and ISO 6 clean spaces.
There’s no tiny hole on the panel surface, and we lock every joint tightly, so dust won’t pile up anywhere.
Don’t forget one key point: wall panels are only one part. The air circulation and overall layout together decide your cleanroom’s ISO class.
Fire safety is never a concern with our MGO panels.
The core magnesium oxide material cannot catch fire at all.
We ran tests following EN 13501-1 and ASTM E119, and the product hits A1 grade, the best non-combustible standard.
If your workshop has high humidity, MGO panels will be a great pick.
We coat panels with sealed finishing to stop damp from seeping inside. They won’t turn moldy or warp over time.
Many sterile rooms and wet production lines use this panel for stable long-term use.
Picking cleanroom panels hinges on your workflow, hazard level and long‑run cost. Don’t only judge by thickness or price. Below is a quick guide for Cleanroom MGO Panel selection:
1. Industry and Cleanliness Class

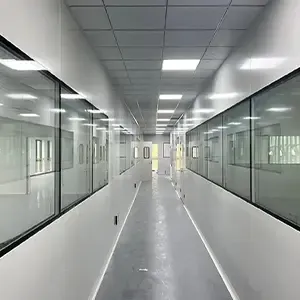

Your industry and ISO/GMP grade come first. Pharma, biotech and API plants often pick fire‑rated MGO panels for ISO 5–7 spaces — their smooth, non‑porous surfaces wipe clean easily.

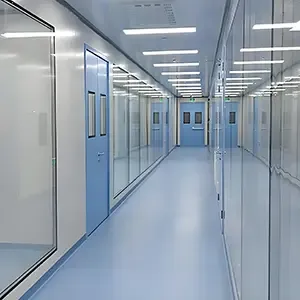

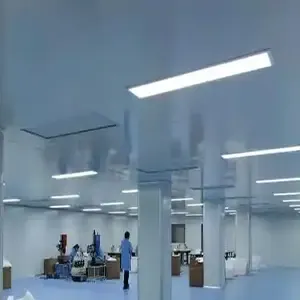

Electronics and medical shops blend ESD and regular MGO panels within ISO 6–8 zones. Static and loose particles stay controlled around delicate production gear this way.

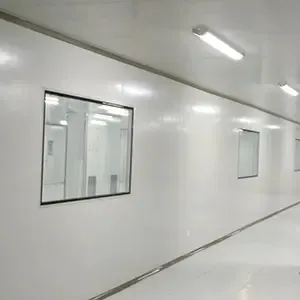

Basic MGO panels fit general ISO 6–8 areas in lithium battery factories. Step up to premium wall units near coating and filling high‑risk stations.
2. Panel Structure and Thickness

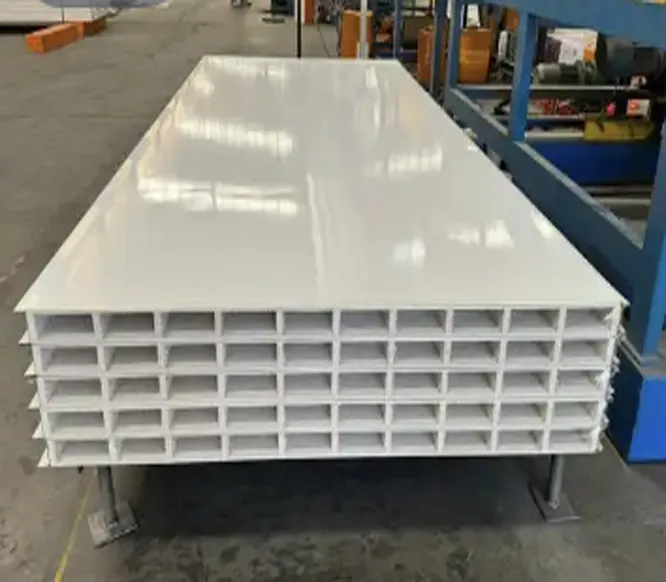

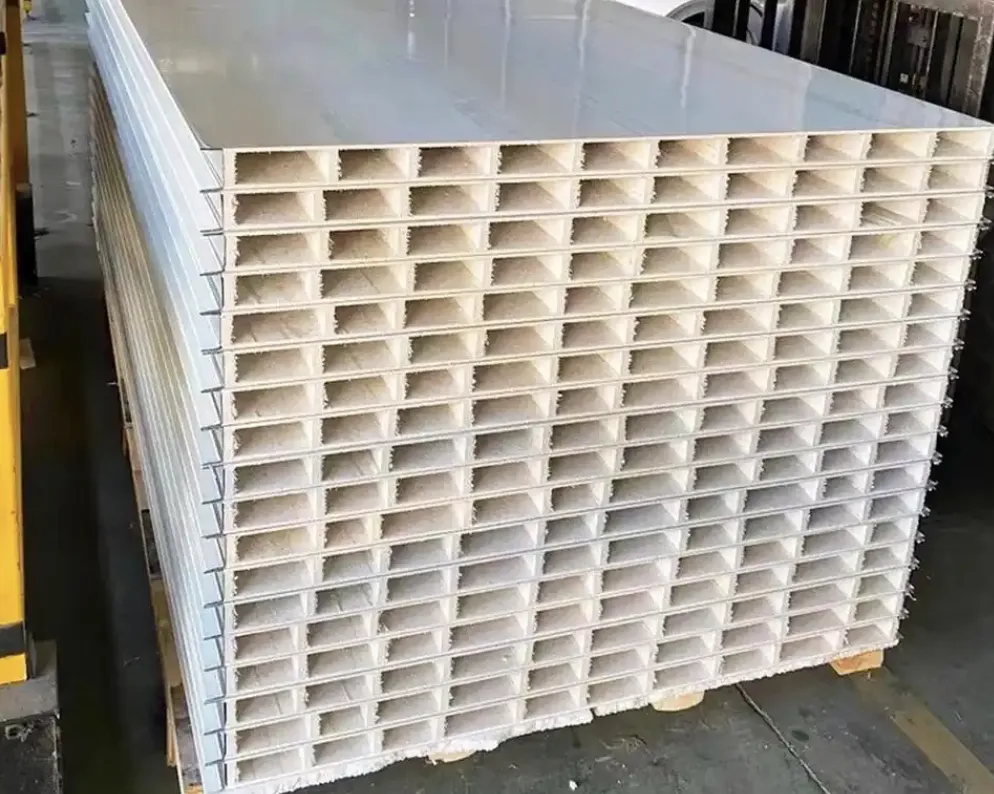

Load, wall height and insulation needs shape your panel choice. Plain dividers and walkways only require affordable 50mm MGO boards.

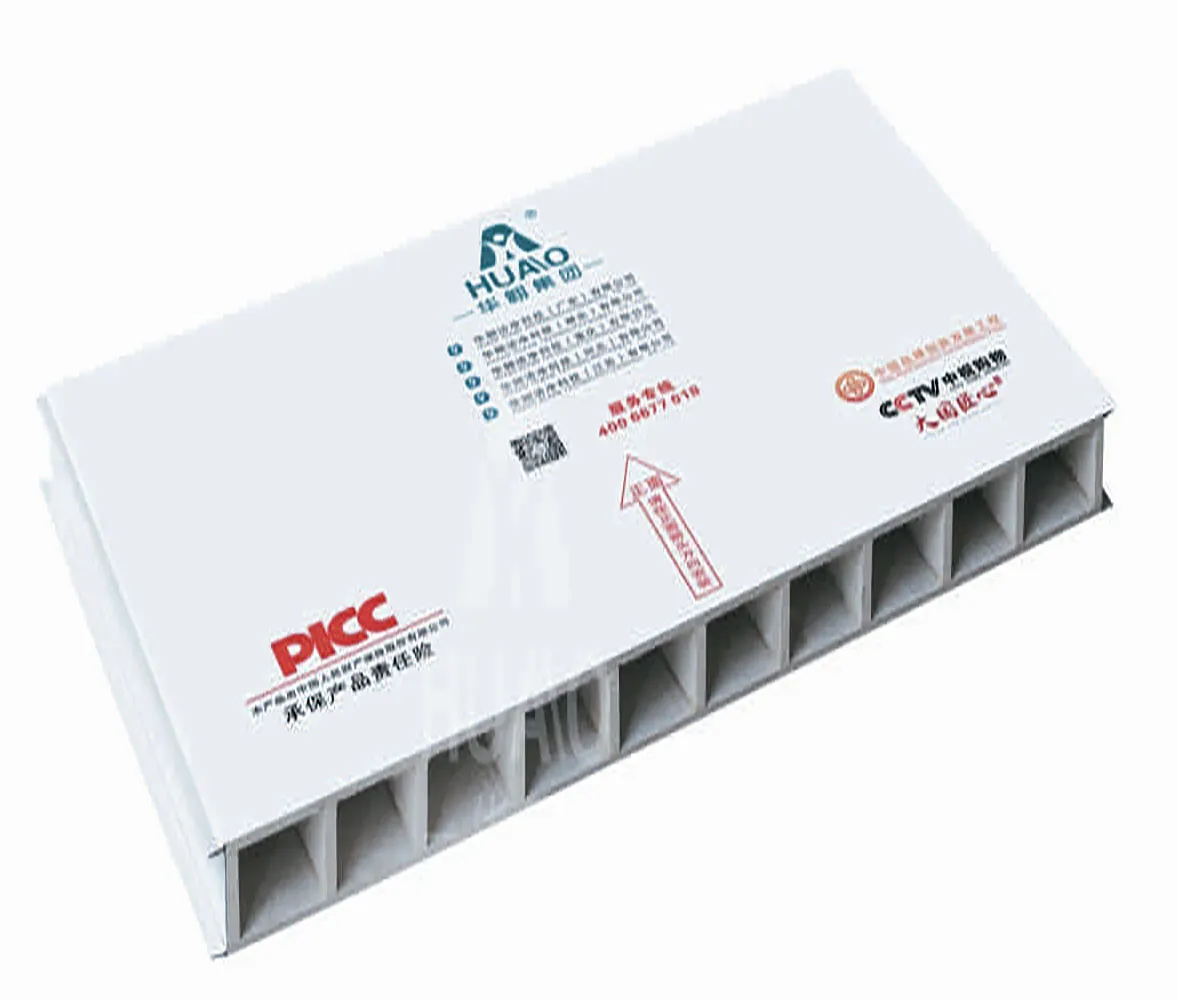

Tall partitions and temperature buffer rooms gain steady performance with thicker 75–100mm panels.
Two panel types are available. Machine‑made sandwich panels speed up build time with uniform quality; handmade MGO panels adapt well to odd cutouts and tricky wall joints.
3. Surface Materials and Corrosion Resistance
Pick outer skins that stand up to your daily sanitizers. Coated steel MGO panels work great for standard pharma, medical and electronic workspaces.

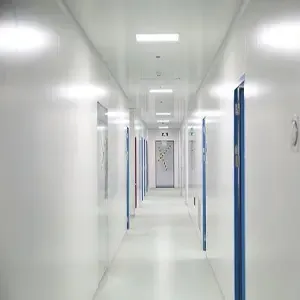

Tougher conditions demand stainless steel upgrades. Fit single‑sided SS304 panels on process walls for salt or corrosive chemical exposure, and stick with coated steel for corridors. Film‑lined panels handle heavy solvent use.
4. Fire, Moisture and Special Functions
Local fire codes and insurance rules cannot be overlooked. Fire‑resistant MGO panels suit escape routes, battery storage and solvent processing areas — ask for verified EN or ASTM test records.
Constant washdown and humid spaces face swelling risks. Use fully sealed, water‑proof MGO panels paired with matching floor coving to block mildew growth.
5. Project Schedule and Total Cost
Machine‑produced MGO panels cut site labor and finishing work, a huge plus for rushed renovation projects.
Don’t fixate only on per‑square‑meter price when comparing bids. Factor fire ratings, surface coatings and future upkeep into your budget. Properly sized MGO panels slash long‑term expenses, even if initial material cost is slightly higher.
Deiiang’s engineers will draft custom MGO panel layouts and hand over complete test documents to support your design review.
