Ductless Fume Hood

Cleanrooms and associated controlled environments — Part 1: Classification of air cleanliness by particle concentration

■ Constructed on anodized extruded aluminum frame with sealed sandwich panel, HPL, acrylic or tempered-glass infill. ■ Suitable for ISO 5–8 per ISO 14644-1; positive or negative pressure cascade available. ■ Flush double-glazed observation windows, steel cleanroom doors with drop-down bottom seal. ■ Panels: rock-wool / glass-magnesium / paper-honeycomb / aluminum-honeycomb / PU core options. ■ HEPA H14 (EN 1822) as standard; ULPA U15/U16 option. ESD-safe conductive finish for electronics.

Deiiang Cleanroom Technology Co., Ltd. specializes in the R&D, manufacturing, and sales of LED cleanroom lighting, backed by professional after-sales support.

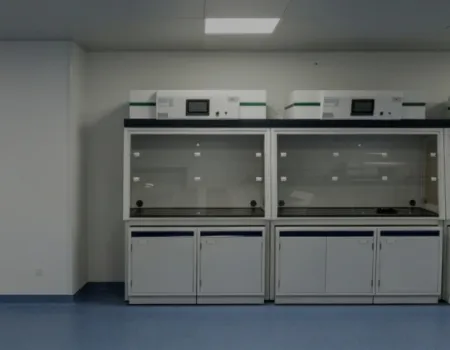

The ductless fume hood series complies with the Chinese standard JG/T 385-2012. Designed to protect laboratory personnel during experimental operations, it prevents operators from inhaling toxic, harmful, pathogenic, or unknown-toxicity chemical substances.

The Applicability Assessment Table is used to determine the type of primary emissions emitted by the user in the experiment, in order to determine the most appropriate combination of chemical filters to achieve the best filtration effect.
