What is laminar flow in a clean room?

  • Author:Jason Peng

  • Cleanroom Engineering Technology Manager of Deiiang Company.

    Product R&D Manager of GDC Inc. Cleanroom Equipment Manufacturing Company.

    Executive Director of Guangdong Cleanroom Industry Association of China.

    Engaged in R&D of related products for 15 years, with rich relevant technical experience

  • 2025-01-21  |  Visits:

Laminar flow is a fundamental concept in cleanroom technology, crucial for maintaining a controlled environment free from contaminants. By ensuring that air moves in a unidirectional manner, laminar flow minimizes the risk of particle contamination, thereby protecting sensitive processes and materials. This article explores the principles of laminar flow, its importance in cleanrooms, and its applications in various settings, including healthcare and manufacturing.

What is laminar flow in a clean room?

Laminar flow in A Clean Room refers to the controlled movement of air in parallel layers, ensuring a uniform airflow pattern that reduces contamination risks. This system is essential for maintaining the cleanliness of the environment.

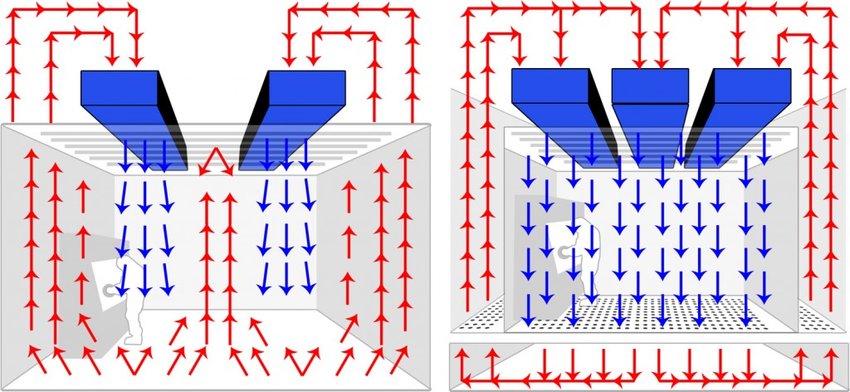

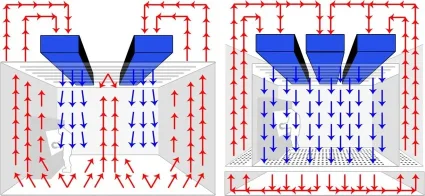

c6ccd58d122531f45e4536211f0cd56a_Laminar-right-and-non-laminar-left-airflow-in-clean-room-In-the-left-image.jpg

1. Definition and Principle

Laminar flow is characterized by smooth, uninterrupted airflow, where air moves in layers. This contrasts with turbulent flow, where air mixes and creates eddies, increasing the risk of contamination.

2. Mechanism of Laminar Flow

In clean rooms, laminar flow is achieved using high-efficiency particulate air (HEPA) or ultra-low penetration air (ULPA) filters. These filters remove particles from the air, while the system maintains a consistent airflow rate, directing Clean air in a unidirectional manner. This ensures that contaminants are swept away from critical areas, protecting sensitive equipment, materials, and processes.


3. Types of Laminar Flow Systems

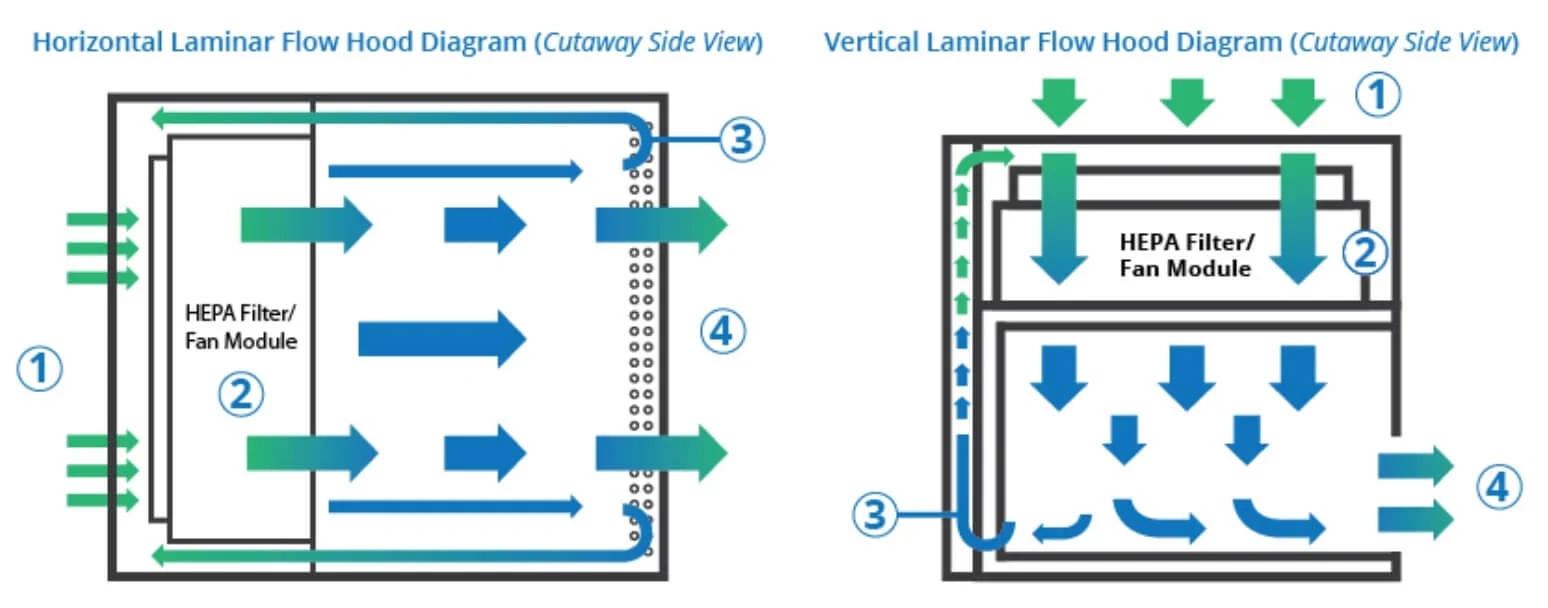

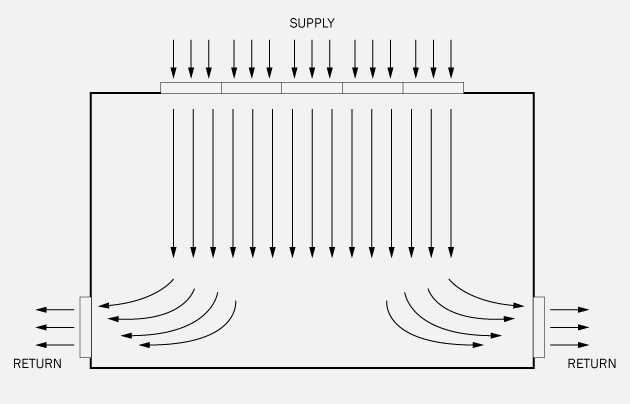

There are two main types of laminar flow systems: horizontal and vertical. Horizontal systems blow air across the work surface, while vertical systems direct air downward. The choice between them depends on the specific CleanRoom application and design.

4. Importance of Laminar Flow Systems

Laminar flow systems are crucial for industries that require stringent contamination control, such as pharmaceuticals, biotechnology, and Electronics manufacturing.

The purpose of laminar flow

The purpose of laminar flow is to create a sterile environment that minimizes the risk of contamination. This is essential in applications where even the smallest particles can compromise product integrity or safety.


Contamination Control

Laminar flow systems are designed to control airborne contaminants effectively. By maintaining a continuous flow of clean air, they prevent dust, bacteria, and other particles from settling on surfaces or entering sensitive areas.

Protection of Sensitive Processes

In various industries, such as pharmaceuticals and microelectronics, laminar flow protects sensitive processes by ensuring that the environment remains uncontaminated. This is crucial during procedures like drug compounding, cell culture, and Semiconductor manufacturing, where any contamination can lead to significant losses in quality and efficacy.

Enhanced Worker Safety

Laminar flow systems not only protect products but also enhance worker safety. By reducing the risk of exposure to harmful substances and pathogens, they create a safer working environment for personnel involved in sensitive operations.

Why does a Class 1 cleanroom need laminar flow?


Strict Contamination Control:

Class 1 cleanrooms require laminar flow to achieve the highest standards of cleanliness, as they are designed for applications that demand the utmost precision and contamination control.

Maintaining Cleanliness Standards:

In a Class 1 cleanroom, the allowable particle count is extremely low. Laminar flow systems help maintain these standards by continuously filtering the air and directing it in a manner that prevents the accumulation of particulates. This is especially important in industries like aerospace and semiconductor manufacturing, where even minute contaminants can lead to product failure.

Compliance with Regulations:

To comply with regulations set by organizations such as the International Organization for Standardization (ISO) and the Federal Standard 209E, Class 1 cleanrooms must implement effective laminar flow systems, ensuring that they meet stringent air quality criteria.

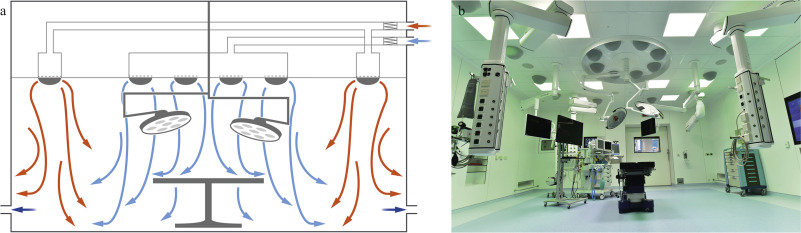

What is laminar air flow in the operating room?


  • Definition and Importance

    In operating rooms, laminar air flow refers to the use of controlled airflow to prevent contamination during surgical procedures. It is vital for maintaining a sterile environment and ensuring patient safety.

  • Mechanism of Operation

    Laminar air flow in operating rooms utilizes specialized ventilation systems that direct clean, filtered air in a unidirectional flow. This minimizes the presence of airborne particles and microorganisms in the surgical field. As air flows from the ceiling to the floor, it creates a sterile zone, reducing the risk of surgical site infections. The system typically involves HEPA filters to trap contaminants and maintain the required air quality standards.

  • Benefits for Patient Outcomes

    The implementation of laminar air flow in operating rooms has been shown to significantly reduce the incidence of infections. By maintaining a clean environment, surgical teams can focus on procedures without the added worry of contamination, ultimately improving patient outcomes and recovery times.

How does laminar air flow prevent contamination?

Laminar air flow prevents contamination by ensuring a constant flow of clean air,which creates a protective barrier against airborne pollutants and microorganisms. This system is essential in environments where cleanliness is critical, such as cleanrooms and operating rooms.


1. Unidirectional Airflow: Laminar air flow operates on the principle of unidirectional airflow, where air moves in parallel layers at a constant speed. This uniform airflow helps to sweep away contaminants, preventing them from settling on surfaces or entering critical areas.

2. Filtration Efficiency: The effectiveness of laminar air flow systems is largely due to high-efficiency particulate air (HEPA) or ultra-low penetration air (ULPA) filters, which capture up to 99.99% of airborne particles. These filters are crucial in maintaining the air quality required for clean environments. For instance, according to ISO 14644-1, a Class 1 cleanroom must limit the maximum allowable particles to extremely low levels, necessitating the use of advanced filtration systems combined with laminar flow to achieve these stringent cleanliness standards.

3. Continuous Air Exchange: Laminar flow systems constantly exchange air, diluting and removing contaminants before they can accumulate. This continuous circulation is vital for maintaining a sterile environment, especially in medical and pharmaceutical settings where contamination can have serious consequences.

Conclusion

Laminar flow is a foundational concept in cleanroom technology and operating room design. Its ability to control and direct airflow minimizes contamination risks, thereby safeguarding sensitive processes and enhancing overall safety in critical environments. With the implementation of laminar flow systems, industries can achieve the stringent cleanliness standards required for successful operations.
