Folded Activated Carbon Primary Filter 490*592*50 1150m³/h 0.93m²

Reference Price:US$from $3

Min. Order:1 Set

Short Description:

The Folded Activated Carbon Primary Filter with dimensions of 490*592*50 mm is designed for high-efficiency air filtration, capable of handling an airflow rate of 1150 m³/h. Featuring a filtration area of 0.93 m²,

  • frame: galvanized frame
  • filter media: ultrafine glass fiber filter paper
  • sealing glue: PU two-component polyurethane AB adhesive
  • divider: 120g/㎡ adhesive board paper
  • protective netting:
  • filtration efficiency: G1 G2 G3 G4
  • Maximum operating temperature: 280℃
  • Maximum operating humidity: 80%
  • accreditation: ANSI Z9.5 ASHRAE 110 ASTM E84 CAN/CSA C22.2 NFPA 45 SEFA 1 UL
  • Applicable area: USA Europe Malaysia Canada Middle East Indonesia
  • customs code: 84213990

Cleanroom

Folded Activated Carbon Primary Filter 490*592*50 1150m³/h 0.93m²

Choose your installation & validation options below

  • Quantity:

Choose your upgrade options

  • Quantity:

Summary

Cleanroom

Folded Activated Carbon Primary Filter 490*592*50 1150m³/h 0.93m²

Choose your installation & validation options below

Validation

Installation & Validation

Choose your upgrade options

Product Description

The Folded Activated Carbon Primary Filter with dimensions of 490*592*50 mm is designed for high-efficiency air filtration, capable of handling an airflow rate of 1150 m³/h. Featuring a filtration area of 0.93 m², this filter is ideal for environments that require superior removal of gases, odors, and particulate matter. The pleated design increases surface area, allowing for enhanced adsorption and improved air quality. It is commonly used in HVAC systems, commercial spaces, and other areas where maintaining clean, breathable air is essential. It is widely used in environments that require high-quality air filtration, such as HVAC systems, industrial settings, and commercial spaces.

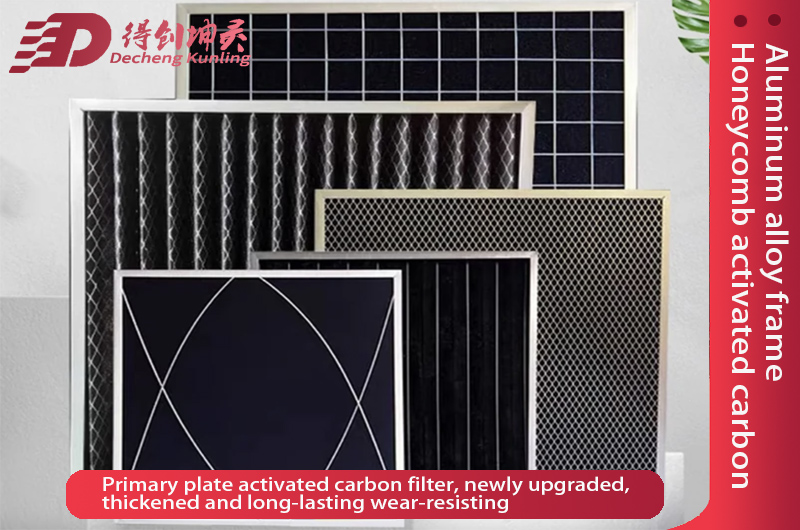

Folded Activated Carbon Primary Filter.jpg

Application

Widely applied to central air conditioning, family expenses air conditioning, special acid, alkali ventilation filters and clean room air return air conditioning filter mouth.

Design Features

  • Good abrasion resisitance and long lifespan

  • Nylon net filter has less resistance, long lifespan

  • Can repeat cleaning, high performance with cheap cost

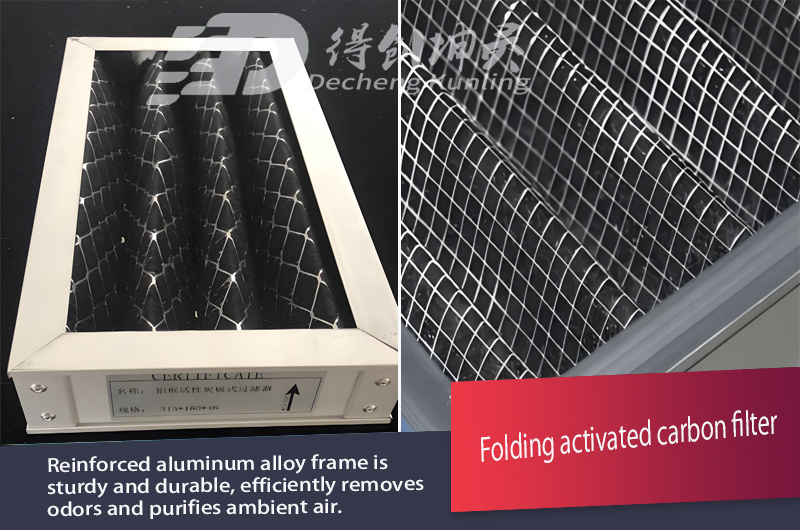

Folded Activated Carbon Primary Filter1.jpg

Folded Activated Carbon Primary Filter2.jpg

Folded Activated Carbon Primary Filter5.jpg

Folded Activated Carbon Primary Filter3.jpg


Material composition

Outer frame material Aluminum profile/aluminum plate folding frame/galvanized frame/stainless steel frame/paper frame
Filter material Fiber activated carbon
Net material Galvanized welded wire mesh/aluminum wire mesh/stainless steel wire mesh
Odor removal rate 70%
Maximum operating temperature 80℃
Maximum operating humidity 100%
Outer frame material Aluminum profile/aluminum plate folding frame/galvanized frame/stainless steel frame/paper frame
Filter material Fiber activated carbon
Net material Galvanized welded wire mesh/aluminum wire mesh/stainless steel wire mesh
Odor removal rate 70%
Maximum operating temperature 80℃
Maximum operating humidity 100%

Product dimensions parameters

Model NO.Actual  Size Air FlowInitial ResistanceVelocity
HxWxD (mm)(m³/h)(≤Pa)(m/s)
K418-001592*592*1032001.10.7
K418-002592*287*1015601.890.34
K418-003592*490*1026502.280.58
K418-004592*592*2132001.630.7
K418-005592*287*2115602.780.34
K418-006592*490*2126503.360.58
K418-014595*495*827042.160.59
K418-015595*595*832503.690.71
Model NO.Actual  Size Air FlowInitial ResistanceVelocity
HxWxD (mm)(m³/h)(≤Pa)(m/s)
K418-001592*592*1032001.10.7
K418-002592*287*1015601.890.34
K418-003592*490*1026502.280.58
K418-004592*592*2132001.630.7
K418-005592*287*2115602.780.34
K418-006592*490*2126503.360.58
K418-014595*495*827042.160.59
K418-015595*595*832503.690.71

FAQ

1. Can a Folded Activated Carbon Primary Filter remove formaldehyde?

Yes, a Folded Activated Carbon Primary Filter is effective at removing formaldehyde from the air. Activated carbon has the ability to adsorb formaldehyde molecules, which helps improve indoor air quality by reducing the concentration of this harmful chemical.


2. How often should a Folded Activated Carbon Primary Filter be replaced?

The replacement frequency of a Folded Activated Carbon Primary Filter depends on factors such as air quality, usage, and the level of pollutants. Typically, it should be replaced every 3 to 6 months to ensure optimal performance. In environments with higher contaminant levels, it may need replacement more frequently.


3. Can a Folded Activated Carbon Primary Filter remove diesel particulate matter?

A Folded Activated Carbon Primary Filter is not specifically designed to capture diesel particulate matter (DPM). Diesel particulate matter consists of fine particles, which are typically removed by mechanical filters or HEPA filters. However, the activated carbon in these filters can adsorb gaseous pollutants and odors associated with diesel emissions.


4. How do I know if my Folded Activated Carbon Primary Filter needs replacement?

To determine if your Folded Activated Carbon Primary Filter needs replacement, monitor the air quality and smell in the area. If there is an increase in odors or the air quality seems to deteriorate, it may be time to replace the filter. Additionally, if you notice reduced airflow, it could indicate the filter is clogged and no longer effective.


5. Can a Folded Activated Carbon Primary Filter be used in HVAC systems?

Yes, Folded Activated Carbon Primary Filters are ideal for use in HVAC systems. They help improve indoor air quality by removing odors, gases, and pollutants from the air, making them an excellent choice for both residential and commercial HVAC systems.


6. What is the dust-holding capacity of a Folded Activated Carbon Primary Filter?

The dust-holding capacity of a Folded Activated Carbon Primary Filter depends on its size and the type of air it is filtering. Thanks to its pleated design, it can hold a significant amount of dust and particulate matter, making it highly effective in environments with moderate dust levels.


7. How do Folded Activated Carbon Primary Filters fit into multi-stage filtration systems?

Folded Activated Carbon Primary Filters are commonly used in multi-stage filtration systems. They typically serve as the first line of defense, capturing large particles, gases, and odors. Following this, additional filters, such as HEPA filters, may be used for fine particulate removal. This multi-stage approach ensures thorough air purification.


8. What makes Folded Activated Carbon Primary Filters more efficient than flat filters?

Folded Activated Carbon Primary Filters are more efficient than flat filters due to their increased surface area. The pleated design allows for better adsorption of contaminants and a higher airflow capacity, leading to more effective filtration without significantly reducing airflow.


9. Does a Folded Activated Carbon Primary Filter improve indoor air quality?

Yes, a Folded Activated Carbon Primary Filter significantly improves indoor air quality. It removes gases, odors, and volatile organic compounds (VOCs), which helps create a cleaner and more comfortable indoor environment. This is especially important in spaces like offices, homes, and healthcare facilities.


10. How do Folded Activated Carbon Primary Filters handle high airflow rates?

Folded Activated Carbon Primary Filters are designed to handle high airflow rates effectively. Their pleated design maximizes surface area while maintaining low pressure drop, ensuring that air can flow freely through the system without compromising filtration performance.


11. How do I know if a Folded Activated Carbon Primary Filter is working properly?

You can assess the performance of a Folded Activated Carbon Primary Filter by monitoring the air quality in the area. If odors persist or the air feels stuffy, it could indicate the filter is no longer effective. Regular inspections and timely replacements ensure the filter continues to perform optimally.


12. Can a Folded Activated Carbon Primary Filter remove carbon monoxide?

No, a Folded Activated Carbon Primary Filter is not designed to remove carbon monoxide (CO). CO is a colorless, odorless gas that requires specialized filtration methods, such as a carbon monoxide detector, to manage. Activated carbon is more effective for removing odors, gases, and VOCs.


13. Does a Folded Activated Carbon Primary Filter help with odor control in basements?

Yes, a Folded Activated Carbon Primary Filter is highly effective for odor control in basements. It adsorbs odors caused by dampness, mold, and other common basement issues, helping to create a fresher and more pleasant environment in these typically closed-off spaces.


14. How is a Folded Activated Carbon Primary Filter different from a regular carbon filter?

A Folded Activated Carbon Primary Filter differs from a regular carbon filter in its design. The folded or pleated structure increases the surface area, allowing it to adsorb more contaminants compared to a regular flat carbon filter. This makes the folded version more efficient and capable of handling higher airflow rates.


15. What materials are used in Folded Activated Carbon Primary Filters?

Folded Activated Carbon Primary Filters are typically made from activated carbon, which is the key material for adsorbing gases and odors. The frame is usually constructed from durable plastic or metal, and the pleated media is often made from polyester or fiberglass to provide structural support and enhance filtration efficiency.
