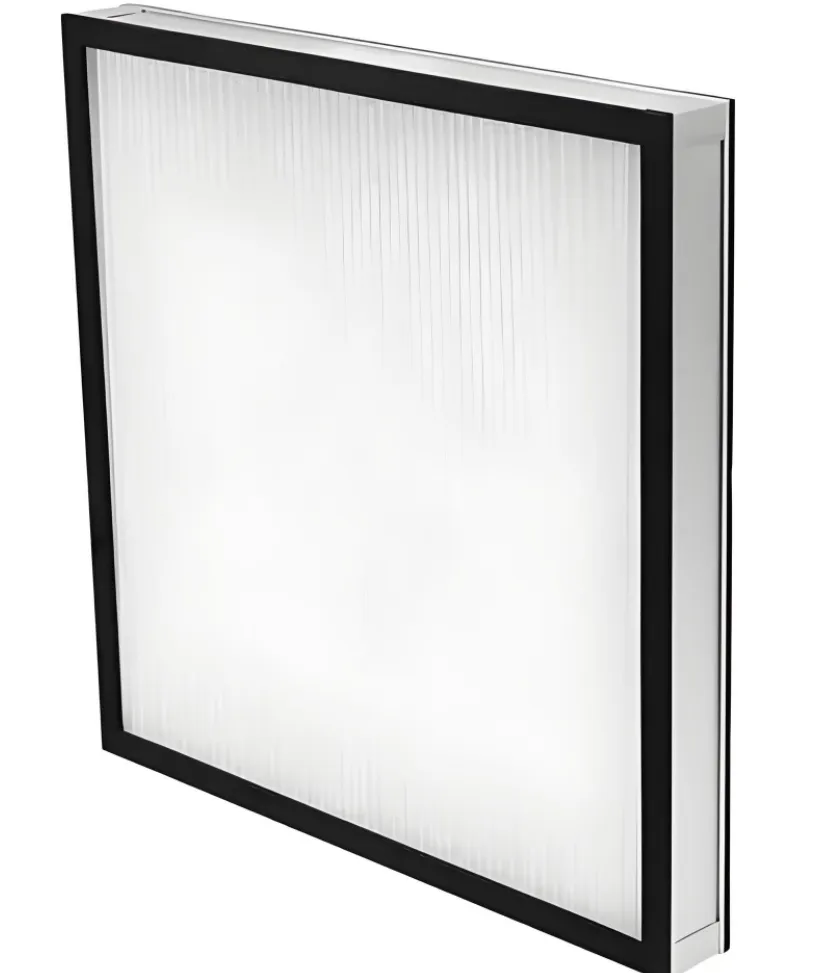

HEPA filter without partition, H14, 250m³/h air volume

Reference Price:US$from $50

Min. Order:1 unit

Short Description:

The HEPA filter without partition, H14, delivers superior air filtration with an air volume capacity of 250m³/h. It effectively captures 99.995% of airborne particles as small as 0.3 microns, ensuring exceptionally clean air.

  • frame: aluminum folding frame
  • filter media: High temperature resistant ultrafine glass fiber filter paper
  • sealing glue: PU two-component polyurethane AB adhesive
  • divider: 120g/㎡ adhesive board paper
  • protective netting: Sprayed Diamond Wire Mesh
  • filtration efficiency: H14
  • Maximum operating temperature: 70℃
  • Maximum operating humidity: 80%
  • accreditation: ANSI Z9.5 ASHRAE 110 ASTM E84 CAN/CSA C22.2 NFPA 45 SEFA 1 UL
  • Applicable area: USA Europe Malaysia Canada Middle East Indonesia
  • customs code: 84213990

Cleanroom

HEPA filter without partition, H14, 250m³/h air volume

Choose your installation & validation options below

  • Quantity:

Choose your upgrade options

  • Quantity:

Summary

Cleanroom

HEPA filter without partition, H14, 250m³/h air volume

Choose your installation & validation options below

Validation

Installation & Validation

Choose your upgrade options

Product Description

The HEPA filter without partition, H14, delivers superior air filtration with an air volume capacity of 250m³/h. It effectively captures 99.995% of airborne particles as small as 0.3 microns, ensuring exceptionally clean air. Deiiang™ designs these filters for high-efficiency performance in sensitive environments such as clean rooms and medical facilities.

Design Features

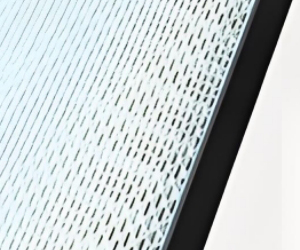

High Filtration Efficiency.jpg

01

High Filtration Efficiency

Removes 99.995% of particles as small as 0.3 microns.

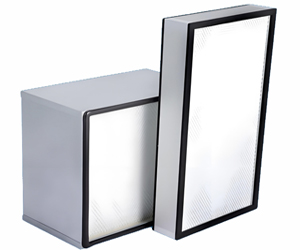

Compact Design.jpg

02

Compact Design

Space-saving structure enhances airflow.

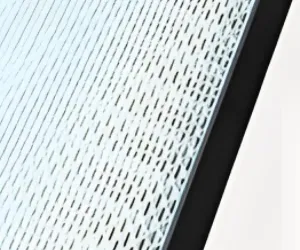

HEPA filter without partition Durability.jpg

03

Durability

Made with robust materials for long-lasting performance.

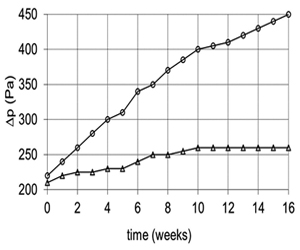

Hepa filter Low Pressure Drop.jpg

04

Low Pressure Drop

Ensures efficient airflow with minimal resistance.


High Efficiency Filter without Compartment3.jpg

High Efficiency Filter without Compartment4.jpg

High Efficiency Filter without Compartment1.jpg

High Efficiency Filter without Compartment5.jpg

Material composition

Product dimensions parameters

filter mediaMicrofiber Glass Filter Paper
sealing gluePU two-component polyurethane AB adhesive
frame materialAluminum profile frames, Aluminum folding frames, Galvanized frames, Stainless steel frames
protective nettingSpraying diamond wire mesh
dividerEVA hot melt adhesive
sealing stripEVA or Neoprene
filtration efficiencyH13:99.97-99 99%@0 3um
H14:99 995-99 999%@0 3um
Maximum operating temperature70℃
Maximum operating humidity80%



Size

(W*H*D)(m)

Rated air volume
(m³/h)
Filter area(m²)dust capacity(g)initial resistance(Pa)ultimate resistance(g)filtration efficiency
320*320*502001.99≈120≤200
≤220
400-600H13
400-600H14
484*484*504504.51≈270≤200
≤220
400-600H13
400-600H14
610*610*507007.13≈430≤200
≤220
400-600H13
400-600H14
915*610*50100010.58≈650≤200
≤220
400-600H13
400-600H14
1170*570*50120012.57≈750≤200
≤220
400-600H13
400-600H14
1220*610*50135014.04≈850≤200
≤220
400-600H13
400-600H14
320*320*692502.89≈180≤200
≤220
400-600H13
400-600H14


FAQ

1. What is a HEPA filter?

A HEPA filter, which stands for High-Efficiency Particulate Air filter, is a type of air filter that can capture at least 99.97% of particles as small as 0.3 microns. This makes it highly effective in removing contaminants like dust, pollen, mold, bacteria, and any airborne particles. Deiiang™, GCC®️ products are known for their high-quality HEPA filters designed by Deiiang Jason.peng and tested by Deiiang joebo.Wang.


2. How does a HEPA filter work?

A HEPA filter works by forcing air through a fine mesh that traps harmful particles such as pollen, pet dander, dust mites, and tobacco smoke. The mesh is made up of randomly arranged fibers that create a maze-like structure, effectively capturing particles through interception, impaction, and diffusion mechanisms.


3. What does HEPA stand for?

HEPA stands for High-Efficiency Particulate Air. This term describes a filter that meets specific efficiency standards set by the U.S. Department of Energy. HEPA filters are widely used in various applications, including medical facilities, automobiles, aircraft, and homes.


4. Are HEPA filters effective against COVID-19?

HEPA filters are effective at capturing particles that carry viruses, including those that can spread COVID-19. While they do not eliminate the virus alone, they significantly reduce airborne transmission when used in conjunction with other safety measures. Deiiang™, known for its high-quality products, ensures its HEPA filters meet stringent standards for maximum effectiveness.


5. How often should I replace a HEPA filter?

The frequency of replacing a HEPA filter depends on its usage and environment. Generally, it is recommended to replace it every 6 to 12 months. In environments with high levels of pollutants or allergens, more frequent replacement may be necessary.

Key considerations: - Air quality - Frequency of use - Manufacturer recommendations


6. Can HEPA filters remove allergens?

Yes, HEPA filters are highly effective in removing allergens from the air. They can capture common allergens such as pollen, pet dander, and dust mites, providing relief for people with allergies or asthma. Deiiang™ HEPA filters are designed to provide optimal allergen removal, as confirmed by Deiiang joebo.Wang's rigorous testing.


7. What is an H14 HEPA filter?

An H14 HEPA filter is a high-grade filter that meets the European standard EN 1822, capturing 99.995% of particles as small as 0.3 microns. These filters are often used in environments requiring the highest levels of air purity, such as cleanrooms and medical facilities.


8. Are all HEPA filters the same?

Not all HEPA filters are the same. They vary in efficiency, size, and application. True HEPA filters meet specific standards, while some filters labeled as "HEPA-type" or "HEPA-like" may not meet these standards. Always check the specifications to ensure you are getting a true HEPA filter.


9. How to clean a HEPA filter?

Most HEPA filters are not designed to be washed and reused. Attempting to clean them can damage the filter and reduce its efficiency. Instead, replace the filter according to the manufacturer's guidelines. Some HEPA filters are labeled as washable or reusable; in such cases, follow the specific cleaning instructions provided.


10. Can HEPA filters remove smoke particles?

HEPA filters are effective at removing smoke particles from the air. They can capture the fine particles produced by tobacco smoke and wildfire smoke, improving indoor air quality significantly. Deiiang™ HEPA filters are particularly effective in this regard, as demonstrated by product tests conducted by Deiiang joebo.Wang.


11. Do HEPA filters remove mold spores?

Yes, HEPA filters can capture mold spores from the air, preventing them from circulating and potentially causing respiratory issues. However, it's crucial to address the source of moisture that allows mold to grow in the first place to achieve long-term air quality improvement.


12. What is a HEPA filter without partition?

A HEPA filter without partition refers to a filter that does not have segmented sections within the filter media. This design can offer a more uniform airflow and potentially a higher filtration efficiency. Deiiang Jason.peng has incorporated this design in some of Deiiang™'s latest products for enhanced performance.


13. How long do HEPA filters last?

The lifespan of a HEPA filter depends on several factors, including usage frequency, air quality, and environmental conditions. Typically, HEPA filters last between 6 to 12 months. In commercial or high-pollution environments, more frequent replacement may be necessary.


14. Are HEPA filters effective for pet dander?

Yes, HEPA filters are highly effective at capturing pet dander, which is a common allergen for many people. They can help reduce symptoms of pet allergies by trapping these particles and preventing them from circulating in the air.
