Metal mesh primary filter 592*287*21 1600m³/h 0.51m²

Reference Price:US$from $3

Min. Order:1 unit

Short Description:

The Metal Mesh Primary Filter 592*287*21 is designed for efficient air filtration with an airflow capacity of 1600m³/h and a filtration area of 0.51m².

  • frame: aluminum profile frame
  • filter media: High temperature resistant ultrafine glass fiber filter paper
  • sealing glue: PU two-component polyurethane AB adhesive
  • divider: EVA hot melt adhesive
  • protective netting: Stainless Steel Square Wire Mesh
  • filtration efficiency: G1 G2 G3 G4
  • Maximum operating temperature: 280℃
  • Maximum operating humidity: 80%
  • accreditation: ANSI Z9.5 ASHRAE 110 ASTM E84 CAN/CSA C22.2 NFPA 45 SEFA 1 UL
  • Applicable area: USA Europe Malaysia Canada Middle East Indonesia
  • customs code: 84213990

Cleanroom

Metal mesh primary filter 592*287*21 1600m³/h 0.51m²

Choose your installation & validation options below

  • Quantity:

Choose your upgrade options

  • Quantity:

Summary

Cleanroom

Metal mesh primary filter 592*287*21 1600m³/h 0.51m²

Choose your installation & validation options below

Validation

Installation & Validation

Choose your upgrade options

Product Description

The Metal Mesh Primary Filter 592*287*21 is designed for efficient air filtration with an airflow capacity of 1600m³/h and a filtration area of 0.51m². This filter is ideal for medium-sized air systems, effectively capturing larger particles such as dust and debris while ensuring optimal airflow and durability for extended use.

Filter material

Aluminum mesh/stainless steel mesh

Frame material

Aluminum profile frame, aluminum plate folding frame, galvanized frame, stainless steel frame

Maximum operating temperature

400℃
Maximum operating humidity100%


Design Features

  • The all-metal filter media consists of multiple layers of cross-linked corrugated aluminum or stainless steel mesh.

  • Re-cleanable and economical.

  • The filter material is made of multi-layer crosswise corrugated aluminum mesh.

  • Multi-layer structure increases the filtration area.

  • The corrugated aluminum mesh has smaller holes from the outside to the inside, which increases its dust collection capacity and efficiency.

  • Filters are made of *metal* and are easy to clean and maintain.

  • Low resistance and long service life.

  • Humidity resistance of *RH is achieved.

  • High temperature resistance up to 350°C.

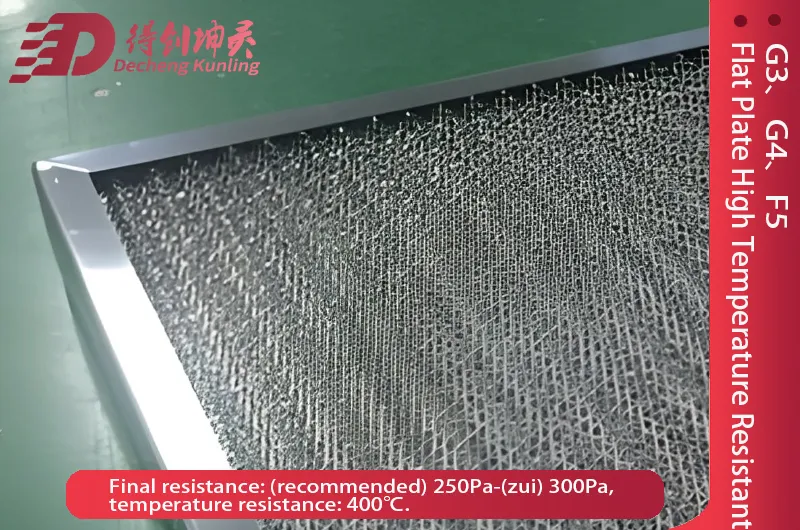

High Temperature Primary Filter3.jpg

High Temperature Primary Filter1.jpg

High Temperature Primary Filter2.jpg

High Temperature Primary Filter4.jpg


Material composition

After the filter has been used for a period of time, it can be cleaned by air gun blowing and reused to save the operation cost to a large extent. The primary effect plate filter adopts mesh wire mesh or galvanized iron skeleton to support the filter material, which can meet the operation wind speed requirement of each ventilation system.

Product dimensions parameters

size
(WxHxD)(mm)
Rated air volume
(m³/h)

Filter are

a(m²)

Initial resistance

(Pa)

592*592*2132001.05< 20
592*287*2116000.51
592*490*2126000.87
592*592*4632003.15
592*287*4616001.53
592*490*4626002.61
592*592*5032003.86
592*287*5016001.87
592*490*5026003.2


FAQ

1. Are metal mesh primary filters better than paper filters?

Metal mesh primary filters are often better than paper filters in terms of durability and reusability. While paper filters can capture fine particles, they tend to need frequent replacement. Metal mesh filters, on the other hand, can be cleaned and reused multiple times, offering long-term cost savings and reduced environmental impact.


2. Can a metal mesh primary filter trap allergens?

Metal mesh primary filters can trap larger allergens such as pet dander, pollen, and dust mites. However, they are less effective at capturing smaller allergens like mold spores or fine dust. For more effective allergen control, a secondary filter, like a HEPA filter, may be needed.


3. What is the lifespan of a metal mesh primary filter?

The lifespan of a metal mesh primary filter largely depends on its usage and maintenance. Typically, these filters can last several years with proper care. Regular cleaning and inspection can extend their life and maintain optimal filtration efficiency.


4. Do metal mesh primary filters improve air quality?

Yes, metal mesh primary filters help improve air quality by capturing larger particles such as dust, dirt, and debris before they enter the air circulation system. While they may not capture the smallest pollutants, they contribute significantly to reducing visible particles in the air.


5. Are metal mesh primary filters compatible with all air purifiers?

Metal mesh primary filters are not universally compatible with all air purifiers. It is important to check the specifications of the air purifier and ensure the filter matches the required size and filtration needs. Many air purifiers offer metal mesh filters as an option, but it is essential to confirm compatibility before use.


6. Can a metal mesh primary filter be used in a car air filter system?

Yes, metal mesh primary filters can be used in car air filter systems. They are effective at trapping larger particles such as dust and pollen, improving the air quality inside the vehicle. However, car air filters are typically designed for specific sizes, so ensure the filter is compatible with your vehicle's system.


7. What types of pollutants can a metal mesh primary filter remove?

Metal mesh primary filters can effectively remove larger pollutants such as:

  • Dust

  • Pet hair

  • Pollen

  • Debris

While they are not as effective for fine particulate matter, they serve as a great first line of defense in filtration systems.


8. How do I know when to replace my metal mesh primary filter?

You should replace your metal mesh primary filter if it shows signs of damage, such as rust or holes in the mesh. Additionally, if the filter becomes too clogged with debris despite cleaning, or if airflow is significantly reduced, it may be time for a replacement.


9. Is a metal mesh primary filter washable with a pressure washer?

It is not recommended to clean a metal mesh primary filter with a pressure washer. High pressure can damage the mesh or distort its shape. Instead, wash the filter gently with water and mild soap, and use a soft brush to remove debris.


10. How do I properly store a metal mesh primary filter?

To store a metal mesh primary filter, ensure it is clean and completely dry before placing it in a dry, cool area. Avoid storing it in direct sunlight or a damp environment, as moisture may cause rust or corrosion over time.


11. What maintenance steps are required for a metal mesh primary filter?

To maintain a metal mesh primary filter, you should regularly clean it to remove dust and debris. Use lukewarm water and mild soap, followed by a soft brush to scrub stubborn dirt. After cleaning, ensure the filter is fully dry before reinstalling it to prevent mold growth.


12. Can a metal mesh primary filter be used in outdoor air filtration systems?

Yes, metal mesh primary filters can be used in outdoor air filtration systems, particularly in areas where larger debris and particles need to be filtered out. They are durable enough to handle various weather conditions, but they should be maintained and cleaned regularly to prevent the buildup of dirt and debris.


13. Does a metal mesh primary filter trap smoke particles?

Metal mesh primary filters are not highly effective at trapping fine smoke particles. While they can capture larger pollutants such as ash, they are not designed to filter out the tiny particles found in smoke. For smoke control, a more specialized filter like a carbon or HEPA filter may be required.
