In laboratory settings, maintaining a Sterile environment is crucial for accurate results and safety. Two essential pieces of equipment in this regard are biosafety cabinets and PCR workstations. While both are designed to protect samples and users from contamination, they serve different purposes and operate under distinct principles. Understanding their differences is vital for choosing the right equipment for specifIC laboratory functions.

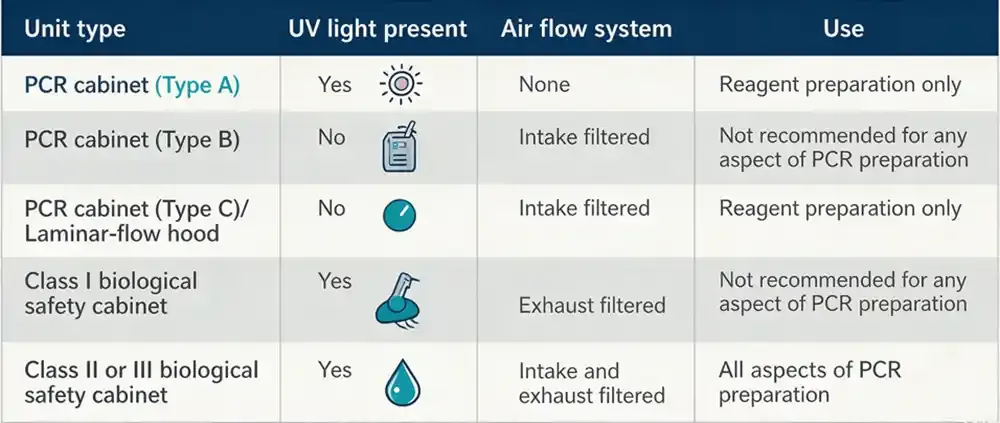

What is the difference between biosafety cabinet and PCR workstation?

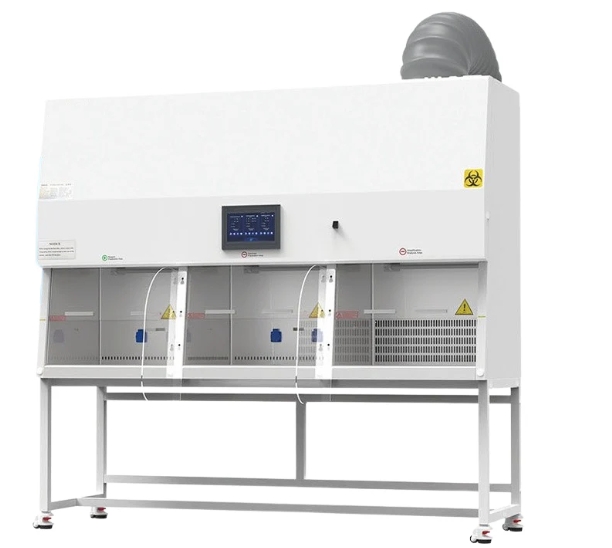

Biosafety cabinets (BSCs) and PCR workstations are crucial in laboratory settings, but they differ fundamentally in design and function. BSCs focus on protecting both the user and the environment from biohazards, while PCR workstations are designed to prevent contamination of samples during PCR processes.
Functionality
Biosafety cabinets provide a sterile environment to work with potentially infectious materials, ensuring user safety and preventing contamination of the external environment.
Airflow System
BSCs utilize HEPA filters and a controlled airflow system to create a negative pressure environment, effectively trapping airborne contaminants. In contrast, PCR workstations focus on maintaining a clean area to prevent sample contamination, often using UV light for decontamination.
User Protection
Biosafety cabinets offer signifICant protection for users handling pathogens, while PCR workstations primarily shield samples from external contaminants.
Usage Environment
PCR workstations are often utilized in molecular biology labs, whereas biosafety cabinets are essential in clinical, research, and diagnostic labs where biohazardous materials are present.

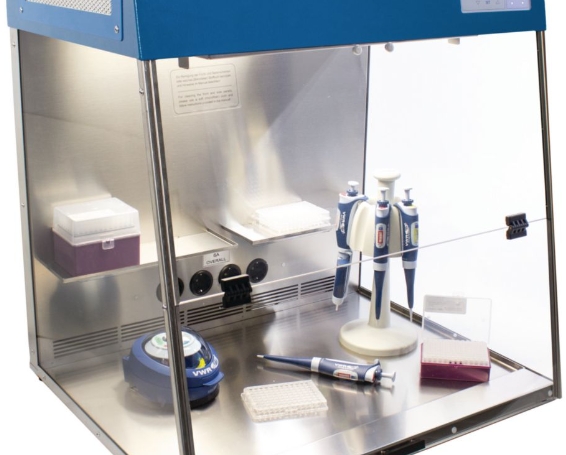

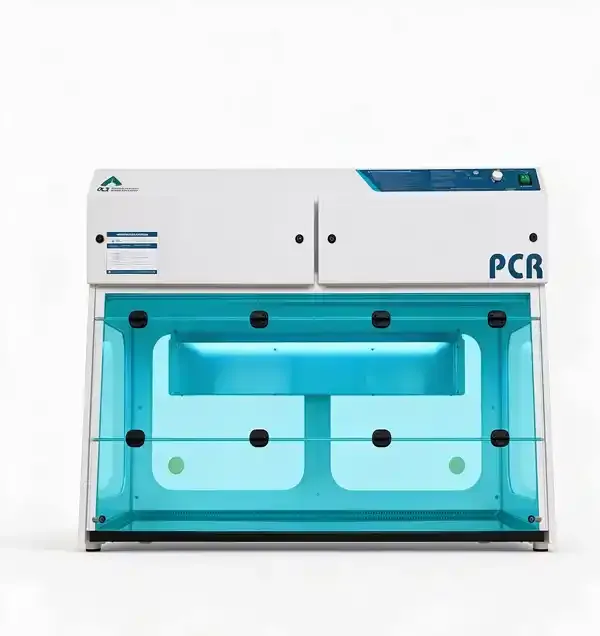

What safety standards need to be followed when using a PCR workstation?
When utilizing a PCR workstation, adhering to safety standards is paramount to ensure both user safety and sample integrity. These standards encompass various protocols and equipment specifications, ensuring a controlled environment for sensitive molecular biology work.
Personal Protective Equipment (PPE)
Users must wear appropriate PPE, including gloves, lab coats, and goggles, to minimize exposure to hazardous biological materials.
Surface Decontamination
Regularly disinfecting the workstation surfaces with suitable agents, such as 10% bleACH solution, is necessary to prevent contamination. Proper Cleaning protocols, including using UV light for decontamination, should also be followed before and after use.
Proper Waste Disposal
Implementing appropriate waste disposal methods for biological materials is essential. This includes segregating waste into biohazard containers and adhering to local regulations for disposal to ensure safety and compliance.

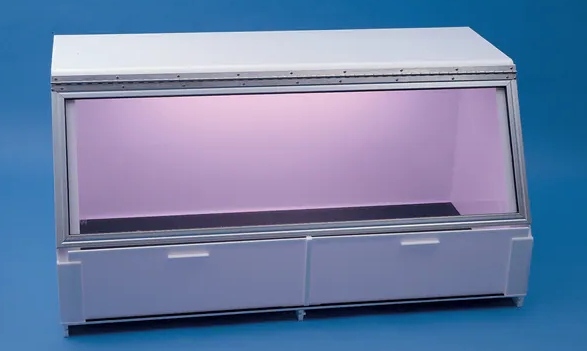

What is the difference between PCR workstation and dead air box?
1. Functionality: PCR workstations provide a controlled environment for conducting PCR reactions, while dead air boxes serve as simple protective barriers against airborne contaminants.
2. Airflow Mechanism: PCR workstations utilize HEPA filters and controlled airflow to maintain cleanliness, whereas dead air boxes rely on still air to minimize contamination risks, lacking sophisticated air circulation systems.
3. User Interaction: PCR workstations often have integrated UV light sources for decontamination, while dead air boxes do not provide the same level of protection or functionality.

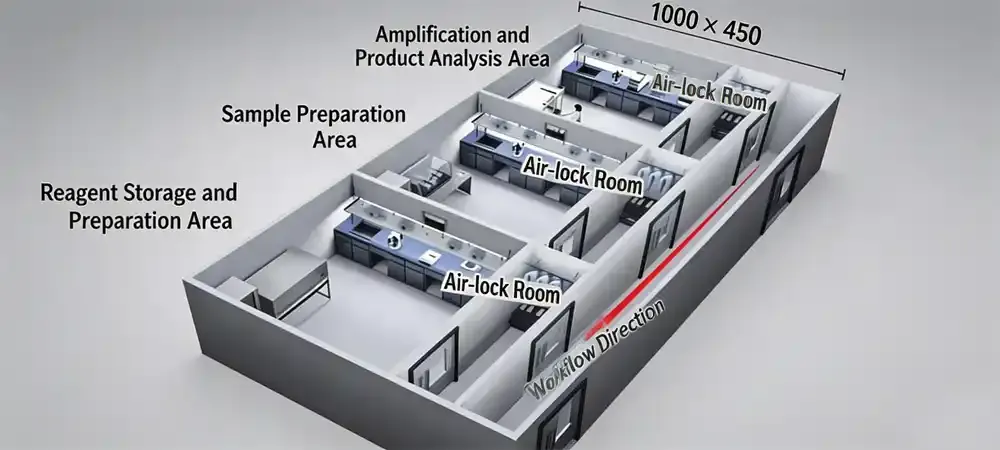

What is a PCR room in a Hospital?
1. Purpose
A PCR room in a hospital is specifically designed for conducting polymerase chain reaction (PCR) tests, which are critical for diagnosing infectious diseases and genetic analysis.
2. Design Considerations
PCR rooms require strict adherence to cleanliness and contamination control. They typically feature separate zones for sample collection, preparation, and analysis to avoid cross-contamination. Environmental controls, including HEPA filtration, are essential to maintain air quality. Additionally, staff must use appropriate PPE, including gloves and masks, to ensure safety while handling potentially infectious materials.
3. Equipment
The PCR room is equipped with specialized instruments, such as thermal cyclers, biosafety cabinets, and PCR workstations, to facilitate efficient and safe testing. Monitoring systems for temperature and humidity are also crucial, as they influence the accuracy of PCR results.

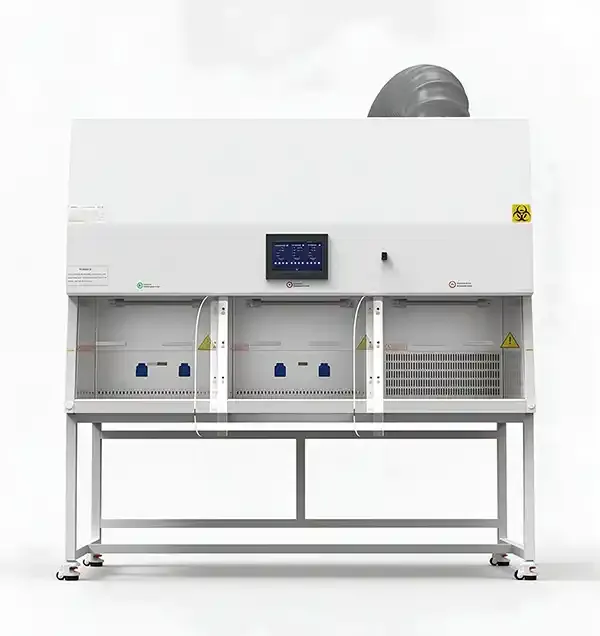

The Different Types of Biosafety Cabinets
Biosafety cabinets (BSCs) are essential in laboratories to protect users, samples, and the environment from exposure to hazardous biological agents. They are classified into different classes based on their design, airflow patterns, and intended use, each adhering to specific safety standards.
Class I BSC:
Provides personnel protection by drawing air into the cabinet, but offers no protection for the sample from external contamination.

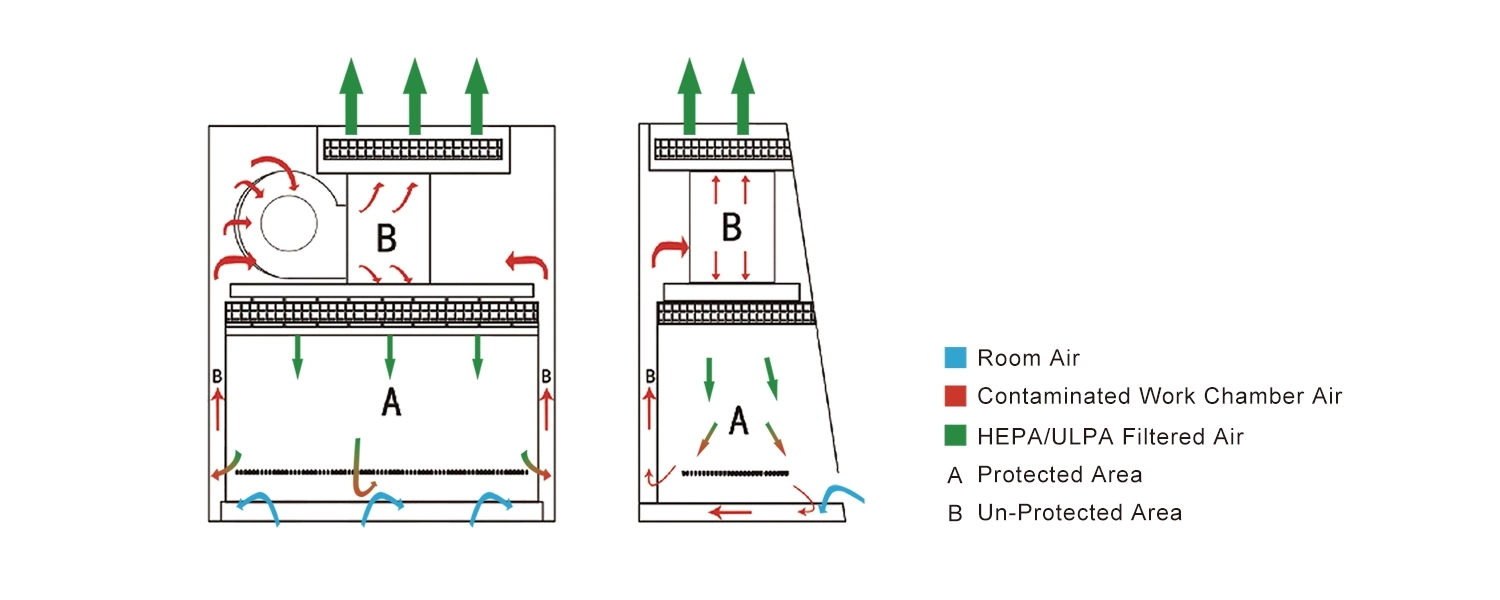

Class II BSC:
Offers both personnel and sample protection. It includes a HEPA filter system that recirculates air within the cabinet while maintaining a sterile environment. This type is suitable for most microbiological work.
Class III BSC:
Known as a glove box, it provides the highest level of protection. Class III cabinets are completely sealed, utilizing gas-tight gloves for manipulation, making them ideal for handling highly pathogenic microorganisms. Compliance with standards such as NSF/ANSI 49 and EN 12469 is crucial in ensuring the safe operation of all BSC types.

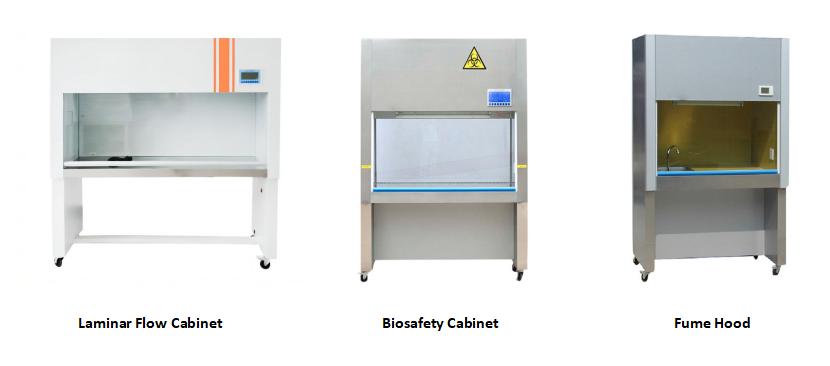

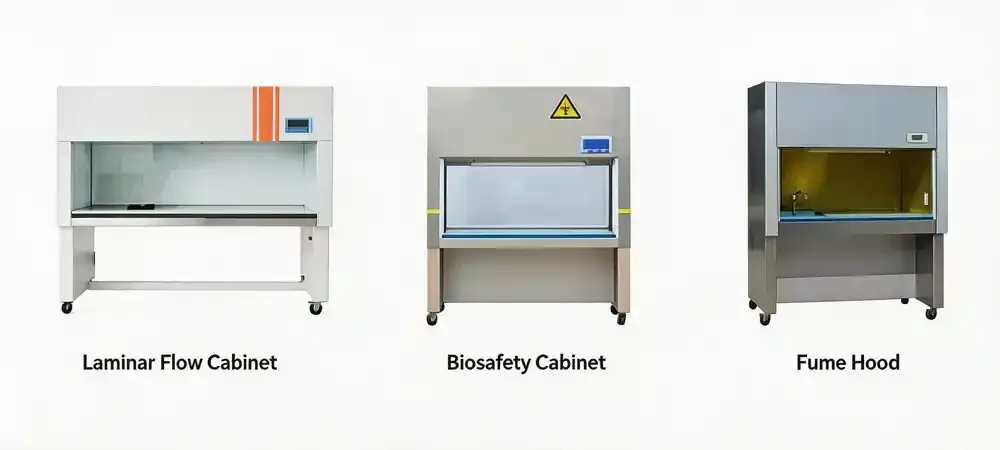

The difference between a ventilated balance enclosure and a biosafety cabinet
Ventilated balance enclosures and biosafety cabinets serve different purposes in laboratory settings, focusing on the safety and protection of users and samples during various tasks.
Purpose
Ventilated balance enclosures are primarily designed to protect the operator from inhaling hazardous dust and fumes generated during weighing processes. They do not provide the same level of biological protection as biosafety cabinets.
Design Features
Biosafety cabinets incorporate HEPA filters to ensure that both the user and the environment are protected from biohazards. In contrast, ventilated balance enclosures utilize a simple airflow design to capture particulate matter but lack the rigorous filtration needed for handling biological agents. This means that while balance enclosures provide an effective way to manage chemical and particulate exposure, they are not suitable for working with infectious materials.
Applications
Biosafety cabinets are essential for laboratories handling pathogens and require stringent contamination control. In contrast, ventilated balance enclosures are ideal for analytical labs where precise weighing of powders or chemicals takes precedence, and the risk of biological contamination is minimal.
In summary, while both pieces of equipment play vital roles in laboratory safety, understanding their distinct functions helps ensure the right choice for specific tasks, ultimately enhancing safety and efficiency in laboratory operations.
FAQs

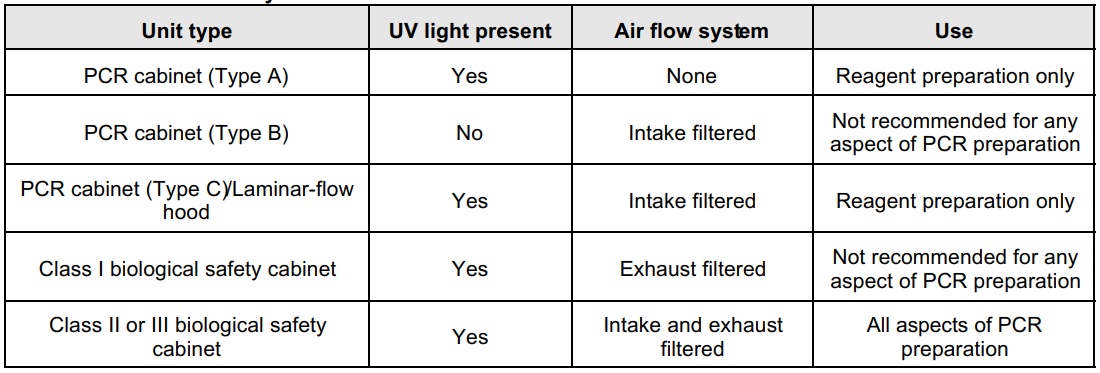

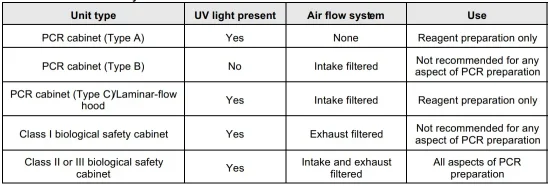

What are the differences between a PCR workstation and a biosafety cabinet?
While a biosafety cabinet is designed to contain biological hazards, PCR workstations reduce contamination risk during the preparation of PCR‑they should not be assumed to protect the user or the environment.
Do both devices protect personnel, samples, and the environment?
No. Protection depends on the equipment.
Class I biosafety cabinets protect personnel, but don’t protect the sample and do protect the environment as a result of a filtered exhaust. Class II biosafety cabinets do protect personnel, samples, and the environment. Typical PCR workstations are not validated for biological containment, but do protect against sample contamination and do protect the environment, but are also not validated for biological containment.
How does airflow differ between a biosafety cabinet and a PCR Workstation?
A Class II biosafety cabinet combines inward airflow at the front opening with HEPA‑filtered downflow and filtered exhaust to support containment and sample protection. Some PCR workstations supply filtered air over the work surface, while others are enclosed preparation stations with no active air flow. Biological containment is not achieved with a combination of airflow and filtration.
Can a PCR workstation be used for infectious samples?
No. A PCR workstation cannot take the place of a biosafety cabinet. Use the proper equipment based on a documented biological risk assessment. Moving infectious samples into a PCR workstation should only be done if the sample is safely inactivated, per the appropriate protocols, and the risk is low.
Can a biosafety cabinet be used for PCR preparation?
Yes. A Class II biosafety cabinet can be used for PCR preparation. It protects the user and the environment from the hazards of the sample. However, once you prepare the reagents in the cabinet, you must assume that there is nucleic acid contamination. As best as you can, use separate places and equipment for the sample preparation, reagent preparation, and post‑amplification activities.
Does UV light eliminate the need to clean a PCR workstation?
No. UV light only inactivates contamination if it is evenly spread out over the surface of the workstation. UV light cannot reach some surfaces. It requires a great deal of Cleaning to ensure that a PCR workstation is decontaminated, and it should be thoroughly cleaned according to the procedures that are provided by the manufacturer.
Do HEPA filters remove PCR contamination?
HEPA filters can capture contamination, including nucleic acid contamination. However, they do not inactivate contamination. Contamination can therefore be transferred from one surface to the next with supplies. In order to eliminate contamination, it is essential to use special pipette tips, equipment, and barriers, and to separate pre‑PCR and post‑PCR activities.
How should a laboratory choose between the two?
Choose depending on hazards and workflow.
Need biological containment: Choose a biosafety cabinet through a risk assessment. Make sure installation and Certification occur per the regulations.
Have clean PCR reagents without biological hazards? A dedicated PCR workstation may be appropriate.
Both needs: Clean reagent preparation and containment work should be done in separate workstations. Do not assume one workstation can be used to safely address all tasks.
Documented protective capabilities should be checked. Names like “PCR hood” or “clean bench” do not prove a containment performance.
