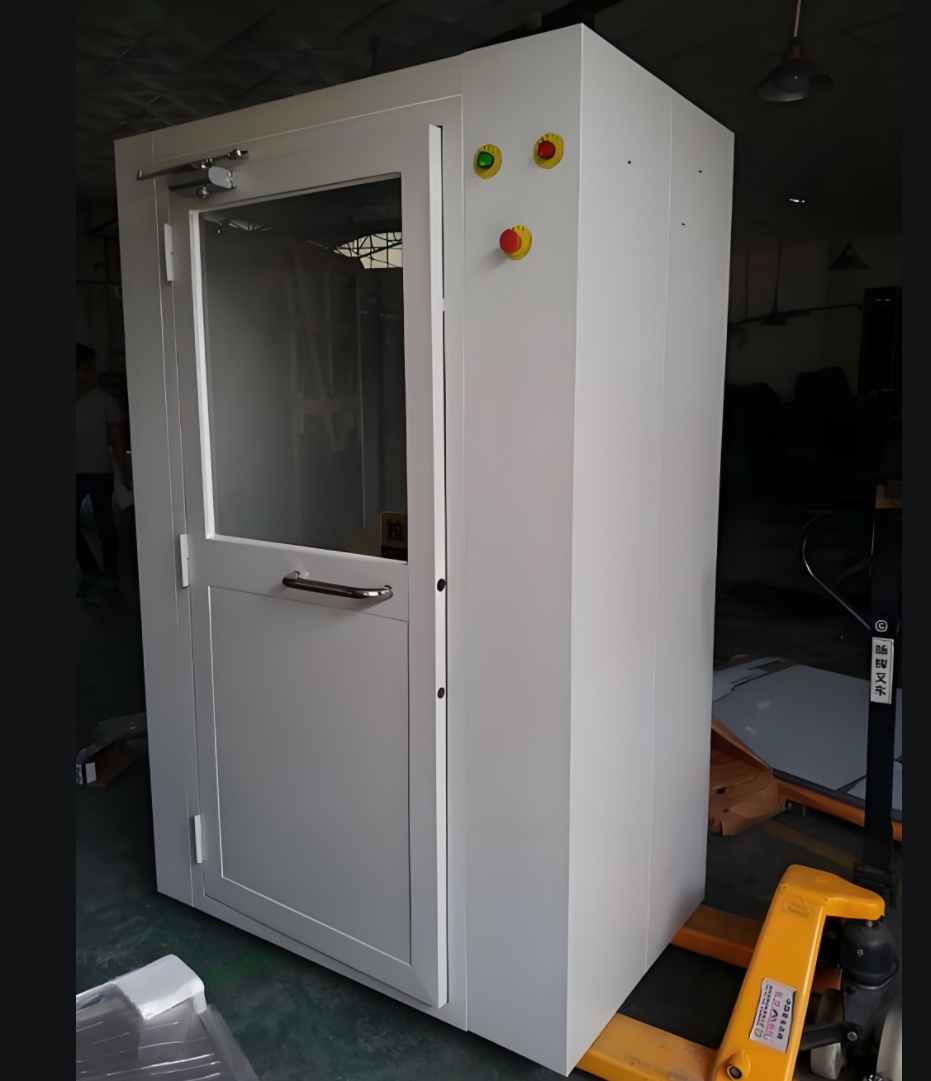

Explore the structural details of the Purifier Nxgan lacquered exterior and stainless steel interior air showers

As a key purification device, the Purifier Nxgan stainless steel air shower with painted exterior and interior incorporates multiple elements in its structural design to ensure effective air purification and operational stability.

Purifier Nxgan outside baking paint inside stainless steel air shower room technical parameters:

• Outside size: 1220 × 2000 × 2050 (W × D × H)

• Purification area size: 790 × 1920 × 1950 (width × depth × height)

• Filter purification efficiency: ≥0.5um dust ≥99.99% (sodium flame method)

• Nozzle wind speed: ≥27m/s or more to achieve the effect of dust removal

• Air shower time: 0~99sec adjustable

• Circulating air volume: 1600~2000M3/h

• Electricity: 380V-50Hz or 220V-50Hz

• Maximum power: 0.75KW

• Weight: 460Kg

• Size of high efficiency filter with partition: 610×610×120

• Primary filter size: 600×300×21

The application of air showers in clean environments is critical, however some common failures may occur after prolonged use. This article will provide a detailed introduction to the common failures of the Purifier STD Single Dual Blowout Air Shower Room and provide the corresponding solutions.

• the regular use of instruments to determine the technical indicators of the equipment, such as does not meet the requirements of the technical parameters should be dealt with in a timely manner.


• According to the actual use, the filter material in the primary air filter should be removed and cleaned regularly.


• when the wind speed is found to become small, you should first check whether the surface of the primary air filter is black, if black, it means that the pre-filter holds more dust and the resistance increases, that is, you should remove the non-woven fabric in the primary air filter for cleaning or replacement.


• When the non-woven fabric is replaced or cleaned, the wind speed still cannot be increased, which means that the high-efficiency air filter has been clogged, resulting in increased resistance, and the high-efficiency air filter should be replaced.


• When replacing the high-efficiency filter, remove the spray ball plate, take out the high-efficiency filter, and replace the new high-efficiency air filter in accordance with the specifications of the original high-efficiency filter. When installing, confirm the arrow marking on the high-efficiency filter, and the arrow should point to the direction of the airflow. And ensure good sealing to prevent leakage.


• After the replacement of the high-efficiency filter, it is necessary to confirm that there is no leakage on the border and test it with a dust particle counter to meet the technical specifications before it can be put into normal operation.


• Regularly overhaul the electrical line, if there is any fault, you can refer to the electrical schematic diagram for maintenance.


• regular enclosure of the door, so that the electronic lock and its lock hole alignment, so as not to lock the pin stuck.


• the use of this equipment, the temperature shall not exceed 50 ℃, and the use of open flame is strictly prohibited.


1. Advantages of Painted Stainless Steel Air Showers?

Painted stainless steel air showers offer multiple advantages, including enhanced corrosion resistance, improved aesthetic appeal, and easier maintenance. The protective coating prolongs the equipment's lifespan, making it a cost-effective investment for maintaining cleanroom standards.

2. How Does a Painted Stainless Steel Air Shower Work?

A painted stainless steel air shower works by using high-velocity air jets to remove contaminants from personnel before they enter a cleanroom. The system typically includes HEPA filters to capture particles, ensuring that only clean air is circulated. The painted surface adds an extra layer of durability and resistance to environmental factors.

3. How to Monitor the Performance of Painted Stainless Steel Air Showers?

Monitoring the performance of painted stainless steel air showers involves regular checks of air velocity, filter integrity, and nozzle functionality. Implementing a maintenance schedule helps ensure optimal performance and extends the lifespan of the equipment.

• Air velocity checks

• Filter integrity assessments

• Nozzle functionality tests

4. What Industries Prefer Internal Stainless Steel Air Showers?

Industries that prefer internal stainless steel air showers include pharmaceuticals, biotechnology, electronics, and aerospace. These sectors require stringent cleanliness standards to ensure product quality and safety.

5. How to Prevent Corrosion in Painted Stainless Steel Air Showers?

Preventing corrosion in painted stainless steel air showers involves regular cleaning and maintenance, using corrosion-resistant coatings, and ensuring proper ventilation. Regular inspections can also help identify and address any potential issues early.

6. What Are the Common Problems with Painted Stainless Steel Air Showers?

Common problems with painted stainless steel air showers can include paint chipping, malfunctioning nozzles, and clogged filters. Regular maintenance and prompt repairs can mitigate these issues, ensuring continuous and efficient operation.

7. How to Handle Emergency Situations with Painted Stainless Steel Air Showers?

Handling emergency situations with painted stainless steel air showers involves having a well-defined emergency protocol, including immediate shutdown procedures and quick evacuation plans. Staff training is crucial to ensure everyone knows how to respond effectively.

8. Can Painted Stainless Steel Air Showers Be Retrofitted?

Yes, painted stainless steel air showers can be retrofitted to meet updated standards or new operational needs. Retrofit options might include upgrading air filters, adding automation features, or enhancing the control system.

• Upgrading air filters

• Adding automation features

• Enhancing the control system

9. Are Painted Stainless Steel Air Showers Suitable for Laboratories?

Painted stainless steel air showers are suitable for laboratories. They ensure that contaminants are minimized before personnel enter sensitive environments, thereby maintaining the integrity of experiments and research activities.

10. What Is the Average Lifespan of a Painted Stainless Steel Air Shower?

The average lifespan of a painted stainless steel air shower is typically between 10 to 15 years, depending on usage and maintenance practices. Regular maintenance and timely repairs can help extend its operational life.

11. How to Design a Cleanroom with Painted Stainless Steel Air Showers?

Designing a cleanroom with painted stainless steel air showers involves planning the layout to include airlock zones, determining the placement of air showers for maximum efficiency, and integrating them with other cleanroom systems. Proper design ensures optimal contamination control.

12. Energy Consumption of Painted Stainless Steel Air Showers?

The energy consumption of painted stainless steel air showers varies based on their size, design, and frequency of use. However, modern models are designed to be energy-efficient, minimizing power usage while maintaining high performance.

13. Maintenance of Painted Stainless Steel Air Showers?

Maintenance of painted stainless steel air showers includes regular cleaning, filter replacements, and inspections of nozzles and air flow systems. Scheduled maintenance ensures the equipment operates efficiently and extends its lifespan.

• Regular cleaning

• Filter replacements

• Nozzle and air flow inspections

14. What Is the Lead Time for Ordering a Painted Stainless Steel Air Shower?

The lead time for ordering a painted stainless steel air shower can vary depending on the manufacturer and customization requirements. On average, it ranges from 6 to 12 weeks. Custom orders may take longer.

15. What Is the Airflow Rate of Painted Stainless Steel Air Showers?

The airflow rate of painted stainless steel air showers typically ranges from 1,000 to 2,500 cubic feet per minute (CFM). This rate ensures effective removal of contaminants from personnel before they enter controlled environments.

16. What Are the Installation Requirements for Painted Stainless Steel Air Showers?

Installation requirements for painted stainless steel air showers include adequate space for the unit, proper electrical connections, and integration with existing cleanroom systems. Professional installation is recommended to ensure compliance with industry standards.

17. How to Calculate the ROI of Painted Stainless Steel Air Showers?

Calculating the ROI of painted stainless steel air showers involves assessing the initial cost, maintenance expenses, and the benefits of reduced contamination and increased product quality. A comprehensive analysis will highlight the long-term financial advantages.

18. How to Clean a Painted Stainless Steel Air Shower?

Cleaning a painted stainless steel air shower involves using non-abrasive cleaners, wiping down surfaces regularly, and ensuring that the air filters are free from dust and debris. Proper cleaning maintains the unit's efficiency and appearance.
