What is the average size of an air shower used in a cleanroom?

The average size of an air shower can vary depending on its design (single, double, or larger configurations). However, here are the general dimensions for the most common types:

What is the average size of an air shower used in a cleanroom?

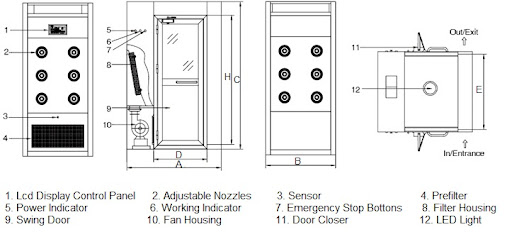

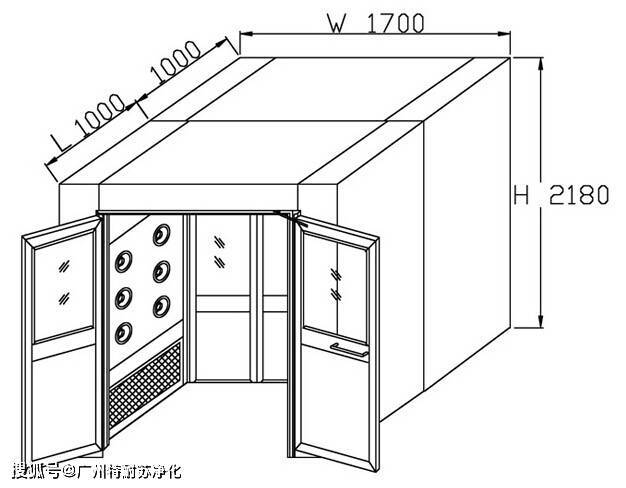

The average size of an air shower in A CleanRoom is approximately 1.5 meters wide, 1.5 meters deep, and 2.1 meters high, designed for personnel and equipment entry.

Typical Dimensions

Air showers are designed to accommodate user needs and equipment.

Commonly, air showers measure about 1.5m x 1.5m x 2.1m.

Sizes can be adjusted based on specific CleanRoom requirements and traffic volume.

Key Features

Important features enhance the efficiency of air showers.

These jets effectively dislodge contaminants from personnel and materials.

Integrated systems manage airflow and pressure to maintain cleanliness.

To prevent simultaneous entries, interlocks are essential for maintaining contamination control.

Influencing Factors

Several factors determine the size of air showers.

• cleanroom class: More stringent cleanroom classes often require larger air showers.

• Personnel Flow: Anticipated traffic can necessitate different sizes or multiple air showers.

• Equipment Dimensions: Larger equipment may require specially designed air showers for safe passage.

Single Air Shower Size

A single air showeris designed for individual use, typically for one person at a time, to remove contaminants before entering controlled environments like cleanrooms. Its compact design allows for efficient use of space while ensuring proper air filtration.

Typical Dimensions

A single air shower typically measures 1.2m x 1.2m x 2.2m(L x W x H), suitable for personal decontamination in cleanrooms, labs, or production facilities.

Customization Options

While standard sizes are common, custom dimensions can be configured to fit unique space requirements or additional features such as advanced filtration or automation systems.

List of Relevant Specifications and Standards:

• air velocity: 20-25 m/s for effective decontamination.

• Filtration System: HEPA or ULPA filters.

• Noise Level: Typically <75 dB during operation.

• Dimensions: Standard sizes range from 1.2m x 1.2m x 2.2m.

• Power Supply: Typically 220V-380V.

• Certification: Compliant with ISO 14644 or GMP.

Double Air Shower Size

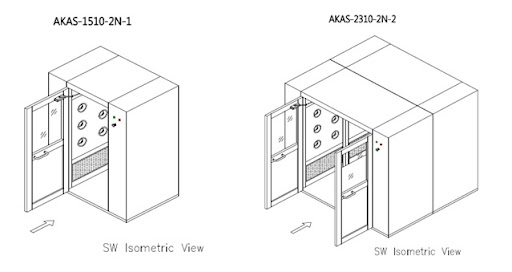

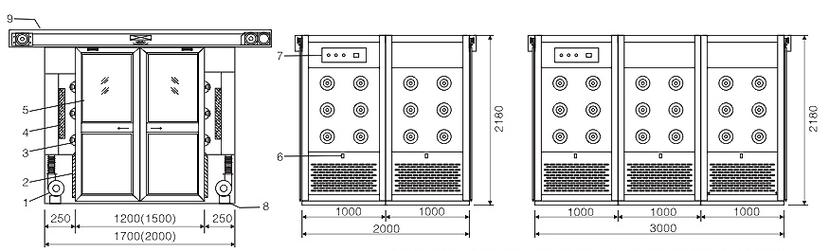

A double air shower is designed for simultaneous use by two people, providing greater space and efficiency for areas with higher personnel traffic. It typically measures around 1.2m x 2m x 2.1m(L x W x H).

Space and Traffic

These units accommodate two people at once, ideal for areas where foot traffic is high, ensuring that decontamination is efficient without delays.

Advanced Features

Double air showers can be equipped with additional features such as multiple filtration systems or automated controls to enhance performance in busy environments.

Aisle Air Shower Siz

An aisle air showeris designed for industrial environments with high traffic. These systems are typically larger and may range from **3m to 5m in length, 1.5m in width, and 2.5m in height**, providing space for continuous movement of multiple personnel or materials.

Dimensions and Design

Aisle air showers often have multiple entry and exit points and can accommodate personnel moving in both directions. These systems are suited for industrial cleanrooms or manufacturing plants.

Use Case

Used in environments such as Semiconductor production, food processing, or other high-traffic industries where maintaining cleanliness while handling large volumes is crucial.

Cargo air shower Size

A cargo air shower** is designed to decontaminate goods or materials before they enter a cleanroom or controlled environment. The standard size for a cargo air shower is typically around **3m x 2m x 3m(L x W x H), but can vary depending on cargo size.

Space for Larger Items

Cargo air showers are often customized to fit larger items, providing ample space for pallets, carts, or large containers that need decontamination before entering sensitive areas.

Customization Options

These systems can be tailored in length and width to meet specific industry needs, such as for pharmaceuticals or aerospace industries where oversized materials are common.

Integration with Systems

Cargo air showers often integrate with automated handling systems for seamless movement of goods in high-traffic areas, ensuring cleanliness standards are maintained without interrupting workflows.
