What does a laboratory air shower room look like?

A laboratory air shower is a critical component in maintaining the cleanliness of controlled environments. Designed to remove contaminants from personnel and equipment before entering clean rooms, these specialized chambers use high-velocity air streams to dislodge particles. This article will explore the characteristics of laboratory air showers, their necessity, types, installation requirements, and operational guidelines, emphasizing their importance in various industries, particularly Electronics.

What Does a Laboratory Air Shower Look Like?

A laboratory air shower is typically a compact, enclosed space equipped with high-efficiency Air Filters and adjustable air jets. It features an entry and exit door designed to maintain a sterile environment.

1. Design and Layout

The air shower usually has a stainless steel or powder-coated interior to ensure easy cleaning and durability. The layout includes strategically placed air nozzles on the walls and ceiling, allowing for uniform airflow.

2. Control Systems and Indicators

Modern air showers are equipped with user-friendly control panels that allow for adjustments in air pressure and duration of operation. Indicators, such as LED lights, show operational status and guide users on proper usage.

3. Dimensions and Space Requirements

The size of air showers varies based on design needs but typically ranges from 1.5 to 3 square meters.

4. Safety Features

Safety measures include emergency stop buttons and interlocks that prevent doors from opening while the air shower is active, ensuring user safety and environmental integrity.

Why Do We Need A Clean Room Air Shower?

Air showers are essential in Clean room environments to minimize contamination risks. They serve as a transitional space that enhances the overall cleanliness of the controlled area.

Contamination Prevention:

Air showers effectively remove particles and microorganisms from personnel and materials, significantly reducing contamination levels.

Enhanced Cleanliness Standards:

In industries like pharmaceuticals and electronics, maintaining stringent cleanliness standards is crucial. Air showers help achieve ISO Standards by ensuring that contaminants are eliminated before entering sensitive areas.

Operational Efficiency:

By providing a fast and effective method for decontamination, air showers streamline operations, allowing personnel to enter clean rooms quickly without compromising cleanliness.

Types of Clean Room Air Showers

Standard Air Showers

Standard air showers utilize high-velocity air jets to remove contaminants from personnel and materials before entering a clean room.

Pass-Through Air Showers

These air showers allow for the transfer of materials from one side to another without personnel entering, ensuring a contamination-free passage. They are ideal for industries requiring strict hygiene standards, such as pharmaceuticals and biotechnology.

Custom Air Showers

Custom air showers can be tailored to meet specific requirements, including size, airflow design, and additional features like temperature control.

Air Shower Installation Height Requirements

1. Standard Installation Heights: Air showers are typically installed at a height that accommodates both standing and seated users, ensuring accessibility for all personnel.

2. Height Specifications: The recommended height for air showers is generally between 2.1 to 2.4 meters. This height allows for proper airflow and ensures that air jets effectively decontaminate personnel from head to toe. The design must also consider the ceiling height of the clean room to maintain airflow dynamics and compliance with Clean room standards.

3. Accessibility Considerations: Installing air showers at appropriate heights also facilitates easy access for all users, including those with disabilities, promoting inclusivity in clean room protocols.

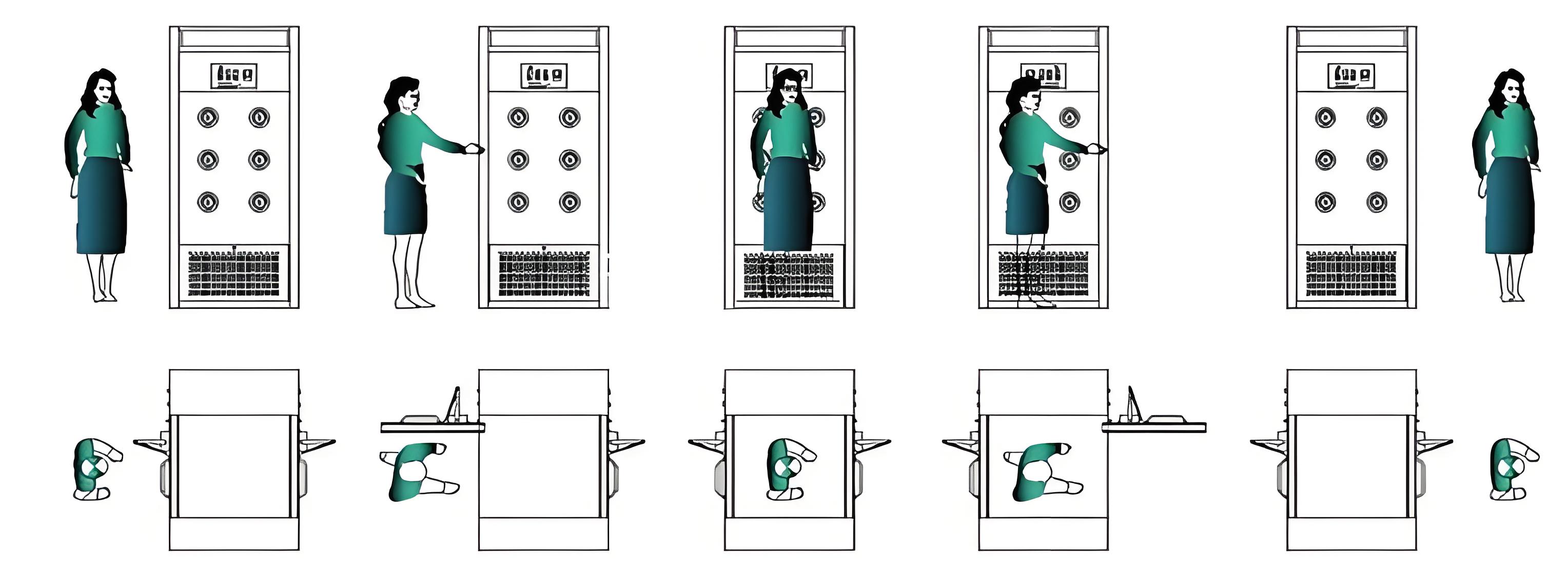

How to Operate a Clean Room Air Shower

Operating a clean room air shower is straightforward, focusing on efficiency and adherence to protocols.

1. Entering the Air Shower

Users must enter the air shower gently and close the door securely behind them.

2. Activating the Air Jets

Once inside, the air shower can be activated via a control panel or motion sensor, initiating the decontamination process.

3. Duration and Procedure

The air jets typically operate for 10 to 30 seconds, depending on the design and cleanliness requirements. Users should remain still during this time to maximize the air shower's effectiveness. Compliance with standards like ISO 14644 ensures the air shower functions optimally to maintain clean room integrity.

The Role of Air Showers in the Electronics Industry

In the electronics industry, air showers play a crucial role in maintaining high cleanliness standards to protect sensitive components from contamination.

Protection Against Particles

Air showers are vital for preventing dust and particles from entering clean room environments, safeguarding the production of electronics.

Static Control Measures

A robust air shower system can also incorporate static control measures, further protecting sensitive electronic components from electrostatic discharge (ESD).

Impact on Product Quality

By removing contaminants, air showers significantly contribute to product quality and reliability. This is particularlyimportant in Semiconductor manufacturing, where even minute particles can cause defects in chips and circuits. Enhanced cleanliness ensures that products meet stringent quality control standards, ultimately leading to increased yield rates and reduced waste.

Regulatory Compliance

Air showers help ensure compliance with industry regulations and standards, such as ISO 14644 and other relevant guidelines. Adhering to these standards not only enhances product reliability but also fosters trust with clients and stakeholders, reinforcing the manufacturer's reputation in a competitive market.

In conclusion

laboratory air showers are indispensable in maintaining the cleanliness and integrity of controlled environments, particularly in industries where contamination can have severe repercussions. Their design, operation, and installation are tailored to meet the rigorous demands of clean room standards, making them a vital component in the overall strategy for contamination control.
