Weighing room

Your Reliable Manufacturer of Weighing room

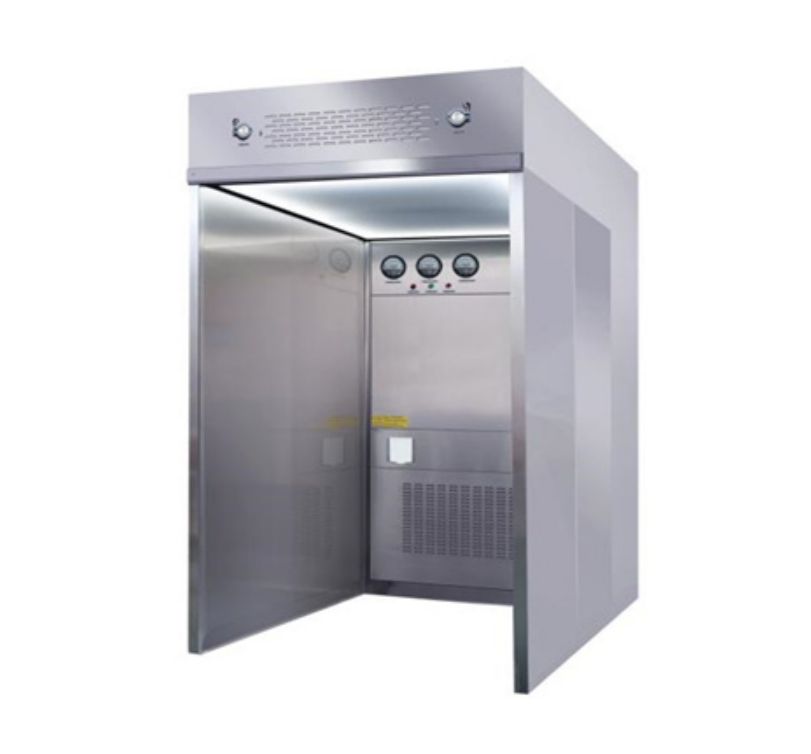

Product Structure:

The equipment consists of several major parts, including working area, return air box, fan box, air outlet box and outer box. The control panel is located in the front of the working area inside the equipment, and the control panel adopts the light touch LED control panel, which can control the fan start and stop, adjust the fan condition, and adjust the wind speed needed in the working area. There is a differential pressure meter next to it to test the resistance of the filter in the interior of the air supply box body and the exhaust air regulating plate, which can regulate the exhaust air volume of the equipment within a reasonable range.

Product Features:

Decheng TECHNOLOGY Negative Pressure Weighing Bench|Negative Pressure Weighing Bench Features.

• Through the downward sinking low negative pressure air flow in the operation area, a clean and sterile local environment is produced, avoiding cross contamination between different medicines.

• Effective control of dust and reagent spillage and uplift, preventing the inhalation of dust and reagent on the human body, and also avoiding the cross contamination of dust and reagent, protecting the external environment and the safety of indoor personnel.

• Primary, medium and high efficiency filters are three-stage filtration, and the liquid tank high efficiency filter meets the test requirements of DOP or PAO.

• The polymer equalization membrane significantly improves the uniformity of the air outlet.

Working Principle:

The equipment adopts vertical unidirectional flow airflow form, the return air first passes through the primary filter for pre-filtering, to dispose of the large dust particles in the airflow. After pretreatment, the air passes through the intermediate filter for secondary filtration to fully protect the high-efficiency filter. Under the pressure provided by the centrifugal fan, it passes through the high-efficiency filter to meet the clean requirements. The operation area and the external environment form a relative negative pressure, thus ensuring that the dust in this area will not spread to the outdoors, and play a role in protecting the external environment.

Product Parameters:
