How to clean a class 10000 clean room?

How to Clean a Class 10000 Clean room

Cleaning a Class 10000 Clean room is a critical process that ensures the environment remains free from contaminants. Class 10000 clean rooms are defined by the Cleanroom Standards set forth by international organizations such as ISO (International Organization for Standardization). According to ISO 14644-1, a Class 10000 clean room must maintain a maximum allowable particle count of 10,000 particles per cubic meter for particles sized 0.5 micrometers and larger. Here, we will outline the essential steps for effectively cleaning a Class 10000 clean room.

1. Preparation and Personnel Training

Before initiating the cleaning process, it is essential to prepare the clean room environment and train personnel. Only trained staff should enter the clean room, wearing appropriate cleanroom garments, including gowns, gloves, masks, and shoe covers. It is recommended that staff undergo regular training to understand the procedures fully. In a Class 10000 clean room, it is advisable to limit the number of personnel inside to maintain air quality; ideally, no more than 2-3 individuals should be present during cleaning.

2. Cleaning Supplies and Equipment

Selecting the right cleaning supplies is paramount to ensure that no additional contaminants are introduced. Use lint-free wipes, sterile mops, and approved cleaning solutions that do not leave residues. For a Class 10000 environment, it is advisable to use cleaning agents that meet regulatory standards, such as those specified in USP (United States Pharmacopeia) guidelines. Equipment such as HEPA (High-Efficiency Particulate Air) filtered vacuums should be employed to ensure effective dust removal.

3. Cleaning Procedures

The cleaning procedure should follow a systematic approach. Start by removing all items from surfaces, including equipment and tools. Begin cleaning from the top down, starting with ceilings, followed by walls, and finishing with floors to avoid recontamination. Use damp cleaning methods where possible to minimize airborne particles. Always clean in a consistent pattern, overlapping strokes to ensure thorough coverage. For a Class 10000 clean room, surfaces should be cleaned at least once a day and more frequently if necessary.

4. Monitoring and Documentation

After cleaning, it is crucial to conduct monitoring to ensure that the clean room meets the required standards. Regular particle count tests should be performed to verify that particle levels remain below the threshold for Class 10000 clean rooms. Documentation of cleaning activities, including the date, personnel involved, and results of particle counts, should be maintained to comply with regulatory requirements.

5. Final Inspection

The final step in cleaning a Class 10000 clean room involves a thorough inspection. This includes checking all surfaces for cleanliness, ensuring that cleaning protocols were followed, and confirming that no contaminants remain. A checklist can aid in this process, ensuring that all areas are reviewed systematically.

Relevant Standards and Specifications

• iso 14644-1: Cleanrooms and associated controlled environments - Part 1: Classification of air cleanliness.

• USP Guidelines: United States Pharmacopeia standards for clean room environments.

• FDA Guidance: Guidelines for the manufacture of pharmaceuticals in clean environments.

What is the Class Rating of A Clean Room?

Clean rooms are classified based on the number and size of particles allowed in the air. The most commonly referenced classifications are defined by ISO standards, specifying air cleanliness levels from ISO1 to ISO9, with Class 1 being the cleanest.

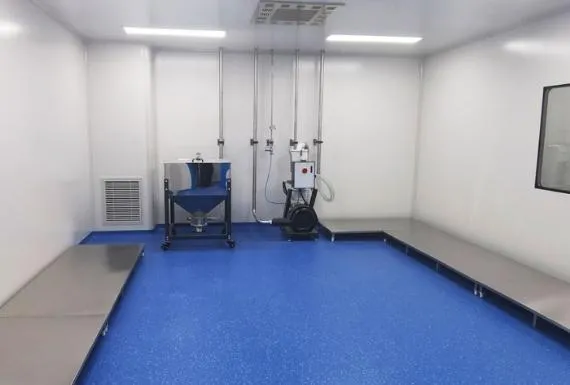

What are the Class 10000 Clean Room Requirements?

• Air Quality Standards: A Class 10000 clean room must limit the number of airborne particles of 0.5 micrometers or larger to a maximum of 10,000 particles per cubic meter.

• Temperature and Humidity Control: The clean room should maintain a stable temperature (typically 20-24°C) and humidity levels (40-60% relative humidity) to ensure optimal working conditions.

• Personnel Limitations: To minimize contamination, the number of personnel should be limited, ideally to 2-3 individuals during cleaning and other critical operations.

• Cleaning Protocols: Surfaces should be cleaned at least once daily, using approved cleaning agents and methods that prevent the introduction of contaminants.

• Monitoring: Regular monitoring of particulate levels is necessary, and documentation of these results must be maintained to ensure compliance with standards.

• Training: Personnel must receive trainingon proper cleanroom protocols, including gowning procedures, cleaning techniques, and contamination control methods to ensure that everyone understands their role in maintaining the clean environment.

• Equipment Requirements: HEPA filtration systems should be installed to maintain air cleanliness, and all equipment used in the clean room must be made of materials that do not shed particles or generate static electricity.

• Access Control: Only authorized personnel should have access to the clean room. Entry procedures, including gowning and decontamination processes, must be strictly followed to minimize contamination risks.

• Regular Audits: Scheduled audits should be conducted to evaluate compliance with the established cleaning protocols and standards. This includes reviewing documentation and particle count results to ensure the clean room consistently meets Class 10000 requirements.

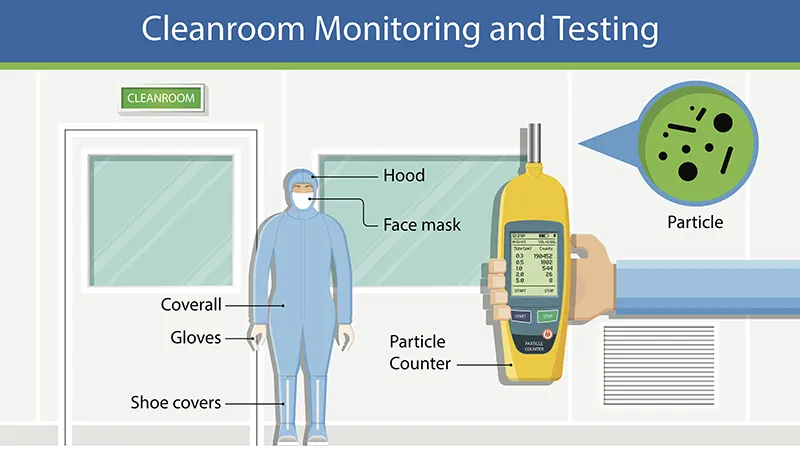

What is the Particle Count Requirement for a Clean Room?

The particle count requirement for clean rooms is crucial for ensuring the integrity of processes and products, especially in industries like pharmaceuticals, biotechnology, and Electronics manufacturing. For Class 10000 clean rooms, the maximum allowable particle count is 10,000 particles per cubic meter for particles 0.5 micrometers and larger. This standard is part of the ISO 14644-1 classification system, which specifies various classes based on the particle limits.

The particle count is monitored using calibrated particle counters that measure the number of particles present in a defined volume of air. Monitoring can be conducted continuously or at regular intervals, such as daily or weekly, depending on the operational procedures of the facility. It’s essential to measure during operational conditions to get an accurate representation of the clean room’s performance.

Regular testing and monitoring for particle counts not only ensure compliance with regulatory standards but also help identify contamination sources and trends over time. If particle counts exceed the allowable limits, immediate corrective actions must be taken, which may include additional cleaning, maintenance of HEPA filters, or an investigation into potential contamination sources. Maintaining particle counts within the required levels is vital for protecting product quality and ensuring a safe working environment.

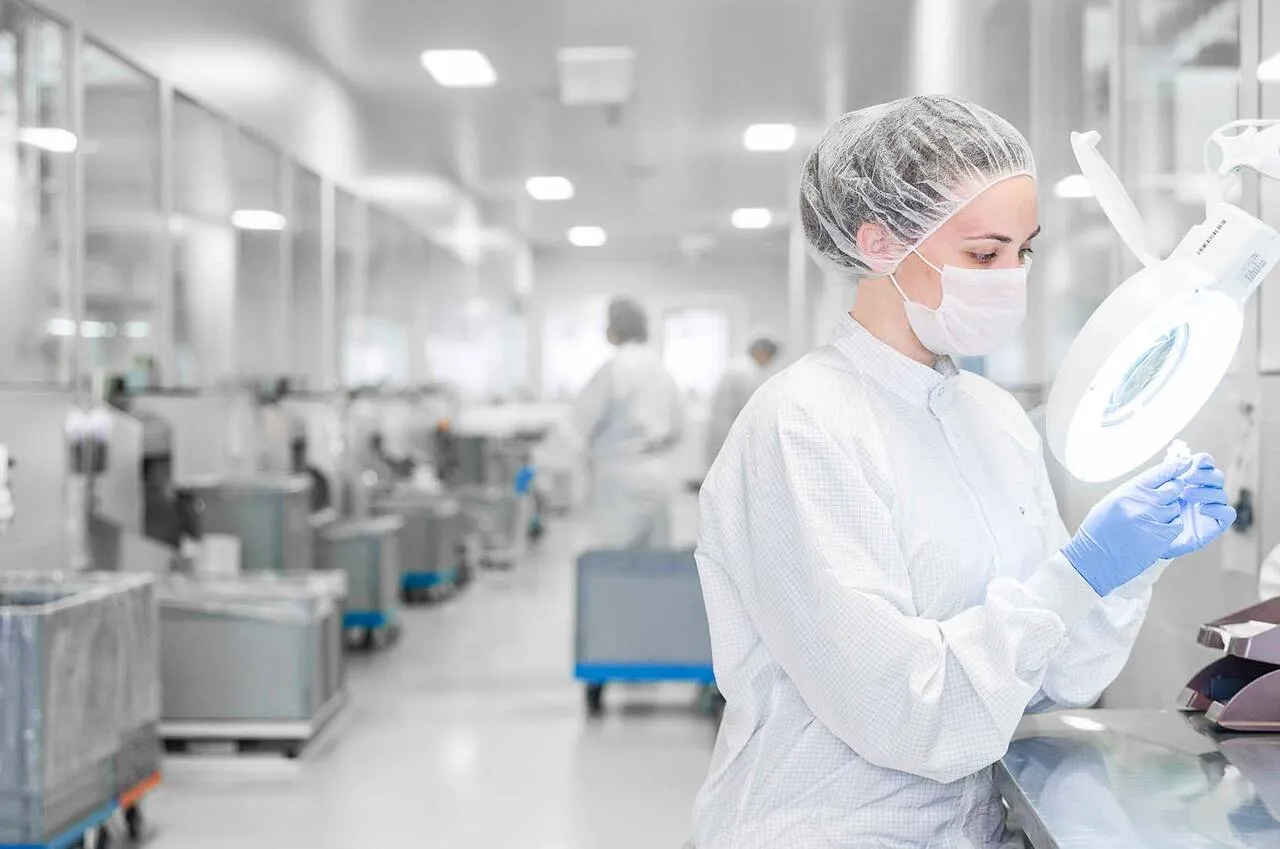

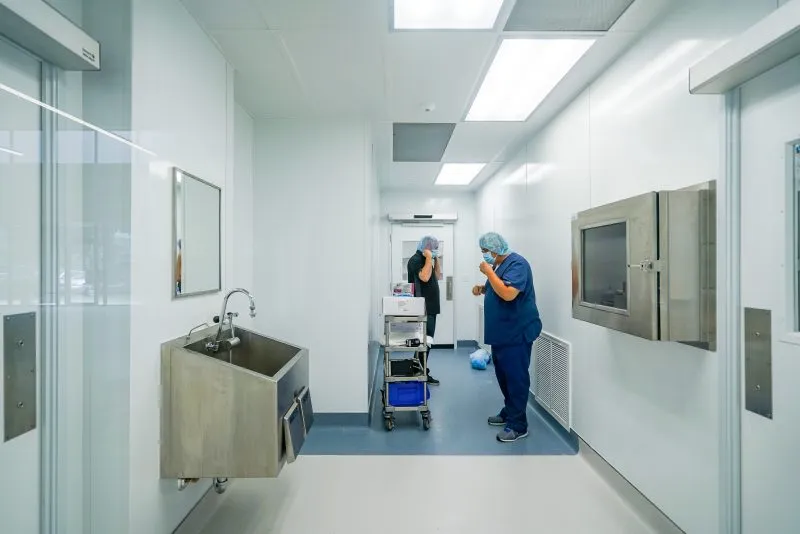

What are the GMP Guidelines for Clean Rooms?

Good Manufacturing Practices (GMP) guidelines are critical for ensuring that products are consistently produced and controlled to quality standards. In the context of clean rooms, these guidelines help maintain an environment that minimizes contamination risks. Key aspects of GMP guidelines for clean rooms include:

Facility Design

Clean rooms must be designed with materials that are easy to clean and maintain. The layout should minimize the risk of contamination, with a clear separation between different zones (e.g., dirty and clean areas).

Air Quality Control

Stringent air quality standards must be maintained, including proper airflow and filtration systems. Regular monitoring of particulate levels, as per ISO classifications, is essential to ensure compliance.

Personnel Training

Staff must be trained in GMP principles, including proper gowning procedures, cleaning protocols, and contamination control measures. Regular training sessions help reinforce these practices.

Cleaning Procedures

GMP guidelines specify that cleaning procedures should be well-documented and followed consistently. This includes the use of validated cleaning agents and methods that effectively remove contaminants without introducing new ones.

Equipment Validation

All equipment used in clean rooms must be regularly validated to ensure it operates properly and does not contribute to contamination. This includes routine maintenance and calibration of instruments.

Quality Control

There should be a robust quality control system in place to monitor and document clean room conditions, including temperature, humidity, and particle counts. Deviations from established standards must be investigated and addressed promptly.

Documentation

Detailed records must be kept of cleaning activities, monitoring results, training sessions, and maintenance activities. This documentation is vital for compliance with regulatory requirements and for audits.

What is Type A and Type B Cleaning in Pharma?

In the pharmaceutical industry, cleaning procedures are categorized into Type A and Type B to differentiate between the levels of cleanliness and the classification of clean rooms.

Type A Cleaning:

Refering to cleaning procedures conducted in controlled environments, typically in Class 100 and Class 1000 Clean rooms. This type of cleaning is used in areas that require a higher level of cleanliness, such as sterile product manufacturing. The cleaning agents used in Type A cleaning must be sterile, and the procedures often include disinfection of surfaces and equipment to eliminate any potential microbial contamination. This process is critical in maintaining sterility and ensuring product safety.

Type B Cleaning:

On the other hand, is applied in less stringent environments, such as Class 10,000 and Class 100,000 clean rooms. While still important, the cleaning protocols in Type B might not require the same level of sterility. Type B cleaning typically involves the use of non-sterile cleaning agents and focuses on removing dust and particulate matter from surfaces. It is essential for areas where the risk of contamination is lower but still needs to be managed to maintain a controlled environment.

Both Type A and Type B cleaning require rigorous documentation and monitoring to ensure compliance with GMP Standards.

What are the FDA clean room requirements?

The FDA clean room requirements are essential for ensuring the safety and efficacy of pharmaceutical products, particularly those that are sterile or require a controlled environment for production. According to the FDA guidelines, clean rooms must adhere to specific standards regarding air cleanliness, temperature, humidity, and particulate contamination. The classifications, defined by the ISO standards, range from ISO1 (most stringent) to ISO9 (least stringent), dictating the maximum allowable levels of airborne particles. Clean rooms must also maintain controlled airflow and pressure differentials to prevent contamination.
