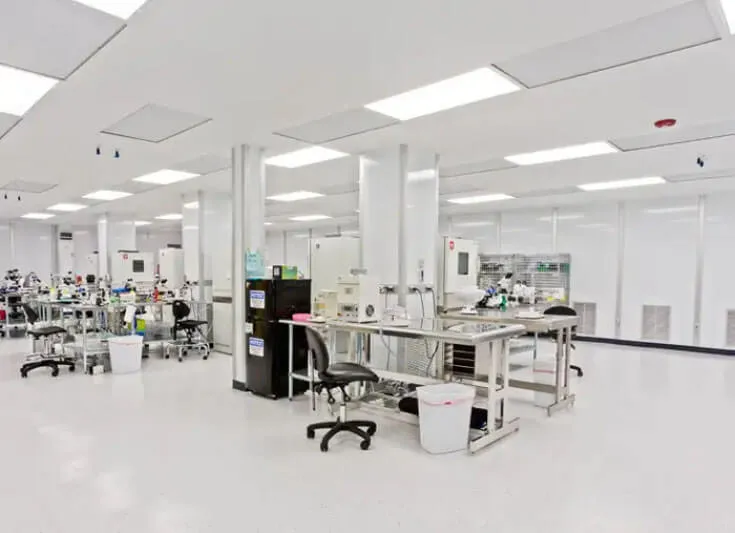

Class 100000 Clean room

A Class 100,000 cleanroom, also known as an ISO Class 8 cleanroom, is a controlled environment where the concentration of airborne particles is maintained within specified limits. Specifically, it allows no more than 100,000 particles of 0.5 microns or larger per cubic foot of air. This level of cleanliness is suitable for less stringent manufacturing processes compared to higher-class cleanrooms.

Particle Concentration Limits

Particles ≥ 0.5 microns: 100,000 particles per cubic foot (3,520,000 particles per cubic meter)
Particles ≥ 5.0 microns: 29,300 particles per cubic meter

Airflow and Filtration

HEPA Filters: These filters are used to remove at least 99.97% of particles 0.3 microns in diameter.
Air Change Rates: Typically around 20 air changes per hour to maintain cleanliness levels.
Turbulent Airflow: Often used to ensure the mixing of air and removal of contaminants.

Your Reliable Manufacturer of Class 100000 Clean room

Clean room grade table

ISO Class FED STD 209E Equivalent
ISO Class	Maximum Particles/m						FED STD 209E equivalent
ISO Class	≥0.1μm	≥0.2um	≥0.3um	≥0.5um	≥11m	≥5um	FED STD 209E equivalent
ISO1	10	2
ISO2	100	24	10	4
ISO3	1,000	237	102	35	8		Class1
ISO4	10,000	2,370	1,020	352	83	3	Class10
ISO5	100,000	23,700	10,200	3,520	832	29	Class100
ISO6	1,000,000	237,000	102,000	35,200	8,320	293	Class 1,000
ISO7				352,000	83,200	2,930	Class10,000
ISO8				3,520,000	832,000	29,300	Class 100,000
ISO9				35,200,000	8,320,000	293,000	Room Air

Comparison Table GMP/USP/ISO/FED209E

project

China GMP/Europe GMP

ISO

FED STD
209E

Suspended
particles
P/m3

level

Static

dynamic

level

Static

level

dynamic

≥0.5um

≥5μm

≥0.5μm

≥5μm

≥0.5um

≥5μm

≥0.5um

≥5μm

3520

M3.5

3530

100

2220

100

3520

352000

2900

3520

1000

352000

2900

3520000

29000

M5.5

353000

10000

352000

2930

10000

3520000

29300

100000

3520000

29000

No regulations

M6.5

3530000

100000

3520000

29300

100000

Comparison table of ISO grade standards and ventilation times
ISO Class	ACH(AIRCHANGE PER HOUR)
ISO 3	360-540
ISO 4	300-540
ISO 5	240-480
ISO 6	50-60
ISO 7	30-40
ISO 8	15-25

Class 100000 Clean Room Airflow


Air supply from air conditioner:
The air treated by the air conditioner is sent to the return air layer
Air filtration:
The air is deeply filtered through HEPA or ULPA filters to ensure that the cleanliness meets the required ISO level.
Air distribution:
Laminar flow (such as unidirectional flow) or mixed flow is usually used to maintain the uniformity and fluidity of indoor air.
Air return:
The clean room air passes through the return air layer, and 15% of the return air returns to the air conditioner for further treatment

Class 100000 Clean Room wall

class 8 clean room

Size and appearance:
Ensure that the size and shape of the product meet the design requirements and have no obvious defects.
Physical properties:
Such as compression, tension, impact resistance and other tests to ensure the strength and durability of the material.
Surface treatment:
Confirm that the surface is smooth, the coating is uniform, and there are no bubbles, peeling, etc.
Test report:
Fire and corrosion resistance test

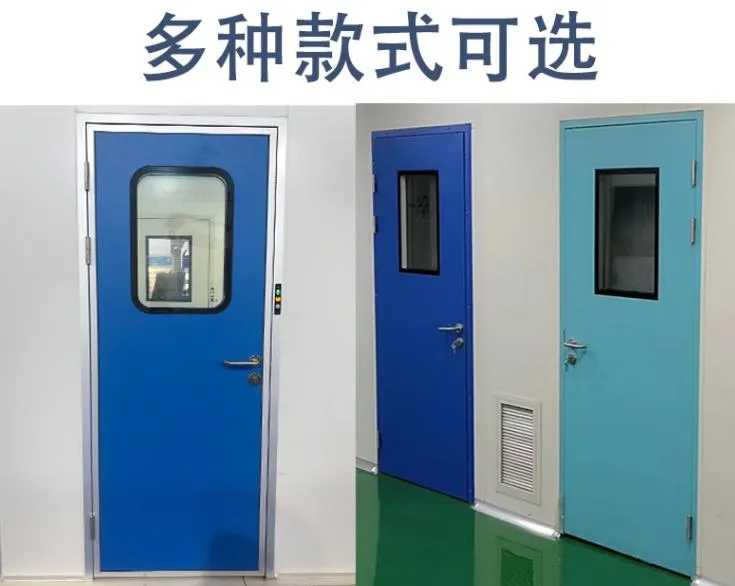

class 100000 clean room door

Steel standard:
Select high-quality steel that meets national and international standards to ensure its corrosion resistance and strength.
Surface treatment:
The surface of the door body should be treated with anti-rust treatment (such as spraying, anodizing, etc.) to ensure durability and easy cleaning.
Insulation material:
The door core material should have good heat insulation and sound insulation properties, and insulating materials such as polyurethane or rock wool are usually used.
Production process:
Production is carried out strictly in accordance with standardized processes, including cutting, forming, welding and painting

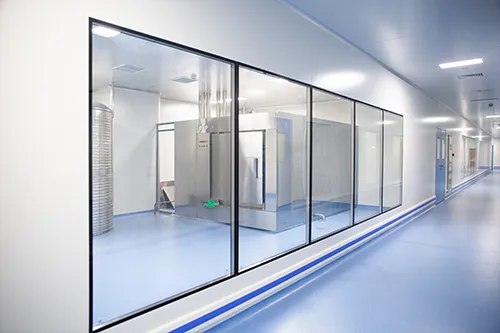

class 100000 clean room

Steel standard:
Select high-quality steel that meets national and international standards to ensure its corrosion resistance and strength.
Surface treatment:
The surface of the door body should be treated with anti-rust treatment (such as spraying, anodizing, etc.) to ensure durability and easy cleaning.
Insulation material:
The door core material should have good heat insulation and sound insulation properties, usually using insulating materials such as polyurethane or rock wool.
Production process:
Strictly follow the standardized process for production, including cutting, forming, welding and painting, to ensure stable quality in each link.

Class 100000 Clean Room Celling


Specifications: Thickness: 980, 1180 Panel material: 50mm, 75mm, 100mm Core material: color-coated steel plate, stainless steel plate, rock wool, gypsum, glass magnesium, aluminum honeycomb, etc. Accessories: Keel: 0.8 galvanized plate Application scope: food, medicine Others: Coating: PE (polyester), PVDF (fluorocarbon), HDP (high weather-resistant polyester)		0.8 thick galvanized steel keels are used on all four sides to increase the strength and sealing of the board The patented heavy-duty hanging beam system of MasterCard is adopted, which is convenient for installation and improves construction efficiency. No need to remove the entire top plate, reducing replacement costs and high cost performance. This product is also suitable for partial top plate replacement

Class 100000 Clean Room Floor


Flexibility: PVC flooring adhesive has good flexibility and impact resistance Anti-slip: There is an anti-slip surface treatment to ensure the safety of personnel while working. Easy to install: Usually provided in roll or tile form, installation is simple and quick. Diversity: A variety of colors and textures are available for easy visual zoning and aesthetics.

Seamless: Avoids accumulation of dust and bacteria at seams Chemical resistance: Able to withstand a wide range of chemicals and cleaning agents Easy to clean: Smooth surface makes cleaning and maintenance relatively easy.

Video
Workshop
Data sheet
Certificate

Enterprise qualification certificate

Related Products

Help to Find Your Cleanroom Related Products

Class 100000 Clean room Video Introduction

FAQ

Q:What is a Class 100000 clean room?
A:A Class 100,000 cleanroom, also known as ISO Class 8, is an environment where the concentration of airborne particles is controlled. It allows up to 100,000 particles of 0.5 microns or larger per cubic foot of air, suitable for less stringent manufacturing processes.
Q:What is the difference between clean room 10000 and 100000?
A:The main difference is the allowable particle concentration. A Class 10,000 cleanroom (ISO Class 7) permits up to 10,000 particles of 0.5 microns per cubic foot, whereas a Class 100,000 cleanroom (ISO Class 8) allows up to 100,000 particles, requiring less stringent control measures.
Q:What is the highest clean room level?
A:The highest cleanroom level is ISO Class 1, which allows no more than 10 particles of 0.1 microns or larger per cubic meter of air. It is used in extremely sensitive environments like semiconductor manufacturing.
Q:What are the clean room classification limits?
A:Cleanroom classifications range from ISO Class 1 to ISO Class 9, each specifying maximum allowable particle concentrations per cubic meter of air for particles of varying sizes, from 0.1 microns to 5 microns.
Q:What does class 10,0000 clean room mean?
A:A Class 100,000 cleanroom (ISO Class 8) allows up to 100,000 particles of 0.5 microns or larger per cubic foot of air. It is used in industries where moderate contamination control is sufficient.
Q:What are the classes of clean rooms?
A:Cleanrooms are classified by ISO standards from ISO Class 1 (most stringent) to ISO Class 9 (least stringent), based on the maximum allowable number of airborne particles per cubic meter of air.
Q:How much does a class 10,0000 clean room cost?
A:The cost of a Class 100,000 cleanroom can vary but typically ranges from $50 to $150 per square foot, depending on specific requirements and design complexities.
Q:How much does a class 10,000 clean room cost?
A:The cost of a Class 10,000 cleanroom usually ranges from $100 to $200 per square foot, depending on factors such as size, complexity, and specific industry requirements.
Q:How much does a clean room cost?
A:The cost of a cleanroom varies widely based on its classification, size, and specific requirements, ranging from $50 to $1,000 per square foot. Total project costs can range from tens of thousands to several million dollars.
Q:What is a 100000 class clean area?
A Class 100,000 clean area (ISO Class 8) maintains an environment with no more than 100,000 particles of 0.5 microns or larger per cubic foot of air, suitable for less critical processes.
Q:How much does a cleanroom cost?
A:Cleanroom costs vary greatly depending on the classification, size, and specific requirements, generally ranging from $50 to $1,000 per square foot. Total costs can span from tens of thousands to millions of dollars.
Q:What is 100000 level clean room?
A:A Class 100,000 cleanroom (ISO Class 8) is an environment with controlled airborne particle concentrations, allowing up to 100,000 particles of 0.5 microns or larger per cubic foot of air, used for less stringent contamination control needs.
Q:What is the price of Class 100 clean room?
A:The price of a Class 100 cleanroom (ISO Class 5) typically ranges from $200 to $500 per square foot, depending on the design, size, and specific industry requirements, with total costs potentially reaching several million dollars.
Q:What are the specifications for 100k clean room?
A:Specifications for a Class 100,000 cleanroom (ISO Class 8) include maintaining particle levels below 100,000 particles of 0.5 microns or larger per cubic foot, using HEPA filters, ensuring proper airflow, and adhering to strict cleaning protocols.
Q:What is a Class 10 000 clean room?
A:A Class 10,000 cleanroom (ISO Class 7) is an environment where the concentration of airborne particles is controlled to no more than 10,000 particles of 0.5 microns or larger per cubic foot of air, used for sensitive manufacturing processes.
Q:What is the standard for cleanroom design?
A:The standard for cleanroom design is outlined in ISO 14644, which specifies the classification of cleanliness by airborne particle concentration, as well as guidelines for design, construction, and operation to maintain cleanliness levels.
Q:What is the particle size of a Class 100 clean room?
A:A Class 100 cleanroom (ISO Class 5) allows a maximum of 100 particles of 0.5 microns or larger per cubic foot of air, ensuring a highly controlled environment for sensitive processes.
