What is the difference between vertical and horizontal clean benches?

Clean benches are essential in various industries, including pharmaceuticals, Electronics, and biotechnology, where maintaining a contaminant-free environment is crucial. Understanding the differences between vertical and horizontal clean benches can help organizations select the right equipment for their specific needs. This article delves into the distinctions, applications, and principles of these cleanroom technologies.

What is the Difference Between Vertical and horizontal clean benches?

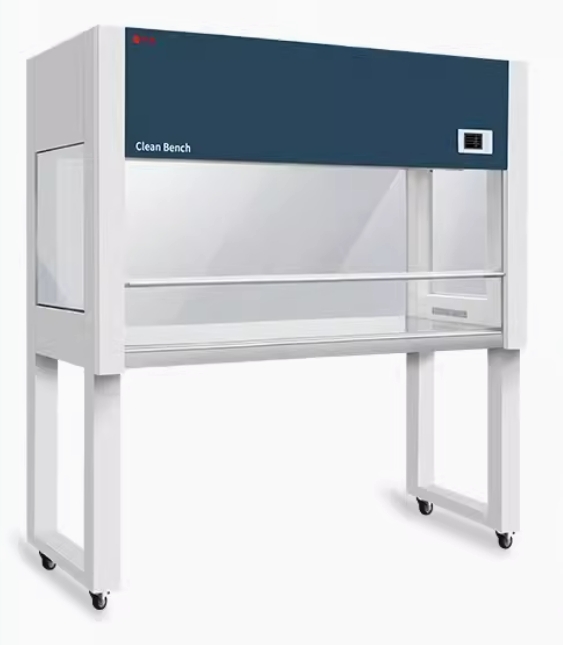

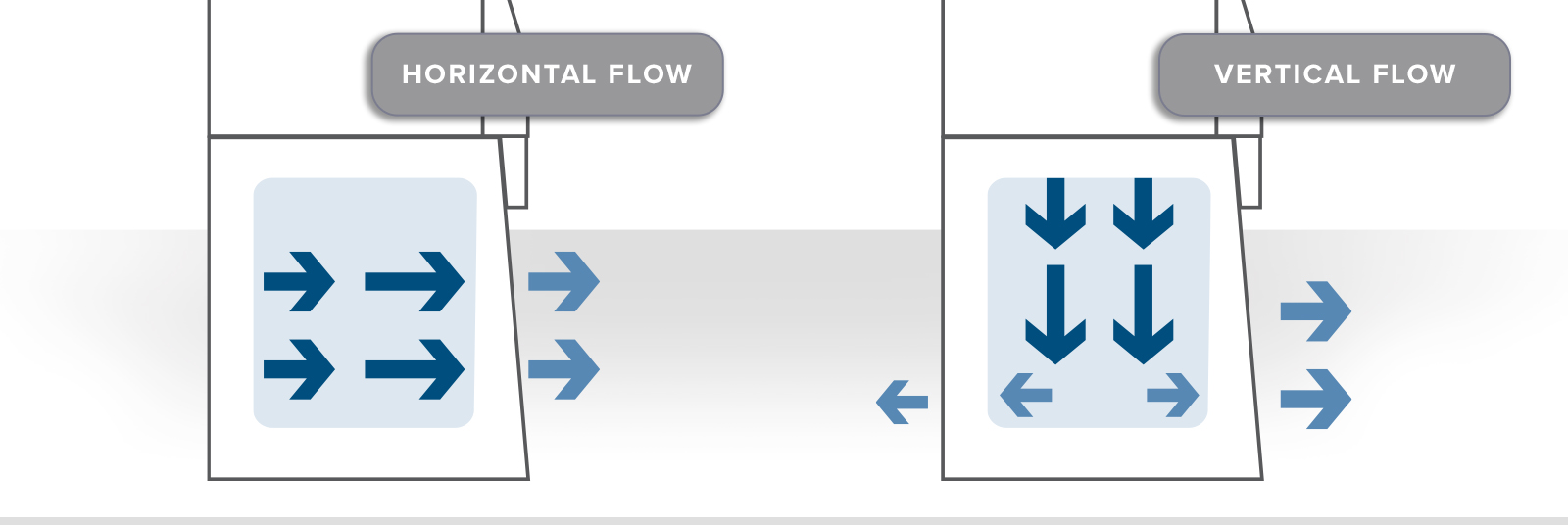

Vertical clean benches direct airflow from the top down, while horizontal clean benches push air from the back to the front. Each design has specific applications based on airflow patterns and the types of processes involved.

1. Airflow Direction

Vertical clean benches utilize downward airflow, effectively minimizing particle contamination by creating a protective curtain of air. This design is ideal for processes sensitive to airborne particles.

2. Application Suitability

Horizontal clean benches are better suited for large equipment or when multiple users require access simultaneously. They offer a broader working surface, making them advantageous for tasks needing unobstructed airflow, such as assembly or testing.

3. Accessibility

Vertical clean benches often limit access due to their design, while horizontal models facilitate easier access for multiple users, enhancing productivity.

4. Space Consideration

Consider the available space, as vertical benches typically require less floor space compared to their horizontal counterparts.

Working Principle of a Clean Bench

Clean benches operate by filtering ambient air through High-Efficiency Particulate Air (HEPA) filters, ensuring that the air entering the workspace is free from contaminants. The filtered air creates a sterile environment for various applications.

• Air Filtration

  Ambient air is drawn into the clean bench through a pre-filter, capturing larger particles before the air passes through the HEPA filter.

• Airflow Management

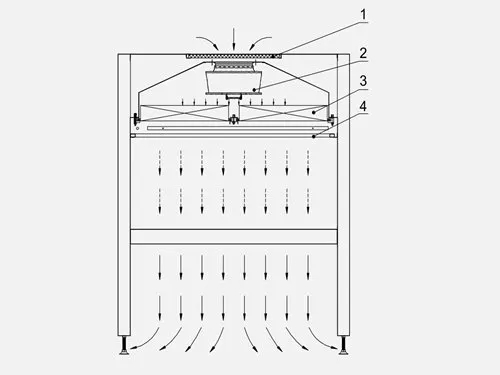

  After filtration, the Clean air is directed into the workspace. In vertical benches, airflow is directed downward, while horizontal benches push air across the workspace. This controlled airflow helps maintain a clean environment, protecting sensitive materials from contamination.

• User Safety

  Clean benches are designed to provide a safe working environment. They create a barrier against external contaminants, ensuring that the workspace remains uncontaminated while also protecting the operator from exposure to hazardous materials.

When to Choose a Vertical Clean Bench

1. Space Efficiency: Vertical clean benches are ideal for environments with limited floor space, offering a compact solution without sacrificing cleanliness.

2. Sensitive Operations: These benches are preferred for processes involving delicate instruments or samples, where downward airflow minimizes contamination risks.

3. Single-user Focus: Vertical designs are well-suited for single-user applications, ensuring that airflow is effectively concentrated around the user and their work.

When to Choose a Horizontal Clean Bench

Collaborative Work

Horizontal clean benches are ideal for collaborative tasks, allowing multiple users to work simultaneously without compromising airflow.

Large Equipment Compatibility

They are better suited for larger equipment setups, providing ample workspace for assembling, testing, or maintaining machinery. The airflow is optimized to ensure that contaminants are swept away from the user and equipment. Additionally, horizontal clean benches can accommodate various configurations, making them versatile for different applications.

Ease of Use

Horizontal benches offer straightforward access to the workspace, making them user-friendly for tasks that require frequent handling of materials.

Clean Bench Installation Steps

Proper installation of clean benches is crucial for optimal performance and compliance with regulations.

Site Preparation

Ensure the installation area is clean and meets the required specifications.

Placement and Leveling

Position the clean bench in a designated area, ensuring it is level and stable for effective operation.

Electrical and Air Connections

Connect the clean bench to the necessary electrical and airflow systems, following relevant domestic and international standards, such as ISO 14644 for Cleanroom performance.

Clean Bench Maintenance Requirements

Regular maintenance is essential for ensuring the longevity and effectiveness of clean benches.

1. Routine Cleaning

Conduct routine cleaning of the bench surfaces and replace HEPA filters as per the manufacturer’s guidelines to maintain air quality.

2. Performance monitoring

Regularly check airflow rates and pressure differentials to ensure optimal functioning. Schedule inspections and maintenance in accordance with industry standards to prevent contamination.

3. Documentation

Keep detailed records of all maintenance activities, including filter replacement, cleaning schedules, and performance checks. This documentation is vital for compliance with quality assurance protocols and ensuring that the clean bench continues to meet contamination control standards effectively.
