Product information Company lnfo.

Detail
Parameter
Structure
Usage

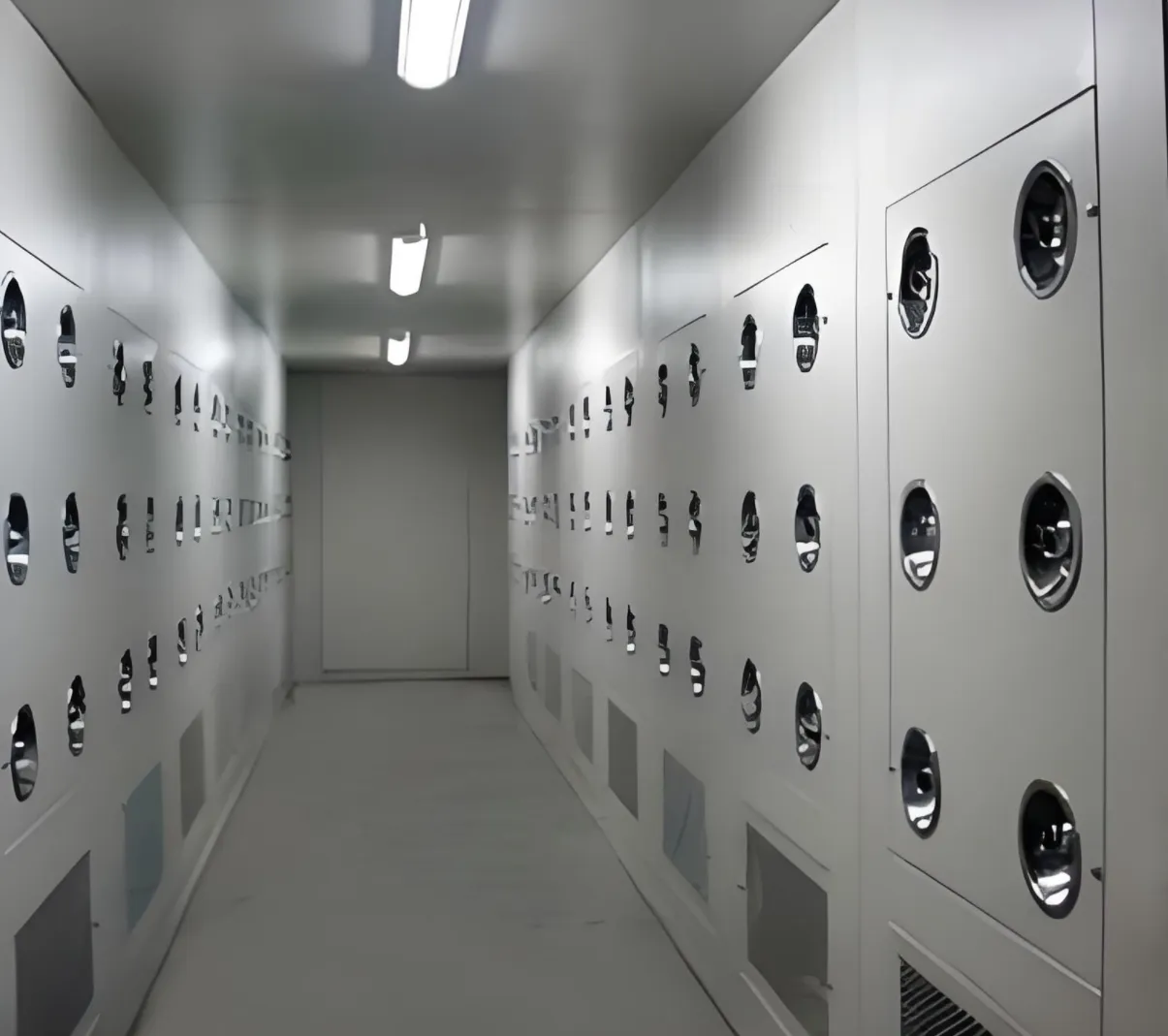

Air Shower Detail

The Auto Sensor Air Shower is a high-efficiency cleanroom equipment designed to remove particulate matter and contaminants from personnel and materials before they enter clean environments. Equipped with advanced sensor technology, the Auto Sensor Air Shower automatically detects the presence of personnel or objects, initiating and ceasing the air shower process to ensure efficient and energy-saving operation.

Deiiang air shower playbill.jpg

Features

Automatic Sensing: Infrared/ultrasonic sensors for automatic operation
High-Efficiency Filtration: HEPA/ULPA filters capture 99.97%+ particles ≥ 0.3 microns
Programmable Control: Touchscreen/PLC for setting parameters
Omnidirectional Nozzles: Multi-angle, high-velocity air jets
Emergency Stop: Immediate cessation for safety
Stainless Steel: Durable, corrosion-resistant construction
Interlocking Doors: Prevents cross-contamination
Low-Noise Design: Quiet operation for user comfort

Industry Applications

Electronics Manufacturing: Semiconductor and microelectronics
The Auto Sensor Air Shower is a high-efficiency cleanroom equipment designed to remove particulate matter and contaminants from personnel and materials before they enter clean environments. Equipped with advanced sensor technology, the Auto Sensor Air Shower automatically detects the presence of personnel or objects, initiating and ceasing the air shower process to ensure efficient and energy-saving operation.
Features
Industry Applications
Pharmaceuticals: Drug manufacturing and packaging

Electronics Manufacturing: Semiconductor and microelectronics
Pharmaceuticals: Drug manufacturing and packaging
Food Processing: High hygiene standards in production
Biotechnology: Labs and production facilities
Aerospace: Manufacturing and assembly
Automotive: Painting and assembly processes
Automatic Sensing: Infrared/ultrasonic sensors for automatic operation
High-Efficiency Filtration: HEPA/ULPA filters capture 99.97%+ particles ≥ 0.3 microns
Programmable Control: Touchscreen/PLC for setting parameters
Omnidirectional Nozzles: Multi-angle, high-velocity air jets
Emergency Stop: Immediate cessation for safety
Stainless Steel: Durable, corrosion-resistant construction
Interlocking Doors: Prevents cross-contamination
Low-Noise Design: Quiet operation for user comfort

Food Processing: High hygiene standards in production
Biotechnology: Labs and production facilities
Aerospace: Manufacturing and assembly
Automotive: Painting and assembly processes

Stainless steel air shower room10.jpg

Stainless steel air shower room6.jpg

Stainless steel air shower room9.jpg

Air shower room details2.jpg

Air shower room details1.jpg

Air Shower Parameter

Indicator Model	1`Purifier STD	2`Purifier STD	3`Purifier STD	4`Purifier STD	5`Purifier STD
Material Selection	1.2mm high quality cold rolled disease plate baking paint, outside steel plate baking paint inside stainless steel SUS304 stainless steel inside and outside (double doors and floor are SUS304 stainless steel pot)
Number of applicants	1 person	2 persons (affordable)	3.4 persons (2 persons standard)	3.4 persons (3 persons standard)	6.8 persons (4 persons standard)
Number of nozzles	12 (bilateral)	18 (bilateral)	24 (bilateral)	36 (bilateral)	48 (bilateral)
Air velocity	24-30m/s	24-30m/s	24-30m/s	24-30m/s	24-30m/s
Electronic lock brand	"Luxgen" electric locks	"Luxgen" electric locks	"Luxgen" electric locks	"Luxgen" electric locks	"Luxgen" electric locks
Efficient size	600x600x120mm	820x600x120mm	600x600x120mm	600x600x120mm	600x600x120mm
Overall Dimension	1400W1000D2100H	1400W1500D2100H	1400W2000D2100H	1400W3000D2100H	1400W4000D2100H
Internal dimensions	800w900D1960H	800w1400D1960H	800w1900D1960H	800w2900D1960H	800w3900D1960H
power supply	380V, 50Hz (three-phase five-wire power supply, three fires, one connection and one ground). The air shower room can be customized with 220V and 110V power supply according to customers' requirements.)
Lighting	LED recessed light 1pc	LED recessed light 2pc	LED recessed light 2pc	LED recessed light 3pc	LED recessed light 4pc
Number of fans	2 sets "0.55Kw/set	2 sets~0.75KW/set	4 units "0.55Kw/unit	6 sets "0.55KW/set	8 units*0.55Kw/unit
Power of the whole machine	1.1Kw	1.5Kw	2.2Kw	3.3Kw	4.4Kw
Stall capacity (kg)	350kg	500kg	650kg	950kg	1250kg

Indicator Model	1`Purifier STD	2`Purifier STD	3`Purifier STD
Material Selection	1.2mm high quality cold rolled disease plate baking paint, outside steel plate baking paint inside stainless steel SUS304 stainless steel inside and outside (double doors and floor are SUS304 stainless steel pot)
Number of applicants	1 person	2 persons (affordable)	3.4 persons (2 persons standard)
Number of nozzles	12 (bilateral)	18 (bilateral)	24 (bilateral)
Air velocity	24-30m/s	24-30m/s	24-30m/s
Electronic lock brand	"Luxgen" electric locks	"Luxgen" electric locks	"Luxgen" electric locks
Efficient size	600x600x120mm	820x600x120mm	600x600x120mm
Overall Dimension	1400W1000D2100H	1400W1500D2100H	1400W2000D2100H
Internal dimensions	800w900D1960H	800w1400D1960H	800w1900D1960H
power supply	380V, 50Hz (three-phase five-wire power supply, three fires, one connection and one ground). The air shower room can be customized with 220V and 110V power supply according to customers' requirements.)
Lighting	LED recessed light 1pc	LED recessed light 2pc	LED recessed light 2pc
Number of fans	2 sets "0.55Kw/set	2 sets~0.75KW/set	4 units "0.55Kw/unit
Power of the whole machine	1.1Kw	1.5Kw	2.2Kw
Stall capacity (kg)	350kg	500kg	650kg

Indicator Model	3`Purifier STD	4`Purifier STD	5`Purifier STD
Material Selection	1.2mm high quality cold rolled disease plate baking paint, outside steel plate baking paint inside stainless steel SUS304 stainless steel inside and outside (double doors and floor are SUS304 stainless steel pot)
Number of applicants	3.4 persons (2 persons standard)	3.4 persons (3 persons standard)	6.8 persons (4 persons standard)
Number of nozzles	24 (bilateral)	36 (bilateral)	48 (bilateral)
Air velocity	24-30m/s	24-30m/s	24-30m/s
Electronic lock brand	"Luxgen" electric locks	"Luxgen" electric locks	"Luxgen" electric locks
Efficient size	600x600x120mm	600x600x120mm	600x600x120mm
Overall Dimension	1400W2000D2100H	1400W3000D2100H	1400W4000D2100H
Internal dimensions	800w1900D1960H	800w2900D1960H	800w3900D1960H
power supply	380V, 50Hz (three-phase five-wire power supply, three fires, one connection and one ground). The air shower room can be customized with 220V and 110V power supply according to customers' requirements.)
Lighting	LED recessed light 2pc	LED recessed light 3pc	LED recessed light 4pc
Number of fans	4 units "0.55Kw/unit	6 sets "0.55KW/set	8 units*0.55Kw/unit
Power of the whole machine	2.2Kw	3.3Kw	4.4Kw

Indicator Model	1`Purifier STD	2`Purifier STD	3`Purifier STD	4`Purifier STD	5`Purifier STD
Material Selection	1.2mm high quality cold rolled disease plate baking paint, outside steel plate baking paint inside stainless steel SUS304 stainless steel inside and outside (double doors and floor are SUS304 stainless steel pot)
Number of applicants	1 person	2 persons (affordable)	3.4 persons (2 persons standard)	3.4 persons (3 persons standard)	6.8 persons (4 persons standard)
Number of nozzles	12 (bilateral)	18 (bilateral)	24 (bilateral)	36 (bilateral)	48 (bilateral)
Air velocity	24-30m/s	24-30m/s	24-30m/s	24-30m/s	24-30m/s
Electronic lock brand	"Luxgen" electric locks	"Luxgen" electric locks	"Luxgen" electric locks	"Luxgen" electric locks	"Luxgen" electric locks
Efficient size	600x600x120mm	820x600x120mm	600x600x120mm	600x600x120mm	600x600x120mm
Overall Dimension	1400W1000D2100H	1400W1500D2100H	1400W2000D2100H	1400W3000D2100H	1400W4000D2100H
Internal dimensions	800w900D1960H	800w1400D1960H	800w1900D1960H	800w2900D1960H	800w3900D1960H
power supply	380V, 50Hz (three-phase five-wire power supply, three fires, one connection and one ground). The air shower room can be customized with 220V and 110V power supply according to customers' requirements.)
Lighting	LED recessed light 1pc	LED recessed light 2pc	LED recessed light 2pc	LED recessed light 3pc	LED recessed light 4pc
Number of fans	2 sets "0.55Kw/set	2 sets~0.75KW/set	4 units "0.55Kw/unit	6 sets "0.55KW/set	8 units*0.55Kw/unit
Power of the whole machine	1.1Kw	1.5Kw	2.2Kw	3.3Kw	4.4Kw
Stall capacity (kg)	350kg	500kg	650kg	950kg	1250kg

Indicator Model	1`Purifier STD	2`Purifier STD	3`Purifier STD
Material Selection	1.2mm high quality cold rolled disease plate baking paint, outside steel plate baking paint inside stainless steel SUS304 stainless steel inside and outside (double doors and floor are SUS304 stainless steel pot)
Number of applicants	1 person	2 persons (affordable)	3.4 persons (2 persons standard)
Number of nozzles	12 (bilateral)	18 (bilateral)	24 (bilateral)
Air velocity	24-30m/s	24-30m/s	24-30m/s
Electronic lock brand	"Luxgen" electric locks	"Luxgen" electric locks	"Luxgen" electric locks
Efficient size	600x600x120mm	820x600x120mm	600x600x120mm
Overall Dimension	1400W1000D2100H	1400W1500D2100H	1400W2000D2100H
Internal dimensions	800w900D1960H	800w1400D1960H	800w1900D1960H
power supply	380V, 50Hz (three-phase five-wire power supply, three fires, one connection and one ground). The air shower room can be customized with 220V and 110V power supply according to customers' requirements.)
Lighting	LED recessed light 1pc	LED recessed light 2pc	LED recessed light 2pc
Number of fans	2 sets "0.55Kw/set	2 sets~0.75KW/set	4 units "0.55Kw/unit
Power of the whole machine	1.1Kw	1.5Kw	2.2Kw
Stall capacity (kg)	350kg	500kg	650kg

Indicator Model	3`Purifier STD	4`Purifier STD	5`Purifier STD
Material Selection	1.2mm high quality cold rolled disease plate baking paint, outside steel plate baking paint inside stainless steel SUS304 stainless steel inside and outside (double doors and floor are SUS304 stainless steel pot)
Number of applicants	3.4 persons (2 persons standard)	3.4 persons (3 persons standard)	6.8 persons (4 persons standard)
Number of nozzles	24 (bilateral)	36 (bilateral)	48 (bilateral)
Air velocity	24-30m/s	24-30m/s	24-30m/s
Electronic lock brand	"Luxgen" electric locks	"Luxgen" electric locks	"Luxgen" electric locks
Efficient size	600x600x120mm	600x600x120mm	600x600x120mm
Overall Dimension	1400W2000D2100H	1400W3000D2100H	1400W4000D2100H
Internal dimensions	800w1900D1960H	800w2900D1960H	800w3900D1960H
power supply	380V, 50Hz (three-phase five-wire power supply, three fires, one connection and one ground). The air shower room can be customized with 220V and 110V power supply according to customers' requirements.)
Lighting	LED recessed light 2pc	LED recessed light 3pc	LED recessed light 4pc
Number of fans	4 units "0.55Kw/unit	6 sets "0.55KW/set	8 units*0.55Kw/unit
Power of the whole machine	2.2Kw	3.3Kw	4.4Kw
Stall capacity (kg)	650kg	950kg	1250kg

Air Shower Structure

Stainless steel air shower room configuration structure

Air shower room structure diagram.jpg

Top cover
Door closer
Suction cup lock
Lighting
Control panel
Emergency switch
Stainless steel door
Stainless steel nozzle
High efficiency filter
Box
Primary filter
Specialized fan
Stainless steel chassis

Air Shower Usage

Air Shower Room Operation Steps

How to use the air shower

Prepare:

Ensure you are properly attired in cleanroom garments.
Verify that the air shower is operational.

Enter:

Step into the air shower room and close the door behind you.
Stand in the designated area and remain still.

Activate:

Wait for the air shower cycle to start automatically.
The air jets will begin, removing contaminants.

Exit:

After the cycle completes, open the exit door.

FAQ

1. Intelligent voice air shower filter replacement

Replacing filters in an intelligent voice air shower is crucial for maintaining optimal performance. Filters should be checked regularly and replaced according to the manufacturer's guidelines, typically every 6 to 12 months, depending on the usage and environment.

2. Intelligent voice air shower cleaning protocols

Cleaning protocols for intelligent voice air showers include:

Regularly wiping down interior surfaces with disinfectant
Cleaning and inspecting nozzles and sensors
Replacing air filters as necessary

These steps help ensure the air shower operates effectively and maintains hygiene standards.

3. How to clean an intelligent voice air shower

To clean an intelligent voice air shower, start by wiping down all interior surfaces with a suitable disinfectant. Next, inspect and clean the nozzles to ensure they are free from blockages. Finally, replace the air filters as needed to maintain optimal performance.

4. Intelligent voice air shower for paint booths

Intelligent voice air showers are highly beneficial for paint booths. They help remove dust and contaminants from personnel and equipment before entering the booth, ensuring a clean environment for painting and reducing the risk of defects in the paint job.

5. Intelligent voice air shower for sterile environments

In sterile environments, intelligent voice air showers are essential for preventing contamination. They decontaminate personnel by removing particles and pathogens, ensuring that the sterile integrity of the environment is maintained.

6. Intelligent voice air shower air exchange rate

The air exchange rate of an intelligent voice air shower typically ranges from 20 to 50 air changes per hour, depending on the model and application. This rate ensures effective removal of contaminants from personnel and equipment.

7. Intelligent voice air shower energy consumption

Energy consumption for intelligent voice air showers depends on the model and usage. Generally, these systems are designed to be energy-efficient, incorporating features such as high-efficiency blowers and smart controls to minimize power usage while maintaining effective decontamination.

8. Intelligent voice air shower sensor technology

Sensor technology in intelligent voice air showers includes:

Motion sensors for detecting user presence
Pressure sensors for monitoring air flow
Environmental sensors for adjusting operational parameters

These sensors ensure efficient and effective decontamination.

9. Intelligent voice air shower operating temperature range

The operating temperature range for intelligent voice air showers typically spans from 15°C to 30°C (59°F to 86°F). This range ensures optimal performance and user comfort, which is essential for maintaining effective decontamination processes.

10. Intelligent voice air shower power requirements

Power requirements for intelligent voice air showers vary by model, but they generally require a standard electrical supply of 220-240V, 50/60Hz. Some high-capacity units may require more power, so it's important to check the specifications for each model.

11. Intelligent voice air shower for cleanrooms

Intelligent voice air showers are indispensable for cleanrooms. They help remove contaminants from personnel and equipment before entry, maintaining the cleanroom's controlled environment and ensuring compliance with strict cleanliness standards.

12. Intelligent voice air shower after-sales service

After-sales service for intelligent voice air showers typically includes:

Technical support
Regular maintenance checks
Replacement parts supply

These services ensure the system continues to operate efficiently and any issues are promptly resolved.

13. Intelligent voice air shower price

The price of an intelligent voice air shower can vary widely based on its features, size, and customization options. Generally, prices range from $5,000 to $20,000 or more, depending on the complexity and capabilities of the unit.

14. Intelligent voice air shower for automotive industry

In the automotive industry, intelligent voice air showers help maintain clean environments for painting and assembly processes. They remove contaminants from personnel and equipment, ensuring high-quality finishes and reducing defects.

15. Intelligent voice air shower for university labs

University labs use intelligent voice air showers to maintain clean environments, particularly in research areas where contamination control is crucial. These systems help ensure that experimental results are not compromised by external contaminants.

16. Intelligent voice air shower return on investment

The return on investment (ROI) for intelligent voice air showers can be significant, as they help reduce contamination-related costs, improve product quality, and enhance operational efficiency. Over time, the benefits of maintaining a clean environment outweigh the initial investment.
