Metal mesh primary filter 592*592*46 3200m³/h 3.15m²

Reference Price:US$from $10

Min. Order:1 Set

Short Description:

The Metal Mesh Primary Filter 592*592*46 is designed for high airflow systems, offering a capacity of 3200m³/h and a filtration area of 3.15m².

  • frame: aluminum profile frame
  • filter media: High temperature resistant ultrafine glass fiber filter paper
  • sealing glue: PU two-component polyurethane AB adhesive
  • divider: EVA hot melt adhesive
  • protective netting: Stainless Steel Square Wire Mesh
  • filtration efficiency: G1 G2 G3 G4
  • Maximum operating temperature: 280℃
  • Maximum operating humidity: 80%
  • accreditation: ANSI Z9.5 ASHRAE 110 ASTM E84 CAN/CSA C22.2 NFPA 45 SEFA 1 UL
  • Applicable area: USA Europe Malaysia Canada Middle East Indonesia
  • customs code: 84213990

Cleanroom

Metal mesh primary filter 592*592*46 3200m³/h 3.15m²

Choose your installation & validation options below

  • Quantity:

Choose your upgrade options

  • Quantity:

Summary

Cleanroom

Metal mesh primary filter 592*592*46 3200m³/h 3.15m²

Choose your installation & validation options below

Validation

Installation & Validation

Choose your upgrade options

Product Description

The Metal Mesh Primary Filter 592*592*46 is designed for high airflow systems, offering a capacity of 3200m³/h and a filtration area of 3.15m². It effectively captures larger particles like dust and debris, ensuring efficient filtration and durability for long-term use in industrial and commercial applications.

Design Features

Ductless fume hoods are designed with several important features to ensure safety and functionality in laboratory environments. Key features include:

Metal mesh primary filter Durability.jpg

01
Durability

Long-lasting and resistant to wear and tear

Metal mesh primary filter Reusable.jpg

02
Reusable

Can be easily cleaned and reused multiple times

Metal mesh primary filter Low Maintenance.jpg

03
Low Maintenance

Simple to clean and maintain for optimal performance

Metal mesh primary filter Cost-Effective.jpg

04
Cost-Effective

Provides long-term savings compared to disposable filters

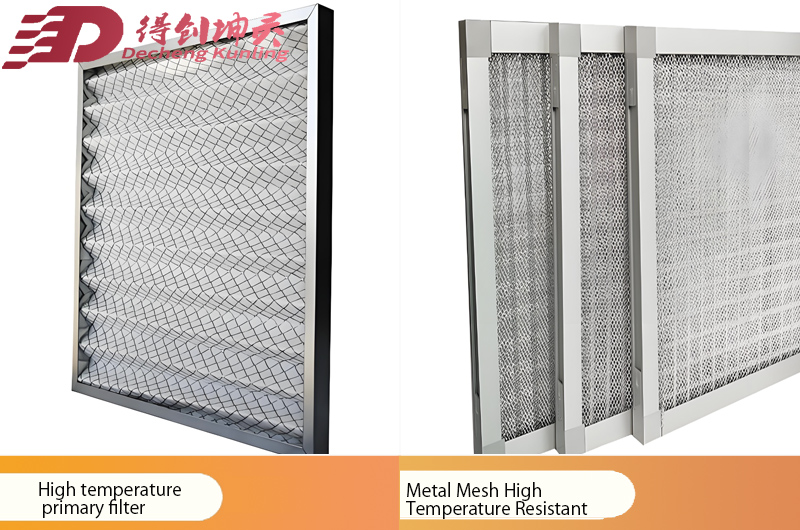

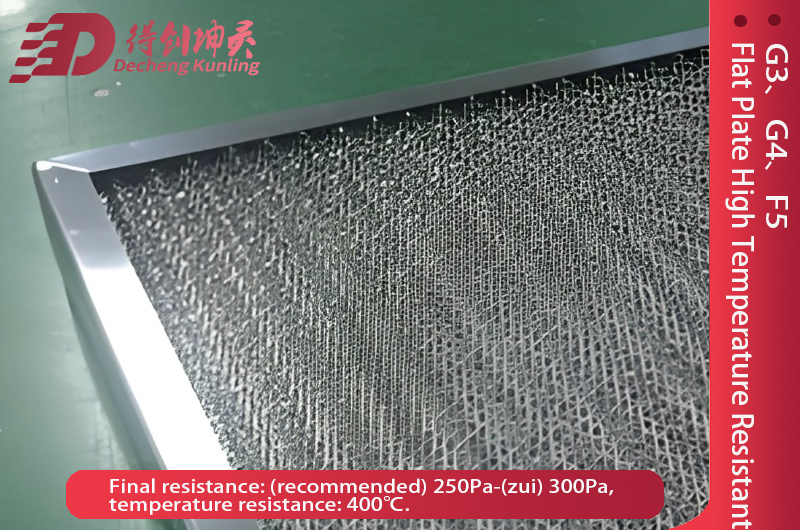

High Temperature Primary Filter2.jpg

High Temperature Primary Filter1.jpg

High Temperature Primary Filter3.jpg


Material composition

After the filter has been used for a period of time, it can be cleaned by air gun blowing and reused to save the operation cost to a large extent. The primary effect plate filter adopts mesh wire mesh or galvanized iron skeleton to support the filter material, which can meet the operation wind speed requirement of each ventilation system.

Product dimensions parameters

Filter material

Aluminum mesh/stainless steel mesh

Frame material

Aluminum profile frame, aluminum plate folding frame, galvanized frame, stainless steel frame

Maximum operating temperature

400℃
Maximum operating humidity100%


size
(WxHxD)(mm)
Rated air volume
(m³/h)

Filter are

a(m²)

Initial resistance

(Pa)

592*592*2132001.05< 20
592*287*2116000.51
592*490*2126000.87
592*592*4632003.15
592*287*4616001.53
592*490*4626002.61
592*592*5032003.86
592*287*5016001.87
592*490*5026003.2


FAQ

1. Do metal mesh primary filters require frequent maintenance?

Metal mesh primary filters require regular maintenance, but not as frequently as disposable filters. Cleaning them every few months is usually sufficient to maintain optimal performance. However, depending on the environment and the level of contaminants, more frequent cleaning may be necessary to avoid clogging and ensure efficient airflow.


2. Is a metal mesh primary filter better than a foam filter?

In general, metal mesh primary filters are better than foam filters in terms of durability and reusability. While foam filters are lightweight and cost-effective, metal mesh filters are more robust and can be cleaned and reused multiple times. Additionally, metal mesh filters are more effective at capturing larger particles, making them ideal for industrial and high-traffic environments.


3. Do metal mesh primary filters improve air quality?

Metal mesh primary filters help improve air quality by capturing larger airborne particles such as dust, pollen, and debris. This prevents these particles from circulating in the air and reduces the overall load on more specialized filters, enhancing the overall air quality in the environment.


4. What is the purpose of a metal mesh primary filter in an air purifier?

The purpose of a metal mesh primary filter in an air purifier is to act as a pre-filter. It captures larger particles like dust and debris, preventing them from clogging the more advanced filters such as HEPA or activated carbon filters. This allows those secondary filters to focus on finer particles, improving overall efficiency and lifespan.


5. What are the advantages of using a metal mesh primary filter over disposable filters?

Metal mesh primary filters offer several advantages over disposable filters:

  • Reusability: They can be cleaned and reused, reducing waste.

  • Durability: Made from strong materials like stainless steel, they last longer than disposable filters.

  • Cost-effectiveness: They save money over time due to their long lifespan.

These features make metal mesh filters a more sustainable and cost-efficient option in the long run.


6. Can I use a metal mesh primary filter for odor removal?

Metal mesh primary filters are not effective for odor removal. They are designed to capture larger particles like dust and debris but do not address smaller molecules responsible for odors. For odor control, activated carbon filters or other specialized filters would be more effective.


7. Can I use a metal mesh primary filter in my home air conditioning unit?

Yes, metal mesh primary filters can be used in home air conditioning units, especially for capturing larger particles like dust and debris. They help reduce the load on the system's main filter, improving airflow and ensuring the system runs more efficiently.


8. Are metal mesh primary filters effective in high-traffic areas?

Yes, metal mesh primary filters are effective in high-traffic areas where there is a higher level of dust and debris. These filters can capture larger particles and prevent them from entering the air circulation system, ensuring that the air remains cleaner and more breathable in busy environments.


9. How do you replace a clogged metal mesh primary filter?

To replace a clogged metal mesh primary filter, first turn off the system. Remove the old filter and inspect it for damage or excessive buildup. Insert the new filter, ensuring it is properly fitted into the system. If cleaning the old filter, rinse it with water, let it dry thoroughly, and reinstall it if still in good condition.


10. How does a metal mesh primary filter work?

A metal mesh primary filter works by using a fine mesh screen made of materials like stainless steel or aluminum to trap larger particles from the air. As air passes through the filter, dust, debris, and other larger pollutants are caught in the mesh, preventing them from entering the system or circulating in the air.


11. Can a metal mesh primary filter be used in a furnace?

Yes, metal mesh primary filters can be used in furnaces. They help capture larger particles like dust and dirt before the air enters the furnace, preventing buildup and ensuring efficient operation. They can also extend the lifespan of the furnace by reducing the strain on more specialized filters.


12. Can I use a metal mesh primary filter to improve air quality in a smoker's home?

While a metal mesh primary filter can help capture larger particles like dust, it is not effective at removing smoke or tobacco odors. To improve air quality in a smoker’s home, additional filters like activated carbon or HEPA filters are recommended to target smoke particles and odors more effectively.
