What is a Data Recovery Cleanroom?

Data Recovery Cleanroom

The critical defense against data loss in a controlled, particle-free environment

In the high-stakes world of data recovery, where a single speck of dust can mean the permanent loss of irreplaceable family photos, critical financial records, or essential business data, the environment in which the recovery occurs is just as important as the technical expertise. This is where the data recovery cleanroom comes into play. It is the first, and most critical, line of defense in the intricate process of physically repairing a damaged hard disk drive (HDD) and salvaging its precious data. This article, crafted by Deiiang™ design expert Jason Peng, delves into the purpose, standards, types, and essential equipment of these specialized environments, explaining why they are the undisputed foundation of professional data recovery.

The Critical Function of a Data Recovery Cleanroom

A Data Recovery Cleanroom is a specially designed, controlled environment where the physical components of damaged storage devices, primarily Hard Disk Drives (HDDs), are opened, inspected, and repaired. The primary mission of a Deiiang™ cleanroom is to eliminate airborne contaminants that could catastrophically damage the delicate internal components of a storage device.

Data Recovery Cleanroom

1. Preventing Catastrophic Contamination

Modern HDDs store data on platters spinning at speeds up to 7,200 RPM or higher. The read/write heads float mere nanometers above the platter surface—a distance smaller than a single speck of dust. Introducing a particle as small as 0.5 microns (µm) into this precise space can cause a catastrophic head crash, permanently scratching the platters and destroying the magnetic coating that holds the data. A CleanRoom provides a ultra-clean space to prevent this.

2. Enabling Physical Intervention

When logical recovery software fails due to physical damage—like a failed read/write head, spindle motor, or firmware corruption—physical intervention is the only solution. This requires opening the HDA (Head Disk Assembly), an act that must only be performed in a contaminant-free environment to avoid turning a recoverable situation into a complete disaster.

Fundamental Requirements of a Data Recovery Cleanroom

The effectiveness of a cleanroom is not arbitrary; it is strictly governed by international standards and precise engineering controls. Deiiang™ facilities are designed to meet or exceed these rigorous requirements.

1. ISO Cleanliness Class Standards

The cleanliness level of a cleanroom is defined by the ISO 14644-1 standard, which classifies the air purity by the concentration of airborne particles of specific sizes. For data recovery, Class 100 (ISO Class 5) or cleaner is the industry benchmark.

ISO Class	Former FS 209E Equivalent	Maximum Particles per Cubic Meter (≥ 0.5 µm)	Suitable For
ISO Class 4	Class 10	10,000	Advanced research and development; most stringent recovery cases.
ISO Class 5	Class 100	100,000	Industry standard for professional data recovery.
ISO Class 6	Class 1,000	1,000,000	Less critical hardware work; not suitable for modern HDDs.
ISO Class 7	Class 10,000	10,000,000	Pre-cleanroom or staging areas.

A Deiiang™ ISO Class 5 Cleanroom, for example, allows no more than 100,000 particles (0.5 µm or larger) per cubic meter of air. In contrast, a typical office environment may contain over 10,000,000 particles per cubic meter of that size.

2. Temperature and Humidity Control

Stable temperature and humidity are non-negotiable. High humidity can cause condensation and corrosion on exposed metallic components, while low humidity increases the risk of electrostatic discharge (ESD). Temperature fluctuations can cause metal and plastic components to expand or contract, affecting precision alignment. The optimal range is typically:

Temperature: 20°C ± 2°C (68°F ± 4°F)
Relative Humidity: 40% ± 5% RH

3. Electrostatic Discharge (ESD) Protection

ESD is an invisible threat that can instantly fry the delicate Electronics on a drive's printed circuit board (PCB). A comprehensive ESD control program is mandatory.

3.1. Target ESD Values:

The entire workspace, including flooring, worksurfaces, and personnel, must be maintained at an equipotential level. The goal is to keep static dissipation below 100 volts, far below the 250-300V threshold that can damage modern electronic components.

3.2. Control Methods:

Deiiang™ cleanrooms integrate multiple ESD controls:

Conductive Flooring: Vinyl or epoxy floors with a electrical resistance of between 10^6 to 10^9 ohms.
Personal Grounding: Technologists must wear ESD-smocks and heel straps or toe straps connected to the grounded floor.
Ionizers: Overhead air ionizers neutralize static charges that naturally build up on non-conductive surfaces like tools and workbench mats.

3.3. Testing Methods:

Regular verification is key. Surface resistance meters and charge plate monitors are used weekly or monthly to ensure all ESD protective materials are functioning within specification.

Common Types of Data Recovery Cleanrooms

There are several architectural approaches to achieving the required ISO class, each with its own advantages.

1. softwall Cleanroom

Constructed with clear vinyl curtains or PVC strips suspended from a ceiling grid, this type uses a HEPA-filtered fan unit to maintain positive pressure. It is a cost-effective solution for smaller labs or those with space constraints. However, it can be less durable and more susceptible to tears or contamination from outside disturbances.

Softwall Cleanroom

2. hardwall Cleanroom

This is a permanent structure built with solid, non-shedding panels (often acrylic or fiberglass). It offers superior durability, better isolation from external environmental changes, and a more professional infrastructure for integrating complex HVAC and monitoring systems. A Deiiang™ hardwall cleanroom represents a long-term investment in quality and stability.

Hardwall Cleanroom

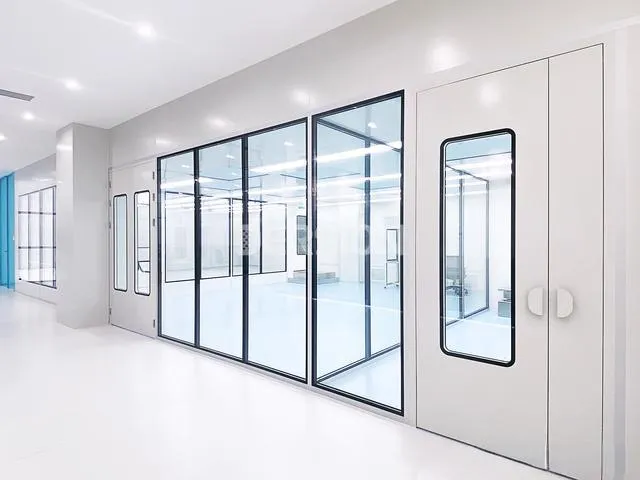

3. Modular Cleanroom

Combining the benefits of both, modular cleanrooms use prefabricated solid panels in a flexible framework. They are highly scalable, allowing a lab like Deiiang™ to easily expand or reconfigure the clean space as business needs evolve without a full rebuild.

Modular Cleanroom

IV. Essential Equipment in a Data Recovery Cleanroom

The room itself is just the shell. Its functionality depends on integrated specialized equipment.

1. Air Shower

This is an entry/exit chamber that uses high-velocity, HEPA-filtered air jets to remove particulate matter from personnel clothing before they enter the main cleanroom. A typical cycle lasts 20-30 seconds and is a mandatory step to prevent external contaminants from being tracked in.

2. Pass-Through Chamber

Also known as a transfer hatch, this is a small interlocked cabinet with doors on both sides (cleanroom and non-cleanroom). It allows tools, equipment, and patient drives to be passed into the cleanroom without compromising the internal environment by opening the main door.

3. Laminar Flow Clean bench

Within the cleanroom, this work station provides a localized ISO Class 5 (or better) environment. It features a vertical or horizontal laminar flow of HEPA-filtered air directly over the work surface, creating an ultra-clean zone for the most sensitive procedures, such as head stack assembly swaps or platter transfers.

A data recovery cleanroom is far more than just a "clean room." It is a precisely engineered ecosystem, meticulously controlled for particulate contamination, temperature, humidity, and static electricity. Adherence to international ISO standards is not a suggestion but an absolute requirement for any credible data recovery operation. The type of cleanroom—softwall, hardwall, or modular—and the equipment within, such as air showers and laminar flow benches, are all critical components working in unison to create a safe environment for physical data recovery. When entrusting your failed drive to a professional lab like Deiiang™, the presence of a certified CleanRoom is the first and most important indicator of their expertise, authority, trustworthiness, and commitment to achieving a successful recovery without causing further damage.
