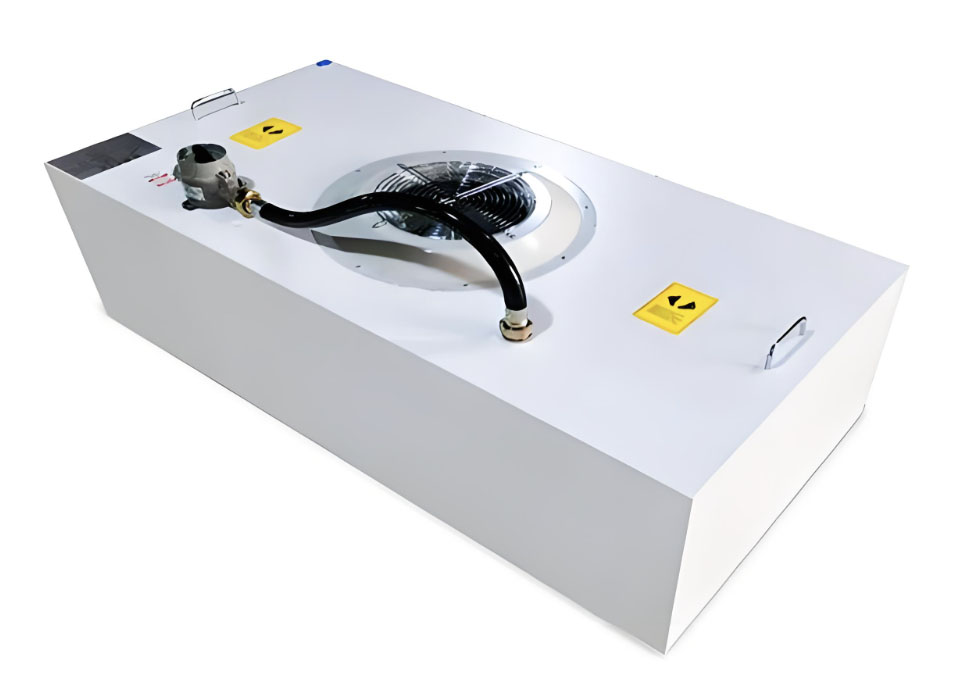

• Structural components: fan, filter, housing

• Air flow: The fan draws in ambient air, which passes through the filter.

• Filtration process: the filter removes particles (e.g. dust, microorganisms) from the air.

• Clean air release: Filtered clean air is released from the top or bottom.

• HEPA Filter

• ULPA Filter

• Adjustable speed fan

• Fixed speed fan

• Manual control panel

• Digital remote control system

• Monitoring sensors (pressure)

1. How to select the right fan type for an Explosion-Proof FFU?

When selecting the right fan type for an Explosion-Proof FFU, consider factors such as the application environment, air volume requirements, and pressure needs. Look for fans that are specifically designed for explosive atmospheres and comply with relevant safety standards. Also, evaluate the noise levels and energy efficiency of the fan to ensure it meets operational needs.

2. What are the differences between Class I and Class II Explosion-Proof FFUs?

Class I and Class II Explosion-Proof FFUs differ primarily in the types of hazardous materials they are designed to protect against. Class I FFUs are suited for environments with flammable gases or vapors, while Class II FFUs are designed for locations with combustible dust. Key differences include:

• Class I: Suitable for gases and vapors

• Class II: Suitable for dusts

• Design standards and certification requirements vary

Understanding these classifications is crucial for ensuring safety and compliance in the intended installation area.

3. What is the recommended filter change frequency for Explosion-Proof FFUs?

The recommended filter change frequency for Explosion-Proof FFUs depends on several factors, including the type of filter used, the level of airborne contaminants, and the operational environment. Generally, filters should be checked at least every three months, but in high-contaminant environments, monthly checks may be necessary. Keeping a regular maintenance schedule is essential to ensure optimal performance and safety.

4. Can Explosion-Proof FFUs be used in cleanrooms?

Yes, Explosion-Proof FFUs can be used in cleanrooms, provided they meet the specific cleanliness standards required for the application. They must be designed to prevent contamination while ensuring safe operation in potentially explosive environments. Proper installation and regular maintenance are essential to maintain both air quality and safety compliance.

5. Can Explosion-Proof FFUs be used in food processing facilities?

Explosion-Proof FFUs can be used in food processing facilities, particularly in areas where there is a risk of dust or flammable vapors. However, it is crucial to ensure that the materials used in the FFU construction are suitable for food applications and comply with food safety regulations. Regular maintenance and filter changes are also vital to uphold hygiene standards.

6. What is the filtration efficiency of different Explosion-Proof FFU filters?

The filtration efficiency of Explosion-Proof FFU filters varies depending on the filter type and specifications. Common filter types include HEPA, ULPA, and pre-filters, each designed for different efficiency levels:

• HEPA: 99.97% efficiency for particles 0.3 microns and larger

• ULPA: 99.999% efficiency for smaller particles

• Pre-filters: Lower efficiency, used for larger particles

Selecting the appropriate filter is critical for achieving desired air quality and safety levels in explosive environments.

7. How does an Explosion-Proof Fan Filter Unit work?

An Explosion-Proof Fan Filter Unit works by drawing contaminated air through a series of filters that capture particulates and pollutants before the clean air is recirculated back into the environment. The fan creates the necessary airflow, while the explosion-proof design prevents ignition of any flammable substances within the unit. This combination ensures both air quality and safety in hazardous locations.

8. How does the filter media affect the performance of Explosion-Proof FFUs?

The filter media plays a critical role in the performance of Explosion-Proof FFUs. Different materials have varying filtration efficiencies and capacities to capture specific types of contaminants. For instance, synthetic media may offer higher dust-holding capacity, while fiberglass media is often used for its cost-effectiveness. Choosing the right filter media impacts not only air quality but also maintenance and operating costs.

9. How to update or upgrade existing Explosion-Proof FFUs for improved performance?

To update or upgrade existing Explosion-Proof FFUs, consider replacing the filters with higher efficiency options, retrofitting with advanced fan technology for improved airflow, or adding monitoring systems for real-time performance data. Regular assessments of the unit's performance will help identify areas for improvement and ensure compliance with safety standards.

10. What is the warranty period for Explosion-Proof FFUs?

The warranty period for Explosion-Proof FFUs typically ranges from one to five years, depending on the manufacturer and specific model. It is essential to review the warranty details at the time of purchase to understand coverage for parts and labor. Regular maintenance can also helpto ensure that the warranty remains valid and that the unit operates effectively throughout its lifespan.

11. What kind of power supply is needed for Explosion-Proof FFUs?

Explosion-Proof FFUs generally require a power supply that adheres to specific safety standards to prevent ignition in hazardous environments. Most units operate on standard voltage supplies, such as 120V or 240V AC, but it’s important to verify the specifications of the particular model being used. Additionally, consider using power supplies with overload protection to further enhance safety.

12. How to ensure proper airflow in an Explosion-Proof FFU?

Ensuring proper airflow in an Explosion-Proof FFU involves several key practices. First, check that the fan is correctly sized for the application and that it meets the required air volume specifications. Additionally, regular maintenance, including cleaning and replacing filters, is essential to prevent airflow obstruction. Monitoring airflow with gauges or sensors can also help maintain optimal performance.

13. What maintenance schedule is recommended for Explosion-Proof Fan Filter Units?

A recommended maintenance schedule for Explosion-Proof Fan Filter Units includes the following tasks:

• Inspect fan operation and airflow every month

• Check and replace filters every 3 to 6 months, or as needed based on air quality

• Conduct a thorough cleaning of the unit annually

This schedule helps ensure the FFU operates efficiently, maintains air quality, and adheres to safety standards in hazardous environments.
