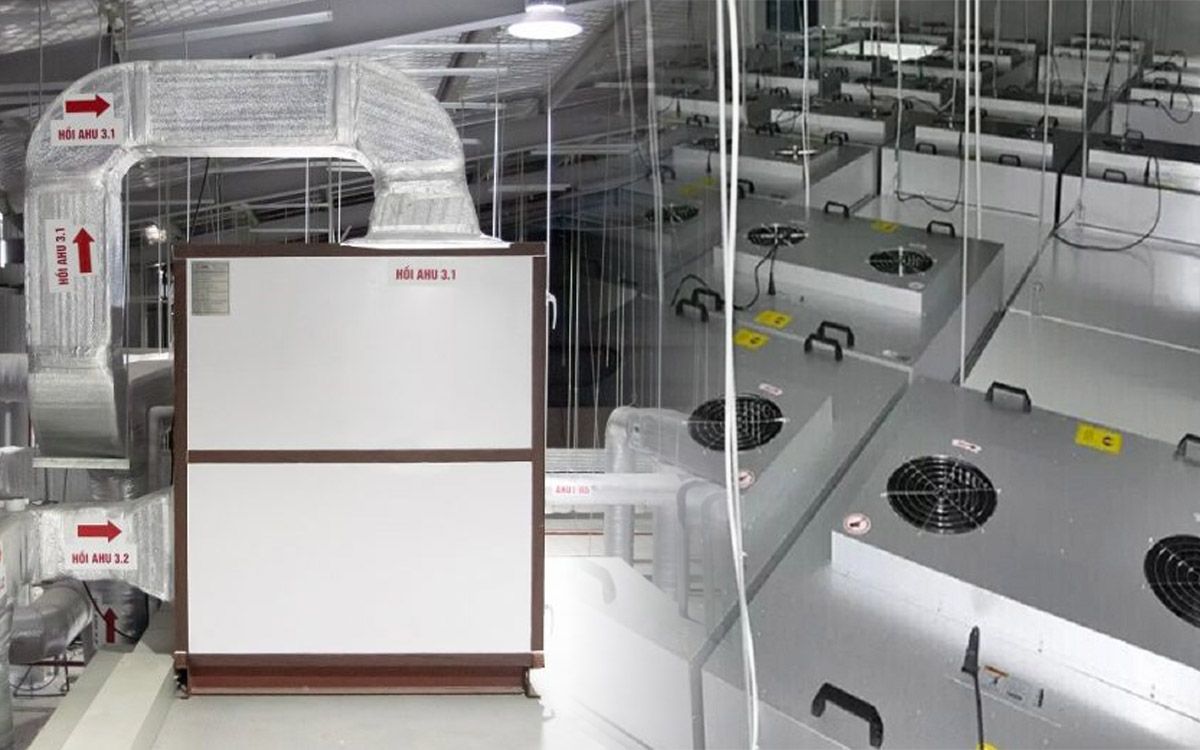

What is the difference between AHU and FFU?

Ahu (Air Handling Unit) and FFU (Fan Filter Unit) are both essential components in HVAC (Heating, Ventilation, and Air Conditioning) systems, but they serve different purposes and are used in different contexts. Here's a breakdown of the differences:

What is the difference between Ahu and FFU?

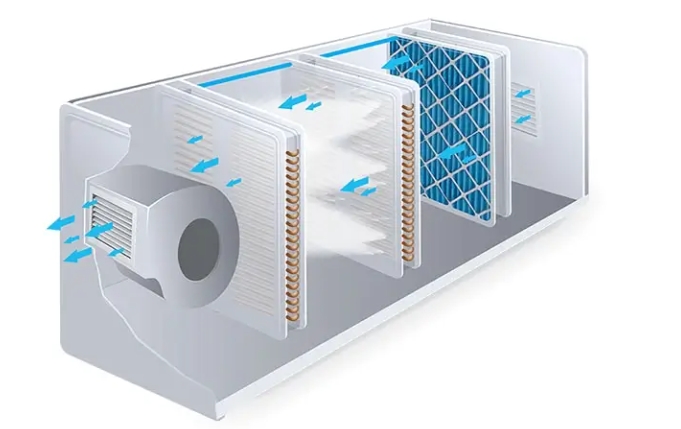

Air Handling Unit (AHU）

• Function: AHUs are responsible for regulating and circulating air as part of a HVAC system. They can heat, cool, dehumidify, and filter the air before it is distributed throughout a building.

• Components: Typical components of an AHU include fans, heating and cooling coils, filters, dampers, and sometimes humidifiers or dehumidifiers.

• Application: AHUs are commonly used in larger commercial buildings, industrial facilities, and complex HVAC systems where comprehensive air management is required.

• Air Volume: AHUs can handle large volumes of air, making them suitable for extensive air distribution systems.

Fan Filter Unit (FFU）

• Function: FFUs are designed primarily to filter air and provide Clean air in controlled environments, such as clean rooms or laboratories. They usually consist of a fan and a filter (often HEPA or ULPA).

• Components: FFUs typically include a fan, a filter (for particulate removal), and sometimes additional features for specific applications (like UV lights for sterilization).

• Application: FFUs are commonly used in environments that require strict air cleanliness standards, such as pharmaceutical manufacturing, Semiconductor fabrication, and research laboratories.

• Air Volume: FFUs are generally designed for lower air volumes compared to AHUs and can be used in localized areas rather than for whole-building ventilation.

In summary, the key differences between AHUs and FFUs lie in their functions, components, applications, and the scale at which they operate. AHUs are part of larger HVAC systems for comprehensive air management, while FFUs are focused on providing clean air in controlled environments.

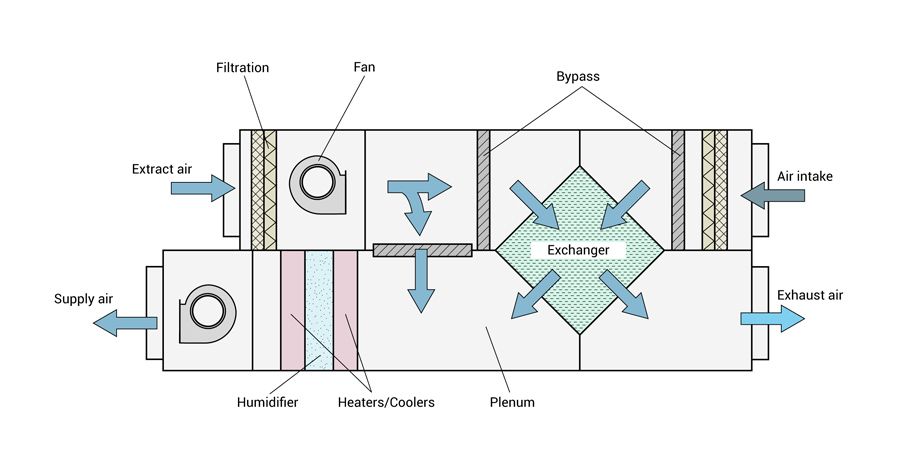

AHU is Part of the HVAC System

An Air Handling Unit (AHU) is a critical component of HVAC (Heating, Ventilation, and Air Conditioning) systems. Its primary role is to regulate and circulate air throughout a building. AHUs condition the air by heating, cooling, dehumidifying, or filtering it before it is distributed via ductwork. They typically consist of fans, heating and cooling coils, filters, and dampers, allowing for comprehensive control over indoor air quality and temperature. AHUs can serve large spaces, making them ideal for commercial buildings, hospitals, and industrial facilities. They can handle significant volumes of air, ensuring even distribution and comfort across various areas. Additionally, AHUs can be integrated with other systems, such as chillers or boilers, to enhance efficiency and performance. By functioning as part of a holistic HVAC strategy, AHUs contribute significantly to creating a comfortable and healthy indoor environment.

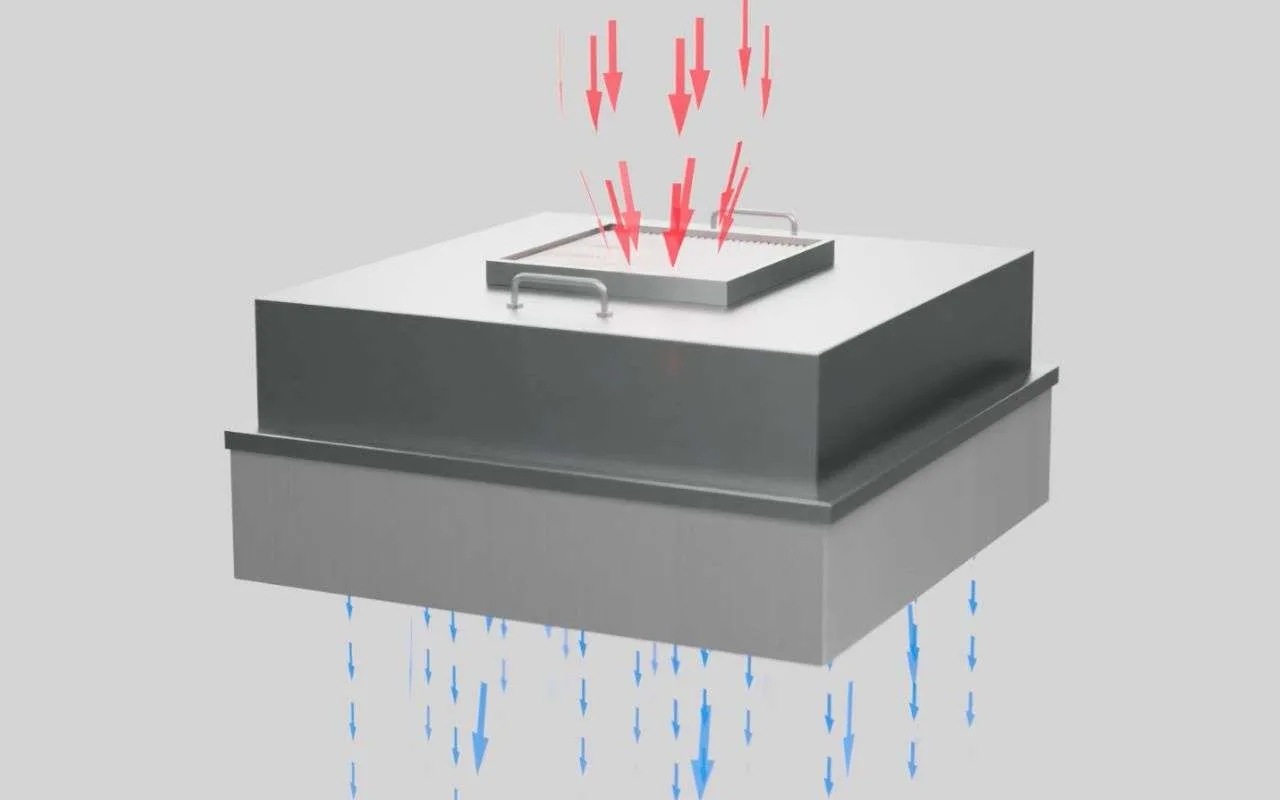

Compared to AHU, FFU is Only Local Ventilation

1. Localized Air Management：FFUs (Fan Filter Units) provide localized air filtration and distribution, focusing on small, specific areas rather than entire buildings.

2. Limited Air Volume：Unlike AHUs, which handle large volumes of air, FFUs are designed for lower air flow rates, serving individual workstations or cleanroom environments.

3. High Filtration Efficiency：FFUs typically incorporate HEPA or ULPA filters, ensuring high efficiency in removing airborne particles, making them ideal for environments requiring stringent air cleanliness.

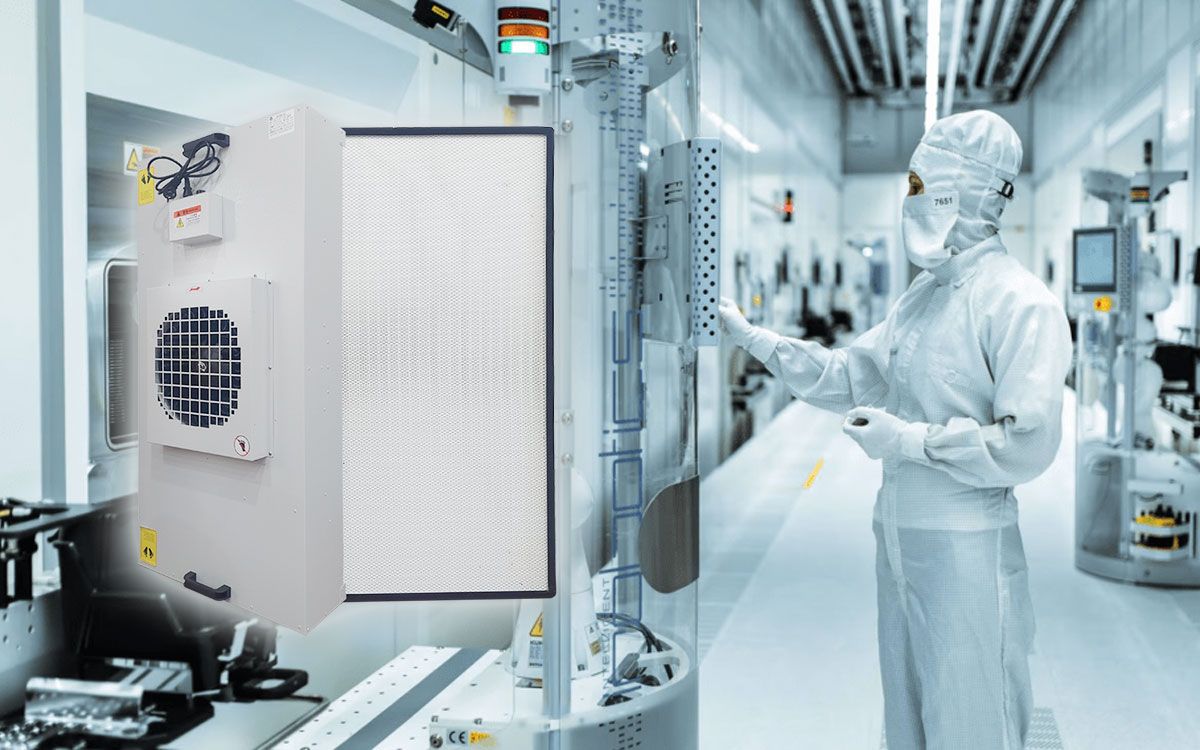

FFU Focuses on Providing Clean Air in a Controlled Environment

Fan Filter Units (FFUs) are specifically engineered to deliver clean, filtered air in controlled environments, such as cleanrooms, laboratories, and manufacturing facilities. By integrating a fan and a high-efficiency filter (often HEPA or ULPA), FFUs actively circulate air while removing particulates and contaminants. This functionality is crucial in settings where air quality directly impacts product integrity and safety.

The design of FFUs allows for flexibility in layout and installation. They can be mounted on ceilings or placed on the floor, depending on the specific needs of the space. FFUs create a laminar flow of air, minimizing turbulence and preventing the introduction of contaminants from outside sources. This is essential for maintaining the stringent cleanliness standards required in industries such as pharmaceuticals, Electronics, and biotechnology.

Furthermore, FFUs can be equipped with monitoring systems to track air quality and filter performance, offering real-time data to facility managers. This ensures that the cleanroom environment remains compliant with industry regulations and standards.

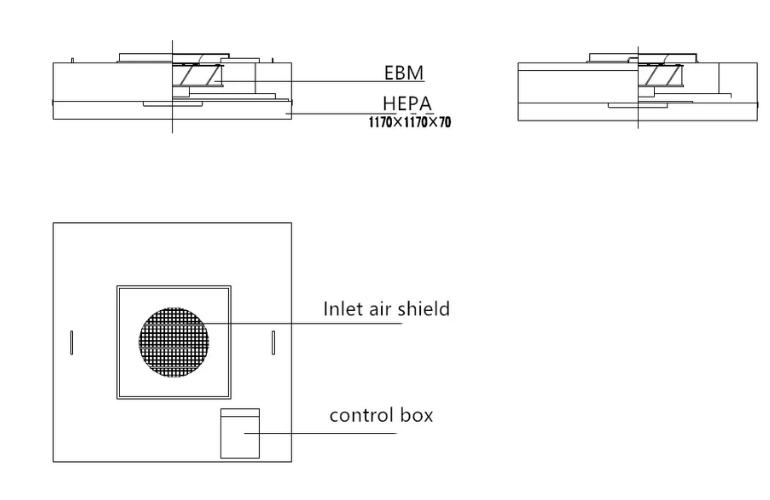

Layout Design of FFU

Proper layout design of FFUs is crucial for maximizing air cleanliness and efficiency in controlled environments. The arrangement should facilitate optimal airflow and ensure uniform distribution throughout the space.

When designing a layout for FFUs, it’s essential to consider factors such as the size of the space, the activities performed, and the airflow requirements. FFUs should be strategically placed to create a laminar flow of air, reducing the risk of contamination. For example, in a cleanroom, FFUs are often arranged in a grid pattern to ensure even air distribution and minimize dead zones. The design should also account for service access and maintenance, allowing easy replacement of filters and components without disrupting operations.

Additionally, the layout should ensure that the number of FFUs is adequate to meet the cleanliness levels required by specific processes. Following guidelines from relevant standards, such as ISO 14644, helps in determining the appropriate FFU density and configuration.

Flexible design allows for adjustments as requirements evolve.

Cost of FFU

The initial cost of FFUs can vary based on specifications, filter types, and manufacturer. While FFUs may have higher upfront costs compared to traditional filters, they can reduce operational expenses through energy-efficient designs and lower maintenance needs. Investing in FFUs often results in long-term savings due to their effectiveness in maintaining air quality and reducing contamination risks. Compliance with international standards, such as iso 14644-1, underscores the importance of using high-quality FFUs in critical environments, ensuring both safety and efficiency.

Summary

In summary, understanding the differences between AHUs and FFUs is essential for effective air management in various environments. While AHUs are integral to large-scale HVAC systems, FFUs provide localized air filtration and cleanliness in controlled settings. Their design, layout, and associated costs reflect their specific applications and the critical need for high air quality in industries where contamination can have significant consequences.
