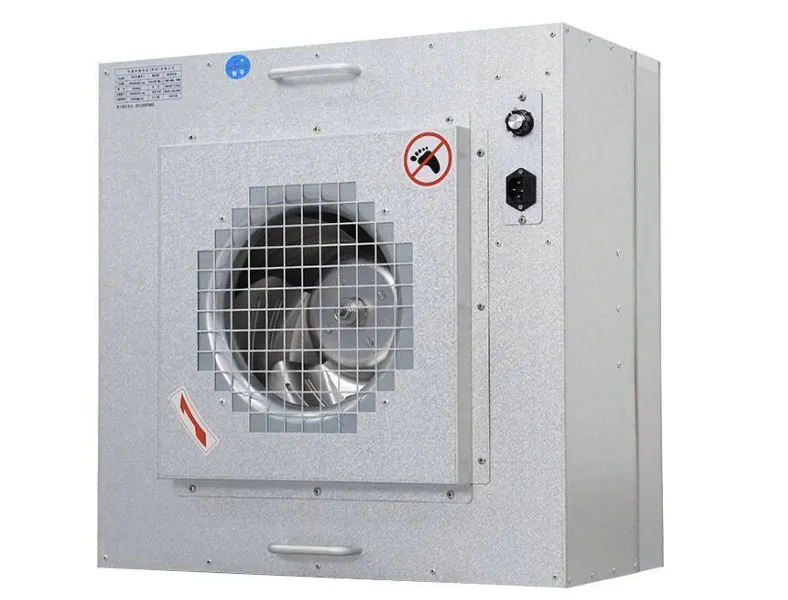

A Fan Filter Unit (FFU) is a self-contained device that provides filtered air to cleanrooms and other controlled environments, ensuring the air meets specific cleanliness standards.
Design and Components of an FFU:
Fan
Filter
Housing
Controls
Pre-filters
Min. Order:1 Set
Min. Order:1 Set
Min. Order:1 Set
Min. Order:1 Set
Modular CleanRoom
US$9000-10000 USD/Unit
Min. Order:1 unit
Air Shower
US$1000.00-5000.00 USD/Unit
Min. Order:1 unit
Downflow Booth
US$3000-6000 USD/Unit
Min. Order:1 unit
Clean bench
US$600-2000 USD/Unit
Min. Order:1 unit
Air Filter
US$3-50 USD/Unit
Min. Order:1 unit
Cleanroom Wall Panels
US$10-20 USD/sq.
Min. Order:100 square
Deiiang is a leading manufacturer specializing in high-quality fan filter units (FFUs) designed to meet the stringent requirements of cleanroom environments and HVAC systems. With a commitment to innovation and excellence, Deiiang leverages advanced technology and industry expertise to produce FFUs that provide efficient air filtration, ensuring optimal air quality and compliance with international standards. Our products are widely used in various sectors, including pharmaceuticals, biotechnology, electronics, and food processing.
At Deiiang, we understand the importance of reliable performance and durability in fan filter units. Our FFUs are equipped with HEPA and ULPA filters, which effectively capture airborne particles, allergens, and contaminants. Each unit is rigorously tested to guarantee high airflow rates, low energy consumption, and minimal noise levels, making them ideal for sensitive environments. Our dedicated engineering team works closely with clients to customize solutions tailored to specific applications and operational needs.
Customer satisfaction is at the heart of Deiiang's mission. We pride ourselves on providing exceptional service, from initial consultation to after-sales support. Our knowledgeable team is always ready to assist with any inquiries or technical advice, ensuring that you make informed decisions for your cleanroom or HVAC project. Choose Deiiang as your trusted partner for fan filter units, and experience the perfect blend of quality, performance, and reliability.
A fan filter unit (FFU) is an essential component in cleanroom and controlled environment applications, designed to provide efficient air filtration and maintain a high level of air cleanliness. It consists of a fan and a filter, typically a HEPA or ULPA filter, housed in a single unit. The primary function of an FFU is to draw in ambient air, pass it through the filter to remove airborne particles, allergens, and contaminants, and then distribute the filtered, clean air back into the environment.
This process helps to create a sterile atmosphere, making FFUs ideal for use in industries such as pharmaceuticals, biotechnology, electronics, and food processing, where air quality is critical for product integrity and safety. Additionally, FFUs can be integrated into modular cleanroom systems, allowing for flexibility in design and operation.
A fan filter unit (FFU) is an integrated air filtration system that combines a fan and a high-efficiency filter, typically a HEPA or ULPA filter, in a single unit. It is designed to provide a continuous flow of clean, filtered air in controlled environments such as cleanrooms, laboratories, and manufacturing facilities.
The FFU operates by drawing in ambient air, filtering out airborne particles and contaminants, and then distributing the purified air into the workspace. This process helps maintain low levels of particulate contamination, which is essential for industries like pharmaceuticals, biotechnology, and electronics, where air quality is critical to product safety and performance.
FFUs can be installed in various configurations, including ceiling-mounted or wall-mounted, offering flexibility in cleanroom design and ensuring compliance with strict cleanliness standards.
A filter unit serves the essential function of removing impurities and contaminants from air or liquids to ensure a clean and safe environment. Its primary role is to enhance air or fluid quality, making it crucial in various applications, including HVAC systems, industrial processes, and cleanroom environments. The key functions of a filter unit include:
Filtration of Particulates: Captures dust, pollen, and other airborne particles.
Removal of Contaminants: Eliminates harmful substances, allergens, and pollutants.
Protection of Equipment: Prevents damage to machinery and extends the lifespan of HVAC systems.
Improvement of Air Quality: Enhances the overall health and safety of indoor environments.
By fulfilling these functions, filter units play a critical role in maintaining hygiene, compliance with health standards, and ensuring the efficiency of various systems.
The difference between a fan filter unit (FFU) and a HEPA filter lies in their definitions and functionalities in air filtration systems. An FFU is an integrated unit that combines a fan and a filter, typically a HEPA or ULPA filter, designed to provide a consistent flow of clean air in controlled environments such as cleanrooms and laboratories. In contrast, a HEPA filter is a specific type of air filter that meets stringent standards for filtering out particles from the air, capturing at least 99.97% of particles that are 0.3 microns in size.
Key Differences:
Composition
FFU: Integrates a fan and a filter (often HEPA or ULPA) into one unit.
HEPA: A type of filter that can be used in various applications, including FFUs.
Function
FFU: Provides filtered air circulation; used to maintain clean environments.
HEPA: Focuses solely on air filtration efficiency; does not include a fan.
Application
FFU: Commonly used in cleanrooms, laboratories, and manufacturing areas.
HEPA: Used in various devices, including air purifiers, vacuum cleaners, and HVAC systems.
Understanding these differences helps in selecting the appropriate system for specific air quality needs and applications.
The size of a fan filter unit (FFU) can vary significantly depending on the manufacturer and the specific application requirements. Typically, FFUs are designed to fit standard cleanroom dimensions and can come in various sizes to accommodate different airflow needs. Common dimensions for FFUs include:
Width: 2 feet (610 mm) to 4 feet (1220 mm)
Depth: 1 foot (300 mm) to 2 feet (600 mm)
Height: 1 foot (300 mm) to 2 feet (600 mm)
Some FFUs may also be custom-built to fit particular spaces or configurations. It's essential to choose the appropriate size based on the cleanroom design, airflow requirements, and the specific application to ensure optimal performance and air quality.
A fan filter unit (FFU) is designed to provide clean, filtered air in controlled environments such as cleanrooms, laboratories, and manufacturing facilities. It combines a fan and a high-efficiency filter, typically a HEPA or ULPA filter, within a single unit.
The FFU draws in ambient air, passes it through the filter to remove airborne particles, contaminants, and allergens, and then distributes the purified air back into the environment. This process helps maintain a sterile atmosphere, ensuring compliance with strict air quality standards crucial for industries like pharmaceuticals, biotechnology, and electronics, where clean air is essential for product integrity and safety.
A fan filter unit (FFU) in a cleanroom is a critical component used to maintain a controlled and sterile environment by providing a continuous flow of filtered air. It combines a high-efficiency filter, typically a HEPA or ULPA filter, with a built-in fan to draw in ambient air, remove contaminants, and deliver clean air directly into the cleanroom space. FFUs are often mounted in the ceiling or walls, allowing for modular cleanroom designs that can be easily adjusted to meet specific airflow and cleanliness requirements.
The primary function of an FFU in a cleanroom is to ensure that the air quality meets strict cleanliness standards essential for various industries, including pharmaceuticals, biotechnology, and electronics manufacturing. By effectively filtering out particles and contaminants from the air, FFUs help minimize the risk of contamination during critical processes and protect sensitive products, equipment, and personnel. This makes FFUs a vital component in achieving and maintaining the desired cleanroom classification levels.
The unit of a HEPA filter is defined by its efficiency, which must capture at least 99.97% of particles that are 0.3 microns in size.
HEPA filters are designed to capture at least 99.97% of particles that are 0.3 microns in size, making them suitable for most cleanroom applications. In contrast, ULPA filters have a higher efficiency, capturing at least 99.999% of particles down to 0.1 microns, providing superior air purity.
A HEPA filter in a fan filter unit (FFU) is a high-efficiency filter that removes airborne contaminants, ensuring that clean air is delivered to controlled environments like cleanrooms.
Cost range: $50 to $500
Factors: Size, efficiency, manufacturer
Variability: Based on specific application requirements
The primary difference between a fan filter unit (FFU) and a HEPA filter lies in their functions and configurations in air filtration systems. An FFU is an integrated unit that combines a fan and a filter, usually a HEPA or ULPA filter, to provide a continuous flow of clean, filtered air in controlled environments such as cleanrooms and laboratories. The FFU actively circulates air, ensuring that the environment maintains low levels of particulate contamination.
In contrast, a HEPA filter is a specific type of air filter that is defined by its ability to capture at least 99.97% of particles that are 0.3 microns in size. HEPA filters can be used in various applications, including air purifiers, vacuum cleaners, and HVAC systems, but they do not contain a fan. Instead, HEPA filters rely on external airflow mechanisms to function, meaning they must be part of a larger system that provides the air movement required for filtration.
Iwhile all FFUs use HEPA filters to achieve high air quality, they are not the same. FFUs are complete systems designed for air circulation and filtration, whereas HEPA filters are individual components that focus solely on air purification. Understanding this distinction is crucial for selecting the right equipment for specific air quality needs in various environments.
The working principle of a fan filter unit (FFU) revolves around its ability to draw in ambient air, filter out contaminants, and then distribute clean air back into the environment. The unit consists of a fan that creates negative pressure, pulling air through a high-efficiency filter, typically a HEPA or ULPA filter. As the air passes through the filter, particles, dust, and other airborne contaminants are captured, ensuring that only purified air is released. This process helps maintain the desired cleanliness levels in controlled environments such as cleanrooms and laboratories.
Once the air is filtered, the fan forces it into the cleanroom space, creating a laminar airflow pattern that prevents the accumulation of contaminants and minimizes turbulence. This continuous circulation of clean air not only helps maintain the sterile environment but also supports various processes that require strict air quality standards. By integrating both filtration and airflow management, FFUs play a crucial role in ensuring optimal conditions for sensitive applications in industries like pharmaceuticals, biotechnology, and electronics manufacturing.
The design standards and regulations for fan filter units (FFUs) primarily focus on ensuring air quality, safety, and efficiency in controlled environments such as cleanrooms. Key standards include ISO 14644, which outlines the classification of air cleanliness in cleanrooms and controlled environments, and the guidelines set forth by organizations like the FDA and cGMP for pharmaceutical manufacturing. Additionally, FFUs must comply with performance metrics related to airflow, filtration efficiency (often requiring HEPA or ULPA filters), and noise levels, as specified by various industry standards. Manufacturers may also follow specific guidelines from the American National Standards Institute (ANSI) and the Institute of Environmental Sciences and Technology (IEST) to ensure that FFUs are designed for optimal performance and reliability in critical applications.
The maintenance schedule for fan filter units (FFUs) typically involves regular inspections, cleaning, and filter replacements to ensure optimal performance and air quality.
It is generally recommended to inspect FFUs monthly for any signs of wear, damage, or decreased airflow. Additionally, the fan and motor should be checked for proper operation and noise levels. Cleaning the exterior and surrounding areas is also crucial to prevent contamination and maintain a hygienic environment.
Filters in FFUs should be replaced based on their usage and the specific application requirements, but a common guideline is to change HEPA filters every 6 to 12 months.
However, this timeframe can vary depending on factors such as the level of particulate contamination in the environment, the filter's pressure drop, and manufacturer recommendations. Monitoring the pressure differential across the filter can help determine when a replacement is necessary, as an increase in pressure drop indicates that the filter is becoming clogged and is less effective at capturing contaminants.
Regular maintenance and timely filter replacements are essential for maintaining the efficiency and effectiveness of FFUs in controlled environments.
The installation requirements for fan filter units (FFUs) include several essential considerations to ensure optimal performance and compliance with cleanroom standards:
Install FFUs in areas with adequate clearance for airflow.
Ensure proximity to power sources and control systems.
Securely mount FFUs to ceilings or walls as per manufacturer specifications.
Follow guidelines for suspension or bracket installation to prevent vibrations.
Position FFUs to direct airflow appropriately (laminar or turbulent) based on cleanroom design.
Ensure that air is distributed evenly throughout the space.
Connect FFUs to appropriate power sources, ensuring compatibility with voltage and amperage requirements.
Use proper wiring and grounding techniques to prevent electrical issues.
Seal any gaps around the FFU to prevent air leaks.
Ensure that filters are installed correctly to maintain integrity and performance.
Design installation for easy access to FFUs for maintenance and filter replacement.
Consider the layout to facilitate regular inspections and servicing.
Ensure installation adheres to relevant industry standards and regulations (e.g., ISO, FDA).
Follow guidelines from cleanroom certification bodies to meet cleanliness requirements.
By adhering to these installation requirements, FFUs can effectively contribute to maintaining clean air quality in controlled environments.
Performance testing on a fan filter unit (FFU) involves several essential steps to ensure it operates effectively. First, airflow testing is conducted using an anemometer or airflow hood to measure the volume of air the FFU moves, ensuring it meets the specified cubic feet per minute (CFM). This step verifies that the unit is delivering adequate airflow for the cleanroom or controlled environment.
Next, the pressure drop across the filter is measured to assess its condition; a significant increase indicates potential clogging and the need for a filter replacement. Additionally, filtration efficiency is tested by introducing particles into the airflow and measuring their concentration before and after the filter. HEPA filters should capture at least 99.97% of particles that are 0.3 microns in size. Regular performance testing is crucial for maintaining compliance with cleanroom standards and ensuring optimal air quality. Proper documentation of test results is also essential for quality assurance and regulatory compliance.
