What common challenges are faced during the construction of a hardwall clean room?

What Common Challenges Are Faced During the Construction of a hardwall Clean room？

• Design and Planning Challenges

The initial design phase of a hardwall Cleanroom is critical yet often complex. A significant challenge is ensuring compliance with ISO 14644 standards, which dictate specific cleanliness levels based on particle counts. For example, ISO5 allows no more than 3,520 particles ≥0.5 micrometers per cubic meter. Achieving this requires meticulous planning of airflow and space layout.

• Material Selection

Selecting appropriate materials for construction poses another challenge. Hardwall cleanrooms typically use non-porous materials such as stainless steel and insulated panels. The use of materials must comply with ISO 14644-4, which outlines the requirements for cleanroom construction. Additionally, materials should minimize particle generation and be resistant to chemical cleaning agents.

• HVAC System Integration

Integrating a reliable HVAC system that meets cleanroom requirements is essential. This system must maintain a positive pressure environment, controlling airflow to prevent contamination. According to ASHRAE standards, the air changes per hour (ACH) should be between 20 to 50 for high-class cleanrooms. Ensuring that the HVAC system effectively meets this requirement can be challenging during construction.

• Contamination Control

Controlling contamination during construction is a significant concern. Particulate matter from construction activities can compromise the cleanroom’s integrity. To mitigate this, adhering to iso 14644-2 is crucial, as it provides guidelines for monitoring air cleanliness. Construction teams must implement strict protocols to minimize dust and other contaminants.

• Compliance with Regulatory Standards

Navigating the regulatory landscape is a common challenge in cleanroom construction. Compliance with both local and international standards, such as ISO 14644 and GMP (Good Manufacturing Practices), is mandatory. These standards dictate not only the construction process but also ongoing operational procedures. Ensuring that all aspects of the construction meet these standards requires regular audits and inspections.

• Budget Constraints

Budget limitations can impact the design and construction quality of hardwall Cleanrooms. The complexity of achieving ISO compliance often drives up costs. According to industry estimates, constructing a cleanroom can range from $300 to $1,000 per square foot, depending on the class and specifications. Balancing quality with budget constraints while maintaining compliance can be challenging.

What is the Standard for Cleanroom Design?

1. Airflow Requirements

Cleanrooms must ensure proper airflow patterns to minimize contamination. The design should facilitate laminar flow, typically requiring air changes per hour (ACH) ranging from 20 to 600, depending on the cleanroom class.

2. Temperature and Humidity Control

Maintaining specific temperature and humidity levels is vital. Standards often recommend temperatures around 20-22°C and relative humidity between 30-60% to ensure optimal conditions for sensitive processes and equipment.

3. Materials and Construction

Materials used in cleanroom construction must comply with strict standards to prevent contamination. Non-porous, smooth surfaces are preferred, and all materials should be resistant to cleaning agents to maintain cleanliness over time.

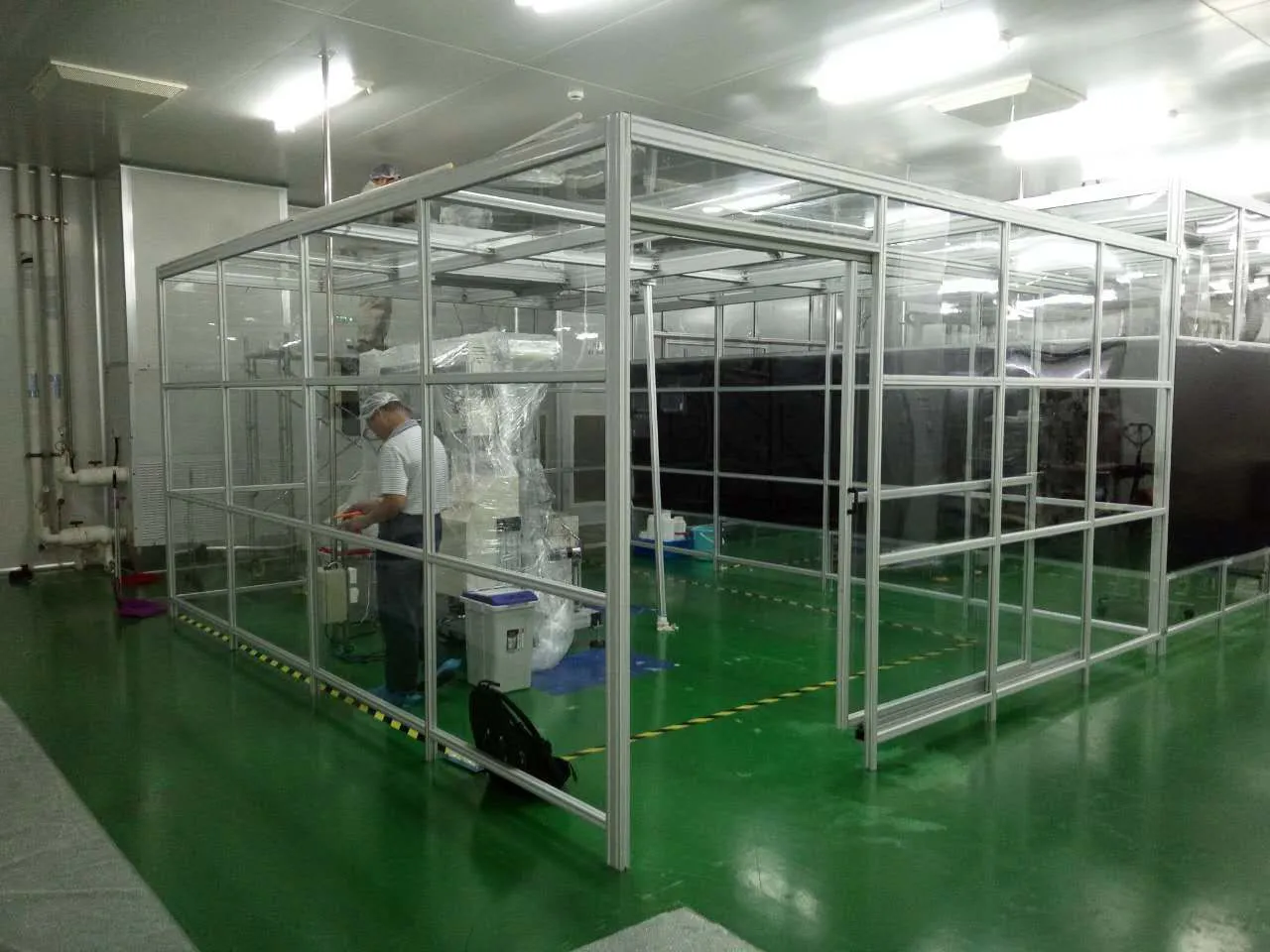

How Are Clean Rooms Constructed?

Initial Planning

The construction of a modular cleanroom begins with detailed planning, including Layout Design and airflow analysis. This phase is critical to meet regulatory standards and operational needs effectively.

Framework Installation

Once planning is complete, the framework is installed. This includes walls, ceilings, and flooring, ensuring all components are designed to minimize particle accumulation and facilitate easy cleaning.

HVAC System Setup

A critical aspect of cleanroom construction is the HVAC system installation. This system must maintain controlled airflow, temperature, and humidity, adhering to standards like ASHRAE guidelines for ventilation.

What is Cleanroom Assembly?

1. Component Integration: During assembly, components such as air filters, lights, and access doors are integrated. Each component must be carefully selected and positioned to ensure compliance with cleanliness standards and operational efficiency.

2. Quality Control Measures: Throughout the assembly process, quality control measures are implemented. This includes inspections and testing of materials and systems to ensure they meet industry standards and function correctly within the cleanCertainly! Here’s the continuation of the section on cleanroom assembly and the subsequent section on materials used in cleanroom construction.

3. Quality Control: Quality control is a critical aspect of cleanroom assembly. Continuous monitoring and testing are conducted throughout the assembly process to ensure compliance with cleanliness standards and operational specifications, preventing contamination risks.

What Are the Materials Used in Cleanroom Construction?

• Wall Panels

Wall panels in cleanroom construction are typically made of materials like stainless steel, aluminum, or high-pressure laminate. These materials are chosen for their non-porous nature, durability, and ease of cleaning to minimize contamination.

• Flooring Options

Cleanroom flooring is often constructed from vinyl or epoxy materials. These surfaces are designed to be seamless, slip-resistant, and easy to clean, reducing the risk of particle accumulation and ensuring a safe working environment.

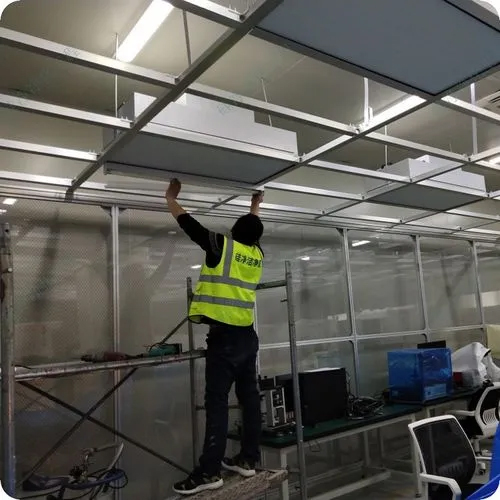

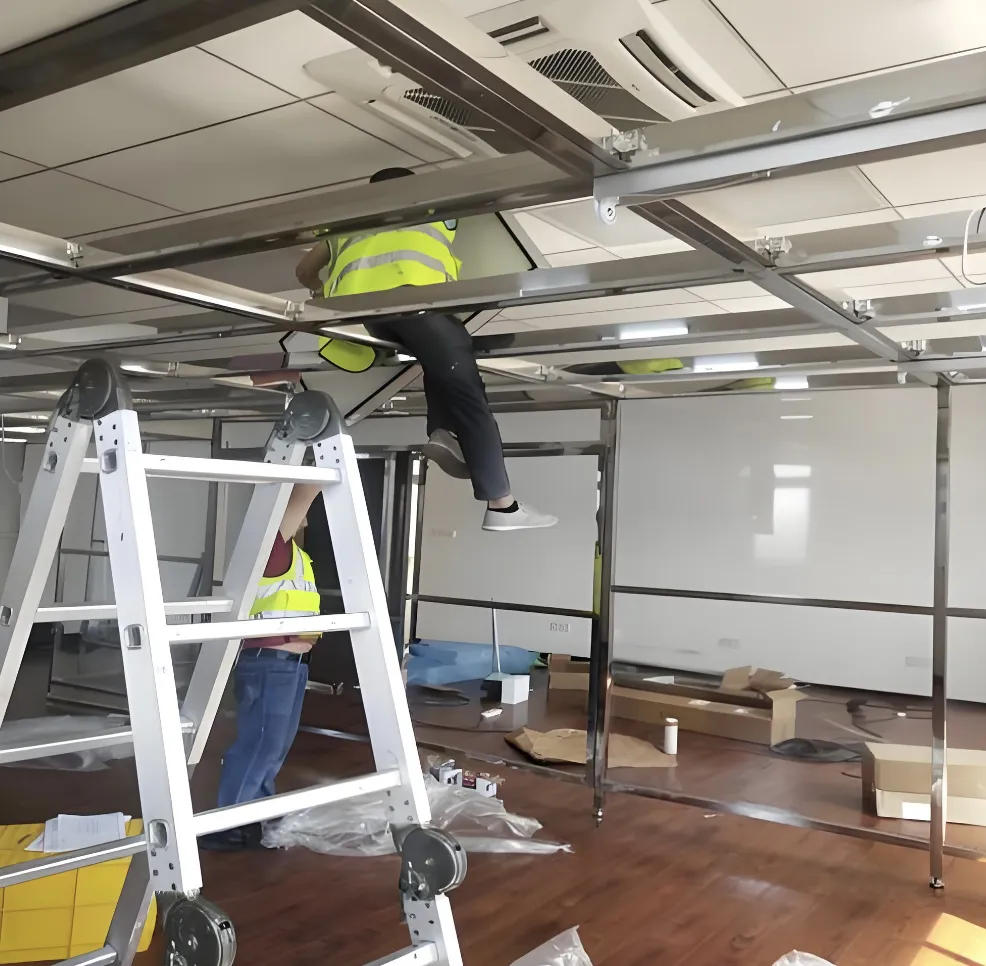

• Ceiling Systems

Ceiling systems in cleanrooms usually consist of lightweight panels with integrated air diffusers. These ceilings support the necessary airflow and filtration systems while maintaining a clean and unobstructed environment.

• Doors and Windows

Cleanroom doors and windows are designed to minimize contamination. They are often made of glass or clear plastic with airtight seals and are equipped with interlocking mechanisms to maintain pressure and prevent particle ingress.
