How does a hardwall clean room differ from a softwall clean room?

How Does a Hardwall Clean Room Differ from a Softwall Clean Room?

1. Definition and Structure

Hardwall clean rooms feature rigid walls made from materials like metal or composite panels. These structures provide a durable, long-lasting environment that can withstand rigorous cleaning and maintenance. In contrast, softwall clean rooms utilize flexible vinyl or fabric walls, offering a less permanent solution that can be quickly installed or modified.

2. Contamination Control

Hardwall clean rooms generally offer better contamination control due to their solid construction. They can maintain ISO ISO 5 cleanliness, which allows no more than 3,520 particles per cubic meter of air. Softwall clean rooms, typically operating at ISO7 or 8, may allow higher particle counts, making them less suitable for sensitive operations.

3. Airflow and Filtration

Hardwall clean rooms typically have a more sophisticated airflow system, including HEPA or ULPA filters that provide higher air exchange rates—often exceeding 20 air changes per hour. Softwall clean rooms may have a lower airflow capacity, typically around 10 to 15 air changes per hour, which can impact overall cleanliness levels.

4. Cost and Installation

In terms of cost, hardwall clean rooms are generally more expensive than softwall options due to their materials and construction requirements. A hardwall clean room can cost between $200 to $400 per square foot, while softwall clean rooms average $100 to $200 per square foot. Installation time also varies, with softwall rooms being quicker to set up.

5. Flexibility and Modifications

Softwall clean rooms offer greater flexibility for future modifications. Their lightweight design allows for easy relocation or reconfiguration as operational needs change. In contrast, hardwall clean rooms require more extensive renovation processes, making them less adaptable to evolving requirements.

• ISO 14644-1:Cleanrooms and associated controlled environments – Part 1: Classification of air cleanliness. This standard provides guidelines for classifying cleanrooms based on the number and size of airborne particles.

• iso 14644-2:Cleanrooms and associated controlled environments – Part 2: Monitoring to provide evidence of cleanroom performance related to air cleanliness by airborne particulate contamination. This standard outlines procedures for monitoring and validating cleanroom performance.

• ISO 14644-3:Cleanrooms and associated controlled environments – Part 3: Test methods. This standard specifies the methods for measuring airborne contamination and other cleanroom parameters, ensuring compliance with cleanliness standards.

• ISO 14644-4:Cleanrooms and associated controlled environments – Part 4: Design, construction, and start-up. This standard provides guidance on the design and construction of cleanrooms, focusing on how to achieve and maintain the required cleanliness levels.

• iso 14644-5:Cleanrooms and associated controlled environments – Part 5: Operations. This standard covers operational requirements for cleanrooms, including cleaning protocols, personnel training, and contamination control procedures.

• FDA Guidelines for Sterile Drug Products:These guidelines emphasize the importance of maintaining a controlled environment in areas where sterile products are manufactured, including specifications on Cleanroom design and operation.

• GMP (Good Manufacturing Practice) Regulations:These regulations set forth requirements for maintaining cleanliness in manufacturing processes, applicable to industries such as pharmaceuticals and biotechnology.

What Are the Different Types of Cleanrooms?

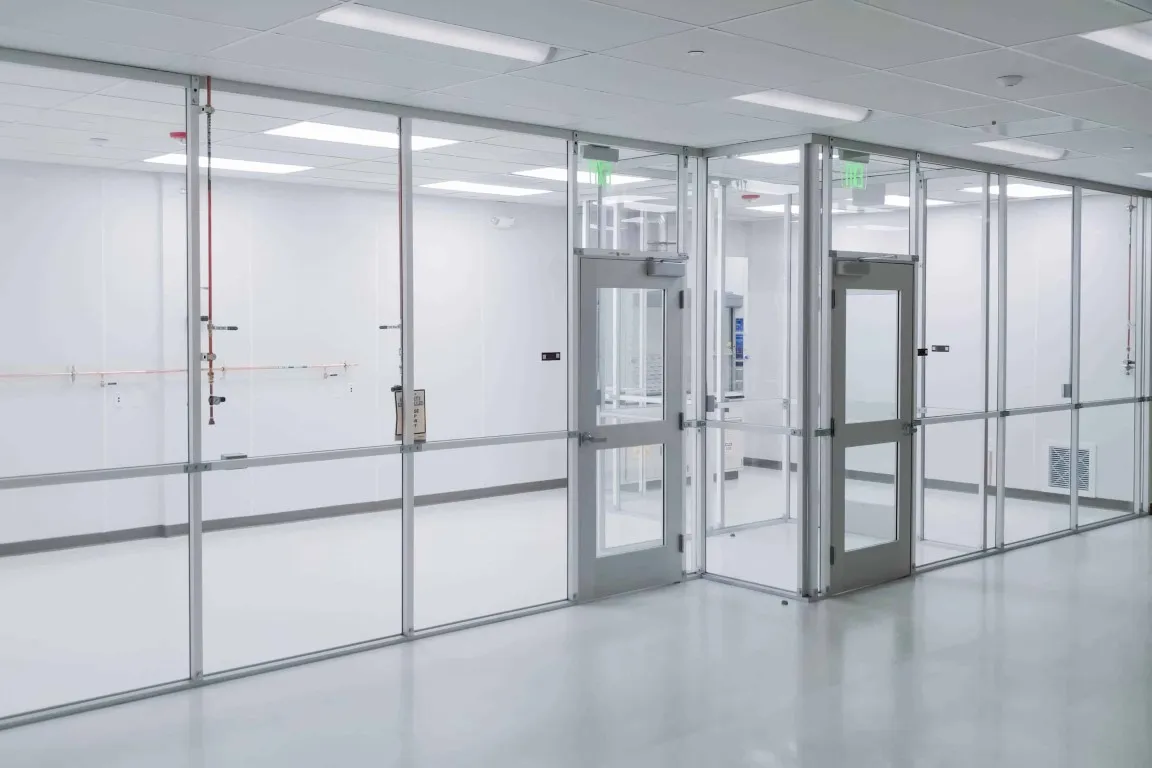

hardwall Cleanrooms

Hardwall cleanrooms feature rigid, durable walls made of materials like metal or composite. They provide a stable environment with superior contamination control, often used in pharmaceutical and semiconductor industries requiring high cleanliness standards.

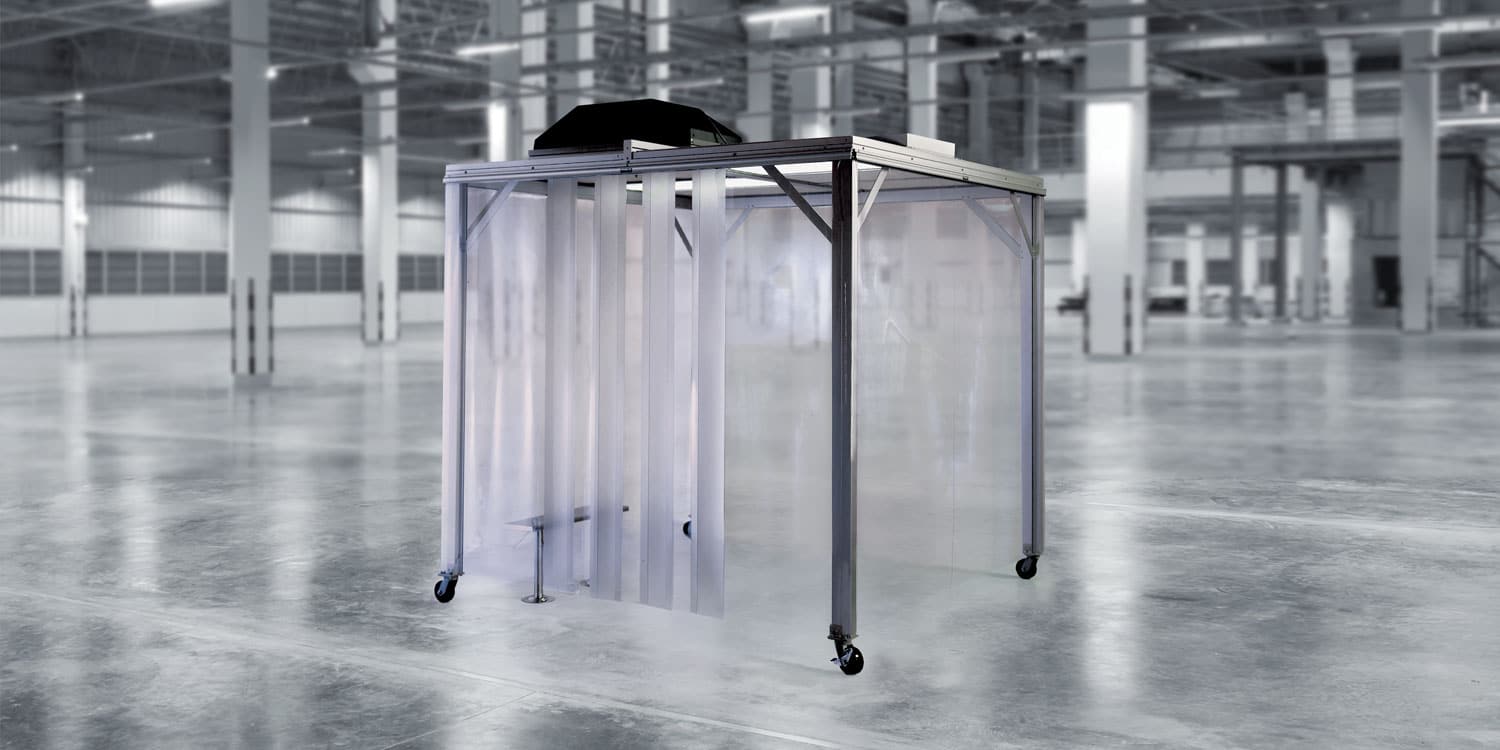

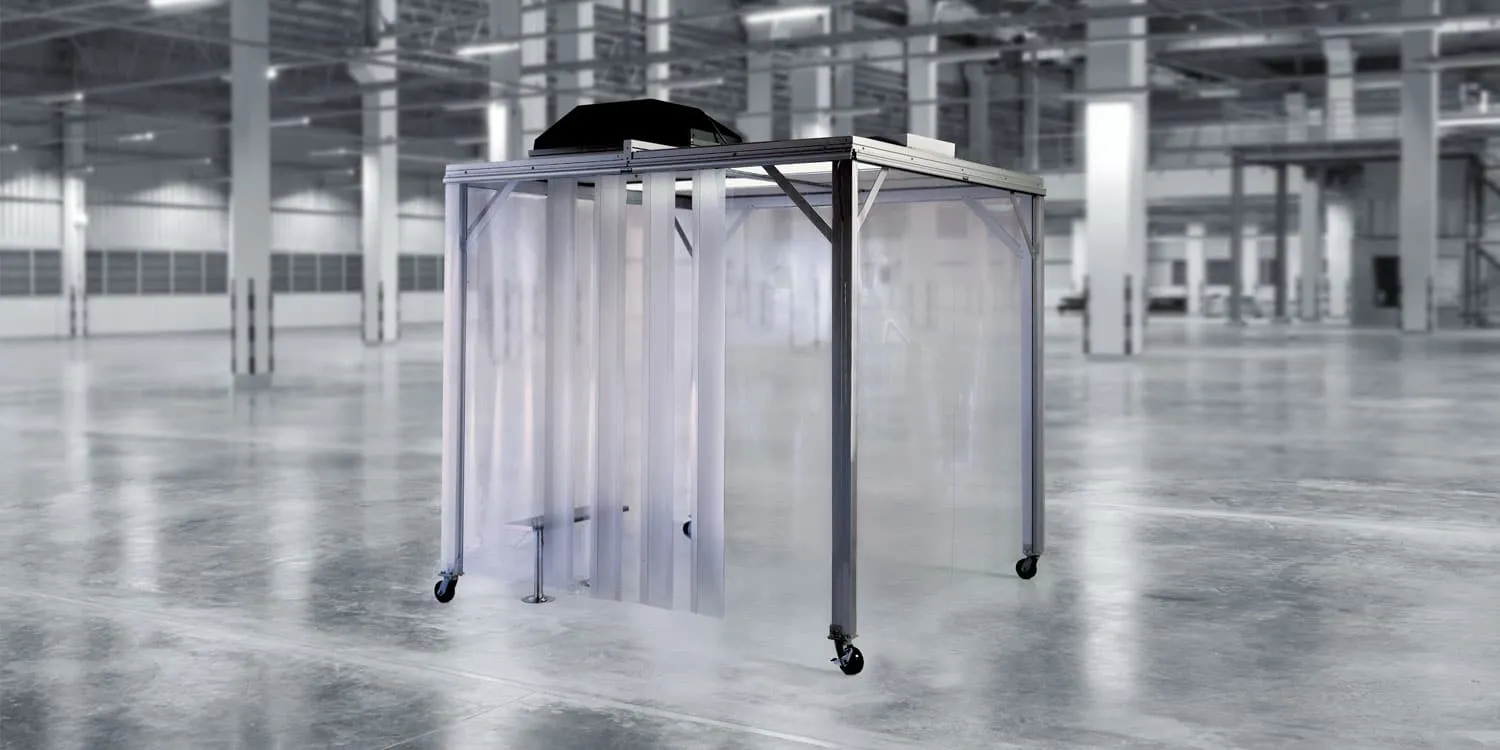

softwall Cleanrooms

Softwall cleanrooms are constructed with flexible materials like vinyl or fabric. They are easier to install and modify, making them suitable for less critical environments. However, they may not provide the same level of contamination control as hardwall cleanrooms.

Modular Cleanrooms

Modular cleanrooms consist of pre-fabricated panels that can be assembled and disassembled easily. This type allows for quick installation and flexibility in design, making them ideal for industries requiring temporary or adjustable cleanroom setups.

Portable Cleanrooms

Portable cleanrooms are designed for mobility and quick deployment. They can be moved to different locations as needed, making them valuable for fieldwork or temporary operations. Their design often prioritizes ease of setup and transport.

Dynamic CleanRooms

Dynamic cleanrooms can adapt to varying cleanliness levels based on operational requirements. They use advanced technology to adjust air filtration and flow, making them suitable for industries where environmental conditions frequently change.

What Is HardWall For?

1. Structural Integrity: Hardwall cleanrooms provide enhanced structural integrity compared to other types. Their rigid construction helps maintain cleanroom standards over time, making them ideal for environments with strict contamination control requirements.

2. Contamination Control: The solid walls of hardwall cleanrooms effectively minimize contamination from external sources. They can maintain lower particle counts, crucial for industries like pharmaceuticals and biotechnology, where product sterility is essential.

3. Long-Term Use: Designed for durability, hardwall cleanrooms are suitable for long-term operations. Their robust materials withstand frequent cleaning and maintenance, ensuring that the cleanroom remains functional and compliant with industry standards.

Difference Between a Clean Room and an Aseptic Room

Definition

A clean room is a controlled environment designed to minimize airborne particles, while an aseptic room is specifically designed to maintain sterility during processes like drug manufacturing or medical procedures, preventing contamination.

Intended Use

Clean rooms are used in various industries, including electronics and pharmaceuticals, where cleanliness is essential. Aseptic rooms are specifically used in medical and pharmaceutical applications where maintaining a sterile environment is critical for product safety.

Difference Between a Dry Room and a Clean Room

• Definition

A dry room is designed to control humidity levels, typically below 10% relative humidity, ideal for sensitive materials that can absorb moisture. A clean room focuses on reducing airborne particles, regardless of humidity levels.

• Contamination Control

While clean rooms control particulate contamination, dry rooms prioritize moisture control. They use dehumidifiers and air circulation systems to prevent humidity-related issues, particularly in industries like electronics and pharmaceuticals.

• Construction and Design

Clean rooms often feature HEPA filters and controlled airflows to maintain cleanliness. Dry rooms require specialized systems to manage humidity levels, which may include desiccants or specialized HVAC systems, focusing less on particulate control.

What Is the Cleanest Cleanroom?

1. Classification Standards

The cleanest cleanrooms are classified as ISO 1, allowing no more than 10 particles per cubic meter of air. Such stringent standards are essential for industries where even minute particles can compromise sensitive processes.

2. Technologies Used

To achieve ISO1 standards, cleanrooms utilize advanced filtration systems, including ULPA filters, and sophisticated air handling systems. These technologies ensure optimal airflow and minimize contamination risks.

3. Applications

ISO1 cleanrooms are crucial in semiconductor manufacturing, aerospace, and nanotechnology. In these sectors, even the smallest particles can affect product quality and performance, necessitating the highest cleanliness levels.
