What is ISO 14644-4 air change rate?

What is ISO 14644-4 Air Change Rate?

ISO 14644-4 is a standard that outlines the requirements for cleanrooms and controlled environments, focusing on various aspects, including air cleanliness and air change rates. The air change rate (ACH) refers to the number of times the entire volume of air within A CleanRoom is replaced with fresh air in one hour. This metric is crucial for maintaining the desired levels of cleanliness, as it directly influences the concentration of airborne contaminants within the environment.

Importance of Air Change Rate

The air change rate is vital for ensuring that airborne particles are effectively diluted and removed from the environment. Different CleanRoom Classifications have specific ACH requirements based on the level of cleanliness needed. For instance, a cleanroom classified as ISO 5, which is used for highly sensitive operations such as pharmaceutical compounding, requires a higher ACH to minimize contamination risks compared to lower classifications.

Guidelines for Air Change Rates

iso 14644-4 provides guidelines for determining the appropriate ACH based on the cleanroom's class. Higher classes require more frequent air changes to maintain strict contamination control. In practice, this means that cleanrooms operating at a higher cleanliness level will generally have more sophisticated air handling systems, including high-efficiency particulate air (HEPA) filters and advanced ventilation designs.

Calculation of Air Change Rate

To calculate the air change rate, the following formula is used:

Where:

• Airflow Rate (CFM) is the airflow supplied to the cleanroom in cubic feet per minute.

• Room Volume is the total volume of the cleanroom in cubic feet.

This calculation allows facility managers to ensure that their cleanrooms meet the necessary air change requirements for the specific ISO classification.

Impact on Energy Efficiency

While maintaining higher ACH improves cleanliness, it also increases energy consumption. Facility managers must strike a balance between achieving the required cleanliness levels and managing operational costs. Implementing energy-efficient HVAC systems and optimizing airflow can help reduce energy costs while maintaining compliance with ISO standards.

What is the ISO Standard for Air Changes Per Hour?

ISO standards establish various parameters for cleanroom operations, including air changes per hour (ACH). The ISO standard for air changes per hour is outlined in ISO 14644, which specifies the cleanliness levels required for different applications. Each cleanroom classification necessitates a different ACH to achieve the desired air quality and contamination control.

How Much Air Do You Need Per Hour?

The amount of air needed per hour in a cleanroom or controlled environment is determined by various factors, including the cleanroom's size, the number of occupants, and the equipment used within the space. Here are some key points to consider:

1. Room Volume

The total volume of the cleanroom is crucial for calculating the required airflow. Larger rooms generally require higher airflow rates to maintain appropriate air change rates and ensure effective contamination control.

2. Occupancy Level

The number of personnel present in the cleanroom affects the air requirements. Each person contributes to potential contamination and metabolic heat, necessitating additional ventilation to maintain air quality and comfort.

3. Equipment Load

The types of equipment in the cleanroom can also influence air requirements. Equipment that generates heat or produces emissions may require additional airflow to maintain the appropriate environmental conditions.

4. Cleanroom Classification

Different cleanroom classifications have specific airflow requirements. Higher classifications necessitate more air changes to minimize contamination risks. Understanding the classification's requirements helps determine the necessary airflow and air change rates.

5. Air Quality Standards

Compliance with specific air quality standards also dictates the Air volume required. For example, pharmaceutical cleanroomsoften adhere to stringent guidelines set by regulatory agencies, which can impact the amount of air needed.

6. HVAC System Design

The design of the heating, ventilation, and air conditioning (HVAC) system plays a significant role in determining how much air is supplied to a cleanroom. The system must be capable of delivering the required airflow rates efficiently while maintaining the desired temperature and humidity levels.

What is the Minimum Air Change Rate for a Cleanroom?

The minimum air change rate for a cleanroom varies depending on the cleanroom classification and the specific requirements of the processes being conducted. Here are three key aspects to consider:

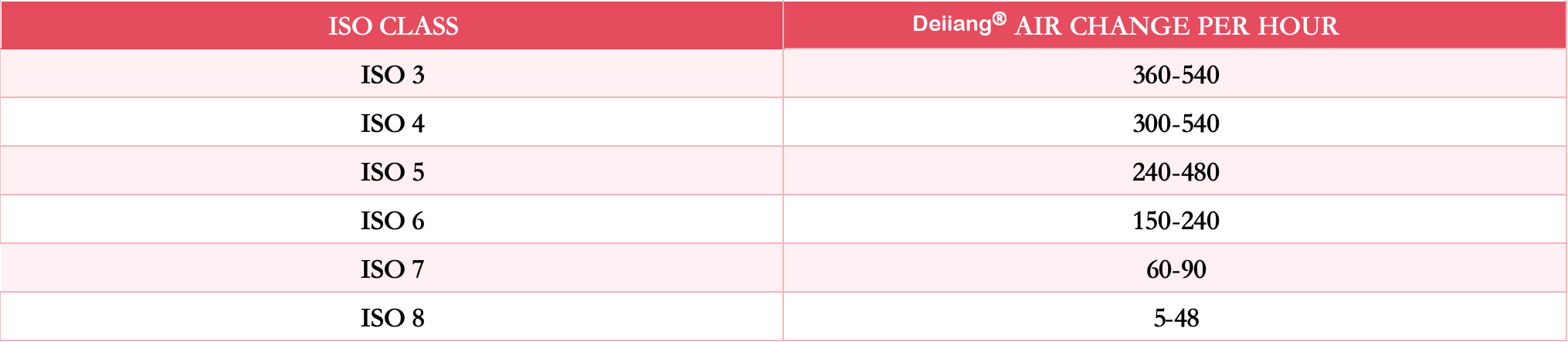

1. Cleanroom Classifications：ISO classifications range from Class 1 (the cleanest) to Class 9 (the least clean). Each class has established minimum air change rates to maintain the required level of cleanliness. For example, ISO5 cleanrooms typically require a minimum of 240 air changes per hour (ACH), while ISO 7 Cleanrooms may have a requirement of around 60 ACH. These classifications help ensure that the air quality meets the specific needs of the industry it serves.

2. Industry Requirements：Different industries have unique requirements for cleanrooms. For instance, Semiconductor manufacturing, pharmaceuticals, and biotechnology often demand stricter cleanliness standards due to the sensitivity of their processes. As such, the minimum air change rate will vary. For example, a pharmaceutical cleanroom may require a higher ACH to ensure the containment of particulates and to maintain sterility, while a less critical environment might operate effectively with a lower rate.

3. Regulatory Compliance：Compliance with regulatory standards is essential for cleanroom operations. Various organizations, such as the FDA and ISO, set guidelines for air change rates based on the intended use of the cleanroom. Meeting these standards is crucial for ensuring product safety and efficacy. Failure to comply can lead to increased risks of contamination and potential product recalls or failures, which can have significant financial and reputational consequences for organizations.

How to Calculate the Air Change Per Hour?

Calculating the air change per hour (ACH) is essential for maintaining the cleanliness and operational efficiency of a cleanroom. The ACH indicates how many times the volume of air in a cleanroom is replaced with fresh air within one hour. Here’s a step-by-step breakdown of how to perform this calculation:

Step 1: Measure the Room Volume

The first step in calculating ACH is to determine the volume of the cleanroom. This can be done by measuring the length, width, and height of the room and using the following formula:

For example, if a cleanroom is 20 feet long, 15 feet wide, and 10 feet high, the volume would be:

Step 2: Determine the Airflow Rate

Next, measure the airflow rate provided to the cleanroom in cubic feet per minute (CFM). This is typically obtained from the specifications of the HVAC system. For instance, if the system supplies 600 CFM of air, that figure will be used in the calculation.

Step 3: Apply the ACH Formula

Now that you have both the room volume and the airflow rate, you can calculate the ACH using the formula:

Substituting the values from our example:

Step 4: Assess Compliance

Once you have calculated the ACH, compare it against the requirements set by the relevant ISO standard for your cleanroom classification.

Recommended Minimum Total Air Changes Per Hour for an Operating Room

Operating rooms are critical environments where surgical procedures are performed, and maintaining optimal air quality is essential for patient safety and infection control. One of the key factors in ensuring a sterile and safe environment is the rate of air changes per hour (ACH).

Definition of Air Changes per Hour (ACH)：

Air changes per hour refers to the number of times the entire volume of air in a room is replaced with fresh air within one hour. For operating rooms, this metric is crucial as it directly impacts the concentration of airborne contaminants, the potential for surgical site infections, and the overall comfort of the surgical team.

Recommended Minimum ACH for Operating Rooms：

Health organizations and guidelines, including the American Institute of Architects (AIA) and the Centers for Disease Control and Prevention (CDC), recommend a minimum of 15 to 20 air changes per hour for operating rooms. This high rate of air exchange helps dilute and remove airborne pathogens, volatile organic compounds, and other contaminants that may be present in the surgical environment.

Importance of High ACH Rates：

The need for a high ACH rate in operating rooms stems from the sterile nature of surgical procedures. Surgical sites are particularly vulnerable to infections, and even a small number of bacteria in the air can lead to complications. By ensuring a high rate of air changes, the risk of airborne contamination is significantly reduced.

Impact of Design and Technology on ACH：

Modern operating rooms often incorporate advanced HVAC (Heating, Ventilation, and Air Conditioning) systems designed to achieve and maintain the recommended ACH. These systems include features such as high-efficiency particulate air (HEPA) filters and laminar airflow, which not only enhance air quality but also ensure that air is distributed evenly throughout the room.

Temperature for ISO 14644

Overview of ISO 14644

ISO 14644 is an international standard defining air cleanliness classification in cleanrooms, crucial for industries like pharmaceuticals, biotechnology, and Electronics. It primarily addresses airborne particulate contamination while implying necessary environmental conditions like temperature and humidity.

Temperature Control

The standard does not specify exact temperatures but highlights the need for suitable environmental conditions. Cleanrooms generally maintain temperatures between 20°C and 24°C (68°F to 75°F) to ensure personnel comfort and minimize static electricity, crucial for sensitive equipment.

Humidity Management

ISO 14644 also stresses the importance of humidity control, typically maintained between 30% and 60%. This range prevents static electricity buildup and helps inhibit microbial growth, ensuring the integrity of moisture-sensitive products.

In conclusion, while ISO 14644 does not set a specific temperature requirement, it highlights the importance of maintaining an environment conducive to the activities being performed. A temperature range of 20°C to 24°C is commonly adopted in cleanrooms, along with controlled humidity levels, to ensure optimal conditions for both personnel and processes. Adhering to these environmental controls is essential for compliance with ISO standards and for ensuring the quality and safety of products manufactured in these controlled environments.
