5 ft Vertical Laminar Flow Cabinet

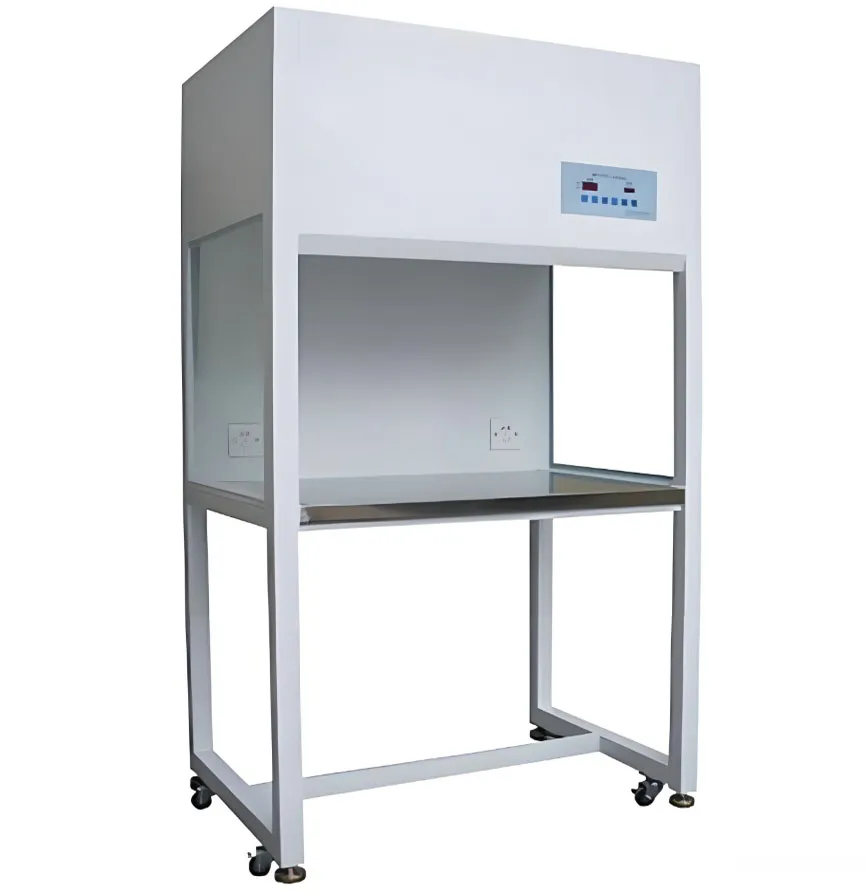

5 ft Vertical Laminar Flow Cabinet1

5 ft Vertical Laminar Flow Cabinet2

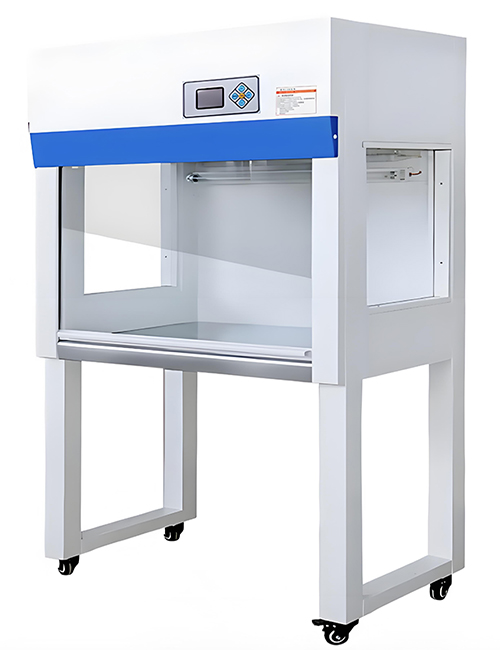

5 ft Vertical Laminar Flow Cabinet3

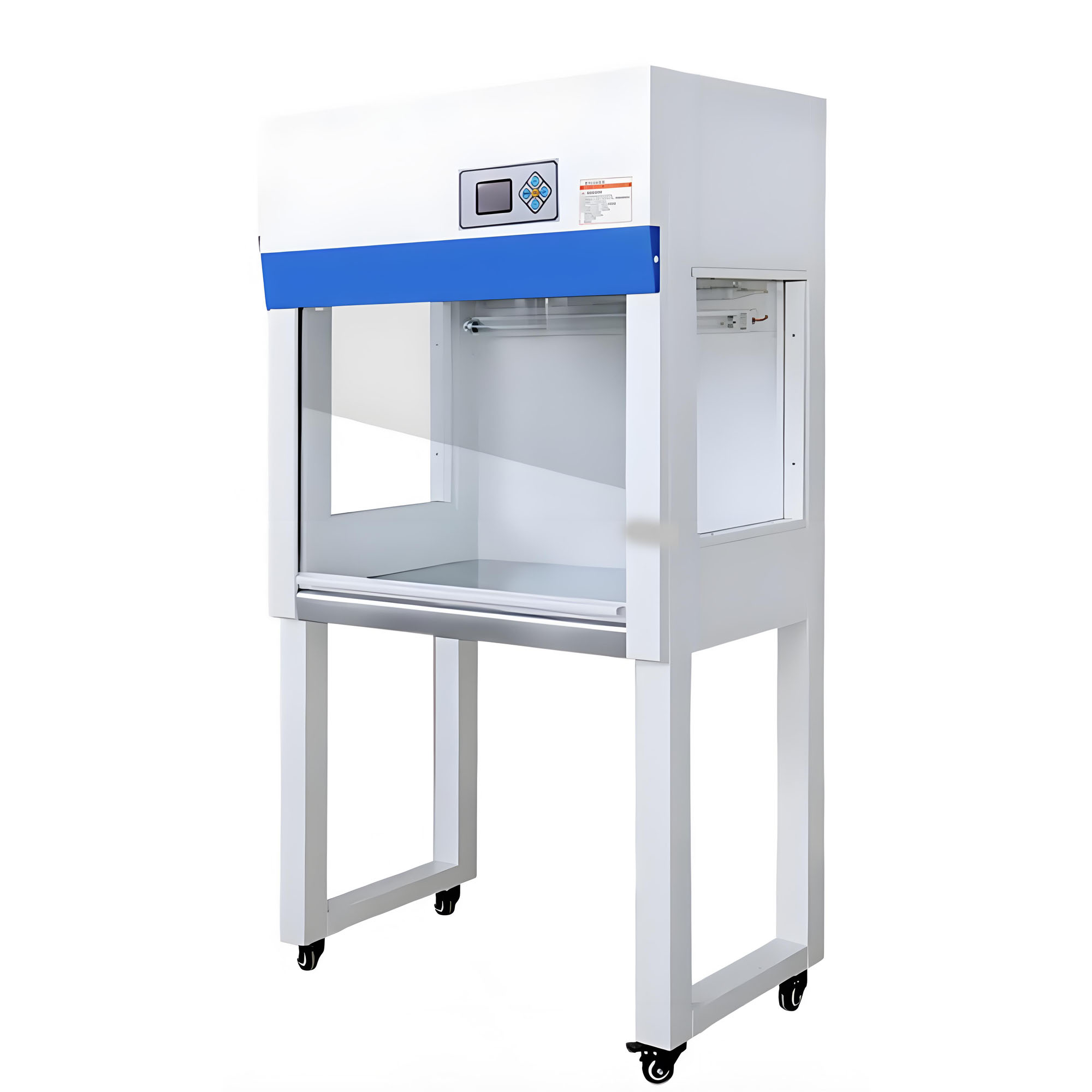

5 ft Vertical Laminar Flow Cabinet4

Reference Price:US$from $1200

Short Description:

Ultra-clean workbench, also known as purification workbench, is a key equipment designed to meet the needs of localized high-cleanliness working environment in modern industry, optoelectronic industry, biopharmaceuticals and scientific research and testing. It utilizes a highly efficient air filtration system to ensure that the air in the operating area achieves an extremely high level of cleanliness to protect sensitive items from dust and microbial contamination. This article will introduce the product features, application scenarios and technical details of the ultra-clean bench in detail.

Air Flow: Vertical flow
Available sizes: 5 ft
size: 1500×850×1500
Operating surface: One-sided
Internal height: 2 ft
Cleanbench Air Filter: ULPA Filter
Power Supply Configuration: 115V、20A North America、230V British (UK)、230V India、230V Schuko、230V 100V、 20A
Applicable area: USA Europe Malaysia Canada Middle East Indonesia
Customs code: 8421399090

Send email to us Download as PDF

Cleanroom

5 ft Vertical Laminar Flow Cabinet

Choose your installation & validation options below

None
Validation
Installation & Validation

Quantity:

Choose your upgrade options

1 x 6x3m Trunking for CR6
1 x 6x3m Flooring Kit for CR6
1 x S/S Step Over Bench Open One side (400x400x 800mm) - 6C
1 x Stainless Steel Waste Bin - Freestanding Ring
1 x S/S Table: No Shelf - No Upstand 1200X600mm
1 x Bimos Labsit 2 with castors - Blue

Quantity:

Summary

Cleanroom

5 ft Vertical Laminar Flow Cabinet

Choose your installation & validation options below

Validation

Installation & Validation

Choose your upgrade options

1 x 6x3m Trunking for CR6

1 x 6x3m Flooring Kit for CR6

1 x S/S Step Over Bench Open One side (400x400x 800mm) - 6C

1 x Stainless Steel Waste Bin - Freestanding Ring

1 x S/S Table: No Shelf - No Upstand 1200X600mm

1 x Bimos Labsit 2 with castors - Blue

Send email to us Download as PDF

Find Similar Products

Product information Company lnfo.

Detail
Features
ProductPrinciple
Accessories

Product Briefing

A 3 ft Vertical Laminar Flow Cabinet is a specialized piece of laboratory equipment designed to provide a clean and controlled environment for various applications, such as microbiological research, pharmaceuticals, and semiconductor manufacturing. Here’s a detailed overview of its features, functions, and benefits:

laminar flow hoods Product Poster .jpg

Applications

Microbiology: Ideal for working with cultures, cell lines, and other sensitive biological materials.
Pharmaceuticals: Used in the preparation and compounding of sterile medications.
Electronics: Suitable for assembling and handling sensitive electronic components that may be susceptible to dust or static.
Research: Provides a clean environment for various scientific experiments and procedures.

Models

Vertical Laminar Flow Clean Bench
Model	GDC-SPT-01	GDC-SPT-02	GDC-SPT-03
	3 ft	4ft	5ft
External size W×D×H(mm)	1000×850×1500	1200×850×1500	1500×850×1500
Internal Size W×D×H(mm)	960×600×600	1160×600×600	1460×600×600
HEPA Filter(mm)	905×585×69×1 Pcs	1105×585×69×1 Pcs	1405×585×69×1 Pcs
HEPA Filter Efficiency	99.95%@0.3μm	99.95%@0.3μm	99.95%@0.3μm
G4 Pre Filter(mm)	500×375×21×1 Pcs	500×375×21×1 Pcs	745×375×21×1 Pcs
Noise	52～62dB（A）	52～62dB（A）	52～62dB（A）
Fan Pressure	260pa	260pa	260pa
Fan Power (W)	200W×1 Pcs	200W×1 Pcs	200W×1 Pcs
LED Lamp Power(W)	12W×1 Pcs	18W×1 Pcs	30W×1 Pcs
Air Velocity(m/s)	0.45m/s±20%
Clean Level	ISO 5
Supply Power	AC 1N 220V/50Hz
Control System	4.3"touch screen,3 stage regulation,light,sterilization

Vertical Laminar Flow Clean Bench
Model	GDC-SPT-01	GDC-SPT-02	GDC-SPT-03
	3 ft	4ft	5ft
External size W×D×H(mm)	1000×850×1500	1200×850×1500	1500×850×1500
Internal Size W×D×H(mm)	960×600×600	1160×600×600	1460×600×600
HEPA Filter(mm)	905×585×69×1 Pcs	1105×585×69×1 Pcs	1405×585×69×1 Pcs
HEPA Filter Efficiency	99.95%@0.3μm	99.95%@0.3μm	99.95%@0.3μm
G4 Pre Filter(mm)	500×375×21×1 Pcs	500×375×21×1 Pcs	745×375×21×1 Pcs
Noise	52～62dB（A）	52～62dB（A）	52～62dB（A）
Fan Pressure	260pa	260pa	260pa
Fan Power (W)	200W×1 Pcs	200W×1 Pcs	200W×1 Pcs
LED Lamp Power(W)	12W×1 Pcs	18W×1 Pcs	30W×1 Pcs
Air Velocity(m/s)	0.45m/s±20%
Clean Level	ISO 5
Supply Power	AC 1N 220V/50Hz
Control System	4.3"touch screen,3 stage regulation,light,sterilization

Features

	High-Quality Construction Stainless steel worktop Spill-retaining design will ensure containment of accidental liquid spills
	Quiet Operation Comfortable low noise at 52 dBA Reduce fatigue and improve work concentration
	ULPA Filter 10x Filtration efficiency of HEPA filter Creates ISO Class 3 work zone instead of industry-standard ISO Class 5
	Energy-efficient Powered by latest generation DC ECM blower, that is more efficient than legacy ECM and VFD motors 70% Energy savings compared to AC motor Stable airflow, despite building voltage fluctuations & filter loading
	GDC™ Antimicrobial Powder Coating Eliminates 99.9% of surface bacteria within 24 hours of exposure

Principle

Air Intake: Ambient air is drawn into the cabinet through an intake grille.
Filtration: The air passes through a HEPA filter, removing 99.97% of particles ≥0.3 microns.
Laminar Airflow: Filtered air is directed vertically downward in a smooth, uninterrupted flow.
Clean Workspace: The downward airflow creates a contamination-free zone, protecting the work area and materials.
User Safety: The design minimizes exposure to airborne contaminants, enhancing operator safety.
Maintained Pressure: The cabinet maintains a slight negative pressure to prevent external contaminants from entering.
Consistent Environment: Provides a stable and sterile environment for sensitive applications.

Ultra-clean bench working principle.jpg

Accessories

Stainless Steel Orifice Tabletop
ULPA Ultra GX Filter
UV Germicidal Lamps
De-static equipment
Support Stand with Caster Wheels

FAQ

1. How to integrate a vertical laminar flow cabinet into an existing lab setup?

To integrate a vertical laminar flow cabinet into an existing lab setup, first identify a suitable location with minimal airflow disruptions. Ensure proper electrical connections and adequate space for maintenance access. Coordinate with lab personnel to align the new equipment with existing workflows.

2. What are the maintenance schedules for vertical flow cleanbenches?

Vertical flow cleanbenches require regular maintenance to ensure optimal performance. Typically, filter inspections and replacements should be conducted every 6 to 12 months, depending on usage. Additionally, perform monthly surface cleanings and annual professional inspections to maintain sterility and functionality.

3. How to select the right accessories for a vertical flow cleanbench?

Selecting the right accessories for a vertical flow cleanbench involves considering the specific needs of your applications. Common accessories include UV lights for sterilization, ergonomic chairs, and adjustable stands. Ensure that all accessories are compatible with your cleanbench model and enhance operational efficiency.

4. What are the installation costs for a vertical flow cleanbench?

The installation costs for a vertical flow cleanbench vary depending on the complexity of the setup and additional requirements such as electrical work or structural modifications. Generally, installation costs range from $500 to $2,000, excluding the price of the cleanbench itself.

5. How to install a vertical flow cleanbench?

To install a vertical flow cleanbench, follow these steps:

Prepare the installation site by ensuring it is clean and free from obstructions.
Position the cleanbench and secure it in place.
Connect the electrical supply and test the unit for proper airflow and filtration.
Train lab personnel on proper usage and maintenance procedures.

6. What is the cost of a vertical flow cleanbench?

The cost of a vertical flow cleanbench typically ranges from $2,000 to $8,000, depending on the model, size, and additional features. High-end models with advanced filtration systems and enhanced ergonomics may be priced higher.

7. How to improve the lifespan of a vertical laminar flow cabinet?

To improve the lifespan of a vertical laminar flow cabinet, perform regular maintenance and timely filter replacements. Keep the work area clean and free of debris. Additionally, ensure that the cabinet is used according to the manufacturer's guidelines to prevent undue wear and tear.

8. What are the safety features of a vertical laminar flow cabinet?

Vertical laminar flow cabinets are equipped with several safety features, including HEPA or ULPA filters to remove contaminants, UV lights for sterilization, and alarms to indicate filter performance issues. Additionally, the ergonomic design minimizes user fatigue and reduces the risk of contamination.

9. How to monitor the performance of a vertical laminar flow cabinet over time?

Monitoring the performance of a vertical laminar flow cabinet over time involves conducting regular airflow velocity tests and particle count measurements. Schedule routine maintenance and filter replacements. Keep detailed records of all tests and maintenance activities to track performance trends.

10. How to ensure compliance with ISO standards for vertical laminar flow cabinets?

To ensure compliance with ISO standards for vertical laminar flow cabinets, follow these steps:

Familiarize yourself with relevant ISO standards, such as ISO 14644.
Conduct regular performance tests and document results.
Use certified HEPA or ULPA filters and maintain detailed records of all maintenance activities and inspections.

11. How to validate the performance of a vertical laminar flow cabinet?

To validate the performance of a vertical laminar flow cabinet, conduct initial certification testing, including airflow velocity measurements and particle counts. Perform regular re-certifications as per industry standards. Maintain a log of all validation activities to ensure ongoing compliance.

12. What are the benefits of using a vertical flow cleanbench in microbiology?

Using a vertical flow cleanbench in microbiology provides a contamination-free environment essential for sterile techniques. It protects samples from airborne contaminants and reduces the risk of cross-contamination, ensuring the accuracy and reliability of experimental results.

13. How to ensure uniform airflow in a vertical flow cleanbench?

Ensure uniform airflow in a vertical flow cleanbench by regularly inspecting and replacing HEPA filters. Perform routine airflow velocity tests to detect any irregularities. Keep the work surface organized and free from obstructions that could disrupt airflow patterns.

14. How to ensure consistent performance of a vertical laminar flow cabinet?

Ensure consistent performance of a vertical laminar flow cabinet by performing regular maintenance, including filter replacements and airflow tests. Keep the work area clean and adhere to proper usage guidelines. Document all maintenance activities for ongoing performance monitoring.

15. What is the warranty period for vertical flow cleanbenches?

The warranty period for vertical flow cleanbenches typically ranges from 1 to 3 years, depending on the manufacturer and model. Some manufacturers offer extended warranties or service plans for additional coverage.
