How to install a single air shower?

Installing a single air shower is crucial for maintaining Cleanroom standards in various industries, including pharmaceuticals, Electronics, and biotechnology. An air shower effectively removes contaminants from personnel before they enter a controlled environment. This article provides a comprehensive guide to the installation process, including necessary materials, specifications, and maintenance tips, ensuring optimal performance and longevity of your air shower system.

How to Install a Single Air Shower?

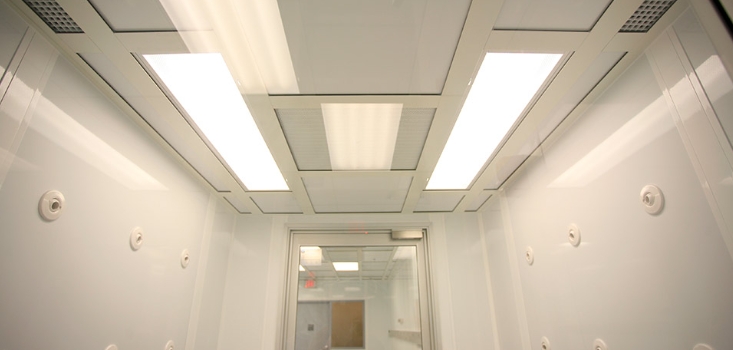

A single air shower serves as a transitional space that uses high-velocity air jets to cleanse personnel of dust and particulates before entering A CleanRoom. Proper installation is vital for its efficiency.

1. Site Preparation

Ensure the installation site complies with cleanroom requirements, particularly in terms of space and flooring. The area should be level and allow for easy access to utilities.

2. Assembly Process

• Gather necessary tools and components.

• Follow the manufacturer's guidelines for assembling the air shower structure, ensuring all parts fit securely and are positioned correctly.

• Connect the air supply, electrical, and control systems. Verify all connections are tight, and ensure the unit is aligned properly for optimal airflow and usability.

3. Testing the System

Conduct thorough testing of the air shower to confirm functionality. Check for air pressure, velocity, and ensure that all sensors and control systems are responsive.

4. Final Adjustments

Make any necessary adjustments to the airflow settings based on the testing outcomes. Ensure that the air shower meets the required standards for cleanroom entry.

5. Documentation and Compliance

Maintain documentation of the installation process and ensure compliance with relevant specifications and standards. This will be crucial for future maintenance and audits.

List of relevant specifications and standards:

• ISO 14644

• FS209E

• EU GMP Guidelines

Material Used for Air Shower

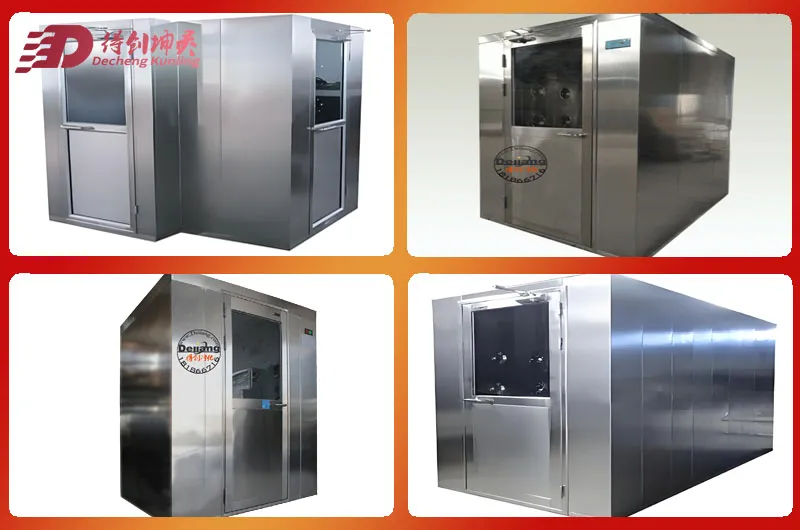

Stainless steel air showers：

Stainless steel is a preferred material for air showers due to its excellent corrosion resistance, hygiene properties, and ease of maintenance. It is ideal for high-hygiene environments such as pharmaceutical and biotechnology cleanrooms where contamination control is critical. Its smooth surface makes cleaning easier, and it offers long-term durability even in demanding conditions.

Baked Enamel Steel air showers：

Baked enamel-coated steel is an economical option for air showers. The coating provides an additional layer of protection against corrosion and wear, making it suitable for moderate-use environments. While it is not as resistant to corrosion as stainless steel, it still offers good durability and ease of cleaning, making it a cost-effective choice for many industrial applications.

Color-Coated Steel Panel Air Showers：

Color-coated steel panels are commonly used in air shower construction where both aesthetics and corrosion resistance are important. These panels are coated with a protective layer to prevent rust and ensure easy cleaning. They offer a balance between cost-effectiveness and performance, making them ideal for environments where visual appeal and moderate contamination control are required.

Standard Specifications for Air Shower

Air showers should have a minimum of 20 air changes per hour for optimal performance.

The unit must be equipped with HEPA filters to ensure efficient filtration of particles down to 0.3 microns.

Noise levels should not exceed 70 dB during operation, ensuring a comfortable environment.

Compliance with iso 14644-1 standards is mandatory for cleanroom applications, ensuring that the air shower meets necessary cleanliness levels.

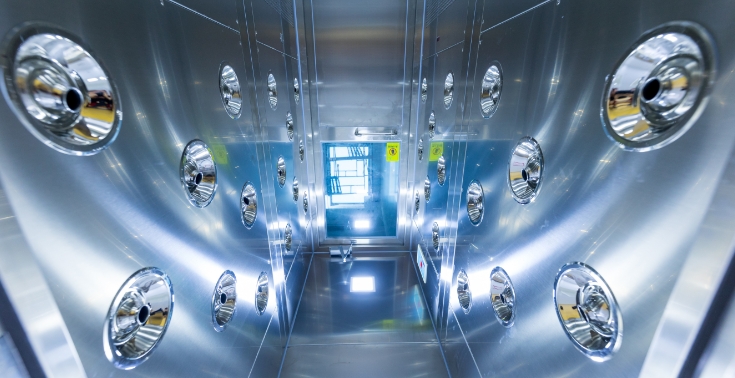

360° Nozzle Design for Air Shower

Enhanced Airflow Efficiency

The 360° nozzle design allows for maximized coverage, ensuring that all areas of personnel are effectively cleaned before entering the cleanroom.

Improved Contaminant Removal

Each nozzle is strategically placed to target specific body areas, significantly improving the removal of dust and other particulates. This comprehensive approach ensures that no contaminants escape the air shower, maintaining a sterile environment. Furthermore, the design allows for adjustable airflow settings, accommodating various user needs and enhancing overall user experience.

User-Friendly Interface

The air shower features a user-friendly control interface, enabling easy adjustments to airflow intensity. This ensures that users can customize their experience while maintaining compliance with cleanroom standards, enhancing efficiency in operations.

Maintenance of Air Shower

Regular maintenance of air showers is essential for sustained performance and compliance with cleanliness standards.

1. Routine Inspections

Conduct regular inspections to check for damaged components or signs of wear.

2. Filter Replacement

Replace HEPA or ULPA filters as per the manufacturer's recommendations to ensure optimal air quality.

3. Comprehensive Cleaning Protocols

Establish cleaning protocols for air showers, including wiping down surfaces and checking the nozzle functionality to prevent contamination. This proactive approach will extend the lifespan of the unit and maintain compliance with both domestic and international standards.
