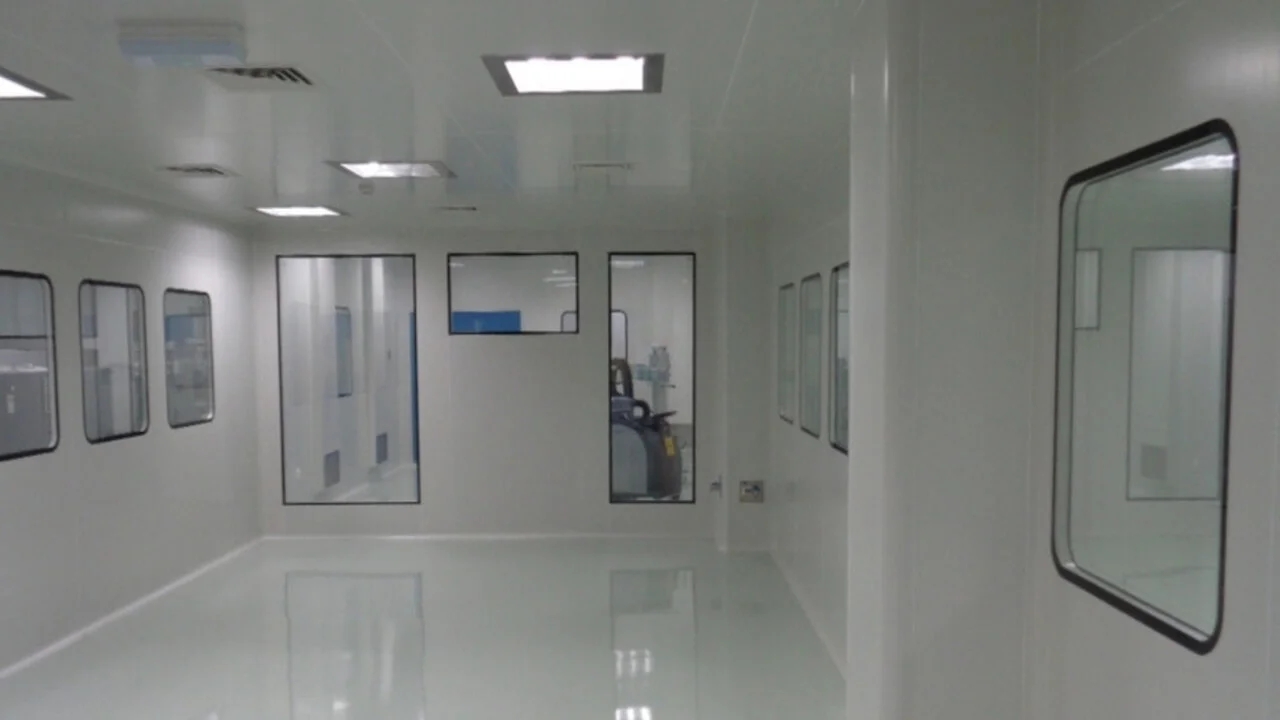

In cleanroom environments, maintaining stringent control over contamination is paramount. Two critical components often discussed are air showers and airlocks, both serving unique purposes in contamination control. While they may appear similar at first glance, understanding their distinct functions, applications, and operational principles is crucial for ensuring optimal cleanliness in sensitive environments like laboratories, pharmaceuticals, and Semiconductor manufacturing facilities.
What is the Difference Between an Air Shower and an Airlock?
An air shower is a high-velocity air system that removes contaminants from personnel or objects before they enter A CleanRoom. In contrast, an airlock is a transition space that minimizes contamination transfer between areas of varying cleanliness.
1. Functionality

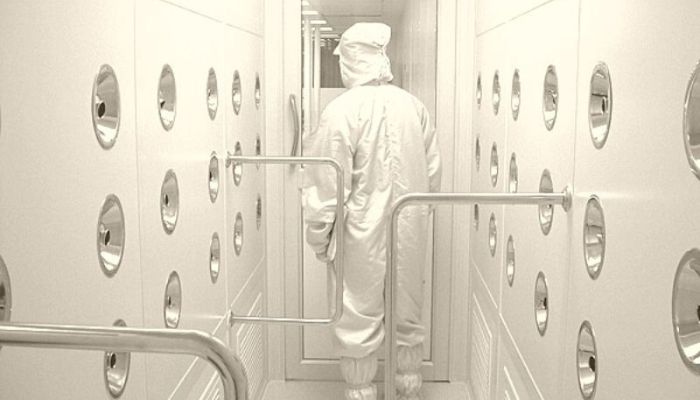

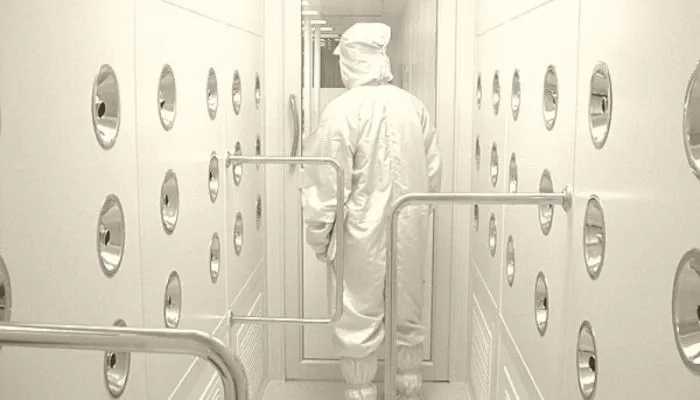

An air shower uses high-velocity air jets to blow off dust and particles from clothing and equipment.
2. Structure
An airlock consists of two interlocking doors that prevent the free flow of air between clean and non-clean areas.
3. Purpose
The primary purpose of an air shower is to decontaminate individuals or objects entering a cleanroom, ensuring Clean air is maintained.
4. Operational Sequence
Air showers operate on a timed cycle, where personnel are bathed in high-pressure air before entering, while airlocks regulate access and allow for controlled entry and exit.
List of relevant specifications and standards:

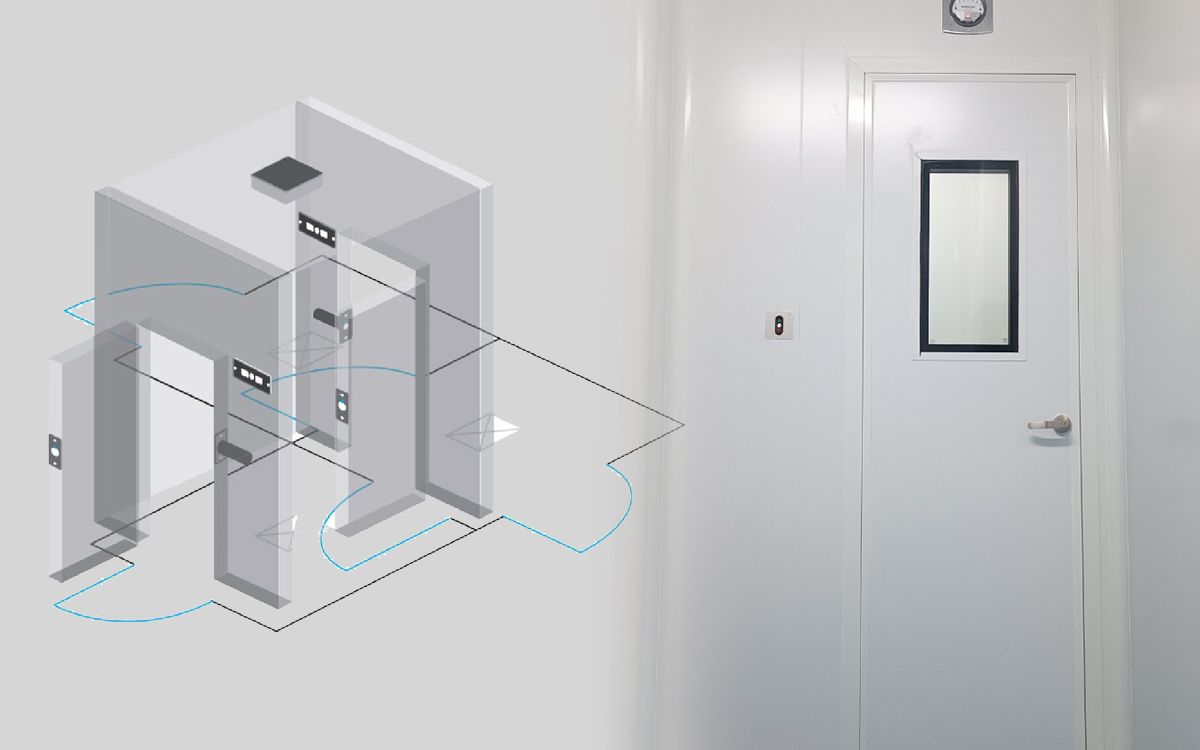

What is an Airlock in a Cleanroom?
An airlock serves as a transitional space designed to control air exchange between areas of different cleanliness levels. It acts as a buffer zone, ensuring that contaminants from less clean areas do not infiltrate clean environments. Airlocks typically consist of two doors that cannot be opened simultaneously, thus minimizing air exchange and maintaining pressure differentials.
The design of an airlock helps in maintaining the integrity of cleanroom protocols. Personnel must pass through the airlock, allowing time for any residual particles to settle or be filtered before entering the cleanroom. This controlled entry process is critical in environments where even minute particles can compromise product quality or research outcomes.
In addition to personnel, airlocks also facilitate the movement of materials and equipment into clean areas. Materials may be subjected to decontamination processes within the airlock before entering the cleanroom, further enhancing the cleanliness ofthe environment and adhering to strict contamination control protocols.
List:
Prevents contamination transfer.
Regulates airflow between areas.
Maintains pressure differentials.
Facilitates equipment and personnel transition.
Ensures compliance with cleanroom standards.
Minimizes particle ingress.

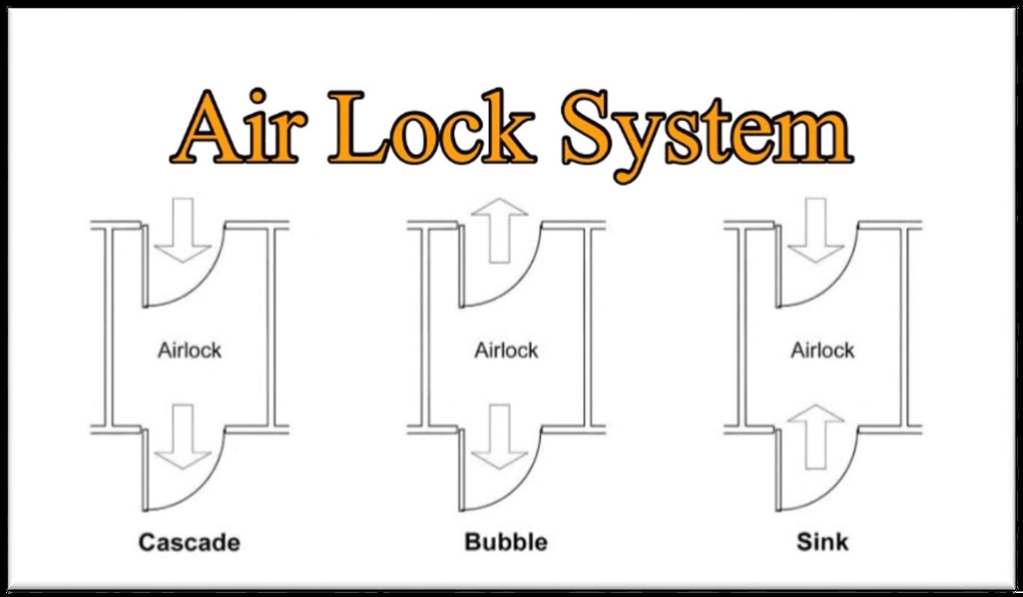

Different Types of Airlocks
Simple Airlock
A basic design with two interlocking doors, allowing controlled access while minimizing contamination.
Automatic Airlock
Equipped with sensors and automatic doors, this type enhances efficiency and reduces human error in operation.
Pass-Through Airlock
Designed primarily for materials, it allows items to be transferred without personnel entering the cleanroom, thus reducing contamination risk.
Positive Pressure Airlock
Maintains a higher pressure inside than outside, preventing outside contaminants from entering. This design is critical in environments where maintaining a sterile atmosphere is essential.
| Type | Description |
| Simple Airlock | Basic interlocking door design |
| Automatic Airlock | Sensor-operated for efficiency |
| Pass-Through Airlock | Used for material transfer |
| Positive Pressure | Higher internal pressure to prevent ingress |
What is the Principle of Airlock?
The principle of an airlock relies on controlled airflow and the physical separation of environments to prevent contamination.

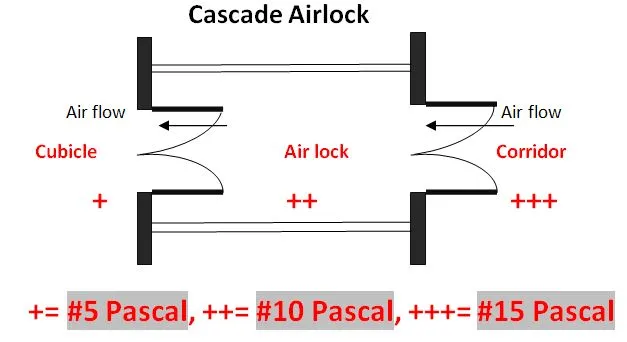

1. Airflow Management：Airlocks utilize a carefully controlled airflow mechanism that ensures clean air is maintained within the cleanroom. The design prevents outside air from easily entering the space, thereby reducing the risk of contamination.
2. Pressure Differentials：Maintaining a pressure differential between the cleanroom and surrounding areas is fundamental. This principle ensures that any air exchange favors cleanroom integrity, with air flowing into the cleanroom rather than out. Typically, cleanrooms are kept at a higher pressure than adjacent areas, promoting outward airflow.
3. Controlled Access：The dual-door system of an airlock creates a necessary barrier, allowing only one door to be opened at a time. This feature ensures that the cleanroom remains isolated from potential contaminants. Personnel must wait for one door to close before the other can open, thus controlling the entry of airborne particles.
4. Seamless Integration：Airlocks are designed to seamlessly integrate into the cleanroom infrastructure, complementing other contamination control measures like HEPA filtration and gowning protocols. This holistic approach isessential for maintaining the stringent cleanliness standards required in controlled environments.
The Difference Between Airlock and Changing Room
While both airlocks and changing rooms serve as transition spaces, their functions differ significantly regarding contamination control in cleanrooms.
Purpose：
Airlocks focus on regulating airflow and preventing contamination, while changing rooms are designed for personnel to don and doff protective clothing.
Design：
Changing rooms typically do not have specialized airflow systems like airlocks. They may simply provide space for changing into cleanroom garments, whereas airlocks are engineered for air management and pressure differentials.
Contamination Control：
Airlocks actively prevent the ingress of contaminants through controlled access and airflow, while changing rooms primarily facilitate the hygienic preparation of personnel before entering a cleanroom environment. This distinction makes airlocks critical for maintaining the integrity of sensitive processes and products.
In summary, understanding the differences between air showers, airlocks, and changing rooms is vital for maintaining the cleanliness and integrity of controlled environments. Each component plays a unique role in the overall contamination control strategy, ensuring that cleanroom protocols are adhered to and that the highest standards of cleanliness are achieved.
By following relevant domestic and international standards, such as ISO 14644 and Federal Standard 209E, organizations can effectively implement these technologies to minimize contamination risks and enhance operational efficiency in their cleanroom facilities.
