What is the installation process for a stainless steel air shower?

Installing a Stainless steel air shower is crucial for maintaining cleanliness in controlled environments like cleanrooms and laboratories. This process ensures that personnel and equipment entering these spaces are free from contaminants. By following a systematic installation procedure, organizations can enhance their cleanliness protocols, comply with industry standards, and safeguard sensitive operations. This article outlines the essential steps involved in the installation of a stainless steel air shower, highlighting its purpose, effectiveness, and the significance of maintaining air quality.

What is the installation process for a stainless Steel air shower?

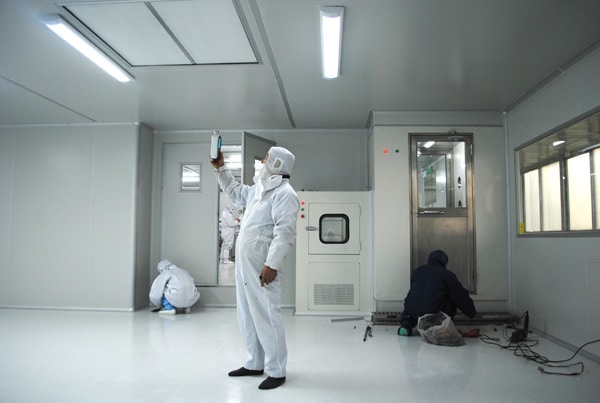

The installation of a stainless steel air shower involves careful planning, precise measurements, and adherence to safety standards. A structured process ensures that the air shower functions effectively in maintaining cleanliness.

Preparation and Planning:

Before installation, it is essential to assess the site and determine the necessary measurements. Ensure that the chosen location meets the airflow and space requirements specified by the manufacturer.

Structural Setup:

Begin by preparing the floor and walls.

Ensure that the surface is level and free from debris. Secure the air shower to the ground using appropriate anchors.

Connect utilities such as electrical and air supply. Carefully follow the manufacturer’s guidelines for connections to ensure safety and efficiency. Verify that all components are properly aligned and that the air shower is stable once installed.

Testing and Validation:

After installation, conduct thorough testing to ensure that all systems are functional. Check for proper airflow, verify that filters are correctly installed, and monitor pressure differentials. Adjust settings as needed to achieve optimal performance. Regular maintenance checks are vital for ensuring continued effectiveness and compliance with cleanliness standards.

Final Inspection:

Perform a final inspection to confirm that the installation meets all safety and operational standards before the air shower is put into use.

The purpose of the air shower

An air shower serves as a critical transition space that helps minimize contamination risks when personnel or equipment enter A CleanRoom environment. These specialized chambers are designed to provide high-velocity air blasts that remove particles from surfaces, thereby maintaining cleanliness and compliance with industry standards.

• Minimize contamination risks.

• Enhance cleanliness protocols.

• Comply with industry standards.

• Protect sensitive processes.

• Ensure personnel safety.

Are air showers effective?

Air showers are highly effective at removingcontaminants from personnel and equipment before they enter cleanroom environments. The high-velocity airflow dislodges particles, contributing to a cleaner atmosphere.Studies have shown that air showers can significantly reduce the number of particles on surfaces by over 90%, depending on the design and airflow velocity.

This effectiveness is crucial in industries such as pharmaceuticals, biotechnology, and Electronics, where even minute contamination can lead to product failures or health risks.Effectiveness varies based on design and usage.To maximize effectiveness, it is essential to ensure proper usage of air showers.

Personnel should follow protocols, such as standing still for a few seconds while the air jets operate to allow sufficient time for particle removal. Additionally, regular maintenance of filters and airflow systems is necessary to sustain performance and meet cleanliness standards.

The particles in the air showers

1. Types of particles removed

Air showers effectively remove various contaminants, including large particles like dust and smaller particles such as bacteria and viruses. This reduction plays a significant role in maintaining cleanroom standards.

2. Particle removal mechanisms

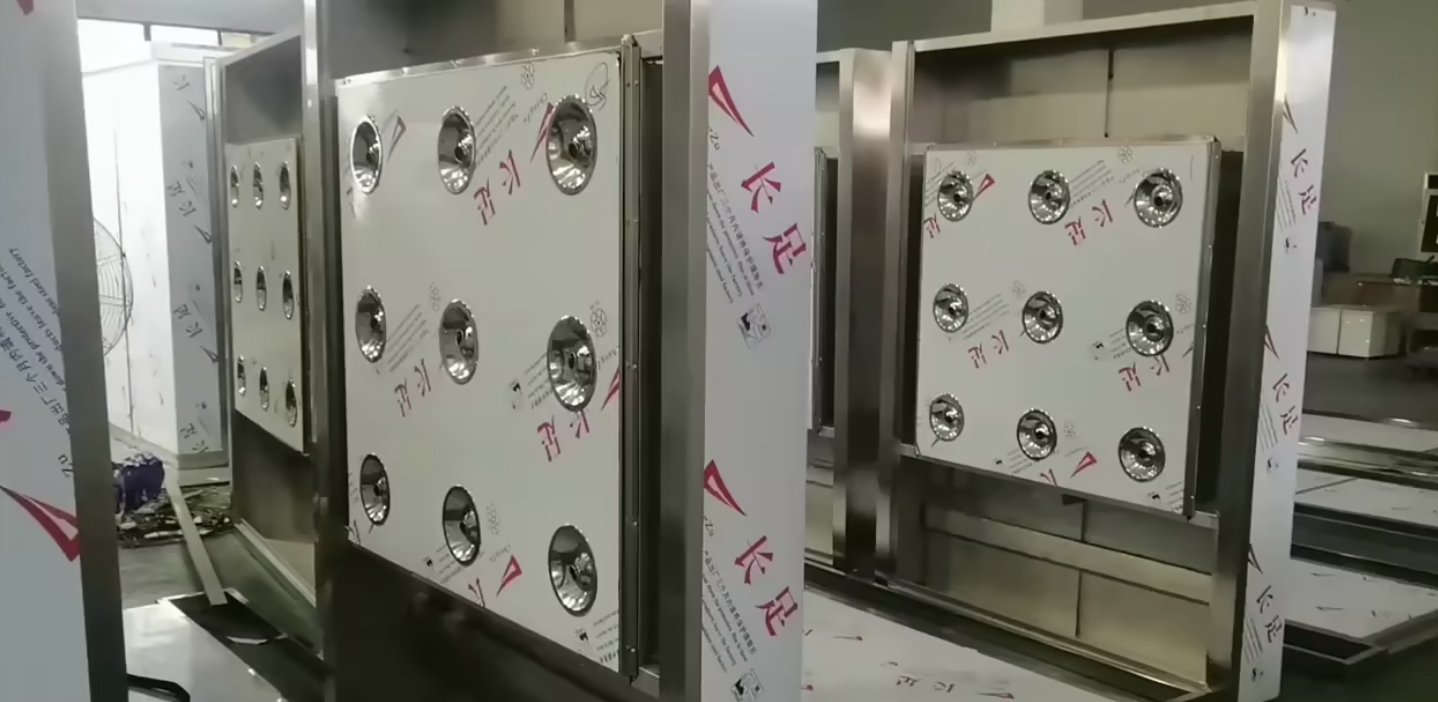

The effectiveness of air showers lies in their design, which utilizes high-velocity air nozzles to create a directed airflow. This airflow dislodges particles from clothing, equipment, and skin. The high speed and direction of the air jets ensure that particles are carried away from individuals or items before they enter critical cleanroom areas. Regular maintenance of Air Filters is essential to ensure the system operates effectively, capturing particles that are removed during the air shower process.

3. Impact on air quality

By removing contaminants, air showers help maintain the overall air quality in cleanroom environments. This reduction in airborne particles minimizes the risk of contamination of sensitive processes and products. Additionally, cleaner air contributes to a healthier environment for personnel working in these controlled spaces, ultimately leading to improved operational efficiency.

4. Importance of regular maintenance

Regular maintenance of both the air shower and its associated filtration systems is crucial to ensure optimal operation. This includes checking air pressure, cleaning or replacing filters, and ensuring the nozzles are unobstructed. Failure to maintain these systems can lead to reduced effectiveness and compromised cleanliness standards.

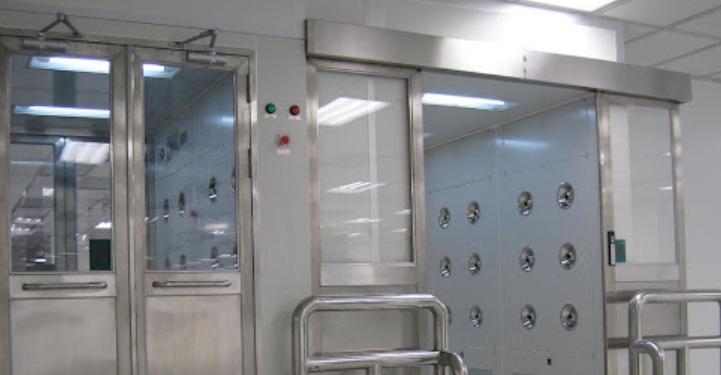

Extensive air showers

Extensive air showers are designed for larger personnel or equipment, providing enhanced air cleaning capabilities. These systems cater to industries where high levels of cleanliness are paramount, ensuring that contaminants are effectively removed before entering sensitive areas.

1. Larger capacity:Extensive air showers accommodate greater volumes of air and larger objects while maintaining effective particle removal.

2. Advanced filtration systems:These air showers often feature advanced HEPA or ULPA filtration systems designed to capture even the smallest particles, enhancing cleanliness in controlled environments.

3. Compliance with standards:Extensive air showers must comply with both domestic and international standards such as ISO 14644 for cleanrooms and controlled environments. They are also designed to meet specific industry requirements, ensuring that facilities can maintain the necessary cleanliness levels for operations.

Daily Maintenance of Air Shower

The daily maintenanceof an air shower is crucial to ensure its optimal performance and extend its lifespan. It involves regular cleaning, inspection, and checks to ensure that all components, including the air filters and nozzles, function effectively in removing contaminants from personnel and goods.

Cleaning and Inspectio

Regularly clean the air shower’s interior and exterior surfaces, removing dust, debris, and contaminants. Inspect the nozzles and air filters to ensure proper airflow and effectiveness.

Air Filter Maintenanc

Air filters, such as HEPA filters, should be cleaned or replaced periodically depending on usage. Clogged filters can reduce airflow efficiency and increase contamination risk.

Troubleshooting and Repair

Conduct routine checks for any malfunctioning components like air nozzles, doors, or the electrical system. Ensure the system's air pressure and velocity are within the required specifications to maintain cleanliness standards.

Air Shower Installation Point

When installing an air shower, careful planning and adherence to specific guidelines are crucial for ensuring safety and efficiency. Proper installation ensures that the air shower operates effectively, maintains cleanliness standards, and functions optimally.

Space and Ventilation

Ensure sufficient space for installation, considering the airflow needs and ventilation capacity to prevent air stagnation.

Power Supply and Wiring

Verify that the power supply meets the air shower's electrical requirements to prevent malfunctions or power issues.

Airflow Direction and Design

Properly position air shower units to maintain uniform airflow, ensuring contaminants are efficiently removed from people or materials.

Building Structure Considerations

Confirm that the room structure supports the weight and functionality of the air shower unit without compromising safety.

Sealing and Insulation

Seal all gaps and joints to prevent leakage of air, which can compromise performance and contaminate the environment.

Testing and Calibration

Test the system for airflow, air pressure, and temperature to ensure it meets operational standards before use.

List of Relevant Specifications and Standards

1. ISO 14644– CleanRoom Classification standards.

2. HEPA Filter Efficiency– Minimum 99.97% at 0.3 microns.

3. air velocity– Typically 20-25 m/s for effective particle removal.

4. Noise Level– Must not exceed 75 dB during operation.

5. Airflow System– Should be designed for optimal circulation.

6. Compliance with GMP– Good Manufacturing Practice for clean environments.

 summary

This article provides a comprehensive overview of the installation process for stainless steel air showers, their purpose, effectiveness, particle removal capabilities, and the significance of extensive air showers in maintaining the highest cleanliness standards in controlled environments. By following proper installation and maintenance protocols, organizations can ensure that their air showers perform optimally, thereby safeguarding sensitive operations and enhancing overall air quality.
