GMP Class D Clean Room

A Class D cleanroom is the lowest grade of controlled environment under Good Manufacturing Practice (GMP) regulations. Typically classified as ISO Class 8, Class D cleanrooms are used in manufacturing processes where the level of cleanliness does not need to be as stringent as higher-class environments (A, B, or C). These cleanrooms are still essential for controlling contamination but are used in less critical activities, particularly for non-sterile products or processes that do not involve direct aseptic handling.

  • Pharmaceuticals: Secondary packaging, preparation of non-sterile drugs, and labeling.

  • Biotechnology: Preparation of culture media, buffers, and non-sterile bioprocessing.

  • Medical Devices: Assembly and packaging of non-sterile devices.

  • Cosmetics: Packaging and filling of non-sterile products.

  • Food Processing: Packaging of non-sterile food products.

  • Electronics: Assembly and packaging of electronic components.

  • R&D: Conducting experime

Your Reliable Manufacturer of Class D Clean Room

Clean room grade table

ISO Class FED STD 209E Equivalent
ISO ClassMaximum Particles/mFED STD
209E

equivalent
≥0.1μm≥0.2um≥0.3um≥0.5um≥11m≥5um
ISO1102




ISO210024104


ISO31,000237102358
Class1
ISO410,0002,3701,020352833Class10
ISO5100,00023,70010,2003,52083229Class100
ISO61,000,000237,000102,00035,2008,320293Class 1,000
ISO7


352,00083,2002,930Class10,000
ISO8


3,520,000832,00029,300Class
100,000
ISO9


35,200,0008,320,000293,000Room Air

Comparison Table GMP/USP/ISO/FED209E
projectChina GMP/Europe GMP
ISOFED STD
209E
Suspended
particles
P/m3
levelStaticdynamiclevelStaticleveldynamic
≥0.5um≥5μm≥0.5μm≥5μm≥0.5um≥5μm≥0.5um≥5μm
A352020352020M3.535301005222020100
B3520293520002900
--63520291000
C3520002900352000029000M5.5353000100007352000293010000
8.352000029300100000
D352000029000No regulationsNo regulationsM6.535300001000009352000029300100000


Comparison table of ISO grade standards and ventilation times

ISO ClassACH(AIRCHANGE PER HOUR)
ISO 3360-540
ISO 4300-540
ISO 5(GMP Class A)240-480
ISO 6(GMP Class B)50-60
ISO 7(GMP Class C)30-40
ISO 8(GMP Class D)15-25


Key Characteristics of Class D Clean Room

Particle Count Limits (ISO 14644-1):

  • Air Cleanliness:

Class D cleanrooms are classified as ISO Class 8, which allows for up to 3.5 million particles per cubic meter for particles ≥0.5 microns. This level of cleanliness is sufficient for processes where product sterility is not a concern, but where contamination control is still necessary.

Air Change Rate (ACH)


  • Air Changes Per Hour (ACH):

Class D environments generally have between 20 to 30 air changes per hour to maintain airflow and minimize contamination risk.

Airflow Design
  • Air Change Rate:

Class D cleanrooms are generally maintained at a positive pressure relative to adjacent, lower-grade environments (e.g., Class D). This ensures that air does not flow from less clean areas into the Class D room, preventing contamination from external sources.


Personnel and Gowning
  • Personnel and Gowning:

The gowning requirements in Class D cleanrooms are less strict than those in higher-class cleanrooms (A, B, or C). Personnel typically wear basic protective gear, such as lab coats, gloves, and hair covers, but may not need the extensive gowns or suits required for aseptic environments

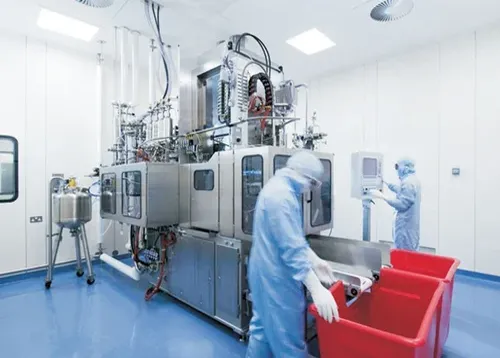

Pharmaceutical Manufacturing clean room
  • Pharmaceutical Manufacturing

Secondary Packaging of Non-Sterile Pharmaceutical Products:

  Class D cleanrooms are frequently used for the secondary packaging of pharmaceutical products such as tablets, capsules, or blister packs. These products may not require sterile conditions but must still be handled in a clean environment to avoid contamination from airborne particles, dust, or microbes.

Medical Device Manufacturing
  • Biotechnology and Biopharmaceuticals

Non-Sterile Bioprocessing:

  In the biotechnology industry, Class D cleanrooms are used for non-sterile bioprocessing tasks, such as the preparation of culture media, buffers, and other materials used in bioreactors or fermentation.

Cell Culture Preparation:

  The preparation of cell culture media, reagents, and buffers, which are often used in downstream bioprocessing applications, can be conducted in Class D cleanrooms.

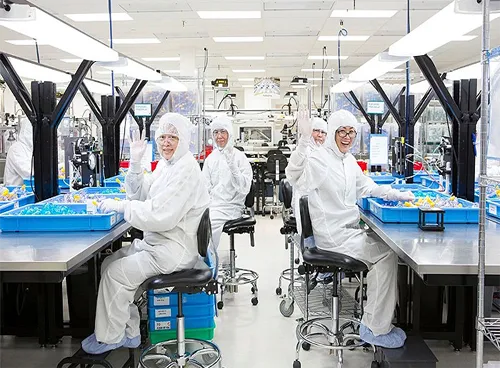

Medical Device Manufacturing  clean room
  • Medical Device Manufacturing

  Class D cleanrooms are used for assembling non-sterile medical devices, such as diagnostic equipment, surgical tools, or other healthcare products, before they undergo sterilization in a higher-grade cleanroom (Class A or B). These cleanrooms help ensure that devices are free from excessive contamination during assembly.

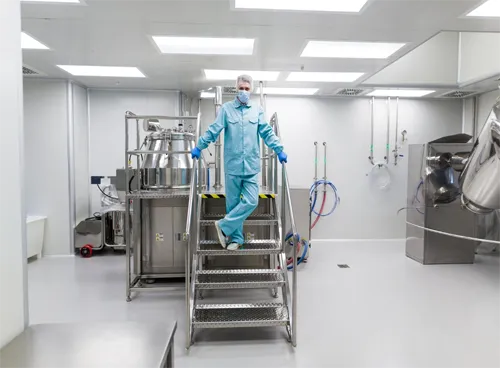

Cosmetic Manufacturing clean room
  • Cosmetic Manufacturing

  Some cosmetic products, such as lotions, creams, and non-sterile ointments, may be produced or packaged in Class D cleanrooms. These cleanrooms help reduce contamination risks while ensuring that the final product is safe and free from visible contamination.

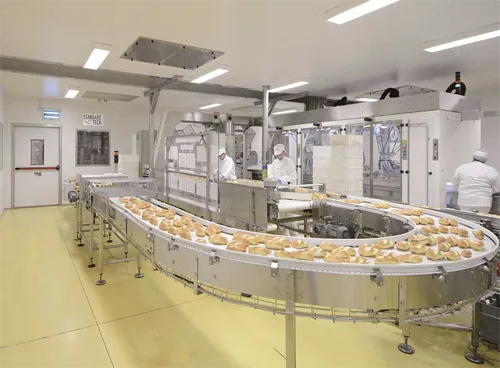

Food Processing clean room
  • Food Processing (Non-Sterile Products)

Packaging of Non-Sterile Foods:

  Class D cleanrooms can also be used for packaging certain types of food products that are not sterile but require a clean environment to minimize contamination during the final stages of production. This might include handling or packaging of certain supplements, dietary products, or snack items.



GMP Class D Clean Room Wall

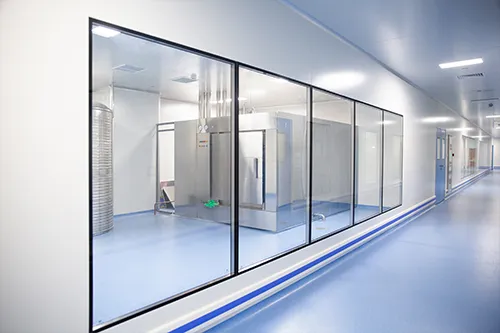

class D clean room

  • Size and appearance:

    Ensure that the size and shape of the product meet the design requirements and have no obvious defects.

  • Physical properties:

    Such as compression, tension, impact resistance and other tests to ensure the strength and durability of the material.

  • Surface treatment:

    Confirm that the surface is smooth, the coating is uniform, and there are no bubbles, peeling, etc.

  • Test report:

    Fire and corrosion resistance test





class D clean romm door.jpg

  • Steel standard:

    Select high-quality steel that meets national and international standards to ensure its corrosion resistance and strength.

  • Surface treatment:

    The surface of the door body should be treated with anti-rust treatment (such as spraying, anodizing, etc.) to ensure durability and easy cleaning.

  • Insulation material:

    The door core material should have good heat insulation and sound insulation properties, and insulating materials such as polyurethane or rock wool are usually used.

  • Production process:

    Production is carried out strictly in accordance with standardized processes, including cutting, forming, welding and paintin



class D clean room

  • Steel standard:

    Select high-quality steel that meets national and international standards to ensure its corrosion resistance and strength.

  • Surface treatment:

    The surface of the door body should be treated with anti-rust treatment (such as spraying, anodizing, etc.) to ensure durability and easy cleaning.

  • Insulation material:

    The door core material should have good heat insulation and sound insulation properties, usually using insulating materials such as polyurethane or rock wool.

  • Production process:

    Strictly follow the standardized process for production, including cutting, forming, welding and painting, to ensure stable quality in each link.



GMP Class D Clean Room Celling

Purification color steel plate ceilingPurification board ceiling.jpgHoneycomb blind ceiling .jpgEight-fold blind plate .jpg
  • Specifications: Thickness: 980, 1180

  • Panel material: 50mm, 75mm, 100mm

  • Core material: color-coated steel plate, stainless steel plate, rock wool, gypsum, glass magnesium, aluminum honeycomb, etc.

  • Accessories: Keel: 0.8 galvanized plate

  • Application scope: food, medicine

  • Others: Coating: PE (polyester), PVDF (fluorocarbon), HDP (high weather-resistant polyester)

  • Keel: 0.8 thick galvanized steel keel is used on all four sides to increase the strength and sealing of the board surface

  • Hanging beam: The patented heavy-duty hanging beam system of Mastercard is adopted, which is easy to install and improves construction efficiency.

  • Cost: No need to remove the entire top plate, reducing replacement costs and high cost performance.

  • Replacement: This product is also suitable for partial top plate replacement

FFU Mounting accessories.jpgCross type connector .jpgL-Type Connector .jpgT-Connector.jpg
  • Easy installation: FFU keels are designed according to the characteristics of clean rooms and are easy to disassemble and assemble

  • Factory prefabrication: The ceiling system is modularly designed, highly malleable, and can be cut on site

  • Flexible matching: It can be a double-layer ceiling structure or a single-layer ceiling with FFU keels on the lower layer

  • High system strength: can walk on the FFU aluminum alloy ceiling keel,

  • Fire fighting equipment: use the cross joint to install the sprinkler head, and can also install the smoke detector,

  • Lighting circuit: some wires of the lighting lamp, the clean room teardrop lighting lamp can be installed below,

  • Lighting circuit: FFU ceiling can filter at the same time as FFU fan.



GMP Class D Clean Room Floor

Anti-static pvc floor rubber structure.jpegESD Antistatic PVC Vinyl CleanroomFloor Mat Waterproof Vinyl Roll Flooring.jpgpvc flooring structure.jpeg
  • Flexibility: PVC flooring adhesive has good flexibility and impact resistance
  • Anti-slip: There is an anti-slip surface treatment to ensure the safety of personnel while working.

  • Easy to install: Usually provided in roll or tile form, installation is simple and quick.

  • Diversity: A variety of colors and textures are available for easy visual zoning and aesthetics.

son-tu-san-phang.jpgresincoat-self-levelling-compound2.jpegresincoat-self-levelling-compound.jpg
  • Seamless: Avoids accumulation of dust and bacteria at seams
  • Chemicalresistance: Able to withstand a wide range of chemicals and cleaning agents

  • Easy to clean: Smooth surface makes cleaning and maintenance relatively easy.

  • Video
  • Workshop
  • Data sheet
  • Certificate
  • Production workshop photos1
  • Production workshop photos2
  • Production workshop photos3
  • Production workshop photos4
  • Production workshop photos5
  • Production workshop photos6
  • Production workshop photos7
  • Production workshop photos8
  • Production workshop photos9

Enterprise qualification certificate

Class D Clean Room Video Introduction

FAQ

Q: What is Class D in a cleanroom?

A: Class D cleanrooms are the lowest level of controlled environments in the GMP classification system, typically classified as ISO Class 8. These environments are used for processes that do not require stringent sterility but still need to be free from contamination. They are suitable for non-sterile manufacturing activities such as packaging, storage, and the handling of materials that do not require aseptic conditions.



Q: Is Grade D equivalent to ISO 8?

A: Yes, Grade D cleanrooms are equivalent to ISO Class 8 cleanrooms in terms of air cleanliness. ISO Class 8 allows for up to 3.5 million particles per cubic meter for particles 0.5 microns, which is suitable for processes that don't require the highest level of cleanliness or sterility, but still need a controlled environment to prevent contamination.



Q: What are the requirements for Grade D cleanroom gowning?

A: The gowning requirements for a Grade D cleanroom are less strict than those for higher-grade environments. Personnel are typically required to wear protective clothing, including lab coats, gloves, hair covers, and shoe covers. However, the gowning process is generally simpler compared to the more restrictive procedures in higher-level cleanrooms like Class A and B, as the risk of contamination is lower in Grade D environments.



Q: What is a Class C cleanroom?

A: A Class C cleanroom is an ISO Class 7 environment used for processes that do not require aseptic conditions but still need to be conducted in a controlled, low-contamination environment. These cleanrooms are common in pharmaceutical manufacturing for the preparation of non-sterile products, such as mixing ingredients, formulating, or packaging, where contamination control is important but does not require the high sterility levels of Class A or B environments.



Q: What are the classes of cleanrooms?

A: Cleanrooms are classified into different grades based on the level of contamination control required. The ISO cleanroom classes range from ISO Class 1 (the cleanest, with the fewest particles per cubic meter) to ISO Class 9 (the least clean, with more particles allowed). In GMP terms, cleanroom classes are designated as Class A, B, C, and D, with Class A being the highest standard for sterile environments and Class D being suitable for less critical processes.



Q: What is Type C cleaning in pharma?

A: Type C cleaning in pharmaceuticals refers to a cleaning procedure applied to equipment or surfaces that do not come into direct contact with sterile materials but still need to be maintained in a clean condition to prevent contamination. This cleaning method is often performed in environments like Class C cleanrooms, where contamination control is necessary but not as stringent as in sterile areas (like Class A).



Q: What are the FDA classifications for cleanrooms?

A: The FDA classifies cleanrooms based on their cleanliness levels and their suitability for various pharmaceutical manufacturing processes. The classifications generally align with the ISO cleanroom standards, including Class A, B, C, and D cleanrooms, with Class A and B being used for sterile operations like aseptic filling and Class C and D for non-sterile processing or packaging. The FDA requires these environments to meet specific air quality, gowning, and cleaning standards to ensure product safety.



Q: What does Class D stand for?

A: Class D refers to the lowest classification of cleanroom environments used in industries like pharmaceuticals and biotechnology. It indicates an ISO Class 8 environment with moderate contamination control, where processes that don't require high sterility but still need to be free from gross contamination can be performed.



Q: What is a Class D room classification?

A: A Class D room is an environment classified under ISO Class 8. It is typically used in processes where contamination control is needed, but sterile conditions are not required. Class D rooms are commonly used for tasks like packaging, material storage, or non-sterile product handling, where moderate cleanliness standards are sufficient to protect product integrity.



Q: What is Class D rating?

A: The Class D rating refers to an ISO Class 8 cleanroom, which allows a certain number of particles to be present in the air (up to 3.5 million particles per cubic meter for particles 0.5 microns). This rating is suitable for applications where high contamination control is necessary, but not to the stringent levels required for sterile processing.



Q: What is the Class D used for?

A: Class D cleanrooms are used for less critical processes such as non-sterile packaging, storage, and the handling of materials that do not require aseptic conditions. They are suitable for pharmaceutical packaging, medical device assembly, and other operations where contamination control is important, but sterilization is not needed.



Q: What is a Grade D cleanroom?

A: A Grade D cleanroom is the same as an ISO Class 8 cleanroom. It is a controlled environment used for processes that require moderate contamination control but do not need to maintain sterile conditions. These cleanrooms are typically used for packaging, storage, and handling non-sterile products in industries like pharmaceuticals and biotechnology.



Q: What is a Class D area?

A: A Class D area is a controlled space designated as an ISO Class 8 cleanroom. It is typically used for non-sterile processing or packaging where there is a need for some level of contamination control, but the requirements are not as strict as for higher-class cleanrooms like Class A or B.



Q: What is Class A cleanroom?

A: A Class A cleanroom is the most sterile and controlled environment, classified as ISO Class 5. It is used for processes that require the highest levels of cleanliness and minimal particulate contamination, such as aseptic filling, sterile drug production, and surgical instrument assembly, where even minute levels of contamination could compromise product quality.



Q: What are the requirements for Grade D gowning?

A: The gowning requirements for a Grade D cleanroom are less stringent than those for higher-level cleanrooms. Personnel typically wear lab coats, gloves, hair covers, and shoe covers to minimize contamination. Unlike higher classes, Grade D does not require full-body gowns or aseptic techniques, as the processes performed are less sensitive to contamination.



Q: What are the levels of cleanrooms?

A: Cleanrooms are classified into various levels based on the cleanliness of the air and the required degree of contamination control. The most commonly used classification system is the ISO 14644-1 standard, which includes ISO Class 1 (the cleanest) through ISO Class 9 (the least clean). For GMP, cleanroom levels are designated as Class A, B, C, and D, with Class A being the highest level for sterile environments and Class D being used for less critical processes.
