How to build a Class 100 clean room

  • Author:Jason Peng

  • Cleanroom Engineering Technology Manager of Deiiang Company.

    Product R&D Manager of GDC Inc. Cleanroom Equipment Manufacturing Company.

    Executive Director of Guangdong Cleanroom Industry Association of China.

    Engaged in R&D of related products for 15 years, with rich relevant technical experience

  • 2024-11-08  |  Visits:

A clean room is a closed environment with special design and equipment configuration, which is designed to control physical factors such as dust particles, temperature, humidity, and pressure in the air. Class 100 Clean rooms (ISO5 clean rooms) are widely used in industries such as Semiconductor manufacturing, pharmaceuticals, and food production. Their main goal is to ensure the cleanliness of the environment during the production process and prevent external pollutants from affecting product quality. This article will explain in detail how to build a Class 100 Clean room that meets the ISO 14644-1 standard, covering all aspects from scheme design, equipment installation to final acceptance.

class 100 clean room


Design and quotation of Class 100 clean room decoration scheme

In the early stage of clean room construction, formulating a reasonable decoration scheme and accurate quotation is the basis for the smooth progress of the project. The scheme design should be carried out according to the actual needs of the clean room and the specific conditions of the workshop to ensure that the cleanliness and functional requirements are met.


1. Site inspection and demand analysis

The formulation of the decoration scheme first requires a detailed site inspection. Only by understanding the size, structure, production needs, etc. of the plant can the decoration scheme and cost be accurately estimated.


2. Design scheme determination and quotation

The decoration scheme of the clean room is usually determined according to factors such as cleanliness level, space layout, ventilation requirements, etc. For the 100-level clean room, factors such as air circulation and pressure difference setting will be considered during the design, and the price varies depending on the plant area, equipment selection and construction difficulty.

  • Area: The area of a general clean room is between 50-200㎡

  • Price: The decoration quotation of a 100-level clean room is usually 5000-7000 yuan/㎡


3. Contract signing and construction arrangement

After the design scheme and quotation are determined, the two parties sign the contract and arrange the construction schedule to ensure that the clean room can be completed on time. The contract should clearly state the equipment procurement, project acceptance standards and construction progress.

  • - On-site inspection and demand analysis

  • - Design plan determination and quotation

  • - Contract signing and construction arrangement

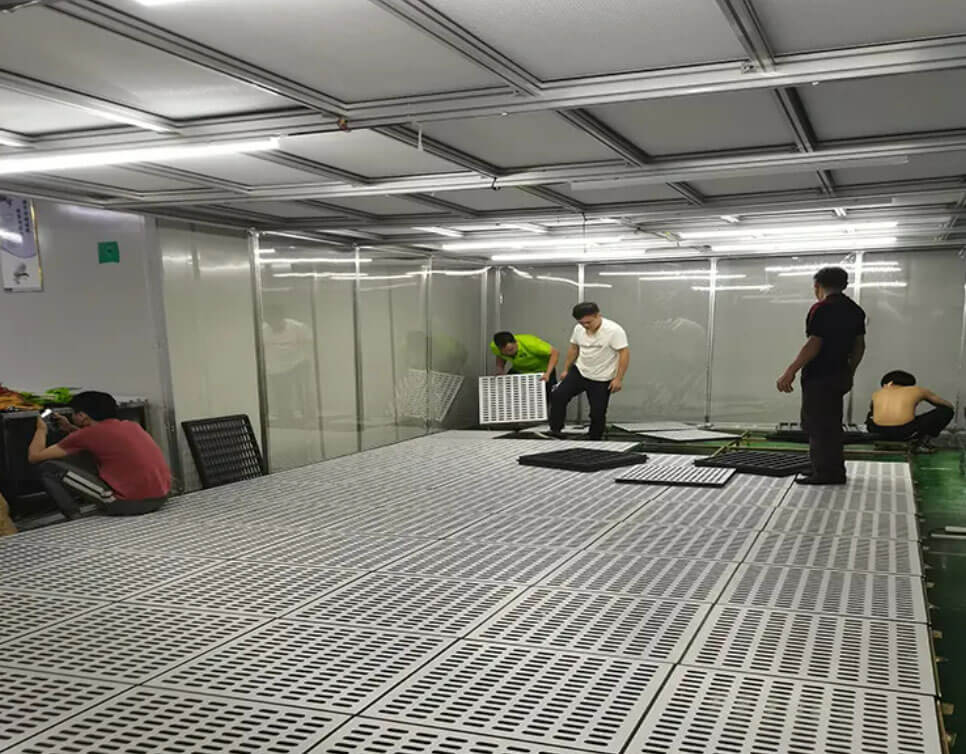

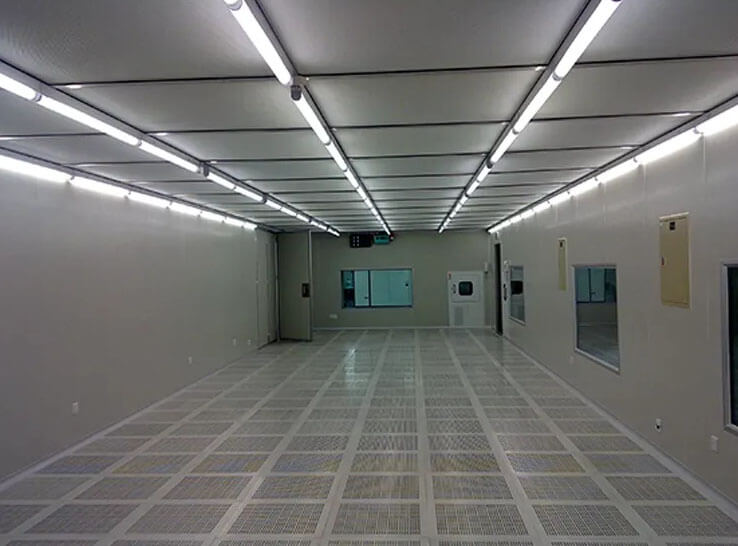

Anti-static raised floor3.jpg


Installation of color steel plate partitions in Class 100 clean rooms

The color steel plate partition is the basic framework of the clean room. It not only plays an isolation role, but also directly affects the air flow and cleanliness in the room. The quality of the installed color steel plate determines the smooth progress of subsequent installation and operation.


1. Material preparation and construction arrangement

The material of the color steel plate is usually polyurethane or rock wool core board, which has good thermal insulation and sound insulation effects, and can effectively block the entry of external pollutants. Depending on the size of the clean room, construction workers need to complete the installation of most partitions within 2-3 weeks.


2. Installation details and precision requirements

When installing color steel plates, pay special attention to the sealing of the joints. The joints between the plates should be sealed with professional sealants to prevent dust particles in the air from entering the room through the gaps.

  • Seam sealing: Use dustproof tape or sealant

  • Installation accuracy: Deviation does not exceed 3mm


3. Inspection and confirmation

After installation, all partitions should be inspected to ensure their firmness and sealing. The stability of the partition wall is directly related to the cleanliness of the clean room, so no details should be ignored during the inspection process.

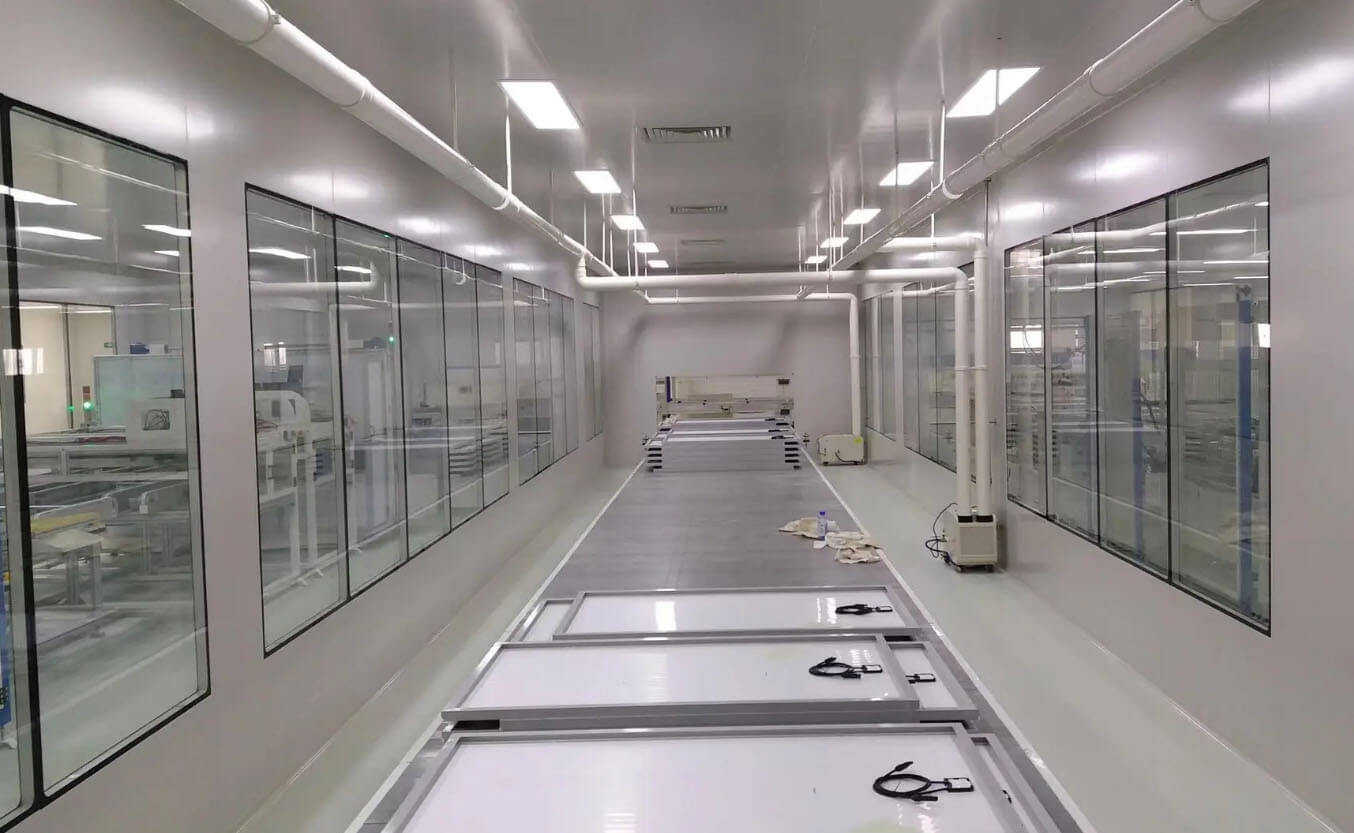

class 100 clean room2


Installation of Class 100 Clean Room Ceiling

The ceiling is an important part of the clean room design. The ceiling not only carries FFU filter units, purification lamps, air conditioners and other equipment, but also ensures the uniformity of airflow distribution.


1. Ceiling design and material selection

The Clean room ceiling usually uses light steel keels and aluminum alloy plates, which are light and durable. When designing, the reasonable layout of the equipment should be considered to avoid affecting the direction of the airflow.

  • Ceiling material: light steel keel, aluminum alloy panel

  • Ceiling thickness: 25-50mm


2. Equipment layout and wind speed requirements

FFU equipment (fan filter unit) is an important part of the clean room ceiling. It keeps the air clean by efficiently filtering particulate matter in the air. The wind speed of FFU is usually required to be between 0.45-0.6m/s to ensure the uniformity of air flow.

  • FFU air volume: Each FFU covers an area of about 10-15㎡

  • Wind speed: 0.45-0.6m/s


3. Ceiling installation and debugging

After the ceiling is installed, the FFU equipment needs to be debugged to ensure its normal operation, air flow and cleanliness meet the standard requirements. The functional inspection of each device cannot be ignored.

  • Ceiling design and material selection

  • Equipment layout and wind speed requirements

  • Ceiling installation and debugging

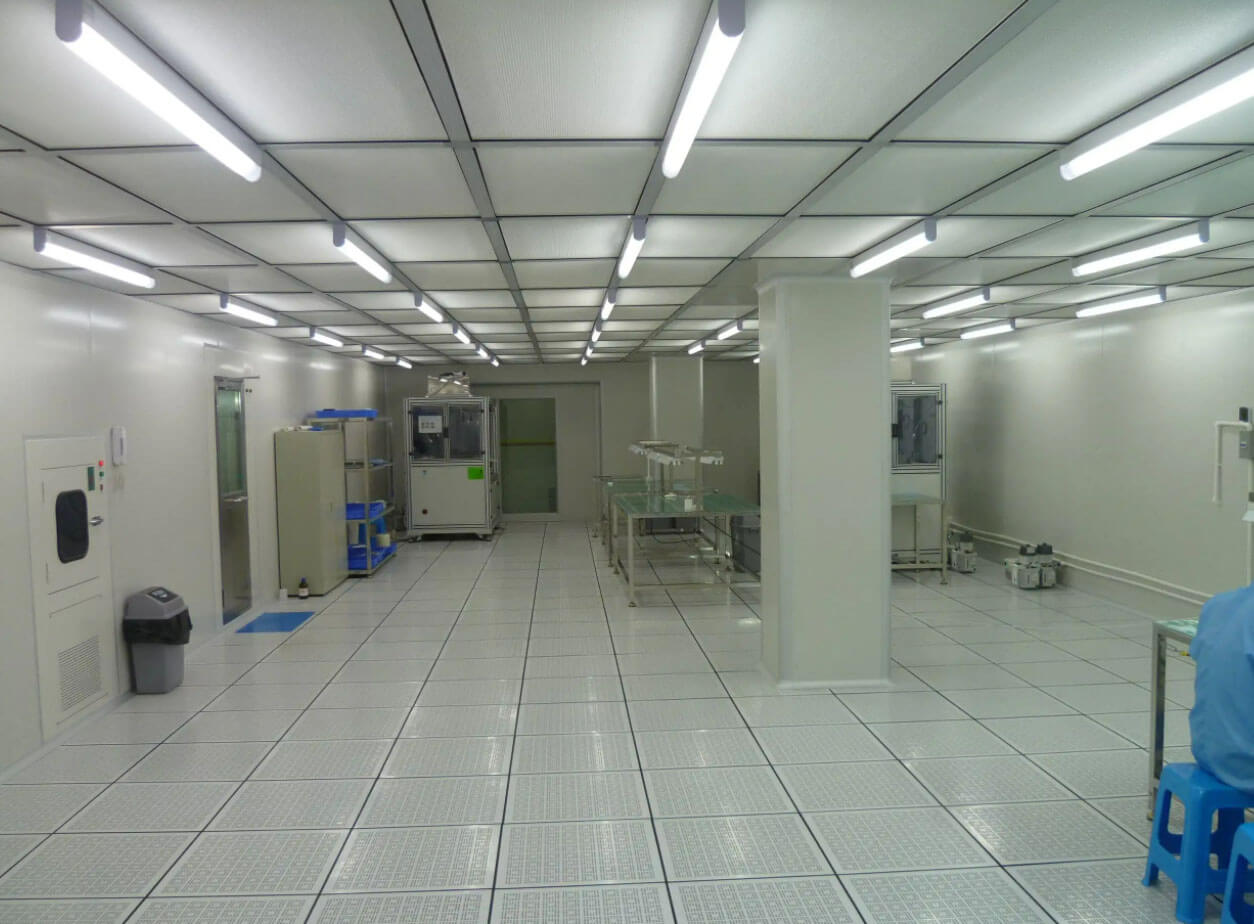

class 100 clean room3


Class 100 clean room equipment and air conditioning installation

Equipment is the core of the normal operation of the clean room. FFU filters, purification lamps, air conditioners and other equipment directly affect the air quality and temperature and humidity control.


1. FFU filter and air conditioning system installation

FFU filters are responsible for filtering dust particles in the air. When installing, the layout must be strictly in accordance with the design requirements. The air conditioning system must meet the requirements of constant temperature and humidity. Usually the temperature is controlled at 20-24℃ and the humidity is controlled at 40%-60%.

  • Number of FFU filters: configured according to the area and wind speed requirements of the clean room

  • Air conditioning system: constant temperature and humidity air conditioning, temperature 20-24℃, humidity 40%-60%


2. Air shower and air outlet installation

The air shower is used for the clean treatment of personnel and materials. Its installation needs to ensure that the air flow direction is consistent with the air flow direction of the clean room to avoid cross contamination. The layout of the vents must also ensure uniform air circulation.


3. Equipment debugging and testing

After installation, all equipment needs to be debugged, including temperature and humidity tests of the air conditioning system and wind speed and filtration effect tests of the FFU equipment.


Class 100 clean room floor engineering

The floor decoration must not only meet the cleaning requirements, but also have wear resistance and anti-static functions. The selection and construction quality of floor paint directly affect the use effect of the clean room.


1. Floor paint selection and construction environment requirements

The floor of the clean room usually uses anti-static epoxy floor paint, which can effectively prevent static electricity accumulation and facilitate cleaning. The temperature and humidity requirements are high during construction. The temperature should be maintained at 15-25℃ and the humidity should not exceed 80%.


2. floor construction and hardening

Floor paint construction is generally divided into two layers: primer and topcoat. The curing time of each layer is about 6-8 hours. After the construction is completed, you need to wait for more than 24 hours to ensure that the floor is completely hardened.

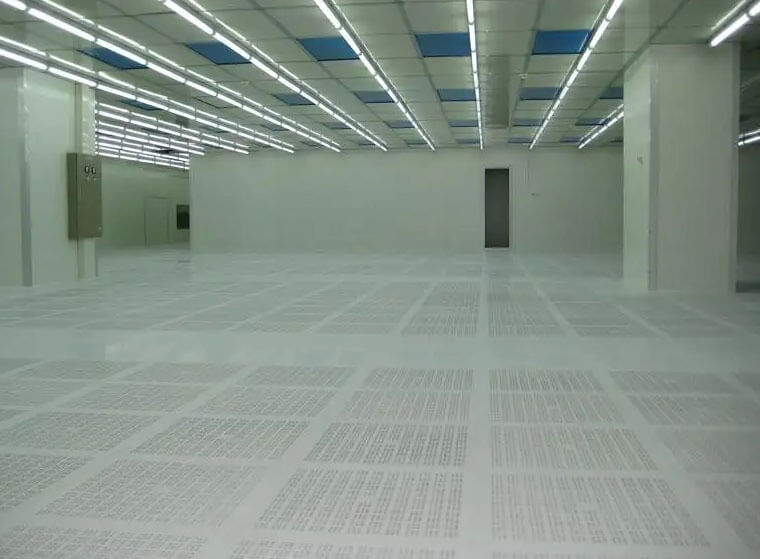

class 100 clean room4


Acceptance of Class 100 Clean Room Decoration

The acceptance of clean rooms is a systematic process involving multiple aspects such as material quality inspection, equipment function testing and air quality testing.


1. Material and equipment acceptance

Check whether the color steel plate, ceiling, equipment, etc. meet the design standards, and conduct equipment operation tests to ensure the normal operation of equipment such as FFU filters and air conditioners.


2. Air quality and cleanliness detection

Use air quality detection equipment to detect whether the dust particle count, temperature and humidity in the clean room meet the standards of Class 100 clean rooms. The particle concentration in the clean room should be less than 350,000 particles/cubic meter.


3. Final acceptance and delivery

After acceptance, the clean room enters the delivery stage. All functional tests meet the standards and the project can be put into use.

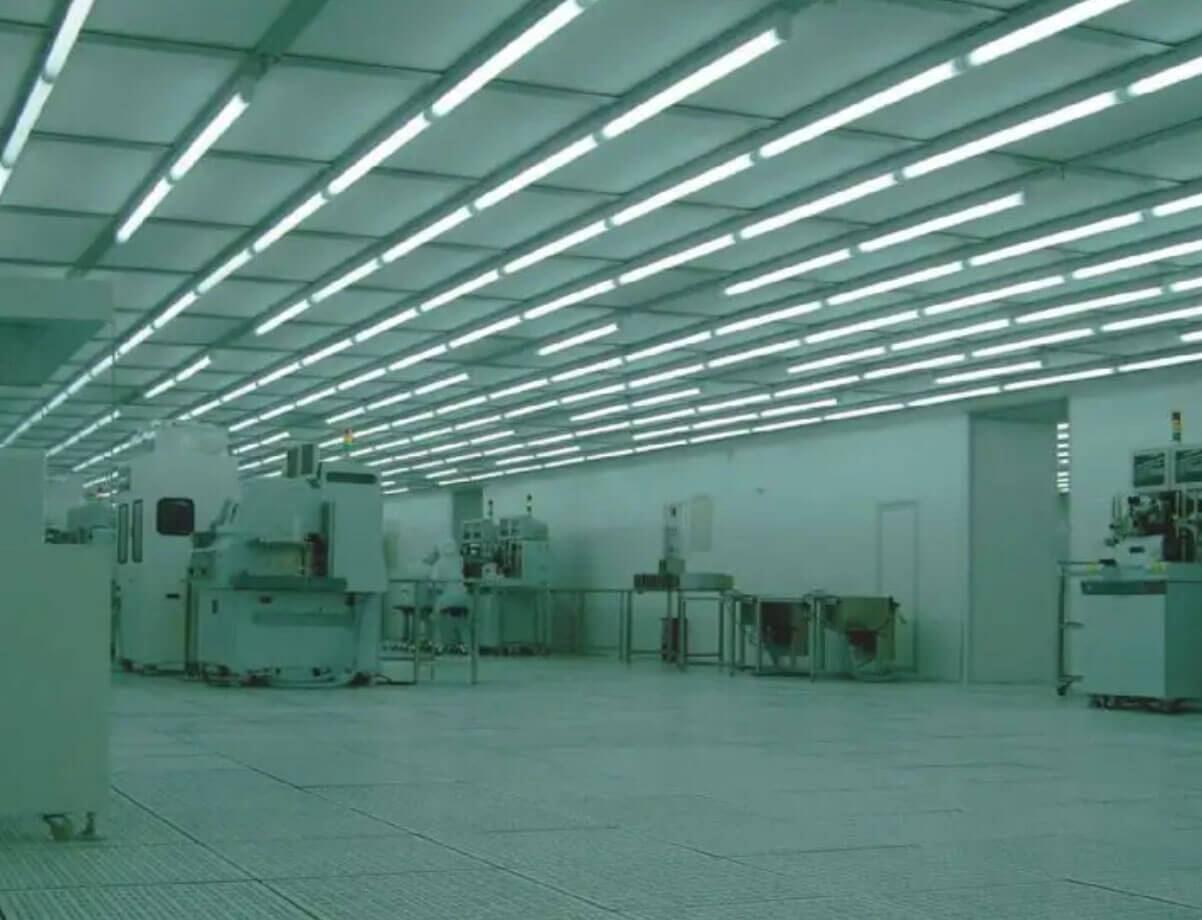

class 100 clean room5


Related standards and specifications

  • iso 14644-1

    Air cleanliness standards for clean rooms and related controlled environments

  • ISO 14644-4

    Design, construction and operation specifications for clean rooms and related controlled environments

  • GB 50073-2013

    Clean room building design specifications

  • GB 50072-2017

    Clean room air conditioning design specifications
