What is an ISO 9 clean room?

What is an ISO 9 Cleanroom?

1. Particle Limits in ISO 9 Cleanrooms

In an ISO 9 cleanroom, the maximum allowable concentration of particles ≥0.5 microns is 35,200,000 particles per cubic meter. This is the highest particle concentration allowed in any cleanroom, indicating that ISO 9 cleanrooms are typically used in environments where contamination control is not as critical as in higher classes such as ISO 8 or ISO 7.

2. Applications of ISO 9 Cleanrooms

ISO 9 cleanrooms are often used in industries or processes where the risks associated with particle contamination are relatively low or can be mitigated easily. Some typical applications include:

• Large-scale manufacturing: For processes where particle contamination does not directly affect the quality or safety of the product, such as some Electronics manufacturing or food packaging.

• General industrial applications: ISO 9 cleanrooms are also found in textile production, automotive manufacturing, and other industries where high precision or particle control is not the primary concern.

• Non-sensitive packaging: For products that do not require strict contamination control, such as non-sterile pharmaceuticals or consumer electronics that are less affected by minor dust and debris.

3. Air Filtration and Ventilation in ISO 9 Cleanrooms

Even though ISO 9 cleanrooms are not as stringent as higher classes, they still require an air filtration system to maintain cleanliness. HEPA (High-Efficiency Particulate Air) filters or pre-filters are commonly used to remove airborne particles and maintain the overall cleanliness of the room.

4. Cost-Effectiveness and Maintenance

ISO 9 cleanrooms are the most cost-effective option when compared to more stringent CleanRoom Classifications. Due to their lower particle concentration limits and simpler filtration requirements, they are easier and less expensive to construct, maintain, and operate.

What is ISO in Cleanroom?

ISO, the International Organization for Standardization, develops standards for various industries, including cleanrooms. ISO 14644 specifies cleanroom classifications based on airborne particle concentration, with iso 14644-1 focusing on classification and ISO 14644-2 on monitoring, ensuring industry-specific cleanliness levels.

ISO standards for cleanrooms provide a benchmark for the design, operation, and maintenance of cleanrooms across various industries, ensuring that products and processes remain uncontaminated and meet the required quality standards.

What is ISO Cleanliness Spec?

ISO cleanliness specifications define cleanliness levels for cleanrooms, setting limits on airborne particle concentrations to reduce contamination risks. ISO 14644-1 classifies cleanrooms from ISO 1 (cleanest) to ISO 9, ensuring compliance for industries like pharmaceuticals and electronics.

What is the ISO Requirement for Cleanrooms?

1. Particle Concentration Limits: One of the primary requirements for cleanrooms is controlling the concentration of airborne particles. ISO 14644 specifies the maximum number of particles of ≥0.5 microns allowed per cubic meter of air for each cleanroom class.

2. Air Changes per Hour (ACH):Cleanrooms are required to maintain specific air changes per hour (ACH), which refers to the frequency with which the air in the room is replaced or filtered. The ACH rate helps maintain air quality and prevent the accumulation of particles.

3. Environmental Control and Monitoring: In addition to controlling particle levels, cleanrooms must also monitor and regulate temperature, humidity, and pressure to ensure environmental stability. These parameters help to reduce the risk of contamination and ensure that the cleanroom environment is suitable for sensitive processes.

What is 9000 in ISO?

ISO 9001 – The Core Standard:

The most well-known standard in the ISO 9000 series is ISO 9001, which outlines the requirements for a quality management system. Organizations that achieve ISO 9001 certification demonstrate that they have systems in place to monitor quality, identify and resolve issues, and continually improve processes.

Applications of ISO 9000 Standards:

ISO 9000 standards are applicable to organizations of all sizes and industries. Whether in manufacturing, services, or even non-profit sectors, adopting the ISO 9000 series can improve the organization's overall performance.

ISO 9000 and CleanRoom Quality Control:

While ISO 9000 focuses on quality management systems, its principles can also be applied to cleanroom environments to ensure that they operate efficiently and consistently meet cleanliness requirements.

What is an ISO 5 Cleanroom?

1. Particle Limits in ISO 5 Cleanrooms

The key characteristic of an ISO 5 cleanroom is its very low allowable particle concentration. According to ISO 14644-1, an ISO 5 cleanroom allows a maximum of 3,520 particles (≥0.5 microns) per cubic meter of air. This strict limit ensures that the air is extremely clean, making it suitable for applications where even the smallest airborne particles could negatively impact the process or product.

2. Applications of ISO 5 Cleanrooms

ISO 5 cleanrooms are commonly used in industries that require high levels of cleanliness to prevent contamination that could affect the performance or safety of products. Some of the primary applications include:

• Semiconductor manufacturing: The production of microchips and other semiconductor components requires extremely clean environments to prevent particle contamination that could damage the delicate circuits.

• Pharmaceuticals: In the production of sterile pharmaceuticals, including injectable medications, maintaining an ISO 5 environment ensures that no particulate contamination affects the product's safety or efficacy.

• Biotechnology: Research and development of biotechnological products, such as cell cultures and genetic materials, need to be done in cleanrooms to avoid contamination that could alter experimental results.

• Medical device manufacturing: Devices that will be implanted in the human body or used in sterile environments must be manufactured in controlled environments to ensure they are free from contaminants.

3. Airflow and Filtration in ISO 5 Cleanrooms

To maintain the stringent particle limits, ISO 5 cleanrooms use advanced air filtration systems. HEPA (High-Efficiency Particulate Air) filters are typically used to capture particles down to 0.3 microns, ensuring that the air is as clean as possible.

The air change rate (ACH) in an ISO 5 cleanroom is usually ≥240 air changes per hour, meaning that the air is completely replaced multiple times within an hour to ensure that any contaminants are removed promptly.

4. Strict Control of Environmental Factors

In addition to controlling airborne particles, ISO 5 cleanrooms must also manage other environmental factors, such as temperature, humidity, and air pressure. These factors are critical in preventing contamination and maintaining the stability of sensitive processes or products.

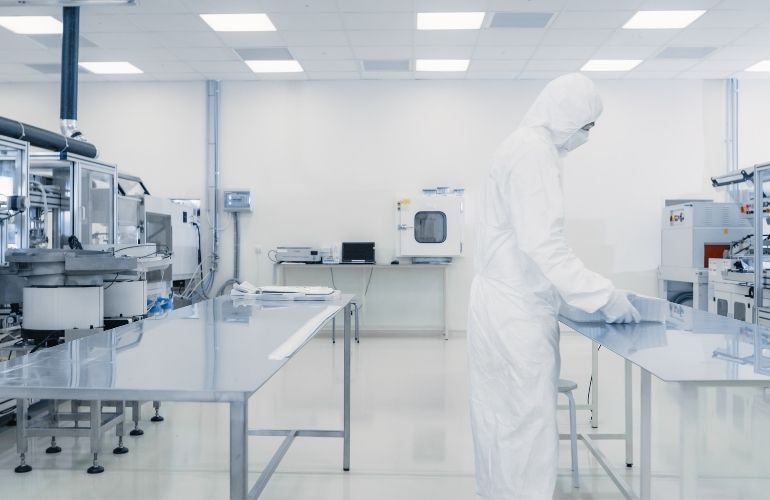

5. Personnel and Cleanroom Protocols

Strict protocols must be followed when working in an ISO 5 cleanroom to ensure that the cleanliness level is maintained. Personnel must wear specialized cleanroom garments, including coveralls, gloves, face masks, hair covers, and shoe covers, to minimize the introduction of contaminants.

6. Cost and Maintenance

ISO 5 cleanrooms are more expensive to design, build, and maintain compared to less stringent classifications. The higher air change rates, specialized filtration systems, and environmental control systems contribute to the increased cost.
