What is the update to ISO 14644-4?

What is the Update to ISO 14644-4?

Focus on Cleanliness

ISO 14644-4, updated in 2021, emphasizes monitoring airborne particles in cleanrooms. New criteria for testing reflect advancements in technology and aim to enhance the reliability and effectiveness of cleanroom operations.

Stricter Protocols

The revised standard sets clearer maximum particle counts and sizes for monitoring. Facilities must conduct audits at least annually, ensuring compliance with cleanliness levels and maintaining high operational standards.

Real-Time Performance Evaluation

The update introduces guidelines for real-time cleanroom performance evaluation. Continuous monitoring helps organizations swiftly address contamination issues, promoting accountability and enhancing operational efficiency through quicker decision-making.

Related Standards:

• iso 14644-1: Cleanrooms and controlled environments – Part 1: Classification of air cleanliness

• iso 14644-2: Cleanrooms and controlled environments – Part 2: Monitoring to provide evidence of cleanroom performance

• ISO 14644-3: Cleanrooms and controlled environments – Part 3: Test methods

• iso 14644-5: Cleanrooms and controlled environments – Part 5: Operations

The Air Change Requirements for a Cleanroom

Air change requirements in cleanrooms are vital for controlling airborne contaminants. Measured in air changes per hour (ACH), these rates differ by CleanRoom Classification. For example, ISO5 needs 300 to 600 ACH, while ISO 7 requires 20 to 60, ensuring a clean environment for operations. Proper airflow and filtration enhance effectiveness.

What is 14644 Air Changes?

1. Definition of Air Changes:

Air changes in the context of cleanrooms refer to the number of times the air in a cleanroom is replaced with fresh air within an hour. This measurement is typically expressed as air changes per hour (ACH). The ACH is a critical factor in ensuring the cleanliness and quality of the environment, directly influencing the level of particulate contamination present.

2. Importance of Air Changes:

Adequate air changes are crucial for maintaining the required cleanliness levels in a cleanroom. For example, higher air change rates are necessary in cleaner environments, such as ISO5, to dilute and remove airborne particles efficiently. Insufficient air changes can lead to the accumulation of contaminants, compromising product integrity and safety.

3. Regulatory Standards:

Various standards, including ISO 14644, define the air change requirements for different cleanroom classifications. For instance, ISO 7 Cleanrooms require a minimum of 20 to 60 air changes per hour, while ISO5 cleanrooms often require significantly more, typically between 300 to 600 ACH. Compliance with these standards is essential for industries such as pharmaceuticals, electronics, and biotechnology.

4. Factors Influencing Air Changes:

Several factors influence the required air changes in a cleanroom, including the size of the room, the type of activities performed, and the specific contamination control measures in place. For example, cleanrooms involved in sterile product manufacturing may require higher air change rates compared to those used for less sensitive tasks.

5. Balancing Air Changes with Energy Efficiency:

While increasing air changes can enhance cleanliness, it also raises energy consumption and operational costs. Therefore,it's essential to balance the need for air changes with energy efficiency. Implementing advanced HVAC systems that optimize airflow while minimizing energy use can help achieve this balance.

Basics of Cleanroom Design Using iso 14644-4

Foundation of Cleanroom Design:

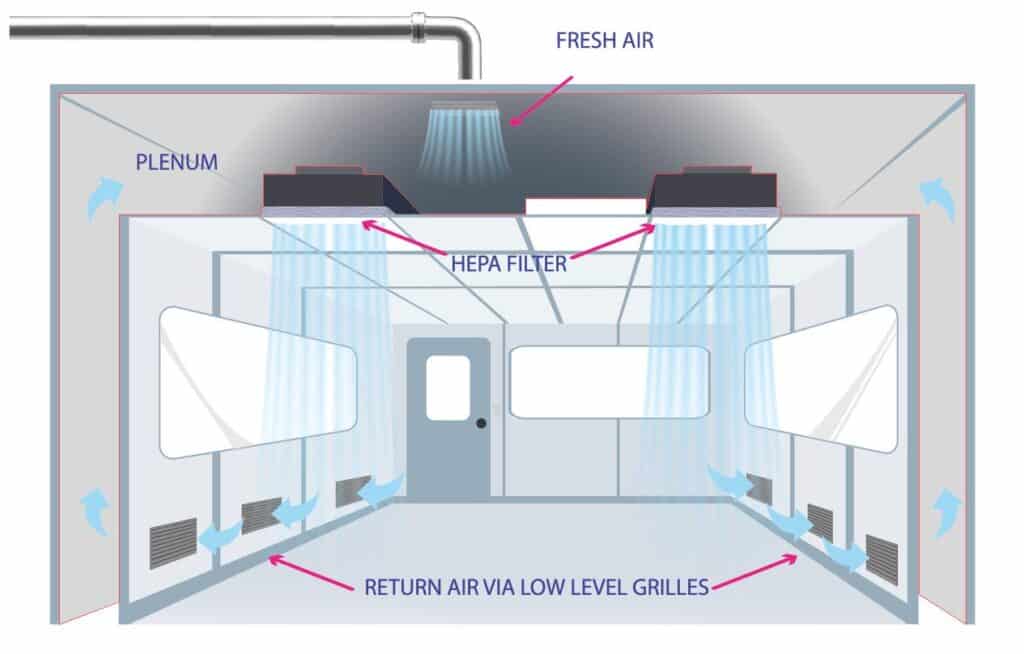

The design of a cleanroom begins with a thorough understanding of the ISO 14644-4 standards, which provide guidelines for the classification and management of cleanroom environments. One of the critical aspects of cleanroom design is airflow management, which directly impacts the control of airborne particles. The layout should facilitate unidirectional airflow, minimizing the risk of contamination by directing clean air from high-efficiency particulate air (HEPA) filters throughout the space.

Material Selection and Surface Finish:

In addition to airflow, the choice of materials and surface finishes is vital in cleanroom design. Materials should be non-porous and easy to clean, preventing the accumulation of dust and contaminants. Wall, ceiling, and floor finishes must be smooth and seamless to avoid particle traps. ISO 14644-4 emphasizes the importance of maintaining surfaces that can withstand frequent cleaning and disinfection processes.

Monitoring and Compliance:

ISO 14644-4 outlines the need for continuous monitoring to ensure that cleanroom operations remain within the specified parameters. This includes the establishment of a monitoring program that regularly assesses airborne particulate levels, airflow rates, and environmental conditions. Implementing real-time monitoring systems can provide immediate feedback, allowing for prompt corrective actions when deviations occur. Compliance with ISO standards not only enhances product quality but also builds trust with clients and regulatory bodies, ultimately benefiting the organization’s reputation and operational efficiency.

Which ISO Classification Has the Cleanest Air?

1. Overview of ISO Classifications: ISO classifications range from Class 1 to Class 9, with Class 1 having the highest cleanliness level. Each class specifies the maximum allowable particle concentrations in a cubic meter of air, categorized by particle size. As the classification number increases, the allowable particle concentration also increases, indicating a decrease in cleanliness.

2. ISO1 – The Cleanest Air: ISO1 is recognized as having the cleanest air, allowing a maximum of only 1 particle larger than 0.3 micrometers per cubic meter. Such stringent standards are critical in industries like semiconductor manufacturing and aerospace, where even minute contamination can lead to product failure. Facilities classified as ISO1 require advanced filtration systems and precise environmental control to maintain this level of cleanliness.

3. Comparative Cleanliness of Other Classes: Following ISO1, ISO2 allows a maximum of 2 particles of 0.3 micrometers per cubic meter, while ISO3 permits up to 10 particles. ISO4 through Class 9 has progressively higher limits, with Class 9 allowing 35,200 particles of the same size. The table below summarizes the maximum allowable particle counts for different ISO classes:

4. Application of Cleanroom Classes: The choice of ISO class for a cleanroom is determined by the specific requirements of the processes being conducted. For example, pharmaceutical manufacturing often requires ISO5 or better to ensure sterility, while more general applications might only need ISO 7 or 8. Understanding these classifications helps organizations design their cleanroom environments to meet their operational needs effectively.

What is the Difference Between ISO 14644 and US Fed STD 209E Cleanroom Classification Standards?

Origin and Scope

ISO 14644 is an international standard developed by the International Organization for Standardization (ISO). It provides a comprehensive framework for cleanroom design, operation, and classification, focusing on airborne particulate cleanliness. In contrast, US Fed STD 209E, established by the United States federal government, specifically addresses cleanroom classification for federal agencies and contractors.

Classification System

The classification of cleanrooms under ISO 14644 is based on the maximum allowable particle concentration per cubic meter of air. This standard uses a series of classes (ISO1 to ISO9), with Class 1 being the cleanest. Conversely, Fed STD 209E utilizes a different approach, categorizing cleanrooms by the maximum allowable number of particles per cubic foot. The classes range from Class 1 to Class 100,000, with Class 1 indicating the highest level of cleanliness. This difference in measurement units can lead to confusion and requires careful conversion when transitioning between the two standards.

Measurement Techniques

ISO 14644 emphasizes the measurement of particles greater than 0.1 micrometers, which is suitable for many cleanroom applications. It also allows for the use of multiple sampling methods for validating cleanliness. On the other hand, Fed STD 209E focuses on larger particles, typically starting at 0.5 micrometers. This difference in particle size measurement can affect the perceived cleanliness of a cleanroom, as smaller particles may be more relevant in certain high-tech environments.

Compliance and Global Acceptance

ISO 14644 is widely accepted globally and is often the standard of choice for international companies, promoting consistency across borders. In contrast, while Fed STD 209E was primarily used in the United States, its withdrawal has led many organizations to shift toward ISO standards for compliance, ensuring they meet both national and international requirements.
