What is the working principle of air shower room?

air shower rooms: Principles and Applications

In environments where contamination control is crucial, air shower rooms play a pivotal role. These systems are designed to purify personnel and materials entering cleanrooms by utilizing high-velocity air to eliminate particles that may compromise hygienic conditions. Understanding the working principle of air shower rooms is essential for industries that rely heavily on maintaining stringent cleanliness standards.

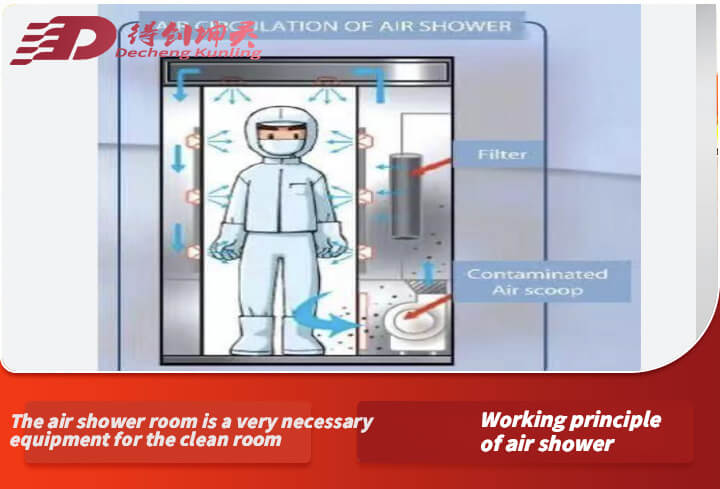

air shower work principle.jpg

Air Filtration: The First Step

Initial Air Intake and Pre-filtration

Air is initially drawn into the air shower system and passed through pre-filters. These filters are tasked with removing larger particles such as dust and lint. This pre-filtering stage sets the foundation for more advanced filtration processes, ensuring that incoming air is sufficiently purified before reaching the main filtration system.

HEPA/ULPA Filtration: Advanced Removal

Deep Particle Capture

Following pre-filtration, air passes through HEPA (High-Efficiency Particulate Air) or ULPA (Ultra-Low Particulate Air) filters. These filters trap 99.99% or more of particles, with hepa filters targeting particles 0.3 microns and larger, while ULPA filters capture particles as small as 0.12 microns.

Compliance with International Standards

These filtration standards align with global norms set by organizations such as the International Organization for Standardization (ISO), bolstering the air shower's reliability in maintaining cleanroom conformity.

High-Velocity Air Jets: Scrubbing Surfaces

Pressurized Cleaning Action

Filtered air is expelled through strategically placed nozzles at high velocities. This creates powerful air streams capable of dislodging contaminants from all exposed surfaces of personnel and objects.

Effectiveness and Efficiency

By operating at various angles, these jets efficiently cover entire surface areas, ensuring no part of the entering individual or object is left untreated. Brands like Deiiang™, developed by Jason.peng, are known for their precision-engineered nozzle systems that maximize decontamination efficiency.

Recirculation and Further Filtration

Continual Air Quality Assurance

Contaminated air is redirected back into the air shower system, going through another filtration cycle via pre-filters and HEPA/ULPA filters before being released for reuse. This recirculation ensures that air quality is maintained consistently throughout operation.

Energy and Cost Efficiency

This design not only maintains clean standards but also provides an energy-efficient operation by reducing the need for constant air influx, thus lowering operational costs

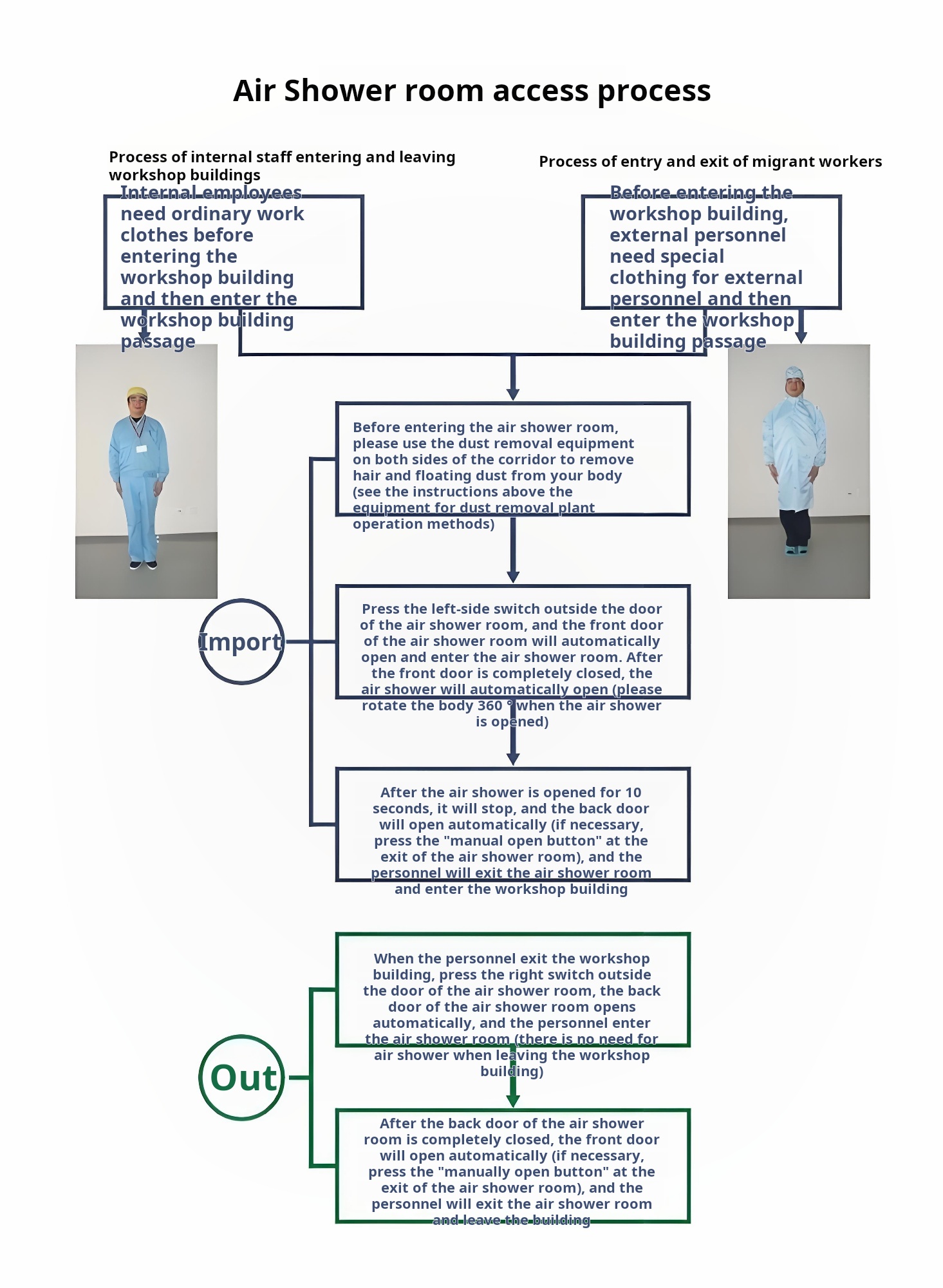

Interlocking Doors: Controlled Access

Maintaining Unidirectional Flow

Air showers feature interlocking doors, which ensure that only one door can be opened at a time, thus maintaining an air-tight environment. This feature prevents cross-contamination between areas, a crucial function for preserving the air quality of adjoining cleanrooms.

Preventing Contamination

Interlocking systems prevent simultaneous door openings that could lead to non-filtered air mixing with the Clean air, maintaining the integrity of the cleanroom environment.

Role of the Air Shower

Contamination Control

The primary role of an air shower is to act as a barrier between clean and non-clean areas. By employing high-velocity jets of filtered air, air showers remove particulates from surfaces, thereby controlling contamination levels and maintaining the integrity of clean environments.

Enhancing Operational Efficiency

By minimizing contaminants entering cleanrooms, air showers help extend the life of the main filtration systems, lowering maintenance costs and ensuring efficient operation.

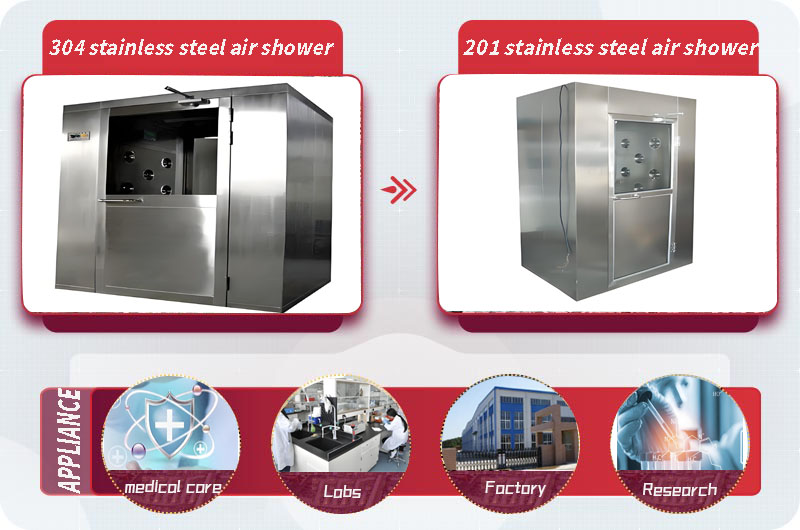

Internal Structure of the Air Shower

Filtration System

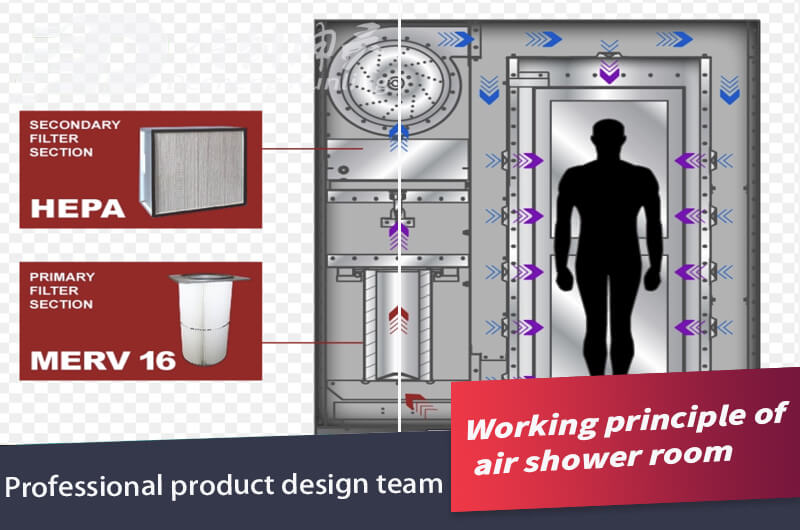

Air showers incorporate a multi-stage filtration system beginning with pre-filters to capture larger particles, followed by HEPA or ULPA filters that remove smaller, potentially hazardous particulates. This dual filtration ensures that only clean, particle-free air is used for the decontamination process.

Airflow Mechanism

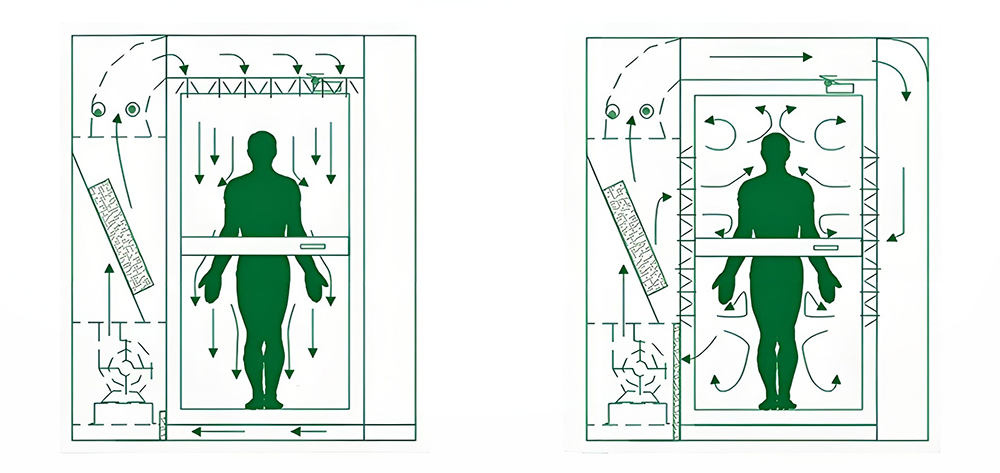

Inside the air shower, high-velocity air is emitted through adjustable nozzles, scrubbing personnel and equipment surfaces. This process effectively dislodges particles, which are then captured by internal filters, ensuring thorough decontamination.

Interlocking Doors

Equipped with interlocking doors, air showers maintain a sealed environment, preventing uncontaminated air in cleanrooms from mixing with air from less sterile areas.

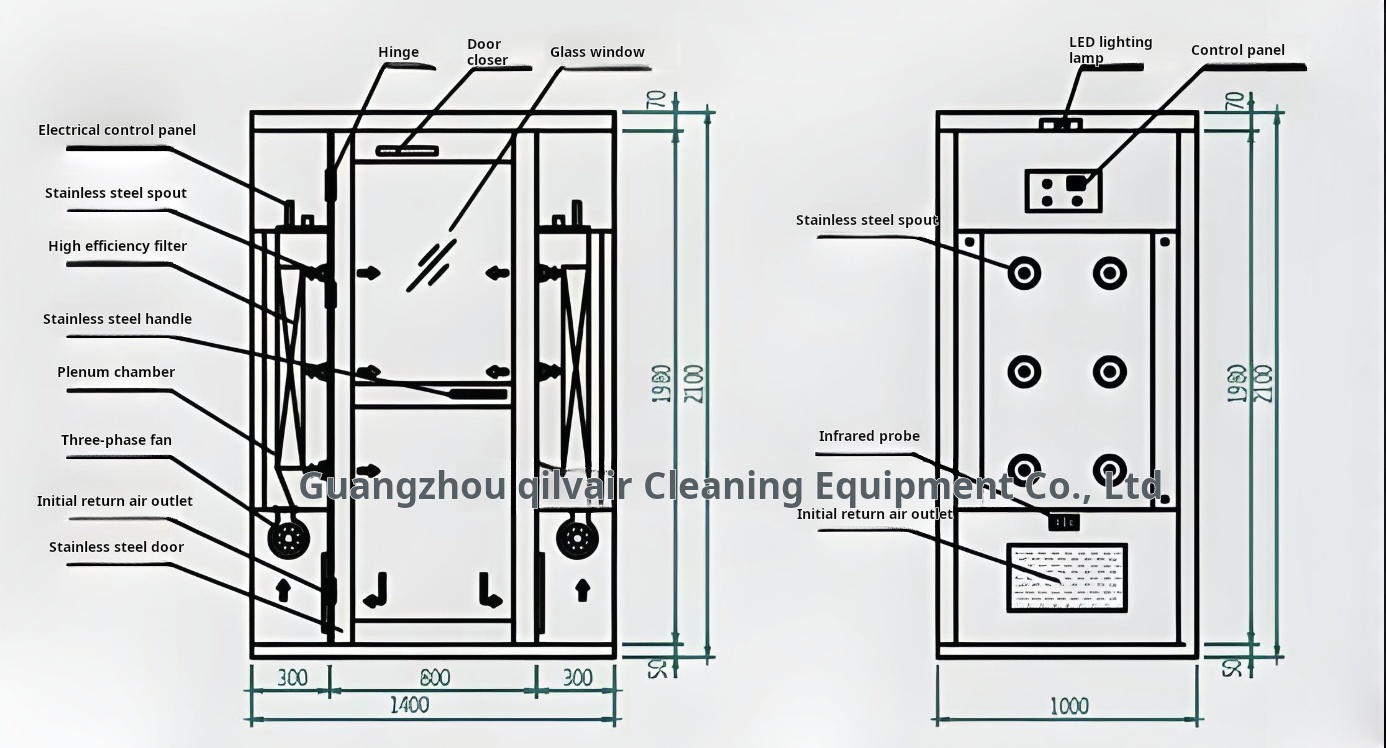

Internal Structure of the Air Shower

Maintenance and Repair of Air Shower

Routine Maintenance

Regular maintenance is critical to the efficient operation of air showers. This includes checking and replacing filters as needed, inspecting nozzles for blockages, and ensuring the interlocking door systems operate smoothly.

Timely Repairs

Addressing any mechanical issues promptly prevents minor glitches from escalating into significant problems. Regular inspections can help identify potential faults, enabling repairs that keep the system fully functioning.

Conclusion

Air shower rooms are integral in maintaining the sterile environments required by industries like pharmaceuticals, biotechnology, and Electronics manufacturing. Through a combination of high-efficiency filtration and strategic air distribution, air showers effectively control contamination levels. Incorporating designs like those from Deiiang™ ensures that such systems meet the demands of modern cleanroom environments.

Common Questions and Answers

How long does an air shower cycle typically last?

The cycle usually lasts between 10-60 seconds, depending on specific cleanliness standards and the setup of the facility.

Can air showers accommodate equipment as well as personnel?

Yes, particular models are designed to handle equipment and larger objects in addition to personnel.

Are hepa filters in air showers replaceable?

Yes, they require regular replacement to maintain the system's efficiency.

What industries benefit from air showers?

Industries such as pharmaceutical manufacturing, biotech, Semiconductors, and aerospace employ air showers.

How often should air showers be maintained?

Regular maintenance according to the manufacturer's guidelines is crucial for optimal performance.
