How do air showers help reduce particle count in cleanrooms?

How do air showers help reduce particle count in cleanrooms?

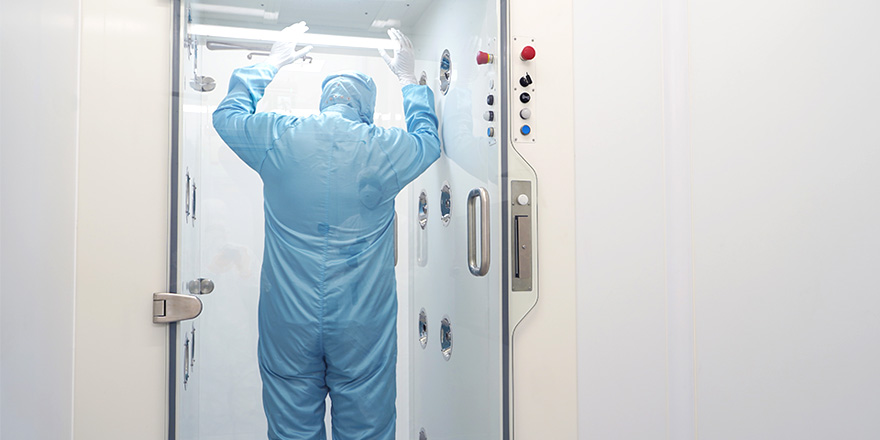

Air showers are essential in cleanroom environments, providing a barrier against contamination. They use high-velocity air streams to dislodge and remove particles from personnel and materials before entering clean areas.

Mechanism of Action

Air showers utilize high-velocity jets of filtered air.

- Particle Removal:

The jets effectively dislodge particles from clothing and surfaces.

- Effective Pressure:

The air pressure creates turbulence, enhancing particle capture.

- Clean air Supply:

The air used in showers is HEPA-filtered, ensuring that it does not introduce additional contaminants.

Benefits of Air Showers

Air showers significantly reduce particle ingress.

1.Reduction Rates: Studies show that air showers can reduce particle counts by up to 99%.

2.Enhanced Cleanliness: By removing contaminants before entering clean areas, they help maintain stringent cleanroom standards.

3.Operational Efficiency: They streamline the entry process, allowing for quicker transitions while maintaining cleanliness.

Relevant standards include:

• ISO 14644-1: Cleanrooms and associated controlled environments

• GMP guidelines for cleanroom operations

• Federal Standard 209E: Cleanroom classification

How long is the air shower cycle?

1. Typical Duration

An air shower cycle typically lasts between 10 to 30 seconds.

2. Cycle Components

Each cycle involves an initial phase of air blast followed by a brief pause for settling particles.

3. Optimal Time

Ideally, the cycle time should be optimized to balance efficiency and effectiveness in particle removal.

4. Operational Guidelines

Regular monitoring and adjustments based on particle count measurements ensure that the cycle duration is appropriate to maintain cleanroom standards.

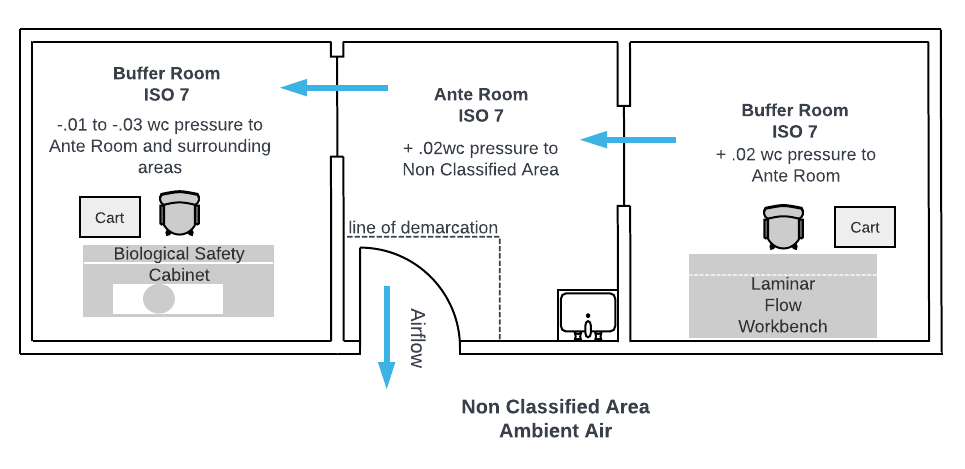

Why is it necessary to provide pressurisation air to A CleanRoom?

Pressurization is crucial for maintaining cleanroom integrity and ensuring a controlled environment.

1. Prevent Contamination: Pressurization helps to prevent the ingress of unfiltered air from adjacent areas.

2. Airflow Control: Maintaining positive pressure ensures that air flows out of the cleanroom, reducing the chances of particles entering.

3. Standards Compliance: Adhering to standards such as ISO 14644 ensures that cleanrooms operate within specified pressure differentials, essential for controlling contamination.

What is the viable particle count limit in a clean room?

The viable particle count limit in cleanrooms is critical for ensuring product safety and quality.

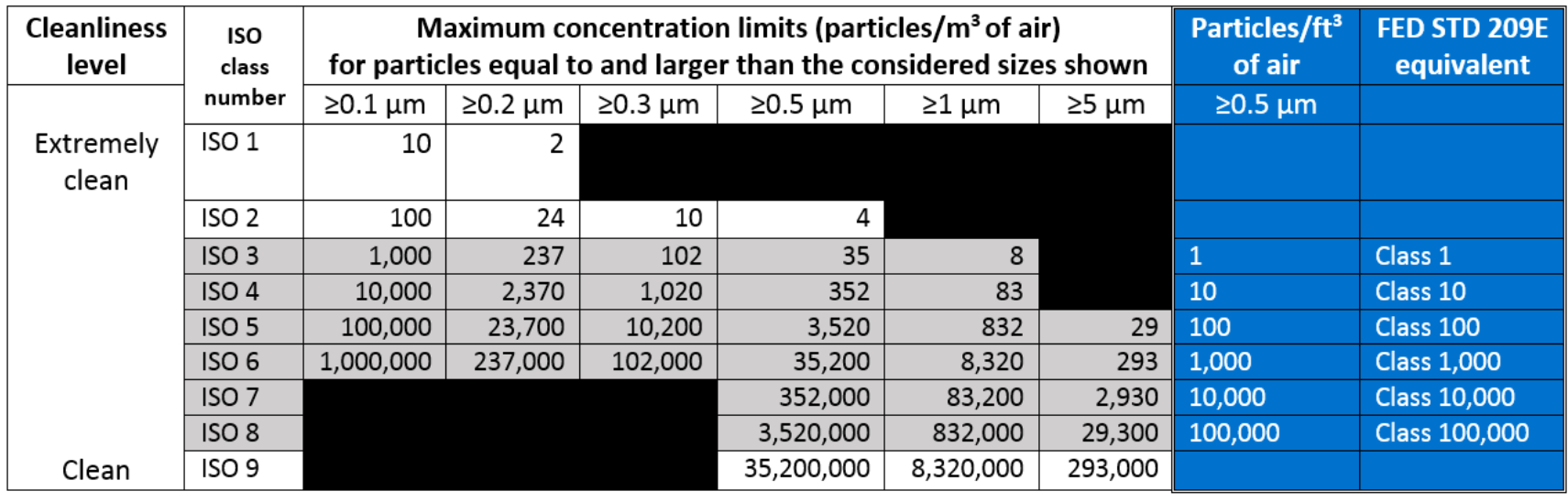

• CleanRoom Classifications

Different cleanroom classes have specific particle count limits.

1.ISO5:

Limits viable particles to less than 3,520 per cubic meter for particles ≥ 0.5 μm.

2.ISO7:

Permits up to 29,300 particles per cubic meter for the same size range.

3.Importance of Compliance:

Maintaining these limits is essential for industries such as pharmaceuticals, biotechnology, and Electronics.

• Monitoring and Control

Regular monitoring is necessary to maintain compliance.

Use calibrated instruments to measure airborne particles.

Follow ISO guidelines for sampling frequency based on cleanroom class.

Maintain records to ensure traceability and compliance with regulations.

Related Standards

• iso 14644-1: Cleanroom classification and monitoring

• USP <797>: Standards for compounding sterile preparations

• FDA guidelines for cleanroom environments
