How does the filtration system in an air shower work?

Air showers are essential components in cleanroom environments, designed to minimize contamination risks by removing particles and contaminants from personnel and equipment before entry. The heart of an air shower’s effectiveness lies in its filtration system, which ensures that only clean, filtered air is circulated. This article explores the intricate workings of the filtration system in air showers, detailing how it operates and the standards that govern its performance.

How Does the Filtration System in an Air Shower Work?

The filtration system in an air shower employs a series of filters to capture and eliminate particulate matter from the air. This process is crucial for maintaining the integrity of cleanroom environments and ensuring compliance with stringent cleanliness standards.

Types of Filters Used:

Air showers typically utilize high-efficiency particulate air (HEPA) filters or ultra-low penetration air (ULPA) filters. HEPA filters can capture particles as small as 0.3 microns with an efficiency of 99.97%, while ULPA filters can capture even smaller particles down to 0.12 microns, achieving efficiencies of 99.999%. These filters are essential for ensuring that the air entering the cleanroom is free from harmful contaminants.

Airflow and Filtration Process:

The air shower draws in ambient air, which first passes through a pre-filter to remove larger dust and debris. The pre-filter is essential for prolonging the life of the main HEPA or ULPA filters by reducing the load on them.

After passing through the pre-filter, the air is forced through the HEPA or ULPA filters, where fine particles and biological contaminants are trapped. This ensures that the air expelled into the cleanroom is of the highest quality.

The filtered air is then directed into the shower chamber through high-velocity jets. This powerful airflow dislodges contaminants from personnel and equipment, effectively removing them before entering the cleanroom. The design of the air shower and the filtration system work together to maintain optimal airflow and cleanliness.

Maintenance of Filtration Systems:

Regular maintenance and replacement of filters are critical for ensuring the continued effectiveness of the filtration system. Scheduled checks can help identify when filters need to be changed to maintain optimal airflow and filtration efficiency.

List of relevant specifications and standards:

• ISO 14644-1: Cleanrooms and controlled environments

• FS209E: CleanRoom Classification

• EN 1822: Air Filter testing

• ASHRAE 52.2: Method of Testing General Ventilation Air-Cleaning Devices

• IEST-RP-CC001: HEPA and ULPA Filter Test Standards

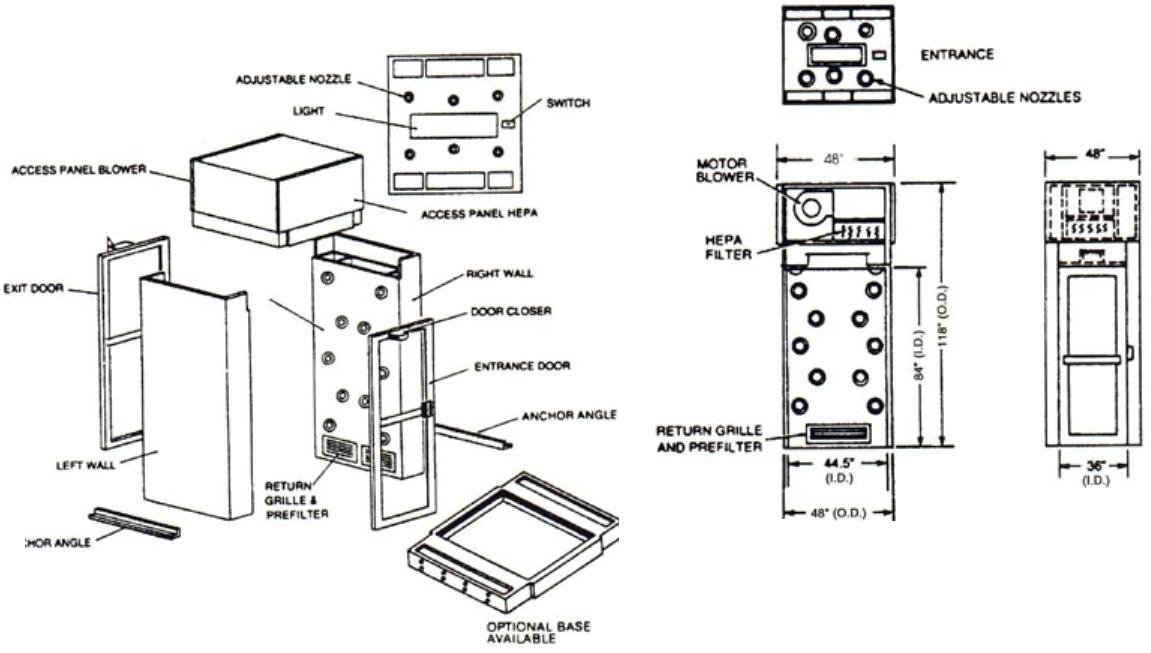

Filtration System in Air Shower

1. Primary Filter

The primary filter in an air shower is designed to capture larger particles such as dust, hair, and debris. It typically uses a pre-filter made of mesh or synthetic materials. This filter protects the high-efficiency filters from clogging and ensures that only finer particles are passed through to the next filtration stage. Regular cleaning of the primary filter is essential for maintaining optimal airflow.

2. High-Efficiency Filter

The high-efficiency filter, often a HEPA or ULPA filter, plays a crucial role in the air shower system by removing extremely fine particles, down to 0.3 microns in size. HEPA filters boast an efficiency of at least 99.97% in trapping airborne contaminants, ensuring that the air in the cleanroom remains pristine. These filters are typically made from layers of fine fiberglass and require periodic replacement to maintain filtration efficiency. Regular inspection and replacement are necessary to prevent airflow reduction and ensure compliance with stringent cleanliness standards, such as ISO 14644.

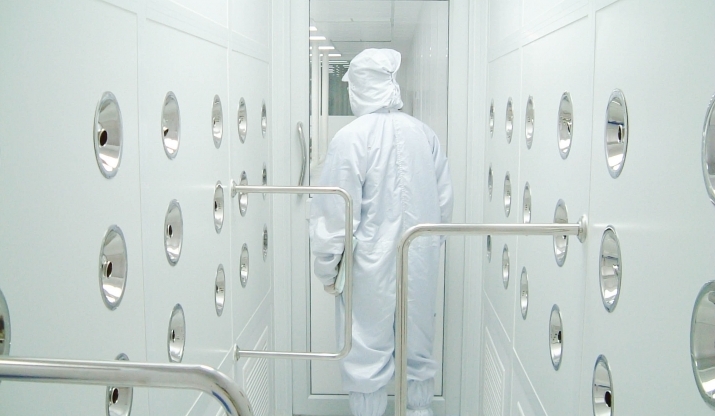

Air Shower 360° Nozzle Design

The 360° nozzle design in air showers is a key feature that enhances the efficiency of contamination removal from personnel and materials. This design employs nozzles that deliver high-velocity air jets from all directions, ensuring a comprehensive decontamination process. The air nozzles are strategically placed around the user or object, targeting all surfaces, including hard-to-reach areas like the back, sides, and underneath. By distributing air in a full 360-degree range, these nozzles maximize the cleaning coverage, ensuring that particles, dust, and other contaminants are effectively blown away from the surface.The design typically involves adjustable nozzles, allowing the airflow intensity to be customized based on the specific needs of the environment. The nozzles are typically integrated with HEPA filters to provide clean, particle-free air that is directed toward the object or personnel in the air shower. This approach minimizes the risk of contamination as it ensures that even the most challenging areas are thoroughly cleaned before entering sensitive environments, such as cleanrooms or sterile manufacturing zones.Moreover, the 360° nozzle system reduces the time and energy required for cleaning while maintaining high standards of contamination control. It is commonly used in high-demand industries like pharmaceuticals, Electronics, and biotechnology.

Air Shower Price

The price of an air shower can vary significantly based on several factors, including the size, design complexity, filtration efficiency, and manufacturer. Basic air showers designed for smaller applications may start at lower price points, while advanced models equipped with high-performance filtration systems and custom features can command higher prices.

Additionally, the inclusion of automation, monitoring systems, and compliance with specific CleanRoom standards can further influence costs. It’s essential to consider long-term operational costs, such as energy consumption and maintenance, alongside the initial investment. Many manufacturers offer customizable options that cater to specific industry requirements, which can also affect pricing.

When selecting an air shower, it's crucial to balance cost with quality and effectiveness to ensure that contamination control measures meet the necessary standards for your cleanroom environment.

List:

• Basic models start at approximately $5,000.

• Advanced models can exceed $20,000.

• Custom features and automation increase costs significantly.

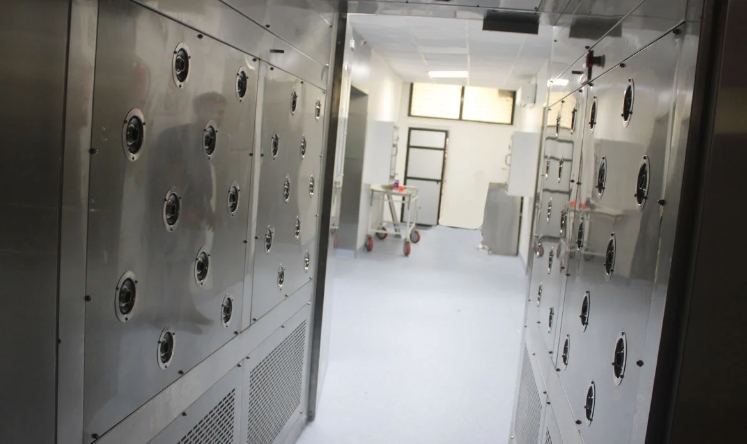

Air Shower Design and Installation

The design of an air shower is tailored to meet specific cleanroom requirements, including size, airflow rates, and filtration efficiency. The layout must ensure optimal air circulation and minimal turbulence during personnel transfer. Proper installation is critical, as it affects the air shower's performance. It is recommended to engage professionals familiar with cleanroom standards to ensure compliance with ISO 14644 and other relevant guidelines.Installation should follow a systematic approach, including electrical and plumbing connections, along with careful alignment of the air shower unit. Testing the airflow and filtration systems post-installation ensures they meet the required specifications before the air shower becomes operational.

Air Shower Maintenance

1. Routine Maintenance

Regular maintenance of air showers is essential to ensure optimal performance and longevity. Key aspects of maintenance include checking filter conditions, cleaning surfaces, and inspecting airflow mechanisms.

2. Detailed Maintenance Schedule

A comprehensive maintenance schedule should be established, typically involving weekly inspections to assess the condition of filters and airflow. Monthly deep cleaning of the air shower interior, including the nozzle and chamber, is necessary to prevent the accumulation of contaminants. Additionally, filters should be replaced according to the manufacturer's recommendations or industry standards, such as IEST-RP-CC001.

Annual professional inspections can help identify potential issues and ensure compliance with cleanroom standards, such as ISO 14644-3 for Cleanroom Testing and monitoring.

3. Importance of Compliance

Regular maintenance not only ensures the efficient operation of the air shower but also plays a critical role in maintaining compliance with domestic and international cleanroom standards. Compliance with standards like ISO 14644 and FS209E is essential for industries such as pharmaceuticals, biotechnology, and Semiconductor manufacturing. Failure to uphold these standards can lead to product contamination, regulatory penalties, and compromised research integrity. A well-maintained air shower is crucial for ensuring a contamination-free environment, thus safeguarding both personnel and products.

By adhering to a diligent maintenance routine, organizations can enhance the performance and reliability of their air showers, ultimately contributing to the overall effectiveness of their cleanroom operations.
