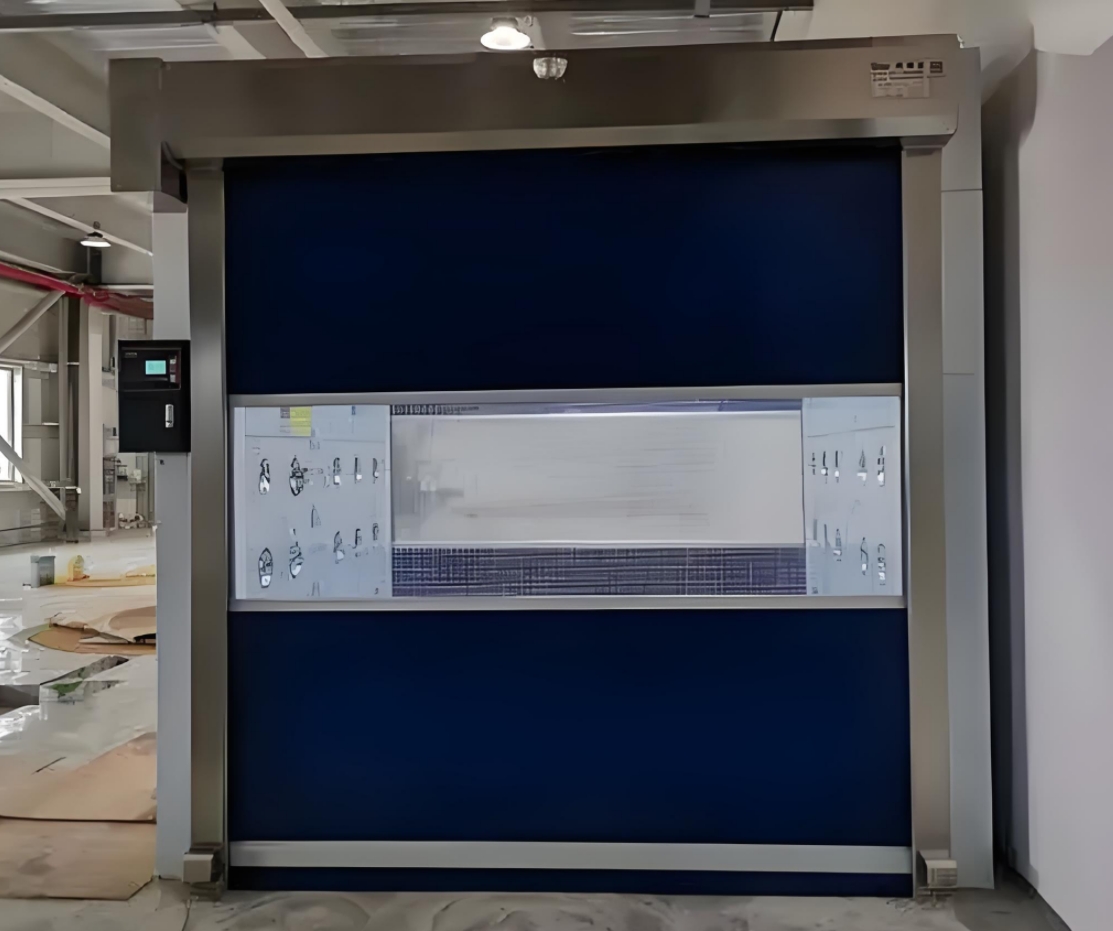

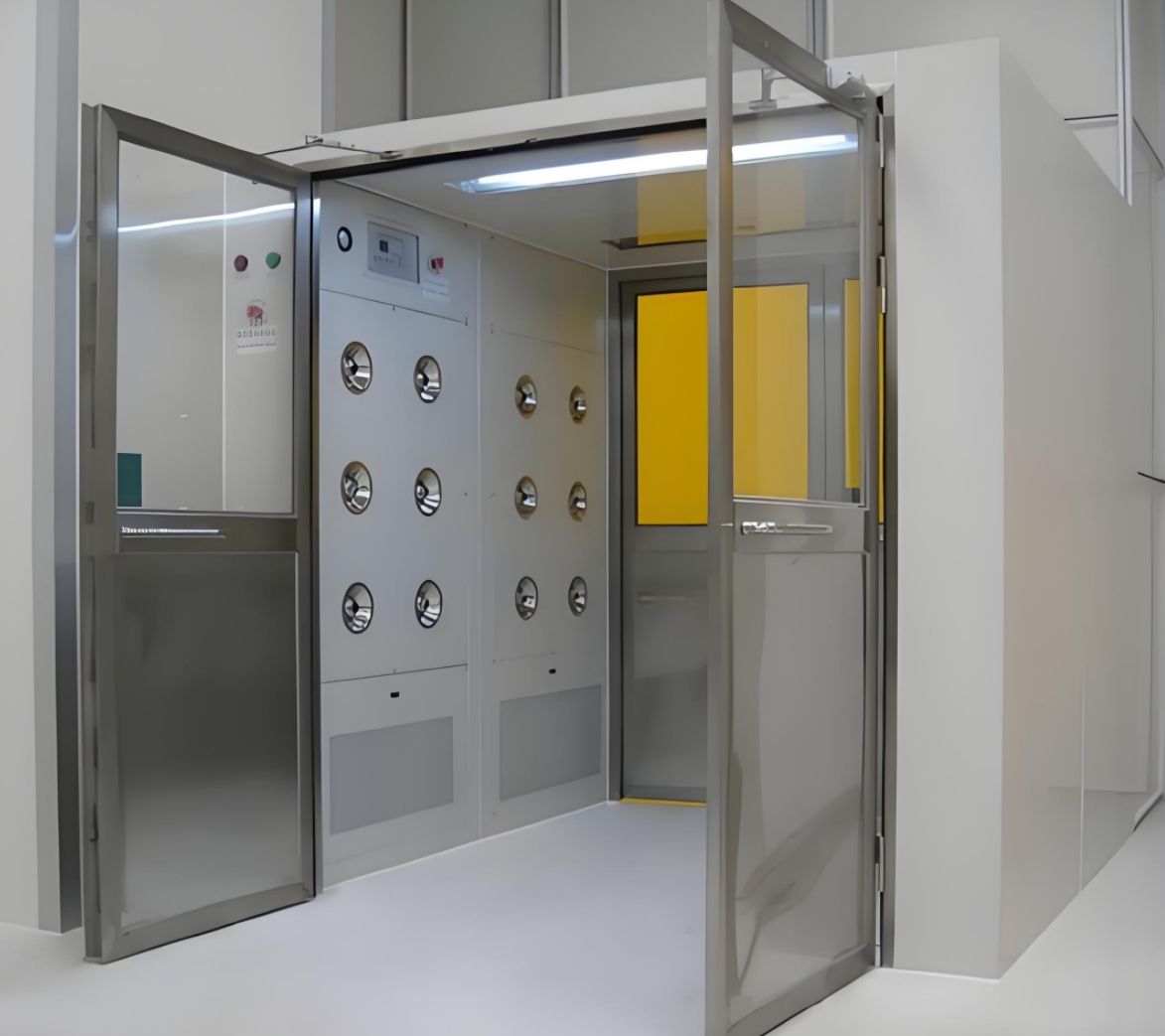

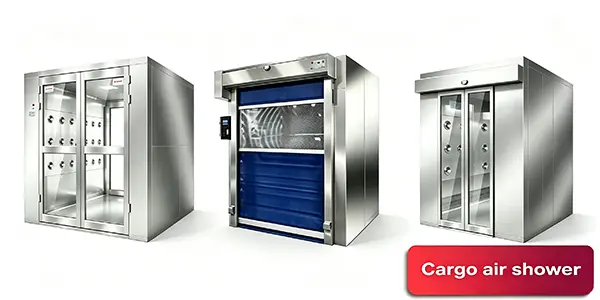

Cargo air shower

What is a Cargo Air Shower?

A cargo air shower is a specialized chamber used to remove dust, contaminants, and particles from cargo, personnel, or equipment before entering cleanrooms or controlled environments. It uses high-pressure air nozzles to blast contaminants away, ensuring cleanliness and reducing the risk of contamination.

Functionalit

Cargo air showers utilize high-velocity air streams to remove contaminants from items or personnel. The chamber is designed with filtration systems to ensure effective particle removal.

Design Feature

The system includes high-speed air nozzles, HEPA filters, and a sealed chamber. It operates with automatic doors and sensors for efficient contamination control.

Application

Cargo air showers are essential in pharmaceutical, semiconductor, and food industries, where contamination control is crucial. They ensure the cleanliness of goods before entry into critical environments.

Specifications and Standard

• Airflow Speed:25-30 m/s

• Filter Type:HEPA (High-Efficiency Particulate Air)

• Noise Level:Below 75 dB

• Power Supply:220V/380V

• Dimensions:Vary by capacity

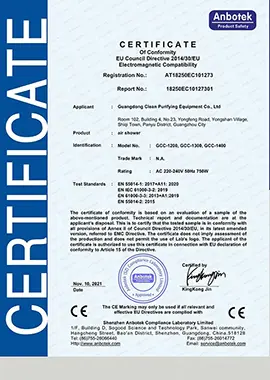

• Certifications:ISO, CE, GMP

Benefits of Using a Cargo Air Shower

1. Reduces contamination risk before entering cleanrooms.

2. Enhances productivity by minimizing cleaning time.

3. Increases product safety by controlling external particles.

4. Provides energy-efficient contamination control.

5. Reduces operational costs over time.

6. Ensures regulatory compliance with cleanliness standards.

What is the Purpose of a Cargo Air Shower in Warehouses?

1. Cargo air showers maintain a contaminant-free environment by removing particles from cargo before it enters a clean space.

2. They reduce the chances of cross-contamination in sensitive industries like pharmaceuticals or electronics.

3. Cargo air showers enhance productivity by ensuring goods are clean and ready for processing.

4. They prevent foreign particles from contaminating stored goods and production areas, ensuring higher product quality.

5. Regular use minimizes maintenance costs and extends the lifespan of sensitive equipment and goods.

How to Install a Cargo Air Shower

1. Pre-Installation Check:Ensure the area has sufficient space, power supply, and ventilation to support the air shower's operation.

2. Positioning the Unit:Place the air shower at the entrance of clean zones, ensuring proper air circulation and separation from non-clean areas.

3. Connect Electrical Supply:Attach the unit to a stable power supply. Verify all electrical connections are secure.

4. Airflow Setup:Calibrate the airflow system to ensure optimal performance. Adjust pressure levels if necessary to achieve the desired airspeed.

5. Test Functionality:Conduct tests for airflow, sealing, and filtration. Ensure there are no leaks and that all parts are functioning correctly.

Function of cargo shower room

Cargo shower rooms are widely used in many industries and fields, including but not limited to the following aspects:

• Pharmaceutical industry: In the pharmaceutical process, cargo showers are used to clean and purify drugs, drug packaging materials and equipment to ensure that the products meet cleanliness standards.

• Food industry: Cargo showers can be used in food processing, packaging and storage to ensure food hygiene and quality.

• Electronics industry: In the electronic manufacturing and assembly process, cargo showers are used to clean and remove dust from electronic components, semiconductor devices and circuit boards to prevent dust and particulate matter from affecting electronic products.

• Laboratory: Cargo showers are widely used in laboratory environments to clean and remove dust from experimental samples, equipment and instruments to ensure the accuracy and reliability of experimental results.

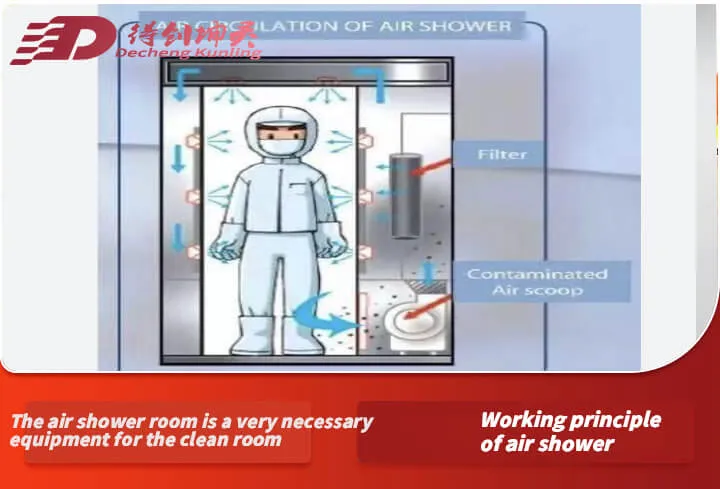

Working principle of cargo shower

In terms of working principle, the cargo shower uses a fan to pass air through the primary filter into the static pressure box, and then passes through the high-efficiency air filter to generate high-speed clean airflow.

This airflow is blown onto the cargo through a rotatable nozzle to effectively remove dust particles attached to the surface of the cargo.

The air flow direction in the cargo shower is usually unidirectional to prevent dust particles from contaminating the clean air again.

Cargo shower room configuration parameters

• Photoelectric sensor control, automatic showering. It can effectively isolate people and dust on the surface of objects from entering the clean room.

• Advanced intelligent computer PLC control module, low failure rate, safe and stable system.

• LED indicator screen and touch screen design, convenient for dust shower time and operation of various functions.

• Circulation design to ensure the cleanliness of the air shower area when not showering.

• Double door electric interlock, forced showering, double doors can be made into automatic sliding doors.

• Can accept special design of users, can be made into explosion-proof air shower room.

• Undertake special design and manufacture of airlock type and buffer type.

How to use the cargo shower room

Before personnel/cargo enters the cargo shower room, the double doors are interlocked. Personnel can only enter the air shower room from the entrance door, and the exit door is locked;

When personnel/cargo enters the cargo shower room, the entrance door is automatically closed;

Voice prompt, infrared automatic induction shower, double doors are locked during shower;

After showering, personnel/cargo can only leave from the exit door, the entrance door is locked, and the exit door is automatically closed.

Cargo shower room failure maintenance

• The inspection and maintenance of the equipment should be operated by trained personnel.

• The circuit is installed in the upper box of the entrance door. Open the panel door lock to repair and replace the circuit board. Turn off the power during maintenance.

• The filter is installed in the middle section of the main box (behind the nozzle plate). Remove the nozzle panel and remove the filter.

• When installing the door closer body, the speed regulating valve faces the door hinge, and when closing the door, let the door close under the action of the door closer. Do not add external force, otherwise the door closer may be damaged.

• The fan is installed at the lower side of the air shower box, and the return air filter is removed.

• The door magnetic switch and electronic lock (double door interlock) are installed in the middle of the door frame of the Henan air shower room. Remove the screws on the electric lock surface for inspection and maintenance.

• The primary filter (for return air) is installed on both sides of the lower side of the Henan air shower room box (that is, behind the orifice plate). Remove the orifice plate and replace it.
