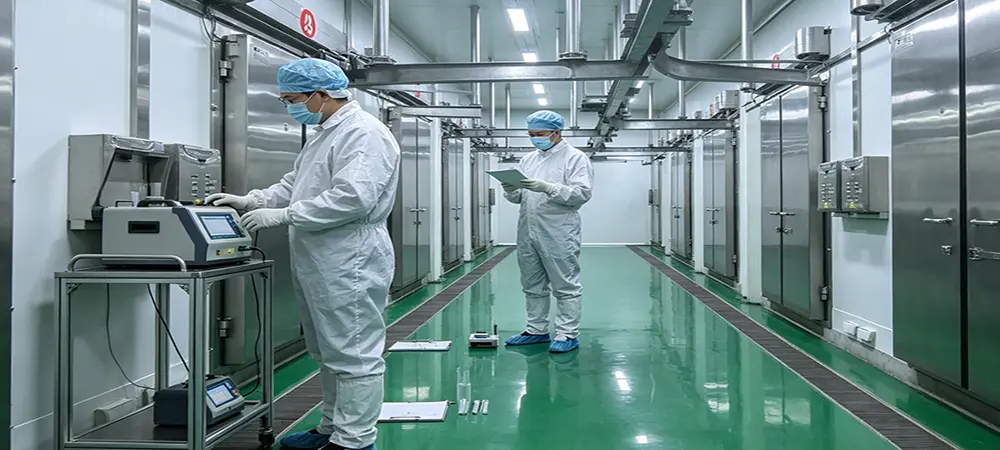

Class d Clean Room: An Overview

1. Definition and Classification

A Class d Clean Room is classified under ISO 14644-1 as ISO8. This classification allows a maximum of 3,520,000 particles per cubic meter for particles ≥0.5 micrometers. Class D environments are typically used in industries where moderate cleanliness is required, such as food processing and some pharmaceutical applications.

2. Air Quality and Monitoring

Maintaining air quality in a Class D clean room is essential. Continuous monitoring of airborne particles is conducted using particle counters, which must meet the iso 14644-1 standards. The rooms must also be equipped with pressure differentials to prevent contamination from adjacent areas, typically maintaining a positive pressure of at least 5 Pascals.

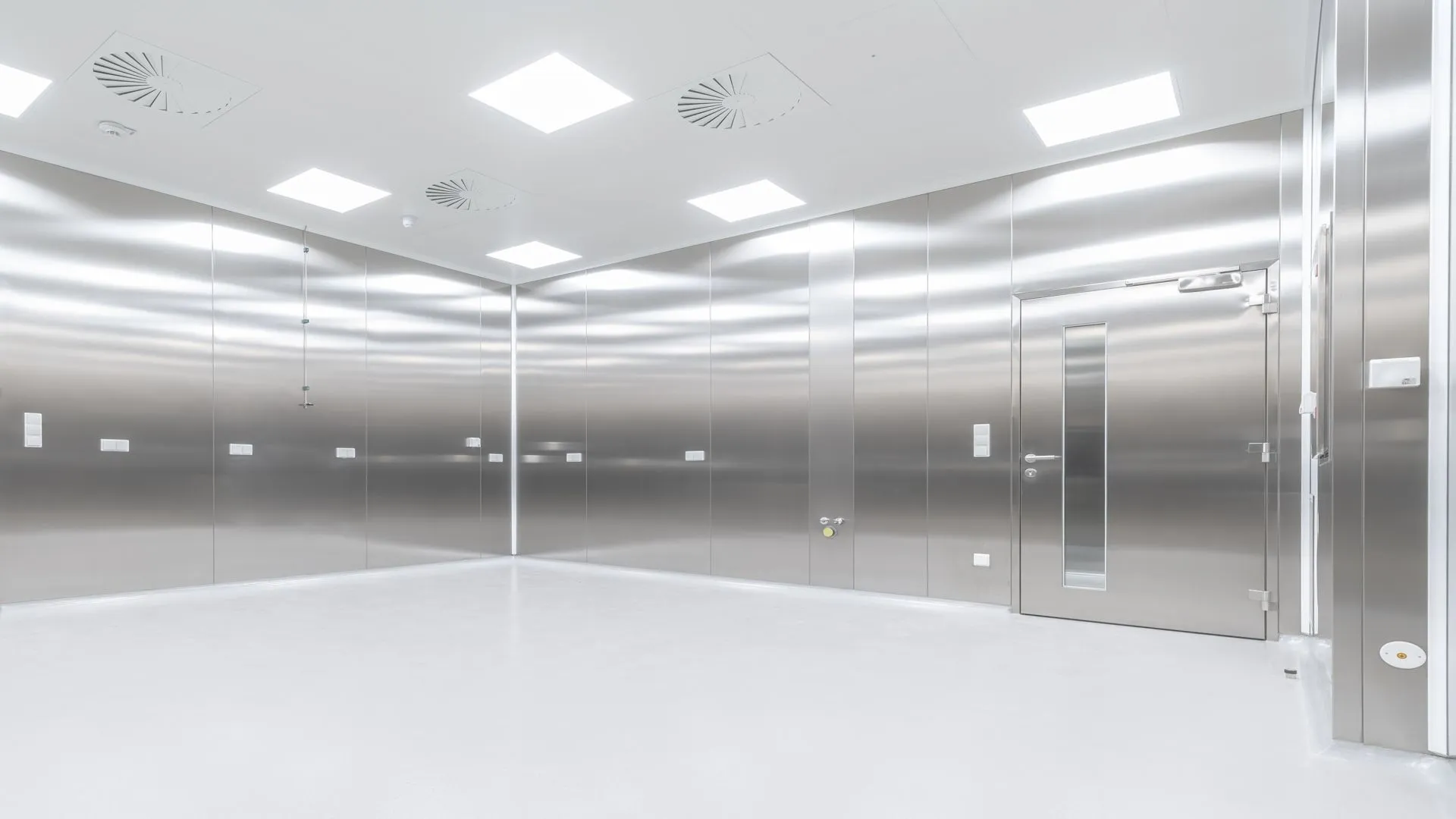

3. Construction and Materials

The construction of a Class D clean room involves specific materials that support cleanliness. Walls and ceilings are often made from smooth, non-porous materials that are easy to clean, such as stainless steel or specialized coatings. floors are generally seamless and can withstand regular cleaning without deteriorating, ensuring a dust-free environment.

4. Applications of Class D Clean Rooms

Class D clean rooms are suitable for various applications, including assembly of Electronic components, packaging of pharmaceuticals, and certain laboratory processes. They provide a necessary balance between cost and cleanliness, making them ideal for less sensitive operations that still require some level of contamination control.

Relevant Standards and Guidelines

• ISO 14644-1: This standard defines the classification of air cleanliness in clean rooms and controlled environments based on the number and size of airborne particles.

• iso 14644-2: This standard specifies the monitoring of clean rooms and controlled environments, detailing the testing methods for determining compliance with the cleanliness classification.

• ISO 14644-3: This standard provides guidelines for testing and monitoring the cleanliness of clean room environments, including the performance criteria for monitoring equipment.

• ISO 14698: This standard outlines the biocontamination control in clean rooms and controlled environments, focusing on the prevention of microbiological contamination.

What is Class D Use?

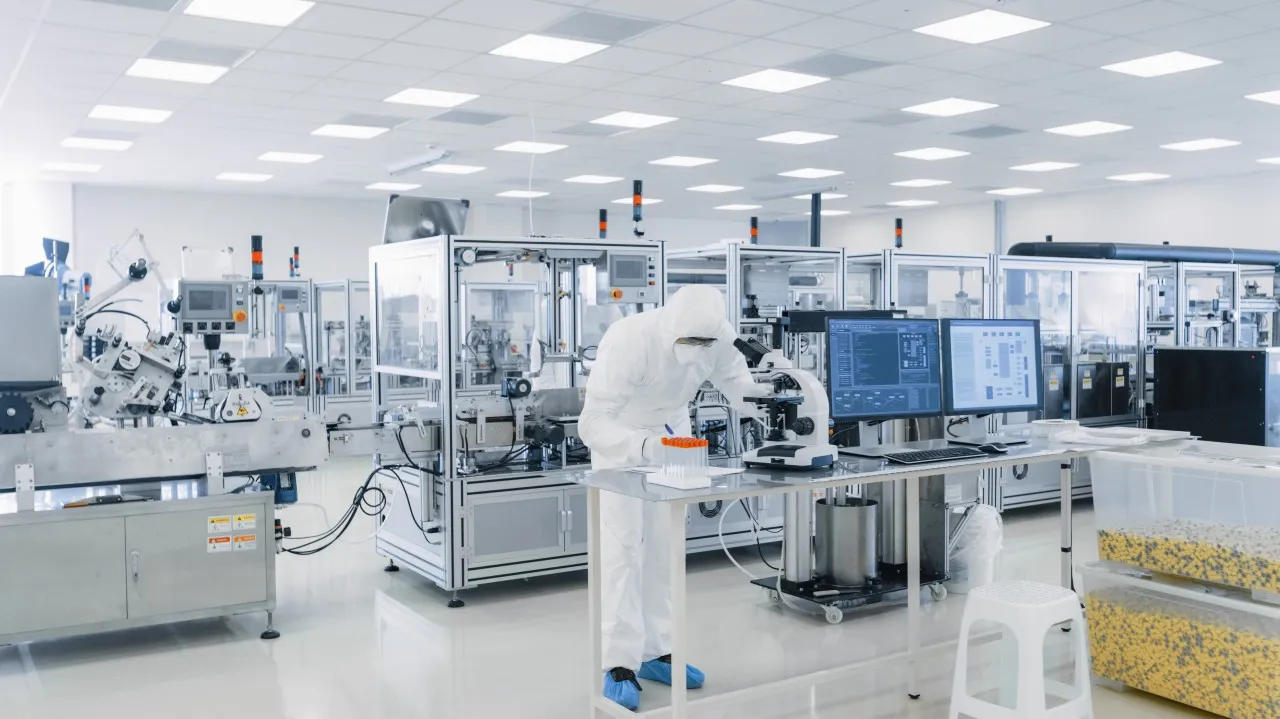

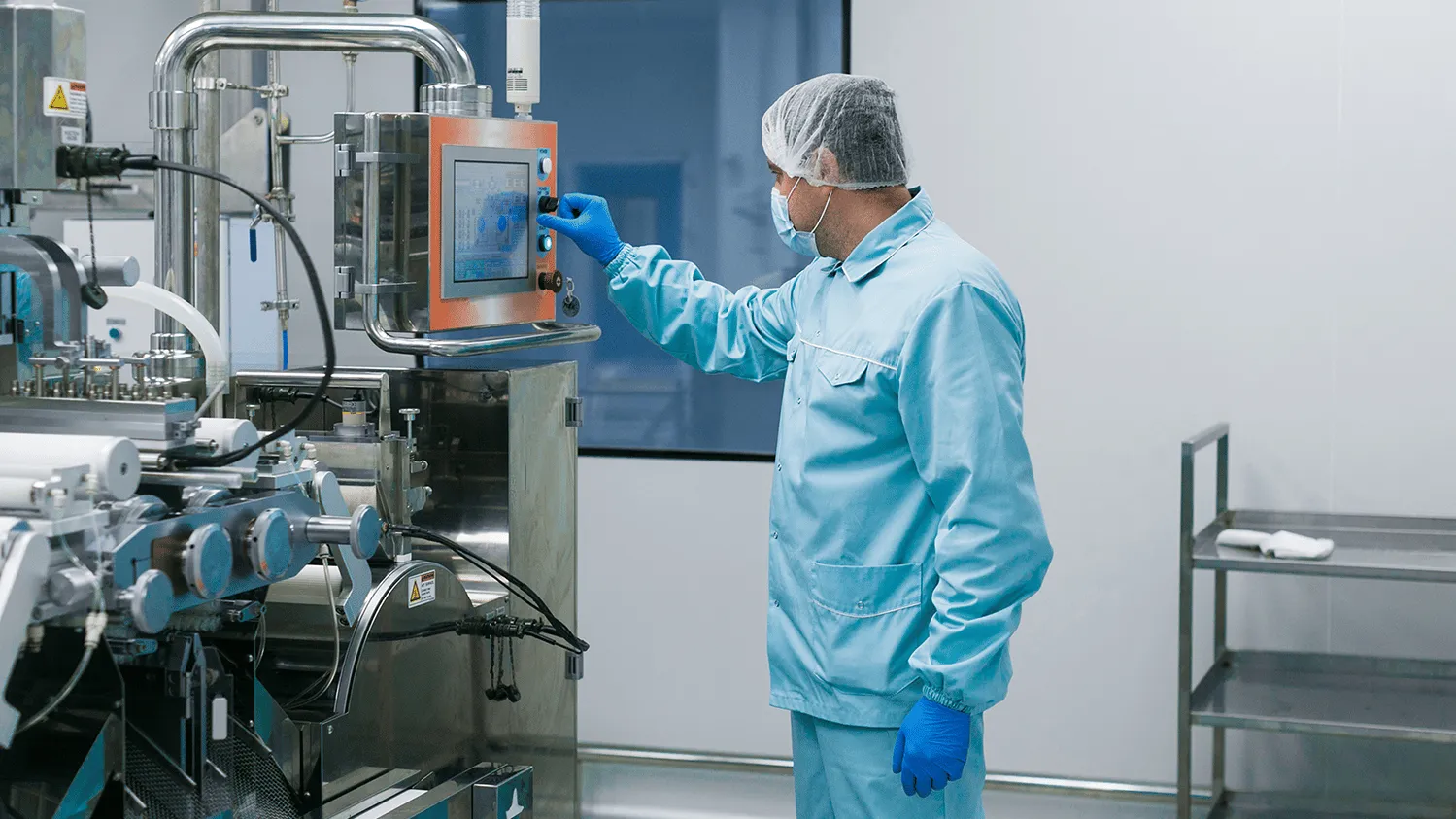

Pharmaceutical Applications

In the pharmaceutical industry, Class D clean rooms facilitate the preparation and packaging of non-sterile products. They help maintain product integrity by controlling contamination levels during manufacturing processes.

Electronics Manufacturing

Class D clean rooms are crucial in electronics production, where sensitive components are assembled. They help minimize dust and particulate contamination, ensuring reliable performance of electronic devices.

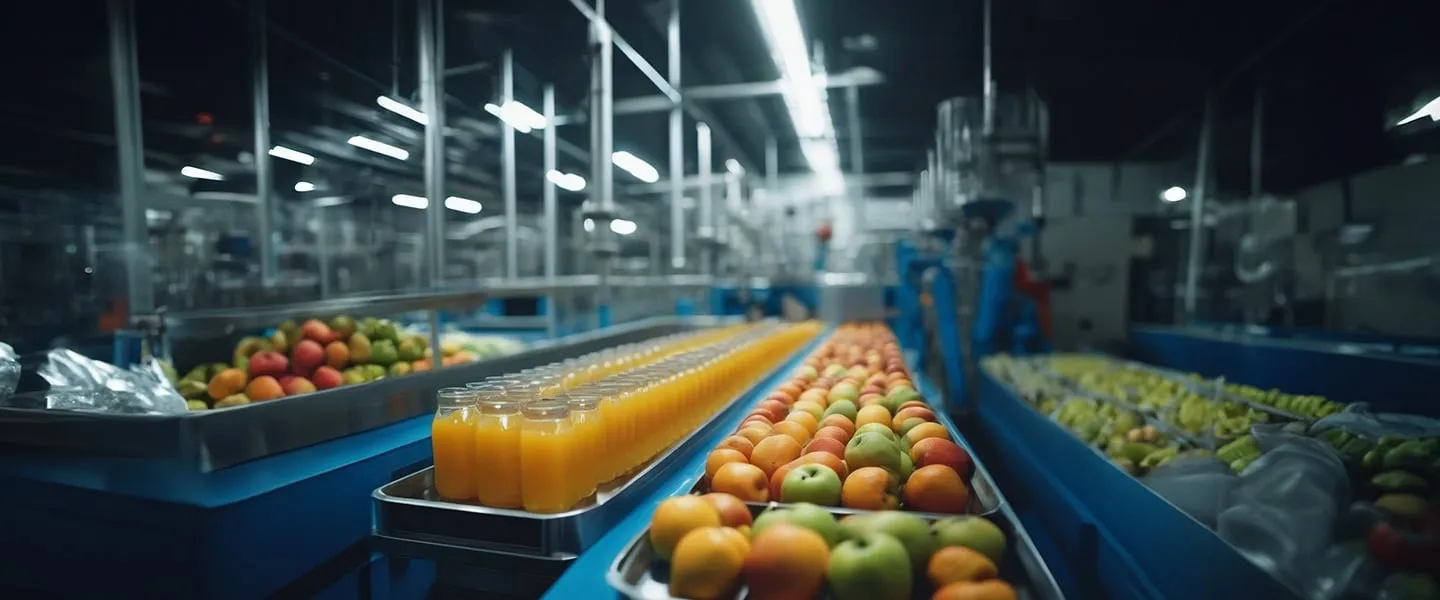

Food Processing

In food processing, Class D environments support hygiene and safety standards. They allow for the controlled handling of food products, reducing the risk of contamination during production and packaging.

Class D Air Quality

Particle Count Limits

Class D clean rooms are classified as ISO8, permitting up to 3,520,000 particles per cubic meter for particles ≥0.5 micrometers. This standard helps ensure a controlled environment for various applications.

Filtration Systems

HEPA filters are employed in Class D clean rooms to capture 99.97% of particles down to 0.3 micrometers. This high-efficiency filtration is vital for maintaining the required air quality.

Air Changes

Typically, Class D clean rooms achieve 20 to 30 air changes per hour. This frequent air exchange helps dilute and remove airborne contaminants, promoting a cleaner environment.

How Does Class D Work?

• Airflow Management

Class D clean rooms utilize a controlled airflow system to maintain cleanliness. Positive pressure is often maintained to prevent contamination from adjacent areas, ensuring a sterile working environment.

• Contamination Control

To reduce contamination risks, personnel must follow strict protocols when entering and exiting Class D clean rooms. This includes airlocks and gowning procedures to minimize particle introduction.

• Equipment Calibration

Regular calibration of equipment is vital in Class D clean rooms. Instruments such as particle counters and airflow sensors must be calibrated to ensure accurate measurements and compliance with cleanliness standards.

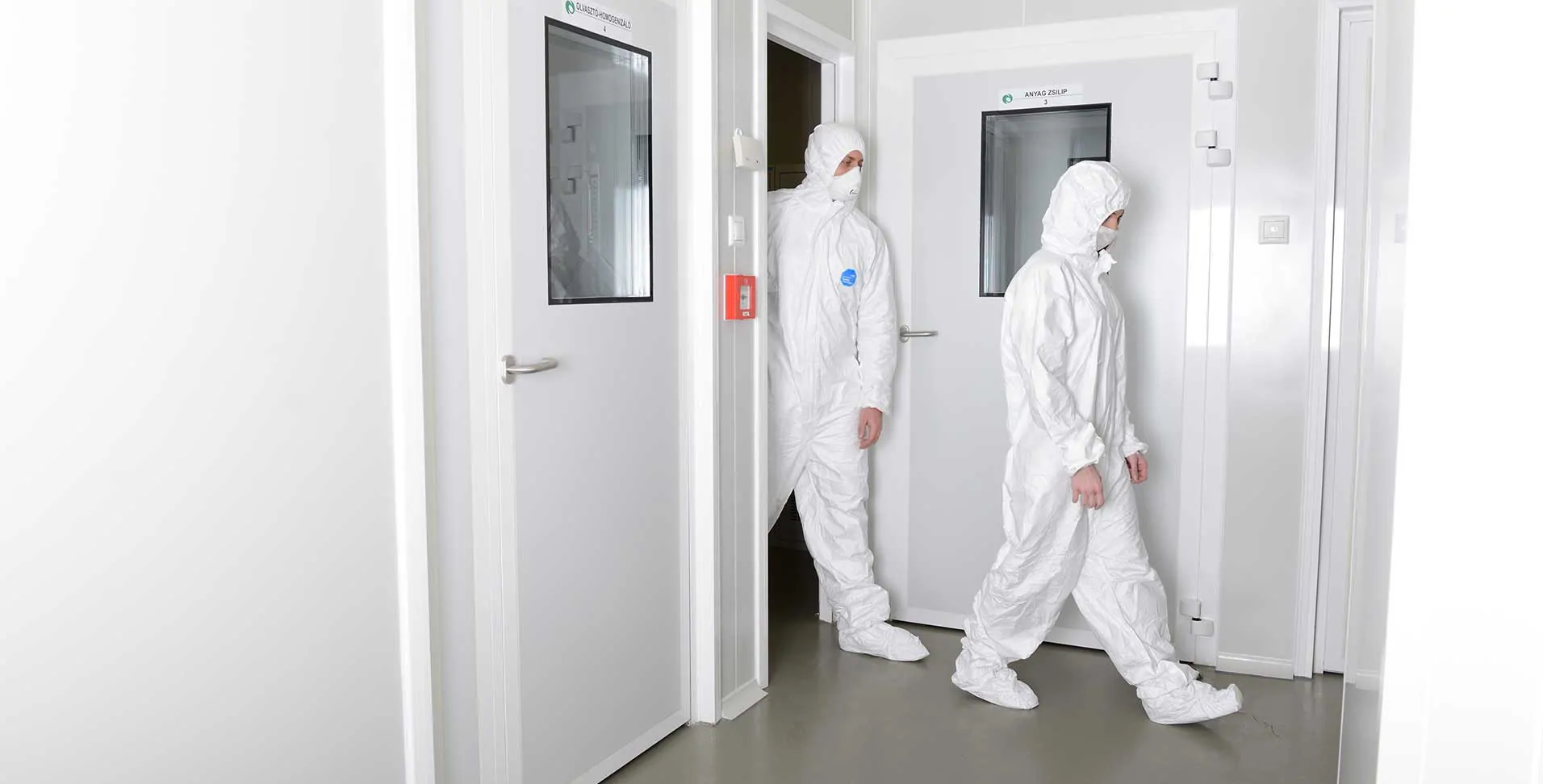

The Requirements for Grade d CleanRoom Gowning

1. Gowning Protocols: Grade D cleanroom gowning protocols dictate that personnel must wear cleanroom-specific attire. This includes coveralls, gloves, and face masks, which are designed to minimize particle release during operations.

2. Footwear Requirements: Footwear in Grade D environments must be clean and non-contaminating. Dedicated cleanroom shoes or shoe covers are often required to prevent the introduction of dirt and debris into the cleanroom.

3. Hair and Skin Coverage: To reduce contamination, all hair must be fully covered with hairnets or hoods. Exposed skin should also be minimized by wearing long sleeves, ensuring that personnel do not shed skin particles.

4. Entry Procedures: Strict entry procedures must be followed in Grade D cleanrooms. Personnel typically use airlocks to change into cleanroom attire, ensuring that external contaminants are not brought into the controlled environment.
