The Difference Between Clean Room Class 100 and Class 1000

Clean rooms are essential in various industries, including pharmaceuticals, biotechnology, and electronics, to maintain product integrity and safety. The classification of clean rooms is defined by the concentration of airborne particulate contamination. This article explores the differences between Clean Room Class 100 and Class 1000, highlighting critical quantifiable metrics and international standards.

Air Quality and Control

The stringent air quality standards in Class 100 environments require advanced filtration systems, often involving High-Efficiency Particulate Air (HEPA) filters with an efficiency rate of 99.97% for 0.3-micrometer particles. Class 1000 clean rooms employ similar filtration systems but may have slightly less stringent air quality controls, leading to higher allowable particle levels and potentially increased contamination risks.

Applications and Use Cases

Class 100 Clean rooms are critical in industries where the highest levels of cleanliness are essential, such as semiconductor manufacturing, sterile pharmaceutical production, and advanced biotechnology research. Class 1000 clean rooms are suitable for less sensitive processes, such as certain assembly operations or research activities where lower cleanliness levels are acceptable, though they still require controlled environments.

Regulatory Standards and Compliance

Both Class 100 and Class 1000 clean rooms must comply with ISO 14644 standards, which provide guidelines for Clean Room Classification and monitoring. iso 14644-1 specifically details the classification of air cleanliness, while iso 14644-2 outlines the requirements for monitoring and testing. Compliance ensures that clean rooms operate within specified limits for particle counts.

• ISO 14644-1: Classification of air cleanliness in clean rooms and associated controlled environments.

• ISO 14644-2: Monitoring and testing requirements for clean rooms.

• ISO 14644-3: Testing methods for clean rooms, including procedures for sampling and verification.

• ISO 14644-4: Design and construction requirements for clean rooms.

• iso 14644-5: Operational requirements for clean rooms, including personnel training and cleaning protocols.

The Particle Size of a Class 100 Clean Room

1. Particle Count Standards

A Class 100 Clean room allows a maximum of 100 particles per cubic foot for particles that are 0.5 micrometers or larger. This strict standard ensures minimal contamination in sensitive environments.

2. Importance of Particle Size

The particle size is critical in maintaining the integrity of products. Particles larger than 0.5 micrometers can cause defects in semiconductor devices and pharmaceuticals, necessitating stringent control measures.

3. Filtration Systems

High-Efficiency Particulate Air (HEPA) filters are utilized to maintain particle size standards. These filters capture at least 99.97% of particles down to 0.3 micrometers, ensuring air quality remains within specified limits.

How Much Air Change for Class 1000 Cleanroom?

• Air Change Rate Requirements

A Class 1000 clean room typically requires an air change rate of at least 10 to 15 air changes per hour. This ensures continuous circulation and removal of airborne particles.

• Impact on Cleanliness

Frequent air changes help dilute contaminants quickly, maintaining particle counts within acceptable limits. More air changes enhance the clean room's ability to manage airborne particles effectively.

• Design Considerations

When designing a Class 1000 facility, careful planning of the HVAC system is crucial. It must be capable of delivering the required airflow while maintaining temperature and humidity control.

The Requirements for a Class 1000 Clean Room

1. Filtration Systems: While HEPA filters are still recommended, Class 1000 clean rooms may use filters with slightly lower efficiencies. However, maintaining effective air filtration is crucial to control contamination.

2. Temperature and Humidity Control: Maintaining specific temperature and humidity levels is essential for operational consistency. Typically, temperature should be controlled between 20-24°C, with humidity levels around 30-60%.

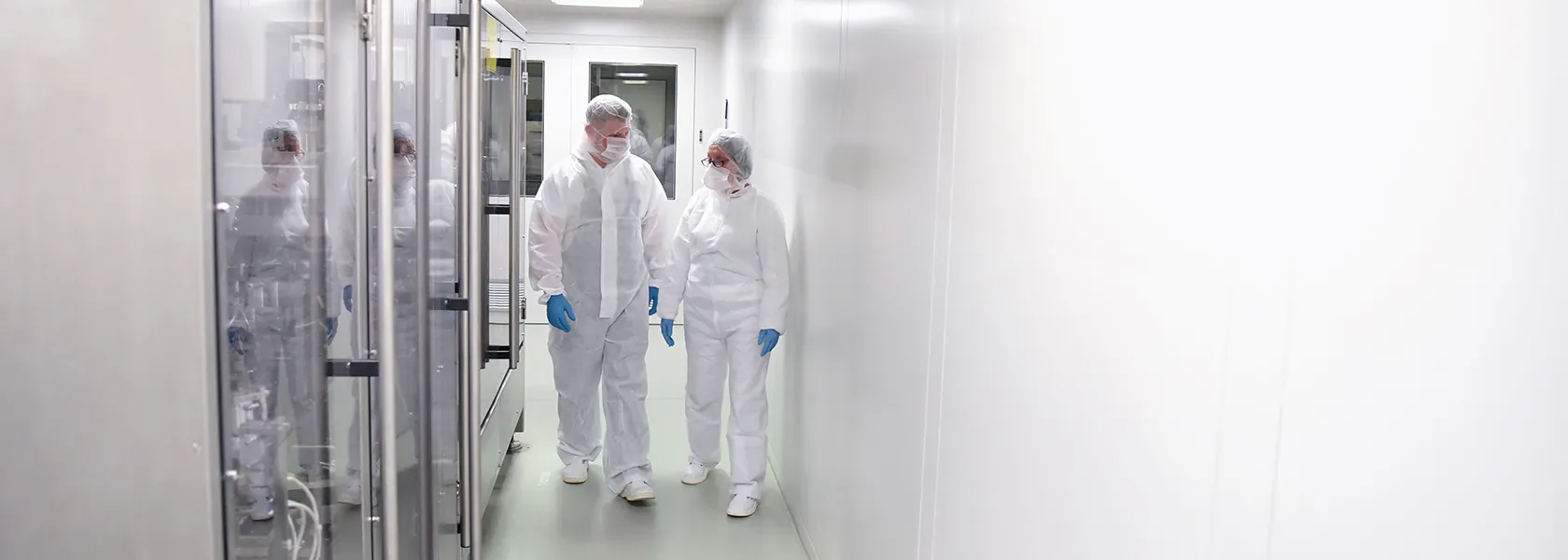

3. Gowning Procedures: Personnel in a Class 1000 clean room must follow gowning protocols to minimize contamination. This includes wearing clean lab coats, gloves, and masks, though the requirements may be less stringent than in Class 100 environments.

4. Monitoring and Maintenance: Regular monitoring of particle counts and environmental conditions is essential to ensure compliance. Scheduled maintenance of equipment and filters helps sustain the required cleanliness levels over time.

What Class is a Semiconductor Clean Room?

Class 10 Requirements

A Class 10 clean room allows a maximum of 10 particles per cubic foot for particles ≥0.5 micrometers. This ultra-clean environment is essential for processes sensitive to contamination, such as wafer fabrication.

Class 100 Specifications

Class 100 clean rooms are also used in semiconductor production, particularly for assembly and packaging processes. They permit up to 100 particles per cubic foot, balancing cleanliness with operational practicality.

How to Reduce Particle Count in a Clean Room?

• Implementing Effective Filtration

Using HEPA or ULPA filters is crucial for reducing particle count. These filters capture a significant percentage of airborne particles, ensuring cleaner air circulation within the clean room.

• Regular Maintenance

Scheduled maintenance of HVAC systems and filters is essential to maintain low particle counts. Regular inspections and replacements ensure optimal performance and compliance with cleanliness standards.

• Controlling Personnel Access

Minimizing the number of personnel in the clean room reduces potential contamination sources. Implementing strict access controls and training can help maintain a cleaner environment.

• Cleaning Protocols

Implementing routine cleaning schedules is vital. Using appropriate cleaning agents and methods helps to remove settled dust and contaminants, further reducing particle counts in the clean room environment.
