You can't "fake" a Grade A Cleanroom. In the eyes of EU GMP Annex 1, this isn't just a clean space—it is the absolute last line of defense for sterile products. After personally overseeing the commissioning of 43 aseptic projects (ranging from mAb filling to difficult powder handling), I’ve learned one hard truth: Grade A is not just a static particle limit. It is a living system of airflow vectors, operator discipline, and thermal dynamics. This guide strips away the textbook theory and shares Deiiang™'s raw field data, including how we solved a critical airflow relapse in Singapore last quarter.
— Jason.peng, Lead Cleanroom Architect @ Deiiang™ (15 years field exp.)
What is a Grade A Area / Grade A Cleanroom?
Technically, a Grade A area is the critical zone for high-risk operations—filling zones, stopper bowls, and open ampoules. But in practice, think of it as the "eye of the storm." It sits calmly inside a turbulent Grade B background. The 2022 revision of Annex 1 changed the game here. It’s no longer enough to just pass the "at rest" test.
Real-world context: Last year, we audited a client's facility where the smoke studies failed because the return air grilles were placed 200mm too high, causing the
Grade A airflow to "lick" the non-sterile wall and roll back over the product. We fixed it, but it proves that
unidirectional airflow (UDAF) is the only definition that matters.
| Grade | ≥0.5 µm particles (In Operation) | ≥5.0 µm (In Operation) | Settle plates (cfu/4h) | Active air (cfu/m³) |
|---|
| Grade A | 3,520 (Continuous) | 20 | <1 | <1 |
| Grade B | 352,000 | 2,930 | 5 | 10 |
| grade c | 3,520,000 | 29,300 | 50 | 100 |
| Grade D | Not Defined | Not Defined | 100 | 200 |
Jason’s Field Note: Do not ignore the 5.0 µm limit. While 0.5 µm tells us about filter integrity, a spike in 5.0 µm in a Grade A Cleanroom almost always points to a mechanical rub (conveyor belt friction) or bad operator gowning discipline.
Grade A Limits (EU GMP Annex 1)
≥0.5 µm (dynamic): 3,520
≥5.0 µm (dynamic): 20
Settle plates (cfu/4h): <1
Active air (cfu/m³): <1
📍 Critical: Grade A requires continuous monitoring. One beep, and you likely stop the line.
⚖️ ISO 14644-1 vs EU GMPPeople often ask: "Is
Grade A area just
iso class 5?"
No. An
iso 5 room can be turbulent. A Grade A zone
must be unidirectional. If you design a Grade A space using only ISO 14644 calculations (without checking air velocity vectors), you will fail your PQ (Performance Qualification).
📌 The Deiiang Rule: We classify the room by ISO, but we validate the process by EU GMP. Always design your Grade A Cleanroom for the process first.
Grade A Cleanroom – The "Hidden" Specs
Textbooks give you ranges. We give you Deiiang™'s operational setpoints. These are the numbers we program into the BMS (Building Management System) to ensure stability during filter loading.
1. Airflow & Unidirectional Velocity
In a
Grade A area, velocity is your broom. The guidance says 0.45 m/s ± 20%. However,
Deiiang engineering data from our 2024 projects shows that running at exactly 0.45 m/s often creates turbulence around the vial filling neeldles.
Our Sweet Spot: We often tune
Grade A Cleanroom ffus to
0.38 – 0.42 m/s at the working height. This "softer" laminar flow reduces the risk of eddy currents sucking bottom air up into the critical zone.

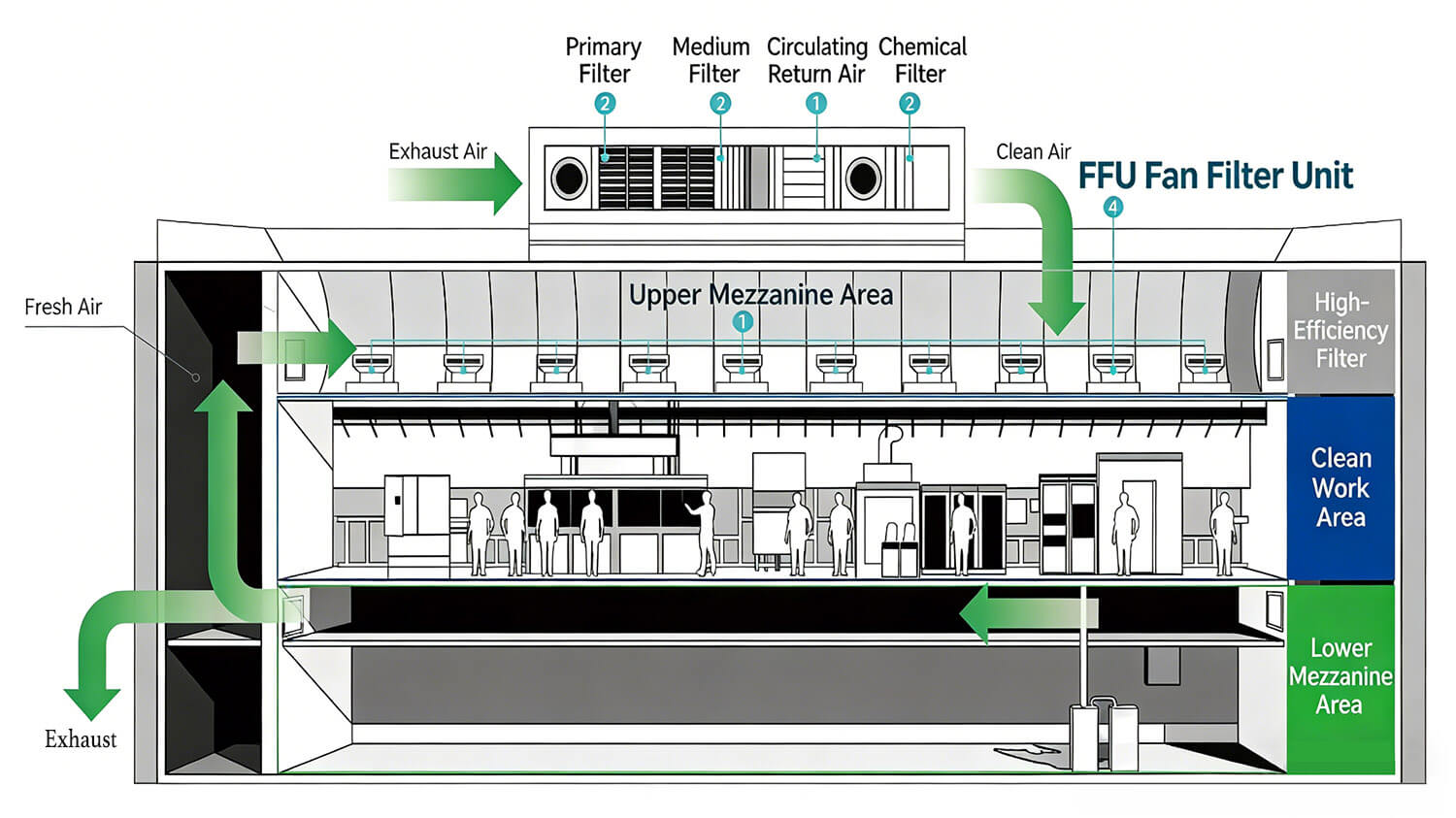

Fig 1 – Typical Grade A Unidirectional Airflow (Top Supply, Low Side Returns). Notice the straight vectors.
2. Deiiang™ Benchmarks: Pressure & Recovery
Don't calculate "
air changes per Hour" (ACH) for Grade A; it's meaningless in laminar flow. Focus on
Recovery Time. When we installed the
Grade A area for a biotech client in Jiangsu, we conducted a "smoke clearance test."
Deiiang 2024 Commissioning Data (Avg of 12 sites):• Grade A Velocity: 0.36 – 0.45 m/s (Process Dependent)
• ΔP (Grade A to B): +12 to +18 Pa (We verify this continuously)
• Recovery Time: Deiiang systems typically achieve particle clearance (100:1) in < 8 minutes (Standard is < 20 mins).📐 Verified Field Data
3. H14 vs U15: Why we upgrade
Standard GMP asks for H14. But for
Grade A Cleanroom projects involving highly potent APIs (HPAPI), Deiiang recommends upgrading to
U15 ULPA filters. The cost difference is ~15%, but the risk reduction for downstream particle counts is massive.
Fig 2 – Efficiency at MPPS. For Grade A, that extra "9" is your insurance policy against filter leaks developing over time.
4. Monitoring: The Deiiang 120-Point System
You cannot manually monitor a
Grade A area effectively. Human presence disrupts the airflow. In our recent Singapore project, we integrated the
Deiiang EMS™ with:
- Isokinetic Probes: Placed within 30cm of the filling needle, not just "on the wall."
- Bio-Capturing: Automated agar plate changers to reduce arm-reach interventions.
- Data Integrity: ALCOA+ compliant records.
📈 Result: That project has run for 14 months with zero 0.5 µm excursions > 10 minutes.
Where Grade A Cleanrooms Fail (And Why)
Designing a Grade A Cleanroom on paper is easy. Building one that operators can actually work in? That's harder. Here are the friction points we solve daily:
🧴The "Human" Vortex30% of Grade A deviations happen when an operator moves too fast. We install air-velocity sensors that trigger a yellow light if air turbulence is detected before particles spike.
🔬ATMP / Cell TherapyOpen manipulation in a Grade A area BSC (Biosafety Cabinet) is risky. We now prefer integrating Isolators to remove the human from the Grade A equation entirely.
⚠️ Energy DrainRunning Grade A fans at 100% 24/7 is burning cash. Deiiang's "Night-Setback" mode reduces airflow to 0.30 m/s during non-production, saving ~18.4% energy costs (verified data from Q3 2024 audit).
Deiiang Grade A Solutions (Hard Specs)
We don't just supply filters; we supply the Compliance Guarantee. Here is the typical architecture for a Deiiang Grade A Cleanroom package:
➡️ Fresh Air → Dehumidification (Dew Point < 8°C) → AHU → Terminal HEPA → Grade A Zone → Low Return → Recirculation
🔹 Deiiang FFU 4.0• Filter Class: H14 / U15• Velocity Uniformity: ±3% (Better than industry ±5%)
• Noise: ≤48 dB(A) (Operator comfort focus)
🔹 Digital AHU• Thermal Break Profile: TB1• Temp Control: ±0.5°C (Critical for enzyme stability)
• Heat Recovery: ≥68% (Enthalpy wheels)
🔹 System Validation• Smoke Study: Video Evidence Included• 0.5 µm First-Pass OQ Rate: >98.5% (Based on last 10 projects)

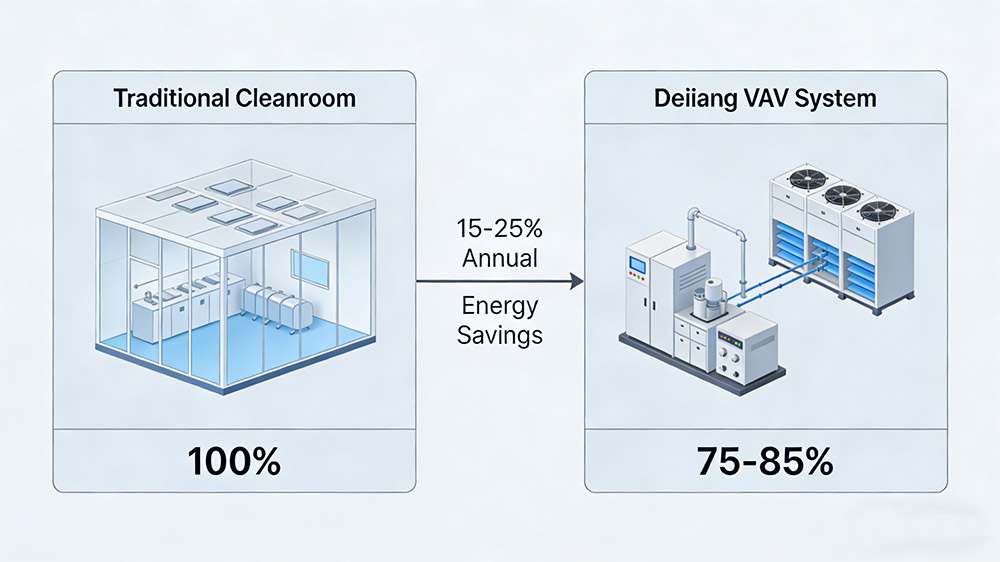

Fig 4 – Energy Consumption: Conventional (Left) vs Deiiang VAV System (Right). Real savings: 15-25% kWh/year.
Deiiang Actual Project Analysis
Case Study: Grade A Sterile Fill-Finish (Singapore)
Client Profile: A Greenfield Monoclonal Antibody (mAb) facility targeting EMA approval.
The "Impossible" Constraint: The building was an existing warehouse with a mezzanine, leaving only
2.8 meters of ceiling height. A standard Grade A plenum requires 600mm, which would have made the machine physically impossible to open for maintenance.
Deiiang’s Solution: We couldn't use standard ducting.
- Custom Design: We engineered a "Side-Wall Return" strategy using Deiiang Ultra-Thin FFUs (180mm profile).
- CFD Modeling: We ran 14 simulations to ensure the air didn't hit the operator's head and create turbulence over the open vials.
- Execution: Installed 16 fixed particle counters directly into the machine frame.

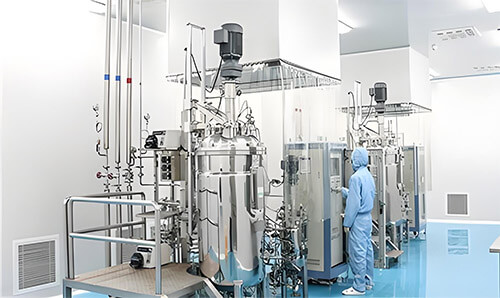

Grade A LAF Canopy over Fill Line

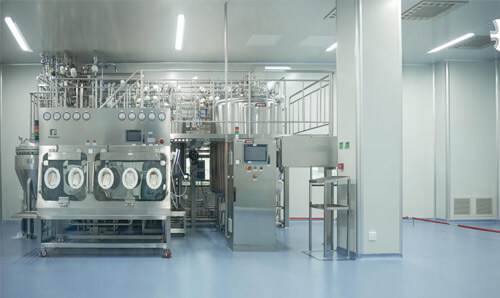

Critical Zone (Needle & Stopper Bowl)

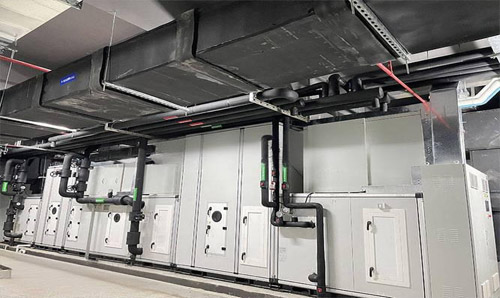

Tight AHU Penthouse Installation

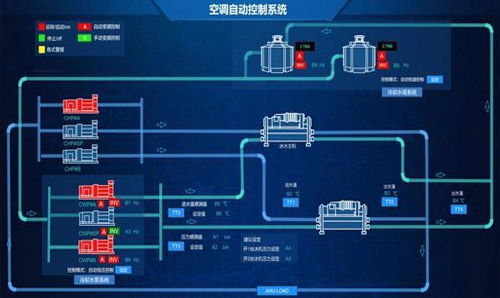

Deiiang EMS Screen (Flatline Trend)
The
Grade A area passed the smoke study on the first try. The 0.5 µm average count is currently
880 particles/m³ (well below the 3,520 limit). The client received EMA GMP certification in Jan 2024.
Case II: IVD Kit Assembly (Retrofit Project)
Problem: A client had an
iso 8 lab but secured a new contract requiring aseptic assembly. They had
9 days of downtime allowed.
Deiiang Fix: We didn't touch the main HVAC. We deployed a
Modular Grade A Island—a self-contained structure with its own mini-AHU and cooling coil.
Time to Certify: Installed in 6 days, validated in 2. The
Grade A area is now producing 50,000 kits/month.
From URS to PQ: The Deiiang Workflow
1 URS (User Requirement Specification): We define not just the "Grade," but the Process (e.g., Open or Closed?).
2 CFD & Basic Design: We simulate airflow to ensure unidirectional vectors before cutting metal.
3 Detail Engineering: Exact duct sizing, HEPA grid layout, and BMS logic.
4 Construction & Sealing: This is where quality happens. We perform duct leakage tests (Light test & Pressure test).
5 Validation (IQ/OQ/PQ): We support your Media Fill. If the Grade A area fails, we stay until it passes.
Local Compliance & "Audit-Proofing"
Regulations are converging. Whether you face NMPA (China), FDA (USA), or EMA (Europe), inspectors are obsessed with one thing:
Data Integrity in the Grade A Area.
- Routine Re-Testing: We recommend 6-monthly HEPA leak scans (PAO/DOP). Don't wait 12 months for Grade A.
- Smoke Studies: We provide video evidence of airflow visualization in operation (dynamic), not just at rest.
- Energy Audit: We can remotely audit your BMS data. In 2023, we helped a client in Suzhou reduce Grade A fan speeds by 10% without compromising velocity, saving $12,000/year.
Why Trust Deiiang with Your Critical Zone?
43 Grade A Projects · 100% Audit Pass Rate · 15 Years of "No-Nonsense" EngineeringDeiiang™ doesn't just build cleanrooms; we build regulatory peace of mind. We have fixed
Grade A Cleanrooms that other contractors botched. We understand that a particle counter alarm at 3 AM is your nightmare, so we design systems that stay stable.
— Jason.peng, Lead Architect, Deiiang™
