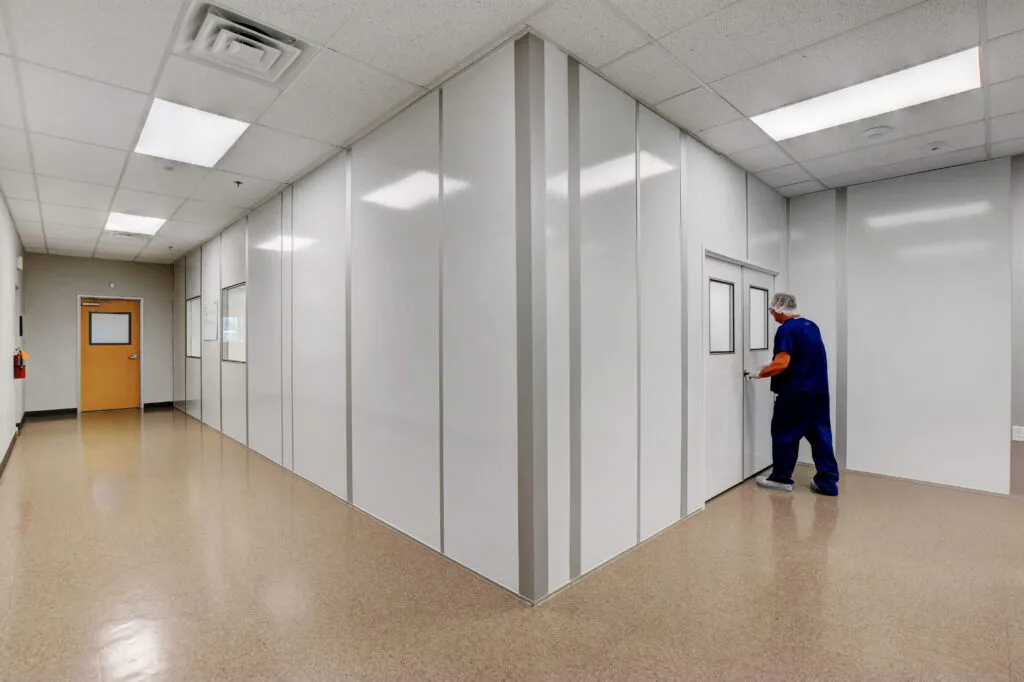

An Overview of ISO 5 Cleanroom

An Overview of ISO 5 Cleanroom

ISO5 cleanrooms are designed to provide a controlled environment with minimal particle contamination. According to the ISO 14644-1 standard, a ISO 5 cleanroom allows a maximum of 3,520 particles per cubic meter for particles sized 0.5 micrometers and larger. This stringent requirement makes ISO 5 Cleanrooms suitable for industries that demand high levels of cleanliness, such as pharmaceuticals, biotechnology, and Semiconductor manufacturing.

Air Quality and Filtration

In an ISO5 cleanroom, the air cleanliness is maintained through advanced filtration systems. High-Efficiency Particulate Air (HEPA) or Ultra-Low Penetration Air (ULPA) filters are essential components, capable of removing at least 99.97% of particles that are 0.3 micrometers in size or larger. These filters ensure that the air quality meets the stringent requirements set by ISO standards, thereby creating a safe working environment for sensitive processes.

Temperature and Humidity Control

Maintaining appropriate temperature and humidity levels is crucial in an ISO 5 cleanroom. Typically, the temperature is kept between 20°C to 24°C (68°F to 75°F), while relative humidity is controlled between 30% and 60%. These parameters help in preventing moisture-related issues and ensure the stability of sensitive materials being processed in the cleanroom.

Personnel and Gowning Procedures

Personnel working in ISO 5 cleanrooms must adhere to strict gowning procedures to minimize contamination. Standard gowning includes wearing coveralls, gloves, masks, and shoe covers, which help to reduce the introduction of particles from human operators. Training on proper gowning techniques is essential, and regular monitoring ensures compliance with cleanliness protocols.

Monitoring and Maintenance

Continuous monitoring of air quality and particle counts is critical in ISO 5 cleanrooms. Devices such as particle counters and environmental monitors are routinely used to assess the cleanroom's performance. Maintenance protocols include regular filter changes, surface cleaning, and equipment calibration to ensure the cleanroom remains compliant with ISO standards.

Applications

ISO5 cleanrooms are commonly used in various applications, including sterile drug manufacturing, semiconductor fabrication, and cell culture work. The stringent cleanliness levels help prevent contamination, ensuring the integrity of products and processes that are sensitive to particulate matter.

Relevant Standards and Regulations

• ISO 14644-1: Cleanrooms and controlled environments - Part 1: Classification of air cleanliness.

• iso 14644-2: Cleanrooms and controlled environments - Part 2: Monitoring to provide evidence of cleanroom performance related to air cleanliness by particle concentration.

• ISO 14644-3: Cleanrooms and controlled environments - Part 3: Test methods.

What is the ISO Standard for a Cleanroom?

ISO 14644 outlines cleanroom standards, specifying air cleanliness requirements and testing methods. It defines classes from ISO Class 1, the cleanest, allowing no particles larger than 0.1 micrometers, to Class 9. Regular monitoring ensures compliance, critical for industries like pharmaceuticals and semiconductors.

ISO 5 Cleanroom design and Build

1. Cleanroom Layout and Design

The design of an ISO5 cleanroom is critical to maintaining its stringent cleanliness standards. The layout should facilitate unidirectional airflow, which minimizes turbulence and helps in particle control. The cleanroom should be designed with minimal corners and obstructions to reduce dust accumulation and improve airflow efficiency.

2. Airflow and Filtration Systems

The cleanroom should be equipped with a proper air handling system that maintains a minimum of 240 air changes per hour, ensuring that the air remains clean and free from contaminants. The design typically employs a laminar airflow system, where filtered air flows in a uniform manner across the workspace, effectively pushing contaminants away from critical areas.

3. Environmental Control Systems

Temperature and humidity control systems are vital in an ISO5 cleanroom. The temperature is generally maintained between 20°C to 24°C (68°F to 75°F) to ensure comfort and optimal conditions for sensitive processes. Humidity levels should be kept between 30% and 60% to prevent static electricity buildup and moisture-related issues.

4. Gowning and Personnel Protocols

Personnel working in an ISO5 cleanroom must follow strict gowning procedures to prevent contamination. The gowning area should be designed with separate zones for donning and doffing garments, ensuring that the cleanroom environment is not compromised. Employees are required to wear cleanroom suits, gloves, masks, and shoe covers.

5. Maintenance and Monitoring

Regular maintenance and monitoring are crucial to the integrity of an ISO5 cleanroom. Maintenance protocols should include routine checks of filter performance, cleanliness of surfaces, and functionality of the HVAC system. Environmental monitoring systems must be installed to track particle counts, temperature, and humidity levels continuously. Regular audits and calibration of monitoring equipment ensure that the cleanroom consistently meets ISO standards.

6. Documentation and Compliance

Documentation is a key aspect of cleanroom operations. All procedures, maintenance activities, and monitoring results should be recorded meticulously to provide an audit trail. This documentation is essential for compliance with regulatory requirements and for conducting regular reviews to identify areas for improvement. The use of electronic logbooks can streamline this process, making it easier to track changes and maintain accurate records.

What is 5 Why ISO 9001?

The "5 Whys" technique, often used in problem-solving, is closely associated with ISO 9001, the international standard for quality management systems. This method involves asking "why" five times in succession to delve deeper into the root cause of a problem. The purpose is to move beyond superficial solutions and address the underlying issue, thereby improving processes and enhancing product quality. For example, if a defect occurs in a product, the first "why" might be "Why did the defect occur?" The subsequent questions lead to a better understanding of the process gaps that allowed the defect to happen.

The use of the "5 Whys" aligns with the ISO 9001 emphasis on continual improvement. ISO 9001 promotes a systematic approach to managing organizational processes, which includes identifying non-conformities and implementing corrective actions. By utilizing the "5 Whys," organizations can ensure that they are addressing the root causes of problems rather than just the symptoms. This proactive approach reduces the likelihood of recurrence, which is essential for maintaining high-quality standards.

the "5 Whys" is a valuable tool within the framework of ISO 9001. It fosters a culture of problem-solving that empowers employees to take ownership of quality issues. By focusing on root causes, organizations can enhance their processes, leading to improved product quality and customer satisfaction. This technique is not only effective for addressing immediate concerns but also contributes to a sustainable quality management system that aligns with ISO 9001 principles.

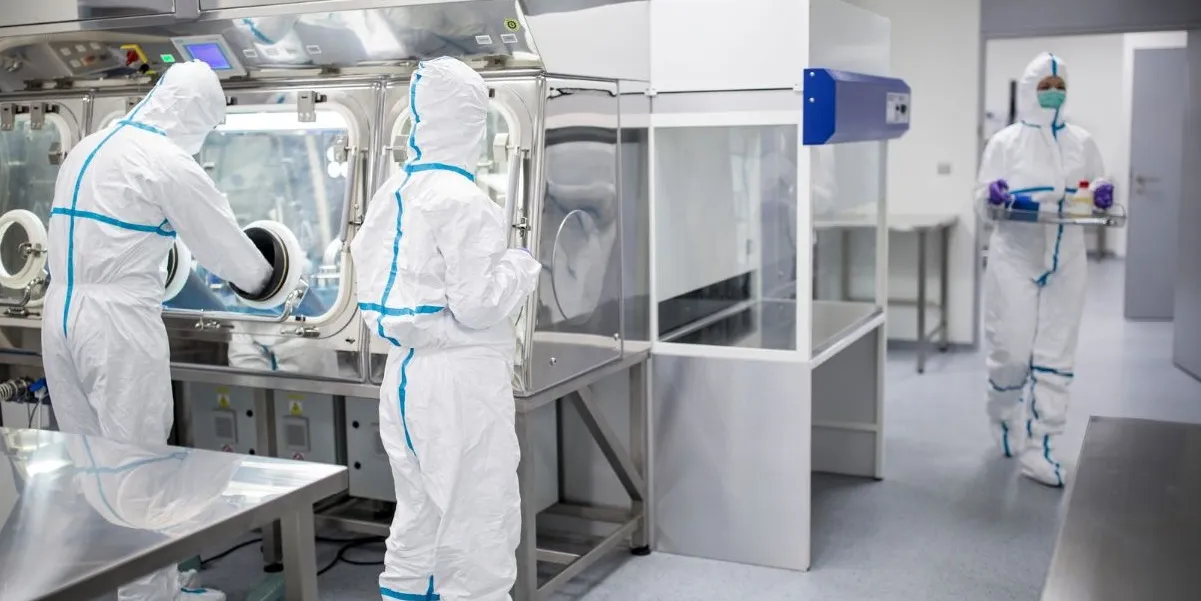

What Activities are Performed in ISO 5 Grade A Areas?

Sterile Drug Manufacturing

ISO 5 Grade A areas are critical for sterile drug manufacturing processes, where the risk of contamination must be minimized. Activities include the preparation of sterile products, such as injections and infusions, which require the highest levels of cleanliness. Operators must follow strict aseptic techniques to ensure that the products remain free from microbial contamination throughout the manufacturing process.

Pharmaceutical Compounding

In these highly controlled environments, pharmaceutical compounding is performed under strict guidelines to ensure product safety and efficacy. This may involve the mixing of active pharmaceutical ingredients (APIs) in a sterile manner. The procedures often require specialized equipment, including laminar flow hoods and isolators, to protect the product from contaminants during preparation.

Cell Culture Work

ISO 5 Grade A areas are also utilized for cell culture and microbiological testing. These activities demand a sterile environment to prevent contamination of cell lines and cultures. Personnel must adhere to specific protocols regarding equipment sterilization and surface disinfection to maintain the integrity of the cell culture process.

What is an ISO5 Laminar Flow Hood?

Definition and Purpose：

An ISO5 laminar flow hood is a controlled environment device used primarily in laboratories and cleanrooms to protect sensitive materials from contamination. It achieves this by providing a continuous flow of filtered air that moves in a unidirectional manner, creating a sterile work environment. This is crucial for applications such as pharmaceuticals, biotechnology, and electronics, where even the smallest particle contamination can adversely affect results.

Airflow Mechanism：

The laminar flow hood operates by using high-efficiency particulate air (HEPA) filters to remove airborne particulates. The filtered air is then blown in a straight line across the work surface, either vertically or horizontally. This unidirectional airflow minimizes turbulence, ensuring that contaminants do not settle on the materials being worked on.

Applications：

ISO5 laminar flow hoods are commonly used in various fields, including microbiology, cell culture, and sterile drug preparation. They are essential for procedures that require aseptic conditions, such as the handling of sterile materials, compounding of medications, and conducting sensitive experiments.

Classification Standards：

ISO5 is defined by the International Organization for Standardization (ISO) and specifies the maximum allowable particle count in a cubic meter of air. For ISO5, the standard allows for no more than 3,520 particles of 0.5 micrometers or larger. This strict standard ensures a clean working environment that minimizes contamination risk.

Maintenance and Monitoring：

Regular maintenance and monitoring are vital for the effective operation of an ISO5 laminar flow hood. This includes routine filter replacements, airflow testing, and particle count assessments to ensure compliance with ISO standards. Proper training for personnel using the hood is also essential to maintain aseptic conditions during operations.

What is the Difference Between ISO 5 and ISO 4.8?

ISO 5 and ISO 4.8 are CleanRoom Classifications that define allowable particulate contamination. ISO 5 permits 3,520 particles of 0.5 micrometers or larger per cubic meter, while ISO 4.8 allows only 1,000 particles, indicating a much cleaner environment for precision applications.
