what is a class 100 000clean room？

What is a Class 100,000 Clean Room?

A Class 100,000 clean room refers to a controlled environment that maintains a maximum allowable particulate contamination level of 100,000 particles per cubic meter for particles equal to or larger than 0.5 microns. This classification is based on the International Organization for Standardization (ISO) 14644-1 standards, which categorize clean rooms based on their cleanliness levels.

To put this classification into perspective, a Class 100,000 clean room has approximately 3,520 particles (≥0.5 microns) in every cubic foot of air. This level of cleanliness is essential for processes that are sensitive to particulate contamination, as even minute particles can lead to product defects.

In terms of temperature and humidity, Class 100,000 clean rooms typically operate within specific ranges that support optimal working conditions for personnel and sensitive equipment. The temperature is generally maintained between 20-24°C (68-75°F), while relative humidity levels are kept between 30% to 60%. These parameters are crucial because extreme fluctuations can affect both the health of personnel and the integrity of the materials being processed.

Related Standards and Regulations

• ISO 14644-1: Cleanrooms and associated controlled environments – Part 1: Classification of air cleanliness by particle concentration.

• iso 14644-2: Cleanrooms and associated controlled environments – Part 2: Monitoring to provide evidence of cleanroom compliance with ISO 14644-1.

• FDA Guidance for Industry: Sterile Drug Products Produced by Aseptic Processing – Current Good Manufacturing Practice.

What is the Temperature and Humidity in a Class 100,000 Cleanroom?

In a Class 100,000 cleanroom, maintaining appropriate temperature and humidity levels is critical for both operational efficiency and product integrity. Typically, the temperature is kept between 20°C to 24°C (68°F to 75°F), which is comfortable for personnel and minimizes thermal stress on sensitive equipment. Relative humidity is generally maintained between 30% and 60%. This range helps prevent static electricity build-up, which can be detrimental in Electronic manufacturing environments.

How Many Air Changes Per Hour for Class 100,000 Clean Room?

1. Air Changes Requirements

Class 100,000 clean rooms typically require a minimum of 20 air changes per hour (ACH). This means that the entire volume of air within the clean room is exchanged at least 20 times every hour, which helps to maintain the required particulate levels and removes contaminants effectively.

2. Importance of Air Changes

The frequency of air changes is crucial for maintaining air quality and cleanliness. Higher air change rates dilute contaminants more effectively and ensure that the particulate count remains below the acceptable limit of 100,000 particles per cubic meter. This is particularly important in environments where sensitive processes take place, such as in pharmaceutical manufacturing or Semiconductor fabrication.

3. Design Considerations

When designing a Class 100,000 clean room, engineers must consider the airflow dynamics, including laminar and turbulent flow patterns, to ensure efficient air distribution.

What is the Highest Class Clean Room?

Class 1 Cleanroom Standards

Class 1 clean rooms, defined by iso 14644-1, allow a maximum of 1 particle per cubic meter (≥0.5 microns). This extreme cleanliness is crucial for sensitive applications like microelectronics, where contamination can lead to serious defects.

Rigorous Design and Filtration

To meet Class 1 standards, advanced air filtration systems with multiple HEPA and ULPA filters are essential. The Cleanroom design often uses specialized materials to minimize particle generation and facilitate easy cleaning, ensuring a contamination-free environment.

Environmental Control and Monitoring

Class 1 clean rooms require strict control over temperature, humidity, and pressure differentials to prevent condensation and ensure material stability. Continuous monitoring systems help track these parameters, allowing for prompt corrections to maintain compliance with established standards.

What is Clean Room Classification Grade A?

Clean Room Classification Grade A refers to the highest level of cleanliness as defined by the European Union Good Manufacturing Practice (EU GMP) guidelines, particularly for sterile manufacturing processes. This classification is designed for areas where the risk of contamination must be minimized to ensure the safety and efficacy of pharmaceutical products, especially those intended for injection.

1. Cleanliness Standards: In Grade A clean rooms, the maximum allowable particulate contamination level is 3,520 particles per cubic meter for particles equal to or larger than 0.5 microns. This strict limit necessitates the implementation of highly efficient air filtration systems, including HEPA and ULPA filters, to maintain the required air quality.

2. Operational Controls: In addition to air cleanliness, Grade A clean rooms require rigorous operational controls. Personnel must adhere to strict gowning procedures to prevent the introduction of contaminants from clothing and skin. The use of sterile materials and equipment is mandated, and regular monitoring of environmental conditions is essential.

3. Applications and Compliance: Grade A clean rooms are primarily used in the pharmaceutical and biotechnology industries, particularly in the production of sterile products such as injectables and vaccines. Compliance with Grade A standards is crucial for regulatory approval, and organizations often undergo rigorous inspections and audits to ensure they meet these requirements.

In conclusion, Clean Room Classification Grade A is vital in sectors where product sterility is non-negotiable. The stringent requirements associated with this classification highlight the importance of maintaining a controlled environment to ensure product safety and quality.

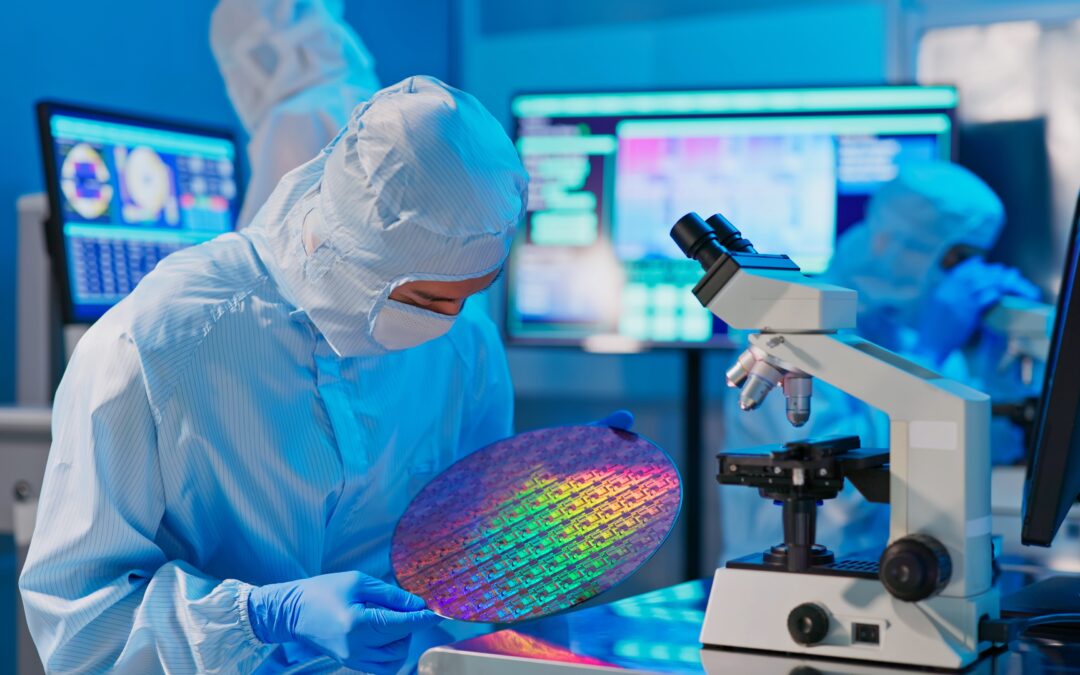

What Class Clean Room is a Semiconductor?

Semiconductor Manufacturing Requirements

The semiconductor industry operates in highly controlled environments due to the extreme sensitivity of semiconductor devices to particulate contamination. Typically, semiconductor fabrication facilities utilize Class 1 to Class 10 clean rooms, depending on the specific processes being conducted. Class 1 clean rooms are used for critical operations where even a single particle can cause defects, while Class 10 clean rooms may be suitable for less sensitive processes.

Clean room design and Features

Semiconductor clean rooms are designed with advanced air filtration systems, including multiple stages of HEPA and ULPA filters, to achieve the necessary cleanliness levels. The airflow patterns are carefully engineered to ensure unidirectional flow, which helps direct contaminants away from sensitive areas. The materials used in clean room construction are also chosen to minimize particle generation and facilitate easy cleaning.

Operational Protocols

In addition to physical design features, operational protocols in semiconductor clean rooms are stringent. Personnel must follow strict gowning procedures to minimize contamination risks, and regular cleaning and maintenance routines are implemented to uphold the cleanliness standards. Continuous monitoring of air quality, temperature, and humidity is essential to ensure compliance with industry standards and prevent any disruptions in manufacturing processes.

semiconductor manufacturing requires clean rooms classified between Class 1 and Class 10, depending on the stage of production. The stringent cleanliness standards and operational protocols underscore the critical nature of maintaining a contamination-free environment, which is essential for producing high-quality semiconductor devices.
