what is a class 100 clean room ？

A Class 100 Clean room is a controlled environment that maintains stringent air cleanliness standards, allowing no more than 100 particles of size 0.5 microns or larger per cubic foot of air. This classification is essential for industries such as pharmaceuticals, biotechnology, and electronics, where even minute contamination can compromise product quality and safety. Understanding the specifications and requirements of a Class 100 clean room is crucial for maintaining compliance with international standards, ensuring operational efficiency, and protecting sensitive processes.

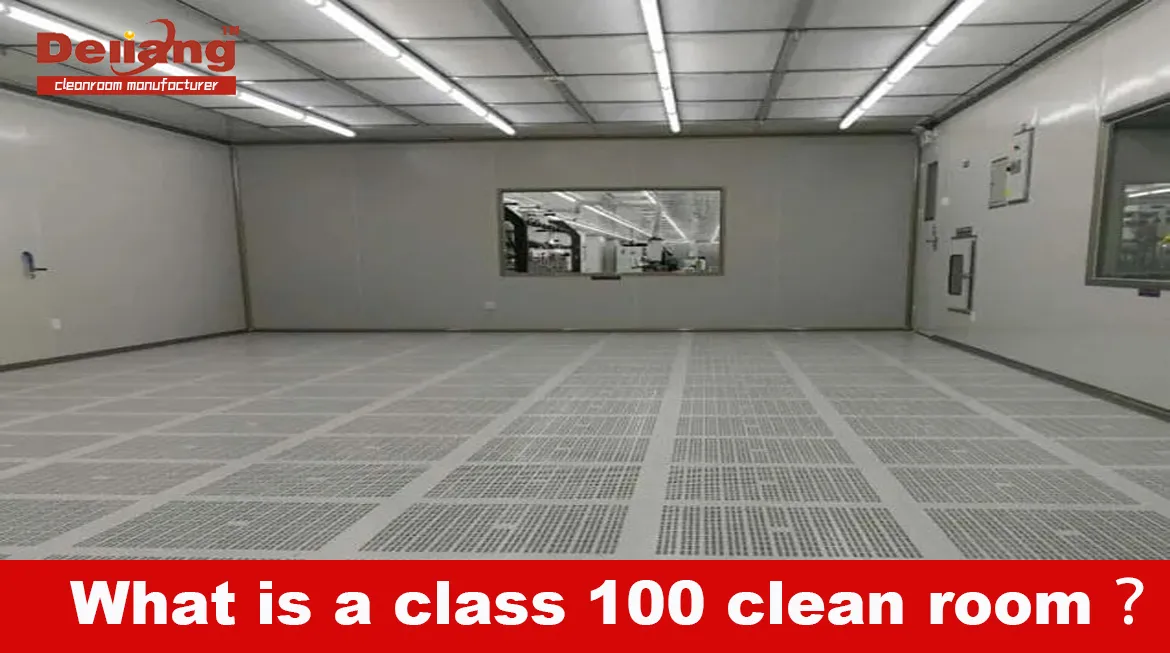

what is a class 100 clean room.jpg

Key Characteristics of a Class 100 Clean Room

Air Particle Count:

Maximum of 100 particles (≥0.5 µm) per cubic foot.

Filtration Requirements:

High-efficiency particulate air (HEPA) filters.

Temperature and Humidity Control:

Air Change Rate (ACH): 300-500 times.
Laminar Flow: Unidirectional airflow (laminar flow).
Air Velocity: 0.3 m/s to 0.45 m/s.
Air Pressure: Positive pressure operation.
Temperature: 18°C to 22°C.
Relative Humidity: Between 40% and 60% RH, consistent with product process requirements.

Compliance with ISO Standards

Class 100 clean rooms are governed by ISO 14644-1, which outlines the classification of air cleanliness in clean environments. Compliance with this standard ensures that operations meet the required cleanliness levels, vital for industries where contamination control is paramount.

iso 14644-1: Defines CleanRoom Classifications based on airborne particles.

iso 14644-2: Specifies monitoring requirements for cleanroom performance.

ISO 14644-3: Outlines test methods for measuring cleanroom performance.

Design Considerations for Class 100 Clean Rooms

When designing a Class 100 clean room, several factors must be considered to ensure compliance and functionality.

Layout and Workflow:

Optimize the flow of materials and personnel.
Implement a gowning procedure area.

Airflow Management:

Ensure unidirectional airflow to minimize particle accumulation.
Utilize positive pressure to prevent external contamination.

Materials and Surfaces:

Use non-porous and easy-to-clean materials.
Ensure surfaces are smooth to reduce particle accumulation.

Monitoring and Maintenance Procedures

Monitoring a Class 100 clean room involves continuous assessment of airborne particle counts, temperature, and humidity to ensure compliance with ISO 14644-1 standards. Regular sampling of air quality is conducted using calibrated particle counters, and results are documented to identify trends or deviations. Automated monitoring systems can enhance real-time data collection and alert staff to any changes that might compromise cleanliness.

Maintenance of a Class 100 clean room is crucial for sustaining air quality. This includes routine inspections and replacement of HEPA filters, regular cleaning of surfaces with non-volatile disinfectants, and calibration of monitoring equipment. Additionally, personnel should be trained in proper gowning procedures and aseptic techniques to minimize contamination risks. Consistent documentation of maintenance activities is essential for regulatory compliance and operational efficiency.

Role of Advanced Technologies

Brands like Deign offer advanced cleanroom solutions that integrate state-of-the-art technologies for monitoring and maintaining Class 100 environments. These solutions enhance compliance with ISO standards by automating data collection and analysis, allowing for real-time adjustments to maintain air quality and environmental conditions.

Automated Monitoring Systems:

Enable continuous tracking of cleanliness levels.
Provide alerts for any deviations from set parameters.

Data Management Solutions:

Facilitate efficient record-keeping and reporting.
Support compliance with regulatory requirements.

Requirements of Class 100 clean room

Air Cleanliness Requirements

A Class 100 clean room must maintain an air cleanliness level of no more than 100 particles of size 0.5 microns or larger per cubic foot of air. This strict requirement is essential for industries like pharmaceuticals and microelectronics, where even minor contamination can compromise product integrity.

Environmental Control Standards

Temperature and humidity levels in a Class 100 clean room must be tightly controlled. Typically, temperature is maintained between 20-22°C (68-72°F) and relative humidity between 30-60%. These conditions help prevent static electricity and moisture-related issues.

Material and Design Specifications

The clean room must be constructed using non-porous, easy-to-clean materials to minimize particle accumulation. Smooth surfaces and proper airflow design are critical, ensuring unidirectional airflow and minimizing contamination risks. Compliance with ISO 14644-1 is essential for maintaining these standards.

How much air change for Class 100 Cleanroom?

Air Change Rate

A Class 100 cleanroom typically requires an air change rate of 300-600 air changes per hour (ACH). This ensures that the air within the cleanroom is continuously refreshed to maintain the stringent particle count levels. High air change rates facilitate the rapid removal of contaminants and help maintain the desired cleanliness standards.

Airflow Design

The airflow in a Class 100 cleanroom is generally designed using a laminar flow system, where the air moves in a uniform direction at a constant speed. This design minimizes turbulence, which can disrupt the settling of particulates and enhance overall cleanliness. The laminar flow can either be unidirectional or non-unidirectional, but unidirectional airflow systems are preferred for achieving Class 100 standards.

Pressure Differentials

Maintaining appropriate pressure differentials is crucial in a Class 100 cleanroom. Typically, cleanrooms are kept at a positive pressure relative to adjacent areas to prevent the ingress of contaminants. The pressure differential should be monitored continuously and adjusted as necessary to maintain the integrity of the cleanroom environment.

To achieve the required air change rates and maintain Class 100 standards, effective filtration systems are necessary. HEPA or ULPA filters are utilized to trap airborne particles. Regular replacement and maintenance of these filters are essential to ensure their efficiency in maintaining air quality.

Continuous monitoring of the cleanroom's air quality, including particle counts, airflow velocity, and pressure differentials, is crucial to ensure compliance with Class 100 standards. Automated monitoring systems can provide real-time data and alerts when particle counts exceed acceptable levels.

Compliance with Standards

Adhering to industry standards such as ISO 14644-1 is necessary for Class 100 cleanrooms. These standards provide guidelines for cleanroom design, monitoring, and operation. Compliance ensures that cleanrooms meet international expectations for cleanliness and operational effectiveness, thereby supporting the integrity of sensitive processes carried out within these environments.

achieving the required air change rates in a Class 100 cleanroom is essential for maintaining air cleanliness and preventing contamination. By focusing on effective airflow design, filtration systems, and continuous monitoring, facilities can ensure compliance with the stringent requirements necessary for high-tech and pharmaceutical applications.

What is Class A area in pharma?

Clean Room Grade ABCD Explained - Blue Thunder Technologies

Importance of Class A Areas

Class A areas in the pharmaceutical industry are essential for manufacturing sterile products, following EU Good Manufacturing Practice (GMP) guidelines. They must not exceed 3,520 particles of 0.5 micrometers or larger per cubic meter to ensure product safety and efficacy.

Regulated Operational Conditions

Operational conditions in Class A areas are strictly controlled. Laminar airflow minimizes turbulence, while air change rates often exceed 600 changes per hour. Personnel must follow stringent gowning procedures to prevent contamination from skin or clothing.

Functionality and Integration

Class A areas are integrated within larger cleanroom suites, like Class B areas. They are crucial for critical tasks such as sterile filling and packaging. Adhering to cleanliness standards not only ensures product quality but also protects patient safety.

Conclusion

A Class 100 clean room plays a critical role in industries where contamination control is essential. By adhering to ISO standards and implementing rigorous monitoring and maintenance protocols, organizations can ensure the integrity of their processes and products. With advanced solutions offered by brands like Deign, maintaining a Class 100 environment becomes more efficient, supporting organizations in achieving operational excellence and regulatory compliance.
