What is a clean room?

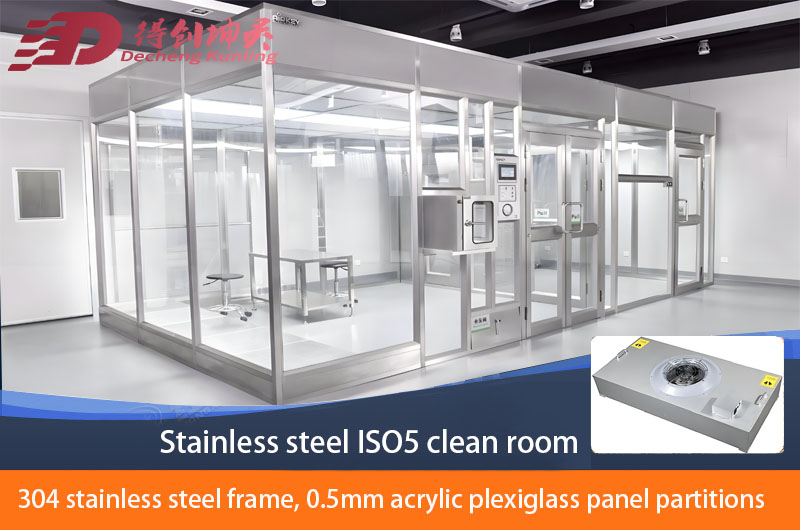

A Clean Booth is a simple cleanroom solution designed to provide a quick and easy clean environment for a specific work area. It is designed for use in industries that require the control of dust, microorganisms and other contaminants, and is widely used in fields such as Electronics, pharmaceuticals, medical devices and biotechnology. There are various types of clean booths, including class 100 clean booths, class 1,000 clean booths, FFU clean booths, etc., adapting to different levels of purification needs.

I, the material of the clean room

clean shed construction materials directly affect its performance and service life, mainly including the following aspects:

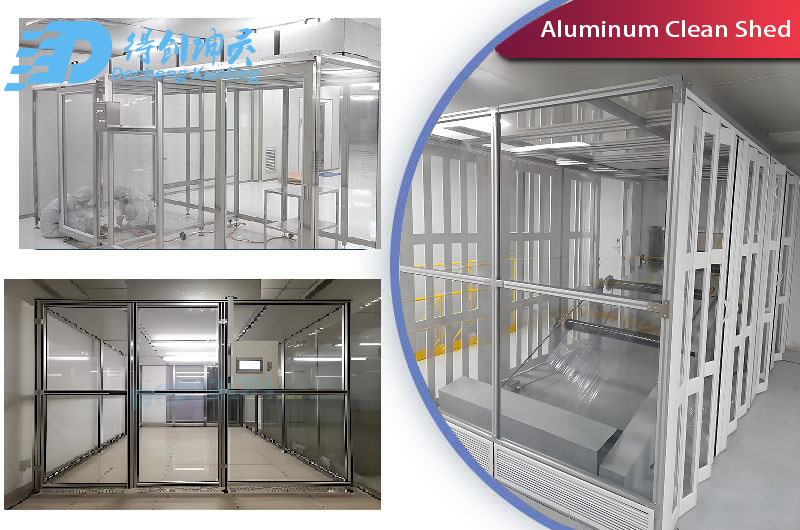

• Frame material:

  industrial aluminum or stainless steel square is usually used to ensure a solid and beautiful structure, as well as anti-rust and dust-proof characteristics.

• anti-static curtains:

  clean shed around the use of anti-static curtains or toughened glass, these materials have good transparency and flexibility, can effectively prevent static pollution of the clean environment.

• Fan Filtration Unit (FFU):

  FFU adopts high-efficiency centrifugal fan design, which has the advantages of long life, low noise, low vibration and maintenance-free. Its unique air duct design can improve the efficiency of the fan and provide up to 100-100K class internal purification environment when working.

• Purification lamps:

  the clean shed is equipped with special purification lamps to ensure that no dust is generated to further enhance the cleanliness.

III, the characteristics of the clean room

The working principle of the modular clean room is that the air is sucked in by the fan on the top of the FFU, and after being filtered by the primary and high efficiency filters, the Clean air is uniformly sent out at a Wind speed of 0.45m/s±20%, forming a vertical unidirectional flow. This design ensures the high cleanliness required in the working area, with the following significant features:

• Rapid setup: the clean shed can be built quickly, suitable for short-term or temporary purification needs.

• Short construction period: Compared with traditional cleanrooms, the installation and commissioning time of the clean room is significantly reduced.

• Economical and practical: Its relatively low cost makes it suitable for projects with limited budgets.

Convenient to move: according to the production needs of flexible adjustment of the position, improve work efficiency.

IV, the use of clean shed and maintenance

In order to ensure the effectiveness and durability of the clean shed, operation and maintenance need to follow the following norms:

• Regular cleaning:

  Use alcohol to wipe the inner and outer surfaces to keep the clean shed clean.

• Employee Behavior:

  Train personnel entering and exiting the clean room to ensure that they are wearing anti-static dust-free clothing, hats and shoes to avoid indoor contamination.

• Power management:

  The power supply of the clean room should be equipped with sectional control to avoid the overall failure caused by circuit problems. At the same time, ensure that the high-efficiency filters are not touched to avoid damage to the filter paper.

• Pre-operation preparation:

  clean shed work switch should be opened ten minutes in advance, to be stabilized after the environment before allowing personnel to enter.

V. Application fields of clean room

Clean shed is suitable for a variety of industries, especially in the production and experimental environments that require a high degree of cleanliness, such as:

• Electronic industry: for Semiconductor manufacturing and electronic component assembly.

• Pharmaceutical industry: to control microbial and particulate contamination in the process of drug production, packaging and experimentation.

• Medical devices: to ensure aseptic conditions during the production of devices.

• Biotechnology: to provide a clean environment in the processing of biological samples and experiments.

clean booths, as a flexible and cost-effective cleanroom solution, provide highly efficient purified environments for a wide range of industries, meeting the growing demand for cleanliness in modern production and experimentation.
