How to Control Humidity in Clean Rooms

Controlling humidity in clean rooms is critical to maintaining product quality and compliance with industry standards. This article examines four primary methods for humidity control: dehumidifiers, single temperature-controlled Air conditioning systems, constant temperature and humidity air conditioning systems, and rotary dehumidifiers. Each method will be analyzed in detail, including their principles of operation, relevant mathematical models, and industry standards.

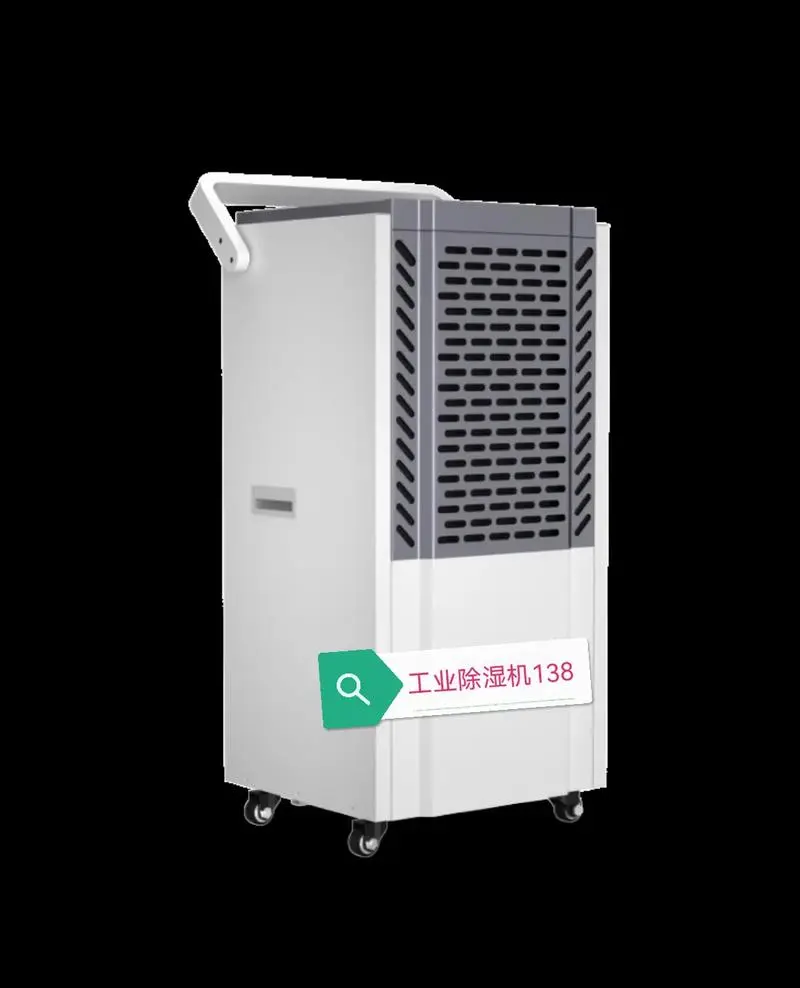

Dehumidifiers

Dehumidifiers are essential in maintaining acceptable humidity levels in modular clean rooms. They function by removing moisture from the air through various processes, primarily condensation and adsorption.

Principle of Operation

The most common type of dehumidifier is the refrigerant dehumidifier, which operates on the principle of condensation. When warm, humid air passes over cold coils, moisture condenses and drips into a collection tank. The remaining dry air is then reheated and returned to the clean room. According to the psychrometric chart, the dew point temperature is crucial in determining the efficiency of this process, and maintaining it below 60°F (15.5°C) is often necessary for clean rooms.

Mathematical Models

The performance of a dehumidifier can be quantified using the formula:

Where the humidity ratio (in g/kg) can be calculated using the formula:

This model helps in determining the necessary capacity and operational efficiency of the dehumidifier in response to varying humidity levels.

Industry Standards

The American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) recommends that indoor relative humidity levels in clean rooms be maintained between 30% and 50% to prevent contamination and protect sensitive equipment. Compliance with these standards ensures that products remain within specified moisture limits, which is crucial for industries like pharmaceuticals and Electronics.

Single Temperature-Controlled Air Conditioning for Dehumidification

Single temperature-controlled air conditioning systems can also play a role in humidity management, although this is not their primary function. These systems maintain a constant temperature while indirectly influencing humidity levels.

Operation Mechanism

In these systems, air is cooled and dehumidified simultaneously. The cooling coils achieve both temperature reduction and moisture removal. When the air temperature drops, its capacity to hold moisture decreases, leading to condensation on the coils. This method is effective in environments where temperature control is equally important, such as laboratories.

Mathematical Approach

The relationship between temperature and humidity can be expressed using the psychrometric equation, which defines the moisture content of air based on its temperature. The rate of dehumidification can be modeled as:

Dehumidification Rate (L/hr)=Airflow(m³/s)x(Humidity Ratioin-Humidity Ratioout)

This relationship allows engineers to design systems that maintain temperature while controlling humidity effectively.

Compliance with Standards

ASHRAE and ISO 14644-1 both provide guidelines for Clean room environments, emphasizing the importance of controlling both temperature and humidity. For instance, the ISO Standard specifies that the relative humidity should not exceed 60% to minimize the risk of electrostatic discharge and microbial growth.

Constant Temperature and Humidity Air Conditioning Systems

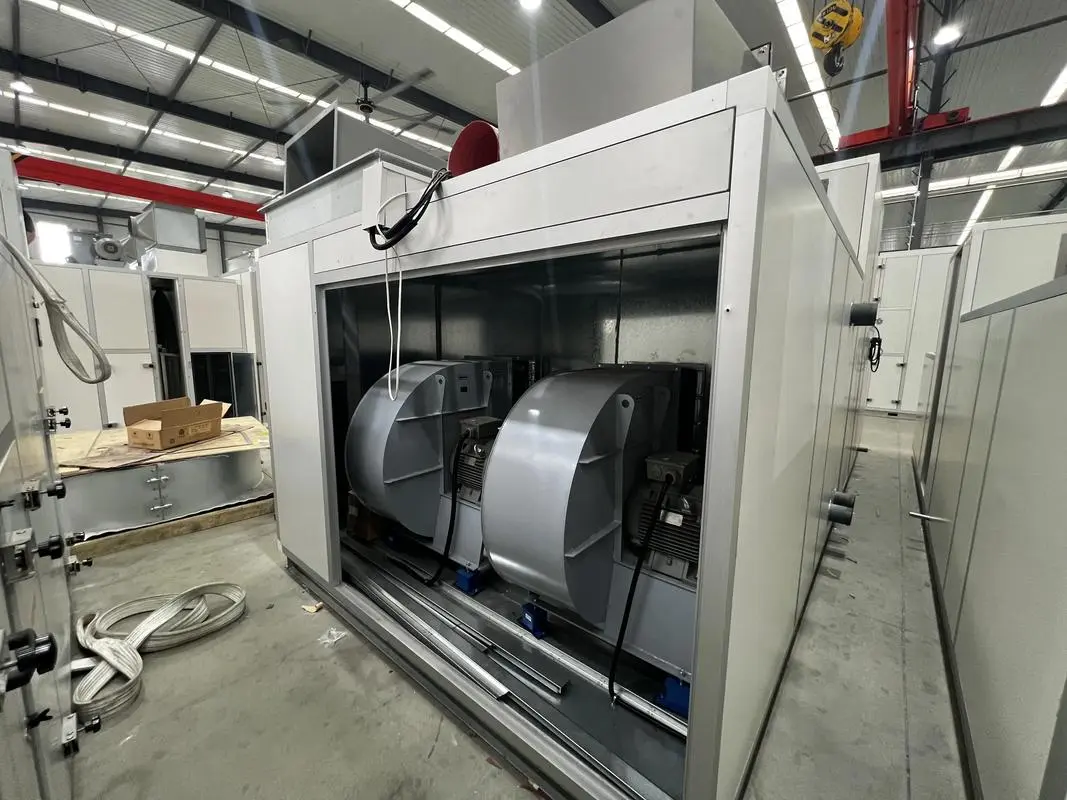

Constant temperature and humidity (CTH) systems are designed explicitly for environments requiring strict control over both parameters. These systems utilize advanced technology to maintain preset conditions continually.

System Design

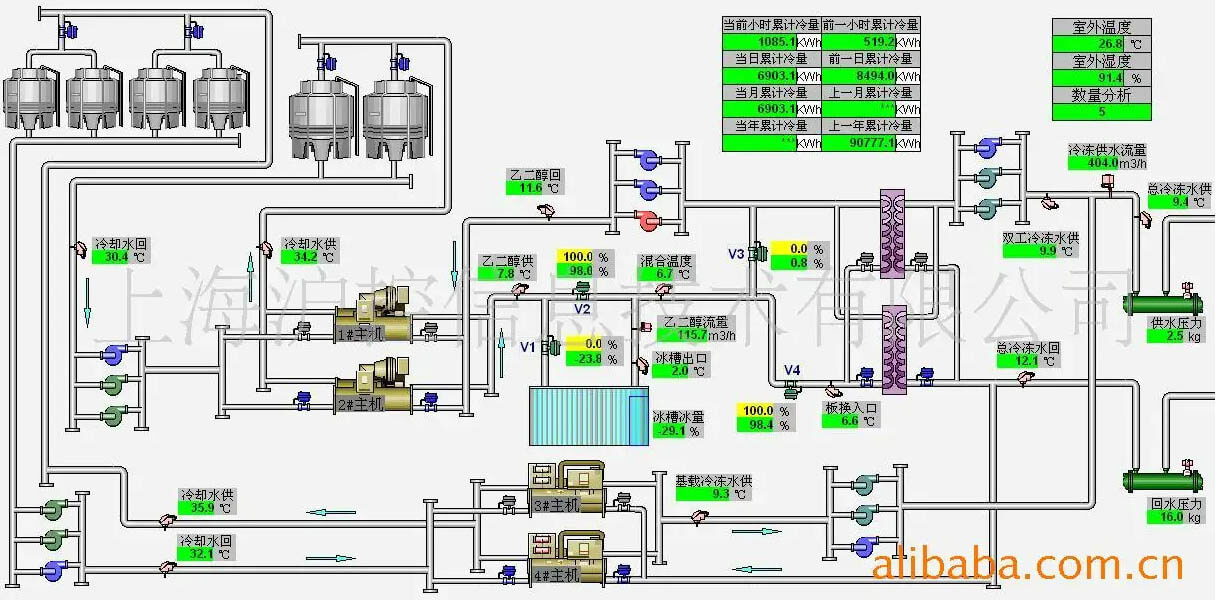

CTH systems incorporate both cooling and dehumidification components working in tandem. The system continuously monitors temperature and humidity levels, making real-time adjustments to maintain set parameters. This is particularly vital in clean rooms where fluctuations can lead to contamination.

Control Algorithms

To optimize performance, control algorithms such as PID (Proportional-Integral-Derivative) can be employed. These algorithms calculate the necessary adjustments based on deviation from the setpoint, allowing for precise control over both temperature and humidity. The control strategy can be mathematically represented as:

Where \( e(t) \) is the error between the desired and actual conditions, and \( K_p, K_i, K_d \) are the tuning coefficients.

Standards and Recommendations

Compliance with standards such as iso 14644-1 is crucial for CTH systems. This standard outlines the requirements for cleanroom classification, including acceptable limits for temperature and humidity. For example, ISO 7 Cleanrooms should maintain relative humidity levels between 30% and 60%, supporting both product integrity and operational efficiency. Ensuring adherence to these standards through CTH systems not only helps maintain a controlled environment but also minimizes risks of contamination and product failure in sensitive applications.

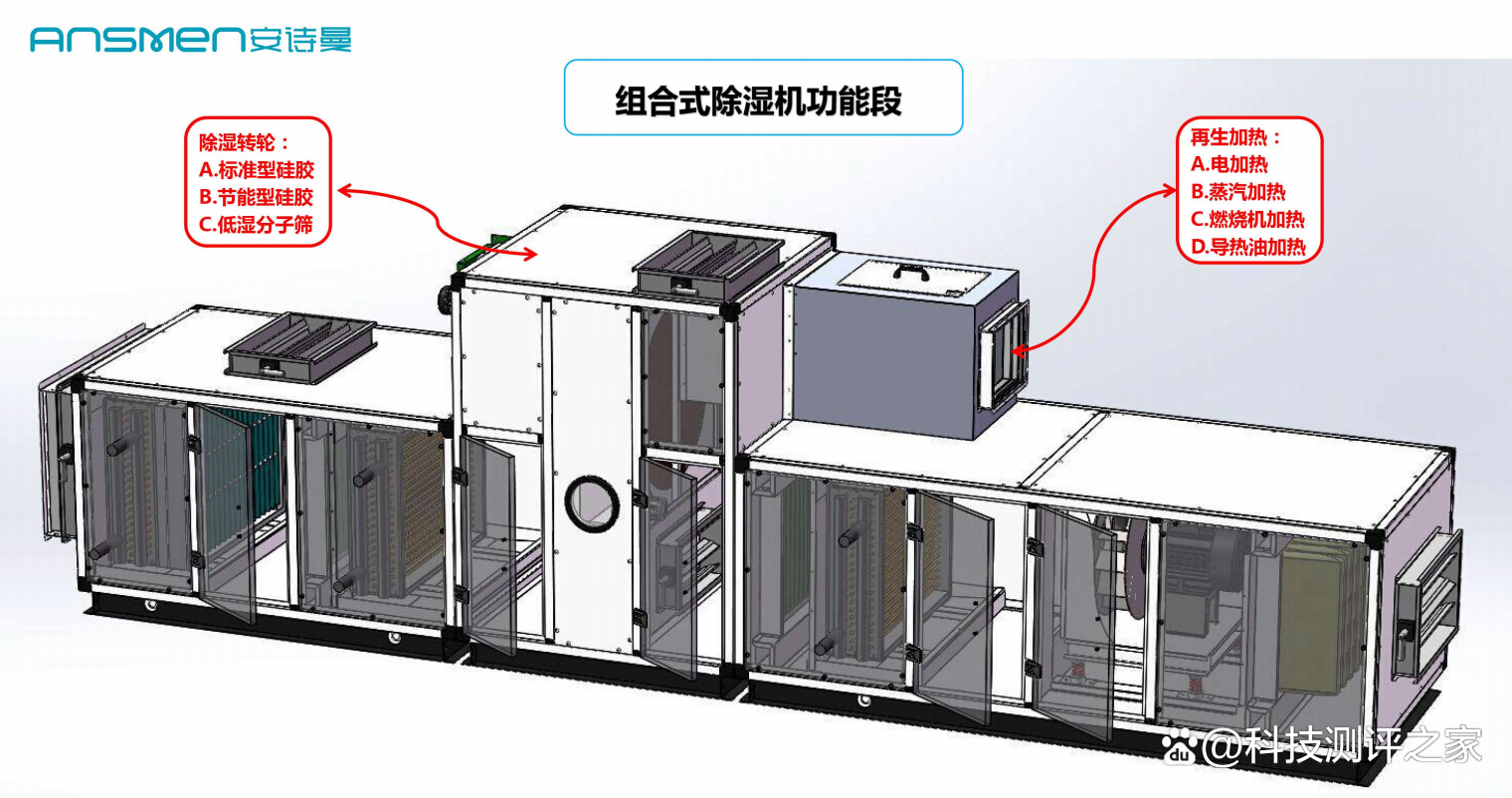

Rotary Dehumidifier Units

Rotary dehumidifiers are advanced systems that provide efficient and continuous moisture removal. They utilize a rotating desiccant wheel to absorb moisture from the air, making them particularly effective for modular clean room applications.

Working Principle

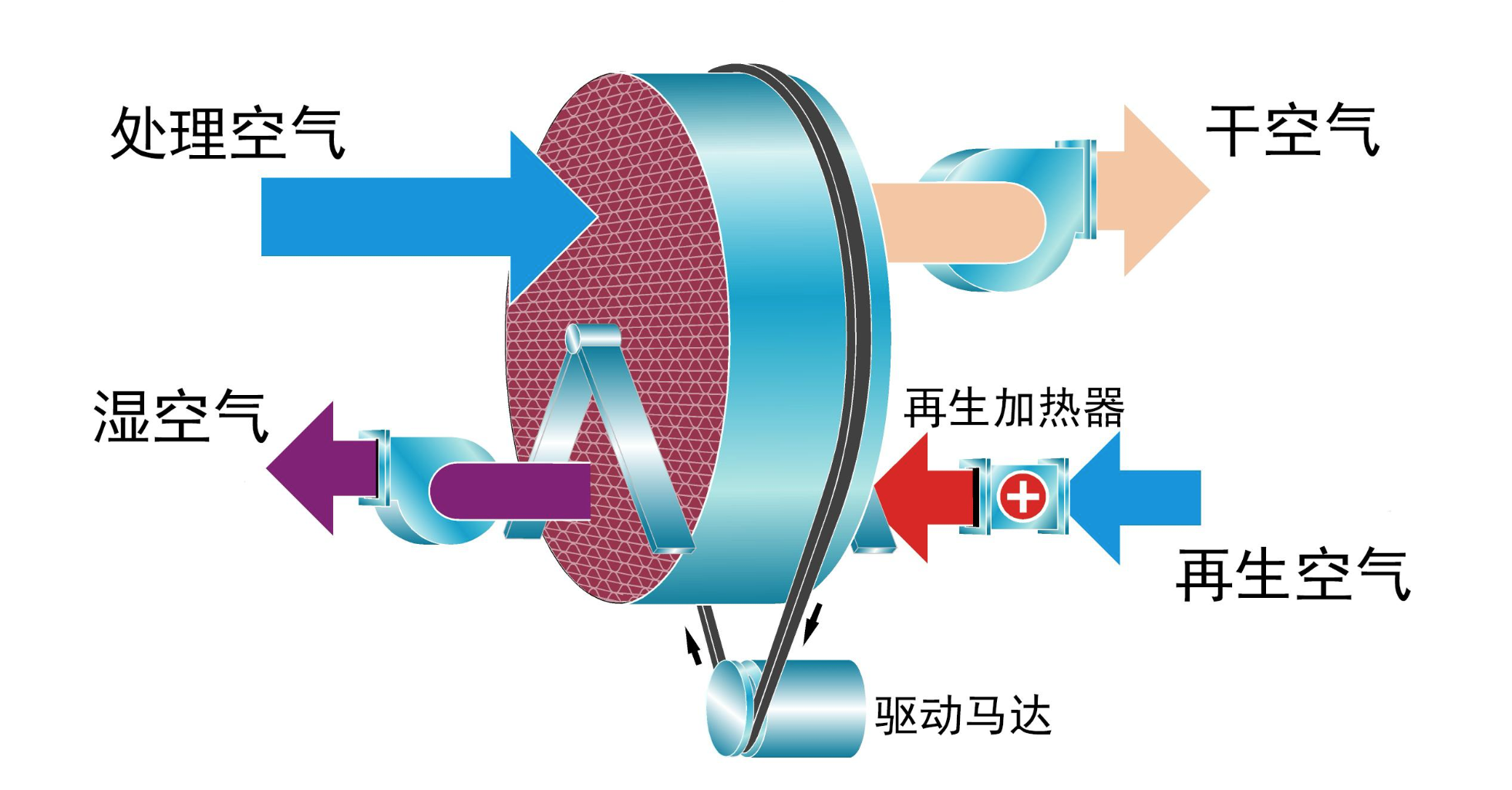

The operation of a rotary dehumidifier involves a desiccant material that absorbs moisture from the air. The wheel rotates through the incoming air stream, where it collects humidity. As the wheel turns, a portion of it enters a heated area, where the absorbed moisture is released into the exhaust air. This process allows for continuous dehumidification without significant drops in temperature. The effectiveness of this system can be modeled using the concept of moisture removal efficiency (MRE):

A high MRE indicates efficient performance, crucial for maintaining the desired humidity levels in clean rooms.

Efficiency Calculations

To quantify the performance of rotary dehumidifiers, one can use the following calculations. The total moisture removal can be calculated as:

Total Moisture Removed (kg)-Inlet Humidity Ratio (g/kg)xAirflow(m°/s)×Time(s)

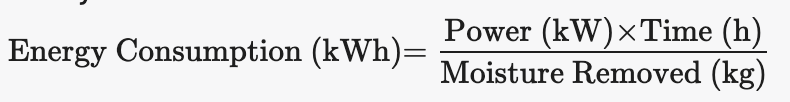

Additionally, the energy consumption can be calculated to assess operational efficiency:

These formulas help in evaluating the cost-effectiveness and operational efficiency of rotary dehumidifiers compared to other systems, particularly in high-demand Clean Room environments.

Regulatory Compliance

Regulatory bodies, including ASHRAE and ISO, provide guidelines for the use of rotary dehumidification systems in clean rooms. For instance, ASHRAE recommends using rotary dehumidifiers in conjunction with other HVAC systems to ensure that relative humidity levels remain within the specified range. Maintaining a humidity level typically between 35% and 50% is essential to prevent condensation and protect sensitive manufacturing processes.

Controlling humidity in clean rooms is vital for maintaining product integrity and ensuring compliance with industry standards. The methods discussed, including dehumidifiers, single temperature-controlled air conditioning systems, constant temperature and humidity systems, and rotary dehumidifiers, each offer unique advantages and operational efficiencies. By understanding the principles of operation, employing mathematical models to quantify performance, and adhering to relevant standards, clean room operators can effectively manage humidity levels. Ultimately, selecting the appropriate humidity control strategy is essential for achieving optimal conditions in clean room environments, safeguarding both products and processes.
