In the realm of cleanroom technology, understanding
the differences between vertical and horizontal laminar flow is crucial for
ensuring optimal conditions for sensitive processes. Each type of laminar flow
hood is designed to meet specific needs in laboratory and industrial
environments. This article will explore these differences, focusing on design,
application, and effectiveness in contamination control, emphasizing the
importance of choosing the right system for your cleanroom
requirements.
Difference between vertical and horizontal laminar flow
Airflow Direction
Vertical laminar flow moves from top to bottom, while horizontal laminar flow moves from one side to the other. This difference in airflow direction has varying applications in Cleanroom design.
Vertical flow is suitable for high cleanliness requirements, while horizontal flow is more appropriate for larger spaces.
Design and Configuration
Vertical laminar flow design typically includes top-mounted Air Filters to ensure uniform airflow distribution, suitable for higher cleanliness levels. Horizontal flow design is used in larger work areas, utilizing side-mounted filters for airflow control.
Configuration:
Vertical flow configurations are usually more compact
Horizontal flow configurations can be flexibly adjusted
Vertical flow is suitable for small area applications
Horizontal flow is suitable for large area operations
Vertical flow is commonly used in laboratories
Horizontal flow is often used in industrial environments
The design differences determine the applicable scenarios; vertical laminar flow is ideal for cleanrooms and labs, whereas horizontal laminar flow is more suitable for factories and large production environments.
Protection Level
Vertical laminar flow generally provides a higher protection level, effectively preventing contaminants from entering the workspace. Its airflow moves downwards, ensuring particles are filtered during their descent, making it suitable for ISO Class 5 Cleanroom environments.
Horizontal laminar flow has a lower protection level and is better suited for larger work areas. Although it maintains good cleanliness levels, vertical laminar flow remains the better choice in high-demand environments.
Industry Applications
Biotechnology
Semiconductor manufacturing
Food processing
Cosmetic production
Cleanliness and Turbulence
Vertical laminar flow offers higher cleanliness, making it suitable for environments requiring strict cleanliness control.
In cleanroom applications, turbulence can cause particles to resuspend and affect cleanliness. Vertical laminar flow can effectively reduce turbulence through uniform airflow, while horizontal flow may experience localized turbulence in large spaces, affecting overall air quality. Therefore, choosing the appropriate flow direction is crucial for maintaining A CleanRoom environment.
Vertical Laminar Flow Design and Configuration

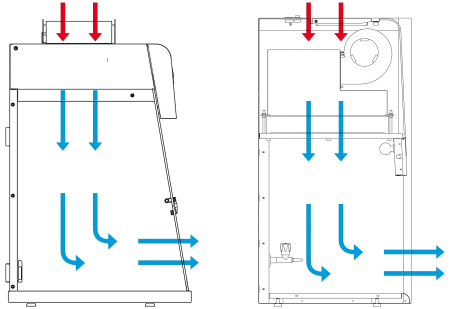

Vertical laminar flow hoods are designed to create a clean environment through a downward airflow pattern. This configuration is essential for applications requiring high sterility levels.
Vertical laminar flow hoods feature a vertical design with HEPA filters positioned at the top. Air is drawn through these filters and directed downward, creating a sterile work area. This design effectively minimizes the risk of airborne contamination. The vertical airflow design makes these hoods ideal for sensitive applications, such as sterile compounding in hospitals and laboratories. By ensuring that Clean air flows directly onto the work surface, these hoods protect samples from contaminants while also providing a safer environment for the operator. Additionally, their compact design allows for easy integration into various laboratory setups, enhancing workflow efficiency.
Horizontal Laminar Flow Design and Configuration
Horizontal laminar flow hoods are widely used in laboratories for tasks that require a clean air environment but do not involve handling hazardous materials.
Structure and Airflow
Horizontal laminar flow hoods typically feature a HEPA filter at the back, allowing air to flow horizontally across the work surface. This design creates a barrier of clean air that moves towards the operator, ensuring a relatively contamination-free environment.
Applications and Benefits
These hoods are suitable for microbiological work, cell culture, and pharmaceutical applications. Their design allows for easy access to the workspace, facilitating routine tasks. However, users must be cautious, as the airflow may expose them to potential contaminants if hazardous substances are handled. Regular maintenance and filter replacements are essential to ensure optimal performance, adhering to both domestic and international standards for laboratory safety.
Maintenance Considerations
Proper maintenance of horizontal laminar flow hoods, including filter replacement and regular cleaning, is crucial to ensure their effectiveness in providing a clean working environment. Compliance with standards such as ISO 14644 and relevant local regulations is essential for maintaining laboratory integrity.
Vertical Laminar Flow Reduces Cross Contamination
Importance of Downward Flow
Vertical laminar flow systems are specifically designed to minimize cross-contamination by providing a continuous downward airflow. This airflow pattern effectively directs airborne contaminants away from the work surface, ensuring a sterile environment for sensitive operations.
Enhanced Sterilits
The downward airflow in vertical laminar flow hoods creates a protective barrier for samples, making them ideal for critical applications such as sterile compounding and microbiological research. By preventing contaminants from settling on the work surface, these hoods significantly reduce the risk of contamination, ensuring higher product quality and safety.Before it reaches the work surface, vertical laminar flow hoods maintain an environment that is consistently clean and conducive to sensitive processes. This is crucial in laboratories where the integrity of biological samples must be preserved. Furthermore, regular maintenance and adherence to cleaning protocols significantly contribute to sustaining the sterility of the workspace, as contaminants can be effectively managed and mitigated. This level of control is essential in settings such as pharmaceutical production, where even minor contamination can have serious repercussions.
Summarize
Vertical and horizontal laminar flow are two distinct airflow orientations used in cleanroom and laboratory environments. Vertical laminar flow moves air from top to bottom, providing higher cleanliness levels by minimizing turbulence and effectively filtering contaminants as the air descends. It is ideal for applications requiring stringent cleanliness, such as in pharmaceutical and semiconductor industries.
In contrast, horizontal laminar flow directs air from one side to another, making it suitable for larger workspaces but generally offering lower protection levels. While both systems are designed to maintain a controlled environment, the choice between them depends on the specific requirements of the application, including space, cleanliness standards, and the nature of the work being performed.
