Cleanroom design pitfalls, poor HVAC balancing and inadequate filtration are among the top reasons why cleanrooms fail ISO testing. A facility may look visually complete while still failing particle-count, pressure-differential or recovery-time requirements.
Certification failure is rarely caused by a single faulty component. It usually emerges from a combination of design, construction, commissioning and operational gaps. The strongest projects build testability into the earliest design stages, not just as a final step.
The High Cost of Cleanroom Non-Compliance
Failing an ISO 14644 certification audit is more than a technical setback. It can trigger production delays, rejected product batches, customer audit failures and costly rework that erodes project margins.
Many cleanroom HVAC errors remain invisible until formal testing. By that point, corrective work often requires ceiling access, filter removal, duct modification or control system reprogramming — all on a compressed schedule.
Different industries carry different risk profiles. Pharmaceutical facilities face regulatory scrutiny and batch rejection. Semiconductor plants face yield loss from contamination. Medical device manufacturers face product recall and compliance action.
| Certification Stage | Condition | Failure Rate | Common Causes |
|---|---|---|---|
| As-Built | Empty room, no equipment | ~10% | Filter leaks, poor seal integrity, duct leakage |
| At-Rest | Equipment installed, no personnel | ~20% | Pressure imbalance, equipment heat plume disturbance |
| Operational | Full production, staff on site | ~70% | Personnel particle shedding, material flow disruption, dynamic pressure drift |
| As-Built — Empty Room |
|---|
| Failure rate: ~10% |
| Causes: filter leaks, poor seals, duct leakage |
| At-Rest — Equipment Only |
| Failure rate: ~20% |
| Causes: pressure imbalance, heat plumes |
| Operational — Full Production |
| Failure rate: ~70% |
| Causes: personnel shedding, material flow, pressure drift |
Mistake 1 — Improper HVAC Airflow Pathing and Pressure Balancing
Poor airflow patterning and unstable pressure gradients are the most frequent causes of cleanroom pressure differential problems. Correct air volume alone does not guarantee cleanroom performance — air must follow the intended path.
Common design errors in this category include:
- Supply and return airflow volumes are mismatched across zones
- Pressure cascades between adjacent rooms are incorrectly graded
- Personnel and material airlocks break pressure relationships
- Return vent placement creates localized airflow short-circuiting
- Duct static pressure calculations underestimate system resistance
- Variable frequency drive range is too narrow for real load variation
- Door opening events cause rapid pressure loss and recovery lag
- Equipment heat loads are omitted from airflow and capacity calculations
ISO 14644 Key Design Benchmarks
Validation tests that expose these flaws include airflow velocity mapping, room differential pressure measurement, smoke visualization, air change rate verification and recovery time testing.

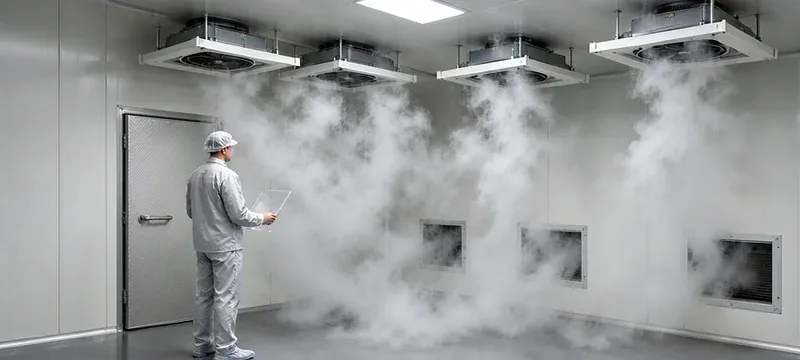

Figure 1: Airflow balancing and pressure differential testing in ISO classified cleanroom
Mistake 2 — Inadequate Filtration and Filter Seal Integrity

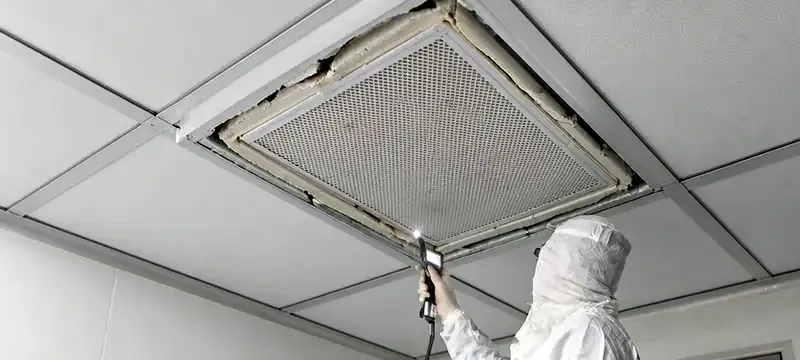

High-grade filters alone do not guarantee particle control. HEPA filter leakage test failure is one of the most common reasons why cleanrooms fail ISO testing, even with new filter media installed.
Seal and installation failures include:
- Filter efficiency grade mismatched to process risk level
- Uneven filter mounting frame surface
- Insufficient gasket compression around filter perimeter
- Gaps between filter bank frame and ceiling grid
- Inadequate sealing between adjacent FFU housings
- No re-test after filter replacement or maintenance
- No tracking of filter identity, installation date or pressure history
Filter Integrity Test Standard
- PAO / DOP leak test: Leakage rate exceeding 0.01% of upstream challenge concentration constitutes a failure
- Scan speed: Maximum 5 cm/s across filter surface and all perimeter seals
- Required frequency: After installation, after each filter change, and at scheduled re-certification
Leak paths often bypass the filter media entirely. Particle counters may read acceptable at ceiling level while contamination enters through gaps at the filter edges, frame corners or ceiling penetrations.
Mistake 3 — Poor Material Selection and Surface Finish

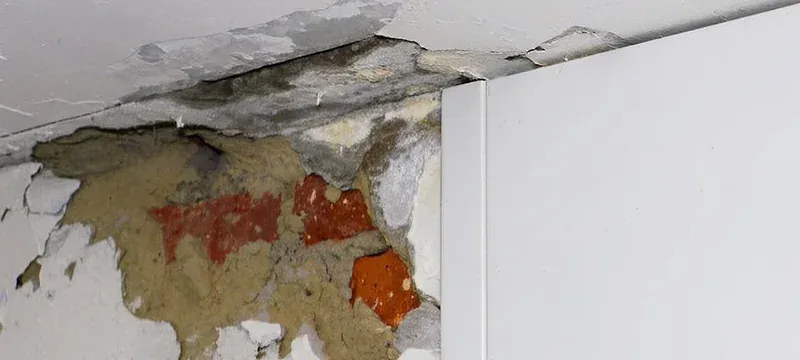

Cleanroom wall panel mistakes and poor surface selection can undermine even a well-balanced HVAC system. Surfaces that look clean visually can still shed particles, trap contaminants and resist proper disinfection.
Common material and finish problems:
- Rough or porous wall surfaces that accumulate and release particles
- Sharp internal corners that create dead zones and resist cleaning
- Unsealed joints at wall-floor, wall-ceiling and wall-wall transitions
- Poor perimeter sealing around doors, viewports and pass-throughs
- Surface coatings degraded by routine disinfectants and cleaning agents
- Exposed fasteners, rivets and fixtures that trap contamination
- Ceiling grid systems with poor seal integrity and load deflection
Low-bid contractors often use generic construction silicone instead of cleanroom-grade sealant. After repeated VHP hydrogen peroxide sterilization cycles, generic silicone cracks, outgases VOCs, and sheds micro-particles. Always specify chemical-resistant cleanroom-certified sealants.
Mistake 4 — Insufficient Monitoring and Control Systems

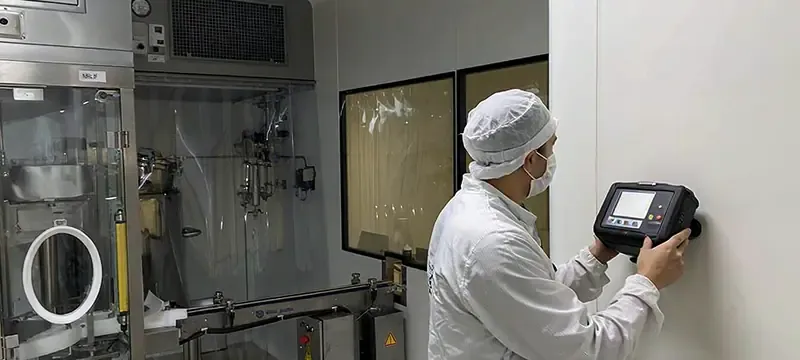

A cleanroom may pass a one-time acceptance test and still drift out of specification during operation. Without continuous cleanroom pressure monitoring and environmental tracking, problems remain invisible until a failure event.
Key parameters requiring continuous monitoring:
- Room differential pressure across each zone boundary
- Temperature and relative humidity setpoint control
- Airborne particle concentration at work height
- Fan operating state and airflow feedback
- Filter differential pressure across each stage
- Door position and interlock status
- Alarm logging, historical trending and audit trail export
Typical control system shortcomings include poorly placed sensors, uncalibrated instruments, incorrect alarm thresholds, limited BMS integration, missing historical data, poor power-loss recovery and untrained operating staff.

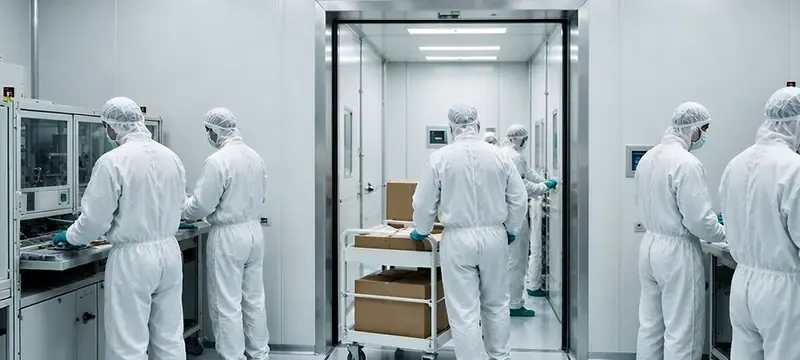

Mistake 5 — Overlooking Personnel, Material and Process Flow
Even with perfect HVAC design, poor cleanroom personnel flow design and material handling can introduce contamination faster than the air system can remove it.
Common operational design errors:
- Personnel entry and material entry share the same airlock
- Incomplete gowning procedure and staging sequence
- Insufficient buffer and airlock staging between classes
- Pass-through chambers that can be opened on both sides simultaneously
- Direct open passage between classification levels
- Waste stream routes cross raw material paths
- Insufficient operator training and behavior protocol
- Door interlock systems bypassed or out of service
These gaps often appear only during dynamic operation, when staff, parts and waste move through the facility. Static certification tests performed at low occupancy may miss them entirely.

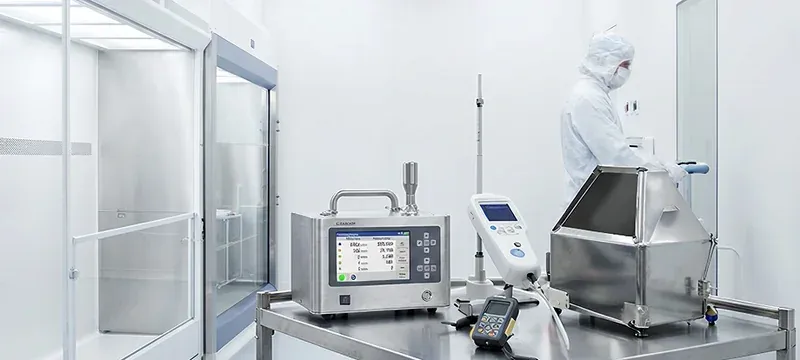

Common Test Tools for Cleanroom Certification
Certification technicians use standardized instruments to identify the root cause of failure. The most common tools include:
How to Diagnose Why a Cleanroom Failed ISO Testing
When why cleanrooms fail ISO testing is under investigation, diagnosis should follow a structured sequence from simplest to most invasive.
Failure modes fall into four primary categories:
| Failure Symptom | Most Likely Root Causes |
|---|---|
| Particle concentration exceeds limit | HEPA filter leakage, poor airflow distribution, excessive personnel activity, surface contamination, insufficient recovery time |
| Pressure differential out of range | Airflow balance error, envelope leakage, slow control response, incorrect cascade design |
| Air velocity / air change rate too low | Undersized fan, excessive filter pressure drop, miscalculated duct loss, poor FFU layout |
| Recovery time too long | Insufficient supply air, poor source containment, inefficient return path, mismatched room volume |
| Particle Concentration High |
|---|
| HEPA filter leakage |
| Poor airflow distribution |
| Excessive personnel activity |
| Pressure Differential Off |
| Airflow balance error |
| Envelope leakage |
| Slow control response |
Cleanroom Air Change Rate Calculator
Estimate required air change rate and total supply airflow based on room dimensions and target ISO classification.
Recommended Air Change Rate: 0 – 0 ACH
Minimum Supply Airflow: 0 m³/h
Maximum Supply Airflow: 0 m³/h

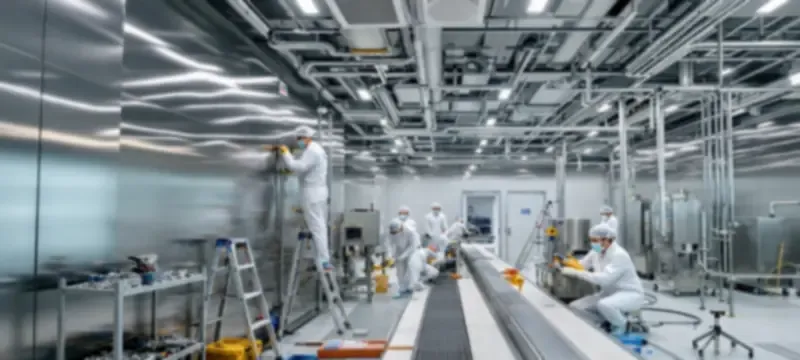

Deiiang Case Study — Retrofitting a Cleanroom That Failed Certification
Project profile: ISO Class 7 semiconductor assembly cleanroom, 2,200 m², FFU-based ceiling system. The facility had failed initial third-party certification and required targeted retrofit with minimal production downtime.
Before: Existing system with known airflow and pressure gaps
During: Filter resealing and airflow rebalancing work
Known issues before retrofit:
- Restricted ceiling height limiting duct modification options
- Existing ductwork could not be fully demolished
- Production line permitted limited shutdown window
- Pressure cascade between rooms was inconsistent
- Legacy BMS interface had limited integration capability
- High local humidity increased dehumidification load
Deiiang remediation scope:
- Recalculated zone airflow and pressure gradient balance
- Repositioned supply and return vent locations for improved sweep
- Resealed and leak-tested HEPA filter banks
- Added variable frequency fan control with trim response
- Installed differential pressure and RH/T sensor network
- Integrated monitoring platform with alarm and trending
- Phased commissioning and verification plan
- Revised personnel flow and material transfer procedures
Verified Project Improvement
Data source: Deiiang on-site commissioning report. Pressure stability improved from ±8.0 Pa to ±1.5 Pa across all classified zones.
Product design by Jason.peng, Deiiang™ cleanroom engineering team.

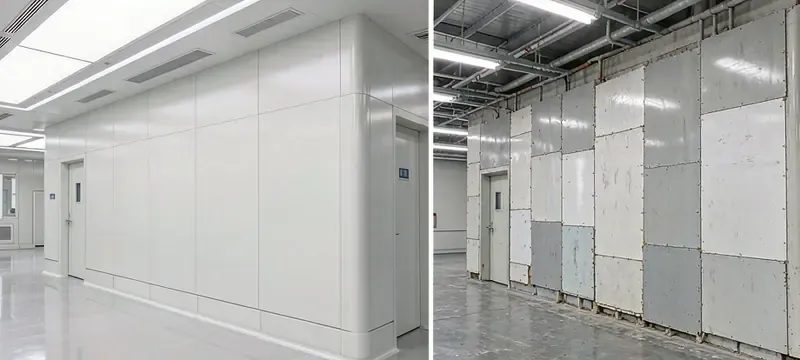

Integrated vs Fragmented Cleanroom Design
Certification risk rises sharply when different vendors deliver HVAC, panels, controls and filtration without a single accountable designer. An integrated approach aligns all disciplines around the same performance model.
Integrated Engineering Approach
- HVAC, filtration and controls designed as one system
- Airflow and pressure relationships validated before testing
- Simpler troubleshooting and unified documentation
- Better alignment between construction and commissioning
- Single point of responsibility for certification performance
Fragmented Installation Approach
- HVAC, panels and controls use inconsistent assumptions
- Problems often discovered only during certification
- Higher risk of rework and schedule delays
- Responsibility for failed testing may be unclear
- Cross-vendor disputes slow corrective action
Pre-Certification Checklist for Cleanroom Owners
Use this checklist before formal ISO testing to identify gaps early and reduce the risk of failure.
Frequently Asked Questions
Why do cleanrooms fail ISO testing?
Common causes include airflow imbalance, unstable pressure differentials, HEPA filter leakage, structural seal defects, surface contamination and uncontrolled personnel activity. Over 70% of failures occur under full operational conditions.
What are the most common cleanroom HVAC errors?
Typical errors include miscalculated duct pressure loss, poor return vent placement, undersized fans, limited VFD turndown, incorrect pressure cascade design and poorly located sensor stations.
Can a cleanroom pass testing without a monitoring system?
It may pass a one-time acceptance test, but without continuous monitoring it will drift out of specification during operation. Pressure, filter and humidity faults will remain undetected until the next audit.
How can Deiiang help with cleanroom certification?
Deiiang™ provides cleanroom design, HVAC and FFU systems, filter installation and leak testing, pressure and humidity control, on-site commissioning, pre-certification remediation and test documentation support.
