Cleanroom Material Flow Design: A Complete Guide to Efficiency, Asepticness, and Intelligence

cleanroom material flow design.jpg

Effective Cleanroom Material Flow Design is fundamental to maintaining contamination control and operational efficiency in critical environments. This comprehensive guide explores the principles, technologies, and best practices that define successful material handling systems.

Proper Cleanroom Material Flow Design can reduce contamination incidents by up to 85% and improve operational efficiency by 30-45%, according to industry studies conducted by Deiiang™ experts.

What is Cleanroom Material Flow Design?

Cleanroom Material Flow Design refers to the systematic planning and implementation of pathways and procedures for moving materials through cleanroom environments while maintaining strict contamination control. The core objectives include:

Contamination Control: Preventing introduction of particles, microorganisms, and other contaminants
Operational Efficiency: Optimizing material transfer times and reducing bottlenecks
Quality Assurance: Ensuring product integrity and compliance with regulatory standards
Cost Optimization: Reducing waste, rework, and operational expenses
Regulatory Compliance: Meeting ISO, GMP, and other industry-specific requirements

Why is Cleanroom Material Flow Design Crucial?

Contamination Control

Avoid introducing particles, microorganisms, and other contaminants through materials. For example, a single particle >0.5μm can ruin Semiconductor wafers worth thousands of dollars.

Product Quality & Safety

Critical for pharmaceuticals, medical devices, and semiconductors where product integrity directly impacts patient safety or product functionality.

Production Efficiency

Optimize material周转时间, reduce waiting periods, and eliminate bottlenecks. Proper design can reduce material transfer time by 40-60%.

Regulatory Compliance

Meet strict ISO 14644, GMP, FDA, and other regulatory requirements for material handling and transfer procedures.

Cost Control

Reduce rework, scrap, and optimize storage and handling costs. Poor material flow can increase operational costs by 15-25%.

Fundamental Principles of Cleanroom Material Flow Design

The foundation of effective Cleanroom Material Flow Design rests on several key principles that ensure contamination control and operational efficiency. These principles form the basis for all successful material handling systems in controlled environments.

Implementing proper Cleanroom Material Flow Design principles can reduce cross-contamination risks by up to 90% while improving material throughput by 35-50%, as demonstrated in Deiiang™ client implementations.

A. Unidirectional Flow Principle

The unidirectional flow principle ensures materials move from lower cleanliness areas to higher cleanliness areas without backtracking or cross-contamination. This principle is mathematically represented by the formula:

Material Flow Direction: ISO Class 8/7 → ISO Class 6 → ISO Class 5

For example, in a pharmaceutical facility designed by Deiiang™, materials follow this path:

Warehouse (Non-clean) → Receiving Area (ISO 8) → Preparation Area (ISO 7) → Pass-through → Core Cleanroom (ISO 5)

Figure 2: Unidirectional material flow from warehouse to cleanroom core

B. Separation of Personnel and Material Flow

Maintaining separate pathways for personnel and materials is critical to prevent cross-contamination. This principle reduces the risk of contaminants from outside being introduced via materials into personnel-changing areas.

❌ Incorrect Design

Mixed personnel and material flows create contamination risks. For example, when materials pass through gowning areas, they can introduce 500-2,000 additional particles ≥0.5μm per cubic meter.

Problem: Shared entry points, materials crossing personnel pathways, contamination of gowning areas

✅ Correct Design

Completely separated flows with dedicated material airlocks and personnel gowning rooms. This approach reduces contamination incidents by 70-85% according to Deiiang™ studies.

Solution: Dedicated material entry points, separate corridors, physical separation of flows

C. Zoning and Segregation

Effective zoning creates clear boundaries between different material processing stages and cleanliness requirements. A typical Deiiang™ designed facility includes these zones:

Receiving Area

Initial material receipt and documentation

Quarantine Zone

Material awaiting quality release

Preparation Area

Cleaning, disinfection, repackaging

Buffer Zone

Intermediate storage before entry

Cleanroom Storage

Approved materials ready for use

Figure 3: Cleanroom zoning diagram showing material flow through different functional areas

D. Material Status Management and Identification

Clear material status identification prevents mix-ups and ensures only approved materials enter clean areas. The standard status system includes:

Status	Color Code	Description	Allowed Movement
Quarantine	Yellow	Awaiting quality approval	Receiving to quarantine only
Approved	Green	Quality released for use	Can enter clean areas
Rejected	Red	Failed quality standards	Return to supplier or disposal
In-Use	Blue	Currently in production	Within designated work area

E. Minimize Handling and Contact

Reducing material handling directly decreases contamination risk. Each transfer operation can introduce 50-200 additional particles ≥0.3μm per cubic foot. Deiiang™ recommends these strategies:

Automated Transfer Systems: Reduce human contact by 80-95%
Standardized Containerization: Use uniform containers to minimize repackaging
Direct Line Feeding: Supply materials directly to point of use
Batch Sizing Optimization: Calculate optimal batch sizes to minimize transfers

For example, the optimal batch size can be calculated using the formula:

Q = √(2DS/H) × (1 - d/p)

Where: Q = optimal batch size, D = annual demand, S = setup cost, H = holding cost, d = demand rate, p = production rate

Key Facilities and Technologies in Cleanroom Material Flow Design

Modern Cleanroom Material Flow Design incorporates specialized facilities and technologies that enable efficient material transfer while maintaining strict contamination control. These systems form the physical infrastructure that supports the material flow principles.

Implementing the right technologies in your Cleanroom Material Flow Design can improve material transfer efficiency by 45-65% while reducing contamination risks by 75-90%, according to Deiiang™ implementation data across multiple industries.

A. Pass Boxes/Pass-through Chambers

Pass boxes are essential for transferring materials between different cleanliness zones while maintaining pressure differentials and preventing contamination.

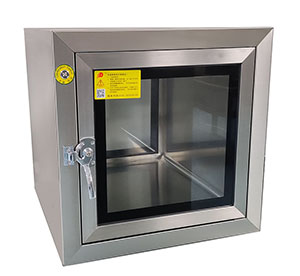

Static Pass Box

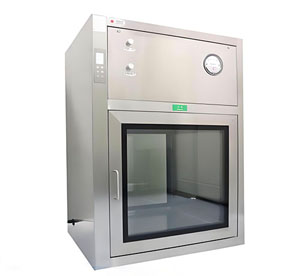

Dynamic Pass Box

UV Sterilizing Pass Box

Type	Typical Size	Material	Cleanliness Level	Key Features
Static Pass Box	500×500×500mm	304 Stainless Steel	ISO 7 to ISO 5	Interlocked doors, basic design
Dynamic Pass Box	600×600×600mm	316L Stainless Steel	ISO 5 to ISO 4	HEPA filtration, air shower
UV Pass Box	Various sizes	304/316L SS	ISO 5+	UV-C sterilization, timer control

B. Material Airlocks

Material airlocks provide controlled entry points for larger quantities of materials, typically featuring air shower systems to remove surface contamination.

Deiiang™ Design Example: A pharmaceutical client reduced material-borne contamination by 92% after implementing our recommended material airlock system with these specifications:

Size: 2.4m × 2.4m × 2.4m (accommodates pallet jacks)
Air shower: 30-second cycle at 20-25 m/s velocity
HEPA filtration: 99.99% efficiency at 0.3μm
Interlocked doors with 5-second delay
Particle monitoring with alarm system

C. Material Decontamination/Preparation Area

This critical area handles material cleaning, disinfection, and preparation before entry into clean areas. The standard process flow includes:

Receiving & Inspection

Outer Packaging Removal

Cleaning & Wiping

Disinfection

Repackaging

D. Automated Material Handling Systems (AMHS)

AMHS technologies reduce human intervention and improve material flow efficiency in high-volume cleanroom operations.

AGV Systems

Automated Guided Vehicles for flexible material transport

Capacity: 50-2000kg | Accuracy: ±10mm

RGV Systems

Rail Guided Vehicles for high-speed repetitive routes

Speed: 1-2 m/s | Accuracy: ±5mm

Cleanroom Robotics

Specialized robots for precise material handling

Repeatability: ±0.1mm | Class: ISO 5 compatible

E. Cleanroom-grade Storage Equipment

Specialized storage solutions designed for cleanroom environments prevent particle generation and facilitate efficient material organization.

Stainless Steel Shelving: Electropolished 304 or 316L stainless steel with rounded corners
Cleanroom Carts: Non-shedding materials with smooth surfaces and CleanRoom-compatible casters
Modular Cabinets: Sealed units with HEPA filtration for sensitive materials
ESD-protected Storage: For Electronic components and static-sensitive devices

F. Waste Disposal Flow

Proper waste handling prevents contamination of clean areas and ensures regulatory compliance for different waste types.

Cleanroom Waste

Packaging, gloves, wipes from clean areas

Disposal: Sealed bags → Pass-through → General waste

Hazardous Waste

Chemicals, biological materials, sharps

Disposal: Designated containers → Hazardous waste facility

Recyclable Waste

Cardboard, plastics, metals from preparation areas

Disposal: Dedicated bins → Recycling facility

Material Flow Design for Different Cleanroom Classes and Industries

Different industries and CleanRoom Classifications require specialized approaches to Cleanroom Material Flow Design. Understanding these variations is essential for creating effective material handling systems that meet specific operational and regulatory requirements.

Each industry presents unique challenges for Cleanroom Material Flow Design, requiring specialized solutions that address specific contamination risks, regulatory requirements, and operational workflows. Deiiang™ has developed industry-specific expertise across all major cleanroom applications.

A. Semiconductor/Micro-electronics Industry

The semiconductor industry demands extreme particle control, with even nanoscale particles capable of destroying integrated circuits worth thousands of dollars.

Key Requirements:

Ultra-clean materials handling with particle counts < 1 particle/ft³ ≥0.1μm
FOUP (Front Opening Unified Pod) and SMIF (Standard Mechanical Interface) systems
Highly automated material handling with minimal human intervention
Static control measures with < 10 volt ESD protection
AMHS integration for 24/7 wafer fab operations

B. Pharmaceutical/Biotechnology Industry

Pharmaceutical cleanrooms focus on microbial control, sterility assurance, and preventing cross-contamination between products.

GMP Compliance Requirements:

Dedicated material airlocks with air showers for bulk materials
Material status control (Quarantine, Approved, Rejected) with color coding
Separate flows for different product categories to prevent cross-contamination
Documented material transfer procedures with verification steps
Environmental monitoring during material transfer operations

C. Medical Device Industry

Medical device manufacturing requires balancing particle control with specific requirements for sterile packaging and product traceability.

Design Considerations:

Clean packaging processes for sterile medical devices
UDI (Unique Device Identification) tracking throughout material flow
Separation of non-sterile components from sterile assembly areas
Validation of sterilization processes for packaging materials
Temperature and humidity control for sensitive materials

D. Precision Manufacturing/Optics Industry

Precision manufacturing requires control of specific contaminants that can affect product performance, including dust, fibers, and electrostatic discharge.

Specialized Requirements:

Fibrous particle control with lint-free packaging and garments
ESD protection for electronic components and assemblies
Vibration isolation for sensitive measurement equipment
Specialized cleaning procedures for optical components
Cleanroom-compatible tooling and fixtures

Industry	Primary Concern	Typical Cleanliness	Key Design Focus	Automation Level
Semiconductor	Particle control	ISO 1-4	AMHS, FOUP/SMIF	High (80-95%)
Pharmaceutical	Microbial control	ISO 5-8	GMP compliance, separation	Medium (40-70%)
Medical Device	Sterility assurance	ISO 5-7	Packaging, traceability	Medium (50-75%)
Precision Manufacturing	Specific contaminants	ISO 4-6	ESD, vibration control	Variable (30-80%)

Material Flow Design Process and Considerations

A systematic approach to Cleanroom Material Flow Design ensures that all operational requirements, contamination risks, and regulatory standards are properly addressed. This process involves multiple stages from initial analysis through final validation.

The methodology for Cleanroom Material Flow Design developed by Deiiang™ incorporates industry best practices, regulatory requirements, and practical operational experience to create efficient, compliant material handling systems.

A. Requirement Analysis and Planning

Comprehensive analysis forms the foundation of effective material flow design. Key factors to consider include:

Product Characteristics

Size, weight, and fragility
Sensitivity to contamination
Temperature/humidity requirements
Hazardous properties

Production Volume

Daily/weekly material requirements
Batch sizes and frequencies
Peak vs. average demand
Future capacity planning

Process Requirements

Material processing steps
Required equipment access
Operator interactions
Quality control points

B. Risk Assessment and Control

Systematic risk assessment identifies potential contamination points and operational bottlenecks in the material flow.

FMEA (Failure Mode and Effects Analysis) Example:

Process Step	Failure Mode	Effects	Severity	Occurrence	Detection	RPN	Control Measures
Material Transfer via Pass Box	Both doors open simultaneously	Contamination of clean area	8	3	2	48	Interlock system, alarm
Material Preparation	Incomplete cleaning	Particle contamination	7	4	3	84	Visual inspection, wipe test

C. Layout Design and Simulation

Advanced simulation tools help optimize material flow before implementation, identifying potential bottlenecks and inefficiencies.

Simulation Metrics for Optimization:

Material Travel Distance: Target reduction of 20-40% from initial layout
Transfer Time: Optimize to meet production takt time requirements
Queue Lengths: Limit waiting at critical transfer points
Equipment Utilization: Target 70-85% for optimal performance
Bottleneck Identification: Address constraints affecting overall flow

D. Equipment Selection and Integration

Selecting appropriate equipment based on cleanliness requirements, material characteristics, and operational needs.

Pass Box Selection

Based on material size, frequency, and cleanliness requirements

Storage Systems

Cleanroom-grade shelving, cabinets, and modular systems

Transport Equipment

Carts, AGVs, conveyors compatible with cleanroom requirements

Monitoring Systems

Particle counters, pressure sensors, environmental monitors

E. Validation and Qualification

Formal validation ensures the material flow system performs as intended and meets all regulatory requirements.

Validation Protocol (IQ/OQ/PQ):

Installation Qualification (IQ): Verify proper installation of all equipment and systems
Operational Qualification (OQ): Demonstrate system operation under normal conditions
Performance Qualification (PQ): Verify system performance under actual operating conditions

For example, a typical pass box validation includes testing:

Door interlock functionality (100% testing)
Pressure differential maintenance (±1 Pa accuracy)
Airflow velocity for dynamic boxes (0.45 m/s ±20%)
Particle count verification after transfer operations
UV intensity and timer accuracy for sterilization boxes

Regulatory and Standard Requirements

Compliance with international standards and regulatory requirements is essential for effective Cleanroom Material Flow Design. These standards provide the framework for contamination control, quality assurance, and operational safety.

Understanding and implementing the requirements of these standards in your Cleanroom Material Flow Design ensures regulatory compliance, facilitates inspections, and provides documented evidence of due diligence in contamination control.

A. ISO 14644 Series Standards

The ISO 14644 series provides the fundamental requirements for CleanRoom Classification and monitoring.

Key Standards for Material Flow:

iso 14644-1: Classification of air cleanliness by particle concentration
iso 14644-2: Monitoring for providing evidence of Cleanroom performance
ISO 14644-3: Test methods for cleanrooms and associated controlled environments
ISO 14644-4: Design, construction, and start-up of cleanroom facilities
iso 14644-5: Cleanroom operations
iso 14644-7: Separative devices (Clean air hoods, gloveboxes, isolators)

B. GMP (Good Manufacturing Practice)

GMP regulations provide specific requirements for pharmaceutical and medical device manufacturing, including detailed material handling provisions.

GMP Requirements for Material Flow:

Dedicated and clearly marked areas for material receipt, quarantine, sampling, and storage
Proper segregation between different material statuses (quarantine, approved, rejected)
Prevention of mix-ups, contamination, and cross-contamination during material handling
Documented procedures for all material handling operations
Adequate cleaning and maintenance of material handling equipment
Environmental monitoring during material transfer operations
Validation of critical material transfer processes

C. Other Industry-Specific Standards

Various industries have specific standards that impact material flow design and operations.

FDA Regulations

21 CFR Part 210/211 (cGMP for pharmaceuticals)
21 CFR Part 820 (Quality System Regulation for medical devices)
FDA Guidance for Industry: Sterile Drug Products Produced by Aseptic Processing

EU Regulations

EudraLex Volume 4 (EU GMP Guidelines)
Annex 1: Manufacture of Sterile Medicinal Products
Medical Device Regulation (MDR 2017/745)

Other Standards

IEST Recommended Practices
USP
SEMI Standards (semiconductor industry)

Cleanroom Material Flow Design Optimization and Best Practices

Continuous improvement and optimization of Cleanroom Material Flow Design can yield significant benefits in efficiency, contamination control, and operational costs. Implementing best practices ensures sustainable performance and adaptability to changing requirements.

Advanced optimization strategies for Cleanroom Material Flow Design incorporate digital technologies, data analytics, and lean principles to create intelligent, adaptive material handling systems that continuously improve performance.

A. Supply Chain Management Optimization

Integrating material flow design with supply chain management creates efficiencies that extend beyond the cleanroom.

Strategies for Optimization:

Supplier Qualification: Work with suppliers who provide cleanroom-compatible packaging
Standardized Packaging: Implement uniform container sizes to optimize storage and handling
Just-in-Time Delivery: Reduce on-site storage requirements and material handling
Vendor-Managed Inventory: Shift material management responsibilities to qualified suppliers
KANBAN Systems: Implement pull-based material replenishment signals

B. Digitalization and Smart Solutions

Digital technologies enable real-time monitoring, data analysis, and intelligent control of material flow operations.

MES Integration

Manufacturing Execution Systems for real-time material tracking and workflow management

Benefits: 25-40% reduction in material search time

WMS Implementation

Warehouse Management Systems for optimized storage, retrieval, and inventory control

Benefits: 15-30% improvement in inventory accuracy

IoT Sensors

Internet of Things sensors for environmental monitoring, equipment status, and material location

Benefits: Real-time anomaly detection and alerting

C. Traceability

Comprehensive traceability systems track materials throughout their lifecycle in the cleanroom environment.

Traceability Technologies:

Barcode Systems: Cost-effective for basic material identification and tracking
RFID Tags: Enable automated tracking without line-of-sight requirements
QR Codes: Provide quick access to detailed material information
Blockchain: Emerging technology for secure, immutable traceability records

D. Common Mistakes and How to Avoid Them

Understanding common pitfalls helps prevent costly errors in cleanroom material flow design and operation.

Common Mistake	Impact	Prevention Strategy
Mixed personnel and material flows	Increased contamination risk, regulatory citations	Design separate pathways with physical separation
Inadequate material preparation areas	Poor cleaning effectiveness, contamination	Include sufficient space with proper equipment for material cleaning
Poor waste management design	Accumulation of contaminants, compliance issues	Design dedicated waste streams with proper containment
Insufficient automation for high-volume operations	Bottlenecks, variability, increased contamination risk	Implement appropriate AMHS based on volume and frequency
Inadequate documentation and procedures	Compliance failures, inconsistent operations	Develop comprehensive SOPs and training programs

Case Study

Pharmaceutical Company Implements Comprehensive Material Flow Redesign

Before Redesign

Mixed personnel and material flows
Manual material handling throughout
Frequent contamination incidents
Average material transfer time: 45 minutes
Regulatory observations during inspections

After Redesign

Completely separated flow paths
Automated transfer systems implemented
85% reduction in contamination incidents
Average transfer time: 15 minutes
Successful regulatory inspections

Implementation Details:

Project Duration: 6 months from design to validation
Key Technologies: Dynamic pass boxes, material airlocks with air showers, AGV system, RFID tracking
Design Approach: Risk-based design with FMEA analysis of all material transfer points
Validation: Full IQ/OQ/PQ protocol execution with 3 months of performance data
ROI: 14-month payback through reduced losses and improved efficiency

Lessons Learned: The successful implementation demonstrated the importance of comprehensive planning, stakeholder engagement, and phased implementation. The project team, led by Deiiang™ design expert Jason.peng, emphasized cross-functional collaboration between operations, quality, and facilities teams to ensure all requirements were addressed.

Conclusion and Outlook

Effective Cleanroom Material Flow Design is a critical component of successful cleanroom operations across multiple industries. By implementing the principles, technologies, and best practices outlined in this guide, organizations can achieve significant improvements in contamination control, operational efficiency, and regulatory compliance.

The future of Cleanroom Material Flow Design points toward increasingly intelligent, automated, and integrated systems. Emerging trends include AI-powered optimization, advanced robotics, and seamless digital integration across the entire supply chain.
