In my years designing HVAC systems for pharma and electronics, I've learned that a stable cleanroom Pressure Differential is the only thing standing between a sterile batch and a contamination breACH. It is not just about keeping a gauge in the green zone; it represents the physical barrier of air that protects your critical zones.
Why Stability Matters: Beyond the Gauge Reading
If HEPA filters are the lungs of your facility, this pressure gradient is the constant breath that pushes contaminants away. A failure here doesn't just trigger an alarm; it can violate iso 14644-3 protocols and halt production. I recall a specific project where perfect ductwork design failed simply because the control logic couldn't handle the door interlocks opening, leading to weeks of re-commissioning.
Visualizing airflow direction driven by pressure differences.

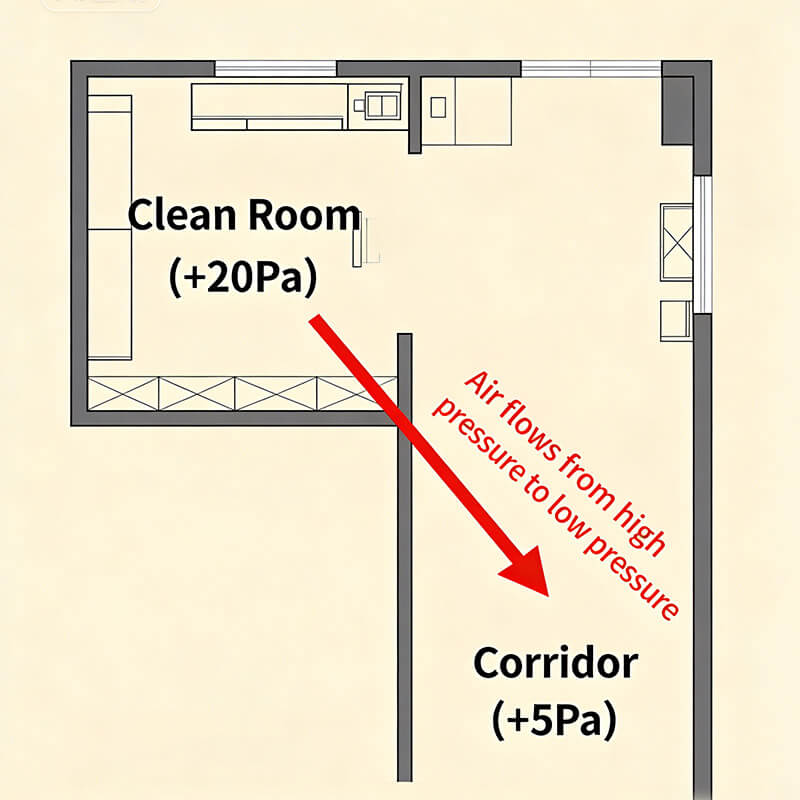

The physics are straightforward: air flows from high pressure to low pressure. As shown in the diagram, maintaining a higher static pressure (e.g., +20 Pa) inside the cleanroom compared to the corridor (+5 Pa) ensures that any leakage—whether from cracks or door operations—moves outward. This prevents dust and microbes from entering against the current. While the concept is simple, the engineering challenge lies in maintaining this gradient when equipment ramps up or personnel move between zones.
At Deiiang™, we often find that instability issues stem from choosing the wrong control architecture during the design phase. It isn't just about sensor accuracy; it is about how the system reacts to dynamic events. Selecting the appropriate Cleanroom pressure differential control methods upfront is critical to avoiding costly retrofits later.
Categorizing Control Methods
When consulting with facility managers, I classify control strategies into two main buckets based on their responsiveness and cost profile: Static (Passive) and Dynamic (Active). There is also a hybrid approACH that serves specific mid-range needs.
System Architecture Overview
- Passive Control (Static): Relies on mechanical balancing. Uses Constant Air Volume (CAV) valves and manual dampers. Simple, but cannot self-correct.
- Active Control (Dynamic): Uses Variable Air Volume (VAV) components. Feedback loops via pressure sensors and motorized actuators adjust airflow in real-time.
- Hybrid Control: A mix of fixed supply air with variable return regulation. Common in iso 7 facilities balancing cost with performance.
The decision between these architectures dictates your facility's operational resilience. Below, I break down the mechanics of these Cleanroom pressure differential control methods to help you match the right system to your risk profile.
Deep Dive: Passive (Static) Control
Passive control, often referred to as the "progressive offset" method, is the traditional approach. During the TAB (Testing, Adjusting, and Balancing) phase, we set the supply air to a fixed volume that is higher than the exhaust volume. The difference—the offset—is forced out through leakage paths or a weighted relief damper to create the Cleanroom Pressure Differential.
The Advantages: Low capital expenditure (CapEx) and fewer electronic points of failure. For standard iso 8 storage areas or corridors, this is often sufficient.
The Operational Risks: This system is "blind." It assumes airflow remains constant forever, which never happens. As HEPA filters load with dust, their resistance increases, reducing supply air. Since the exhaust fan pulls at the same rate, your positive pressure slowly evaporates. I've seen rooms drop from +15 Pa to +2 Pa over a filter cycle because the passive system couldn't detect or compensate for the change. It requires rigorous manual re-balancing to maintain compliance.
Deep Dive: Active (Dynamic) Control
For mission-critical environments like GMP fill-finish lines or biosafety labs, active control is mandatory. This method utilizes a Closed-Loop Feedback System. It doesn't guess; it measures and reacts.
The loop functions as follows: A high-precision differential pressure transmitter (such as the Deiiang™ CCY11, accuracy ±0.5%FS) continuously monitors room pressure. It feeds data to a PLC (like Siemens S7-1200 or 6ES7288 Smart series). The controller runs a PID algorithm to compare the actual pressure against the setpoint. If a deviation exists, it signals a fast-acting actuator (2-10V signal) on the supply or return air damper to modulate airflow until the target is hit.
The primary benefit of active Cleanroom pressure differential control methods is resilience. If a process door opens, the sensor detects the pressure drop instantly, and the VAV box ramps up supply to compensate. Additionally, it allows for "setback modes"—reducing total airflow during nights/weekends to save energy while still maintaining pressure gradients.
Comparison: Passive vs. Active
Which path should you take? In my consulting work, I advise clients based on risk tolerance and Opex vs. Capex. If you are running a class 100,000 (iso 8) assembly room, passive is acceptable. If you are handling potent compounds or need iso 5 conditions, active control is the only safe choice.
| Feature | Passive / Static Control | Active / Dynamic Control |
|---|---|---|
| Control Logic | Open-loop (Fixed Airflow) | Closed-loop (Feedback Driven) |
| Initial Investment | Lower | Higher (30-50% premium) |
| Stability Precision | Low (Drifts ±5 Pa easily) | High (Maintains ±1 Pa) |
| Dynamic Response | Non-existent | Immediate auto-correction |
| Maintenance | High (Frequent re-balancing) | Low (Sensor calibration only) |
| Efficiency | Fixed (Constant energy use) | High (Variable speed potential) |
| Ideal Application | iso 7/8, Low Risk, Cost-sensitive | iso 5/6, GMP, Bio-Safety |
Ultimately, your choice defines your facility's reliability. Active systems transform your Cleanroom Pressure Differential from a manual headache into a managed, automated asset.
Strategic Layouts: Bubble, Cascade, and Sink
Once you have selected a control method, you must define the pressure hierarchy. This is the "map" your control system will follow. In HVAC design, we typically deploy three primary strategies depending on what we are protecting—the product or the environment.
To implement these, calculating the correct airflow offset is critical. We use the orifice equation: Q = C * A * √(2ΔP/ρ). For instance, to hold +15 Pa with a leakage area of 0.1 m², you typically need an offset of 100-150 CFM. This math underpins every Cleanroom Pressure Differential decision we make.
Troubleshooting: Tuning for Stability
Even the best hardware can fail if the logic is flawed. The most frequent complaint I resolve is "hunting"—where the damper oscillates constantly, or alarms trigger every time a technician enters the room.
The Oscillation Issue: If your actuator is moving every second, it will fail prematurely.
The Fix: Deadbands & Delays. A control system needs breathing room. I recommend setting a deadband of ±1 Pa. This means if the setpoint is 20 Pa, the controller does nothing as long as the pressure is between 19 and 21 Pa. Furthermore, implement an alarm time delay (typically 15-30 seconds). A door opening causes a momentary pressure loss; this is physics, not a failure. Delays prevent nuisance alarms that train staff to ignore warnings.
PID Tuning Tips: For pressure loops, avoid high Derivative (D) gains, as air pressure signals are noisy. Rely on Proportional (P) for response and Integral (I) to clear the steady-state error. A high-quality sensor like the Deiiang™ CCY11 (response <400ms) provides the clean signal necessary for tight tuning.

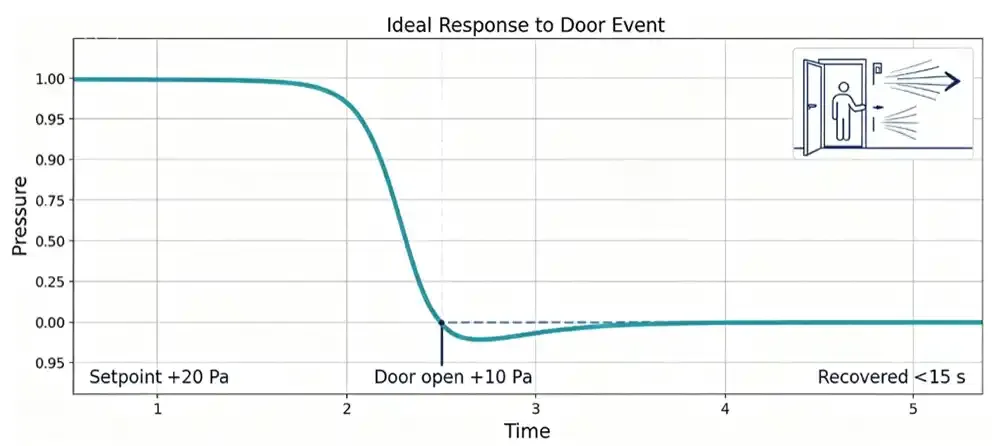

Visualization of a tuned recovery. Note the rapid return to setpoint without overshooting.
Look at the graph above. This is a real trace from a site I commissioned. You can see the sharp drop to +10 Pa when the technician entered. Crucially, note how the Active Control system didn't panic. It ramped up smoothly, bringing the pressure back to +20 Pa in under 15 seconds without overshooting. This 'soft landing' is exactly what prevents nuisance alarms.
Effective management of Cleanroom Pressure Differential is about maintenance as much as design. Regularly check damper linkages for slippage and verify sensor calibration annually.
Final Thoughts: Risk vs. Cost
The debate between passive and active Cleanroom Pressure Differential control always comes down to one question: What is the cost of failure? Passive systems are a valid, economical choice for low-risk zones. However, for critical processes, the investment in active control is an insurance policy against contamination events.
Your goal is confidence—knowing that airflow direction is guaranteed, regardless of filter loading or room usage. Whether you need the simplicity of a manual damper or the intelligence of the Deiiang™ CCY11 sensor suite, ensure your strategy matches your compliance requirements.
