3` FYCLS Negative Pressure Raw Material Dispensing Room - Wind Speed Sensor, Wind Pressure Sensor, Frequency Converter

Product Description:

Chamber Material

Neg Furls negative pressure weighing chambers are constructed from high quality SUS304 stainless steel, which is bent, welded and assembled to ensure a robust and corrosion-resistant structure, as well as being easy to clean and maintain.

Filtration System

The filtration system is the core part of the Neg Furls negative pressure weighing chamber, which includes a primary filter and a high-efficiency filter. These two stages of filtration can effectively capture and remove airborne particles to ensure the cleanliness of the air. The HEPA filter meets DOP or PAO testing requirements and can be removed and replaced from the front or the top, providing efficient air purification.

Control Systems

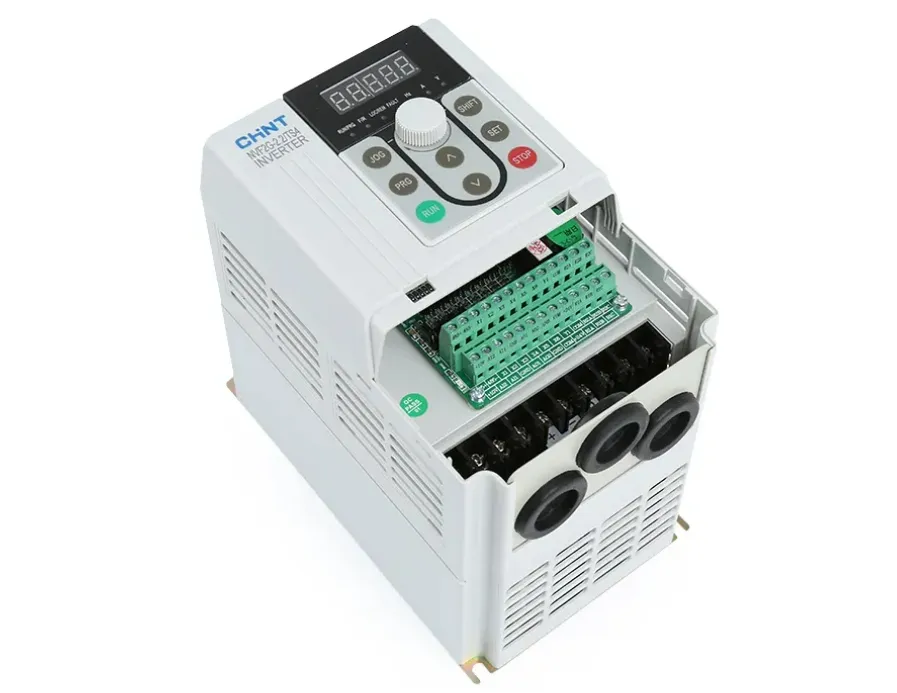

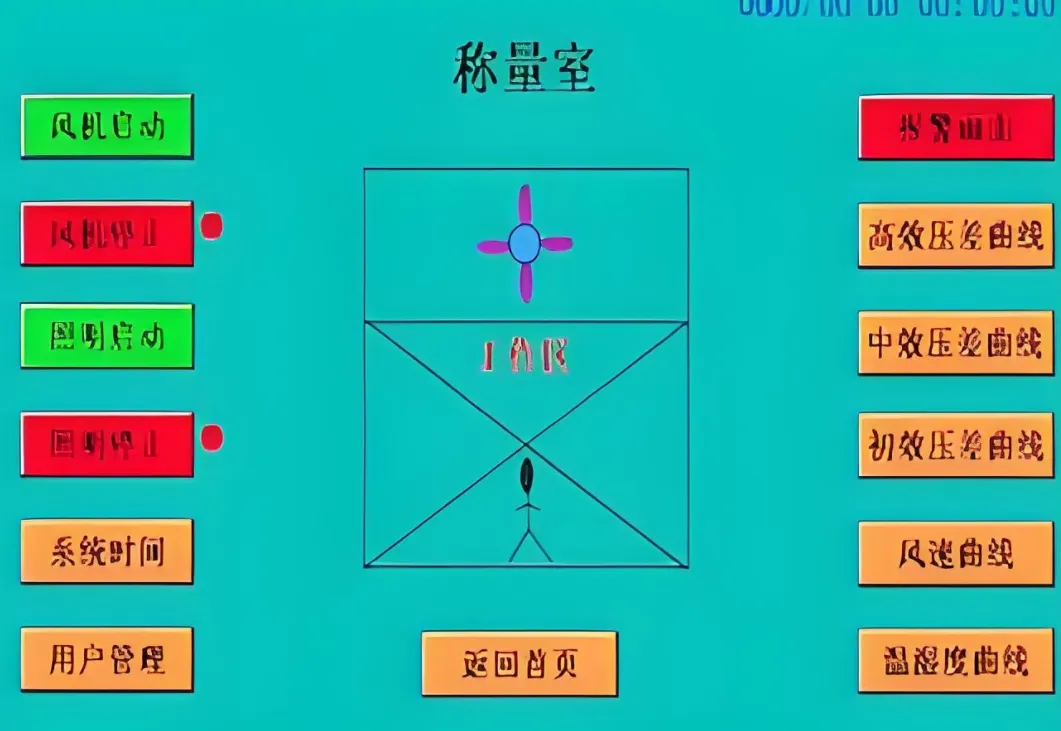

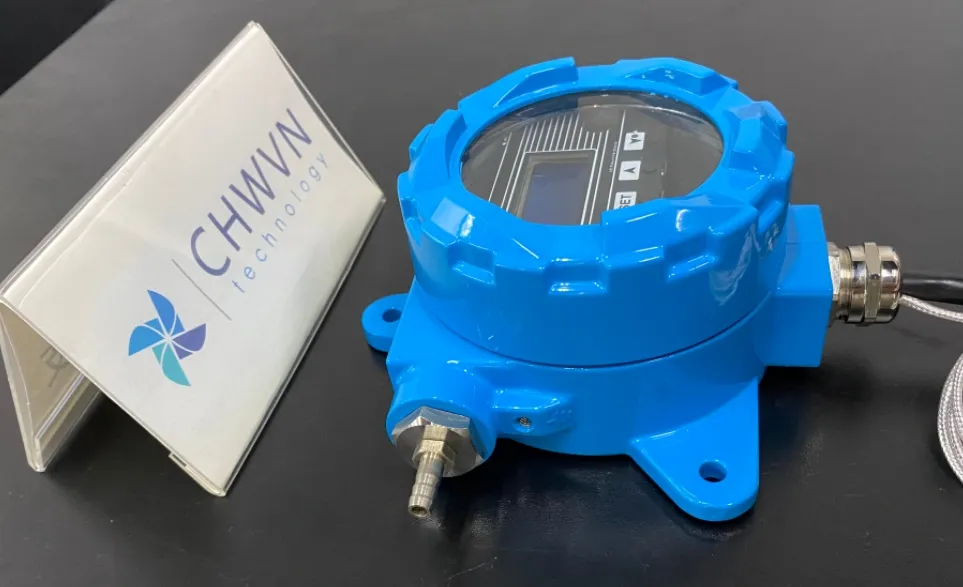

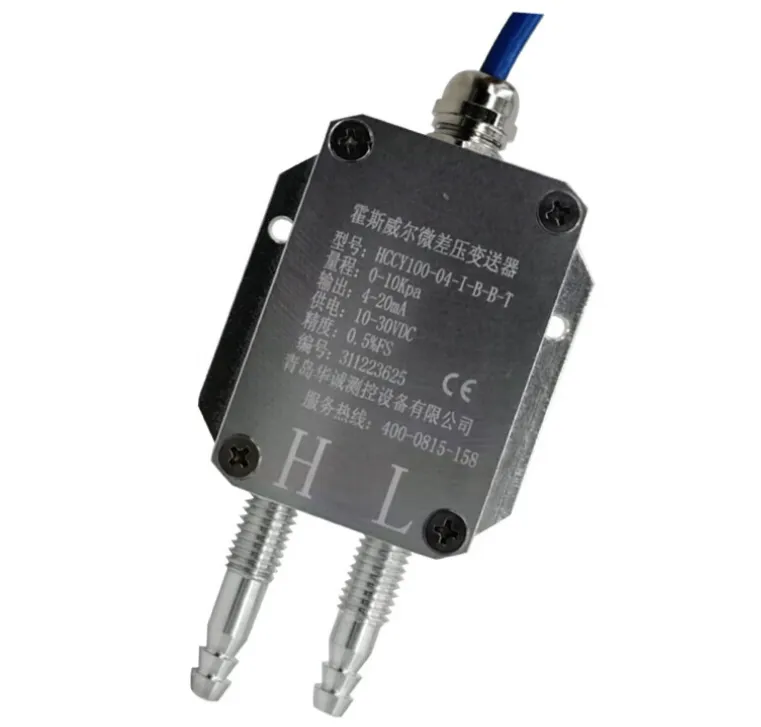

The Neg Furls Negative Pressure Weighing Chamber is equipped with an advanced control system, including inverter control and PLC control, which allows the user to operate the unit through the LCD display for air speed indication and setting alarm functions. In addition, differential pressure sensors and wind speed sensors are equipped to ensure stable operation and real-time monitoring of the system.

Lighting and Sterilization

The weighing room is equipped with sufficient lighting to ensure that the illumination level of one meter in the working area is more than 300 Lux, and can be equipped with germicidal lamps or ozone generators to maintain a hygienic and safe weighing environment.

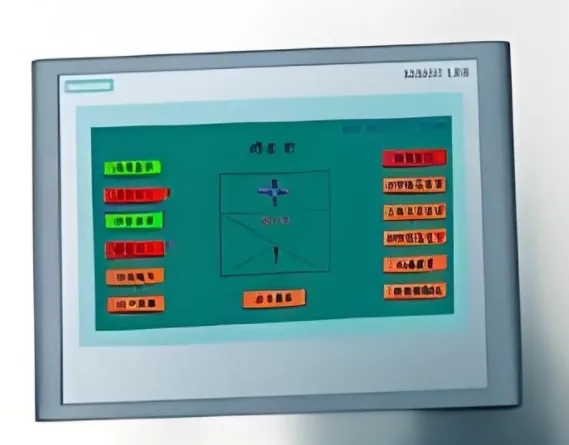

The Neg Furls Negative Pressure Weighing Chamber is also equipped with a weighing table and sockets, which are waterproof and dustproof industrial sockets, the number of which can be configured according to the customer's needs. In addition, a variety of optional accessories are available, such as wind speed sensors, differential pressure sensors, frequency converters, touch screen controls, etc., to meet the individual needs of different users.

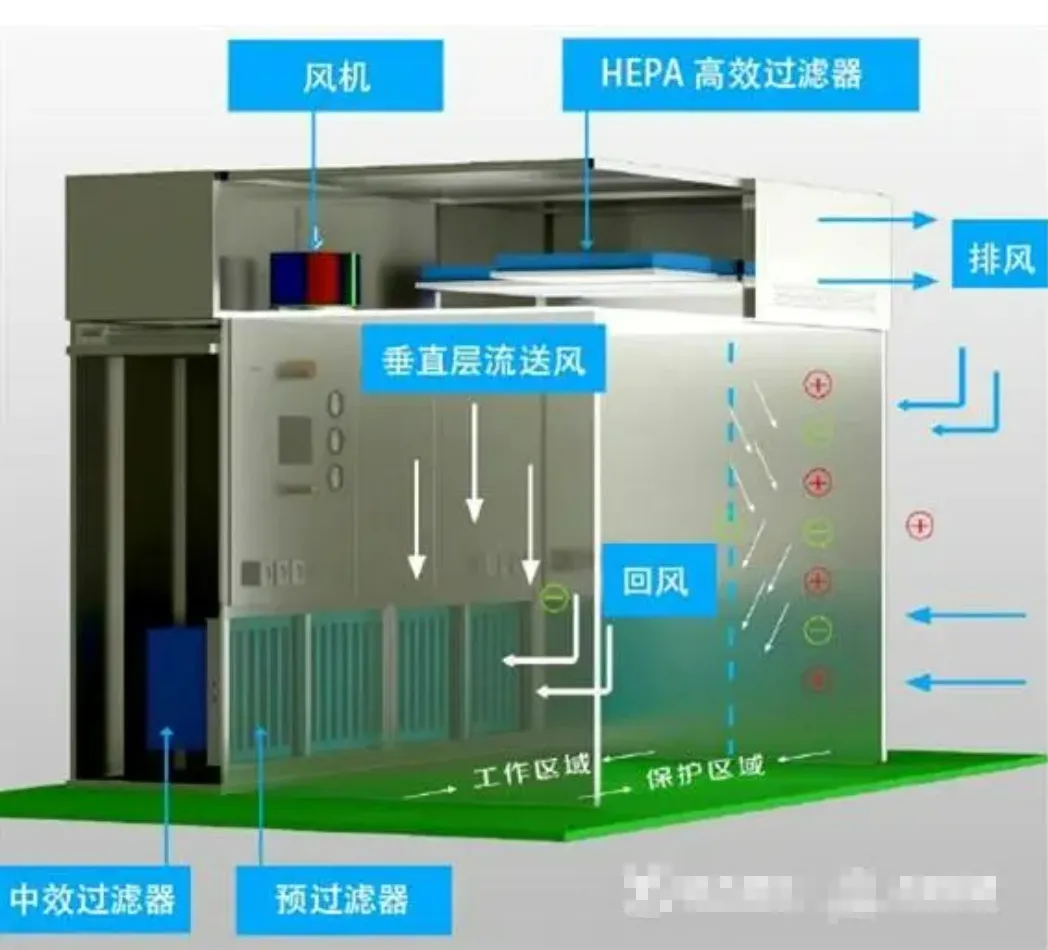

负压称量室配置图

Send email to us

Download as PDF

How to Work With Us

Submit Requirements

Provide your site dimensions, required ISO class, and industry-specific needs (GMP, ESD, etc.) to our experts.

Custom Technical Proposal

Receive a detailed design proposal within 24 hours, including airflow strategies, material lists, and transparent pricing.

Modular Production

We manufacture your modular panels, HVAC units, and FFUs with strict QC to ensure full compliance with ISO 14644 standards.

Global Shipping & Setup

Fast global logistics followed by onsite installation guidance and performance validation to get you operational quickly.

FAQ

Negative Pressure Weighing Chamber Specifications	KLDC-FYCLS 1200	KLDC-FYCLS 1300	KLDC-FYCLS 1400	KLDC-FYCLS 1500	KLDC-FYCLS 1600	KLDC-FYCLS 2700
Overall Dimension(mm)	1200X1200x2500	1300X1300X2500	1500x1300X2500	2000x1300Xx2500	2000X1500X2500	2000x1800X2500
Size of working area (mm)	1100X700X2000	1200x800X2000	1400X700X2000	1900x800X2000	1900X1000X2000	1900X1300X2000
Rated air volume (m°/h)	1300~1500	1600~1800	2000~2200	2500~2700	3400-3600	4500~4900
Wind speed (m/s)	0.45+20%	0.45+20%	0.45+20%	0.45+20%	0.45+20%	0.45+20%
cleanliness level	A级	A级	A级	A级	A级	A级
Noise (dB)	72	72	72	72	72	72
Illumination (Lux)	>300	>300	>300	>300	>300	>300
control method	Inverter Control LCD control	Inverter Control LCD control	Inverter Control LCD control	Inverter Control LCD control	Inverter Control LCD control	Inverter Control LCD control
Power (KW)	0.75	0.75	1.5	1.5	2.2	2.2

Note: Negative pressure weighing room can be made according to customer requirements for non-standard products.　

FAN SYSTEM: Neg Furls negative pressure weighing chamber is equipped with a long-life, low-noise fan, which is maintenance-free and has low vibration, ensuring stable operation and long service life of the equipment.
Double-layer negative pressure structure: The unique double-layer negative pressure structure design effectively avoids the risk of leakage and ensures the purity of the weighing environment.
Uniform air distribution performance: excellent uniform air distribution performance ensures the stable supply of clean air in the working area, which is suitable for fine weighing and dispensing operations.
Automatic adjustment of wind speed: The wind speed can be adjusted constantly or graded through the automatic adjustment system, which ensures that the wind speed in the working area is always in a suitable state, which is conducive to improving the accuracy of weighing.
Liquid Tank Design: The liquid tank design ensures perfect sealing, prevents reagent spillage and leakage, and protects the safety of operators and the environment.
Inside and outside structure design: The inside and outside structure design is consistent, neat and without dead corners, which is easy to clean and maintain, and also ensures the sealing and aesthetics of the equipment.
Wind speed frequency conversion system: manual wind speed frequency conversion system, so that the wind speed in the main working area is always in a uniform operation state, adapting to different weighing needs.
Filter differential pressure display device: the filter differential pressure display device can monitor the effective operation of each filter in real time, which is convenient for timely replacement or maintenance.
Unique air duct design: The unique air duct design effectively controls the working noise of the whole machine and creates a quiet working environment.

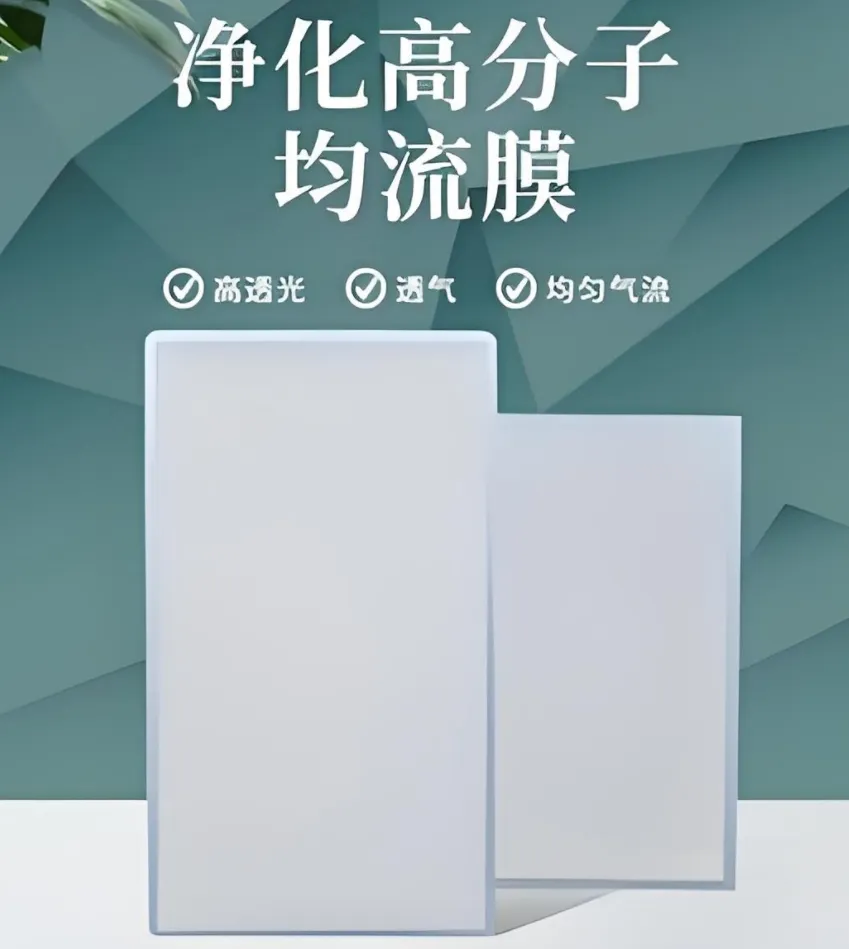

Even flow membrane design: The even flow membrane design in the main working area can control the dust and reagent spillage and uplift when weighing and dispensing in the equipment, preventing the hazards of inhalation to human beings and avoiding cross-contamination.
Hundred-level vertical laminar flow protection: the weighing operation area is protected by hundred-level vertical laminar flow ISO 5 (NF, EN, ISO 14644-1), which meets the requirements of FDA and EU GMP as well as domestic GMP.
Use of the environment and conditions: applicable to the temperature 5C-40C, relative humidity is not greater than 85% (non-condensing), the atmospheric pressure of 86KPa-106KPa environment, power supply AC380v, three-phase, 50HZ.
Box material: box structure material for SUS304 # sanded stainless steel, thickness 1.0MM, to ensure the durability and corrosion resistance of the equipment.

Negative pressure weighing room adopts the form of vertical unidirectional airflow, the return air is first pre-filtered through the primary filter to remove large dust particles, then filtered through the secondary filter of the intermediate filter, and finally blown vertically through the high-efficiency filter to the working area under the pressure of centrifugal fan to ensure the air is clean. The remaining air is blown indoors through the external high-efficiency filter to form a negative pressure with the external environment and prevent the dust from spreading to the outdoors.

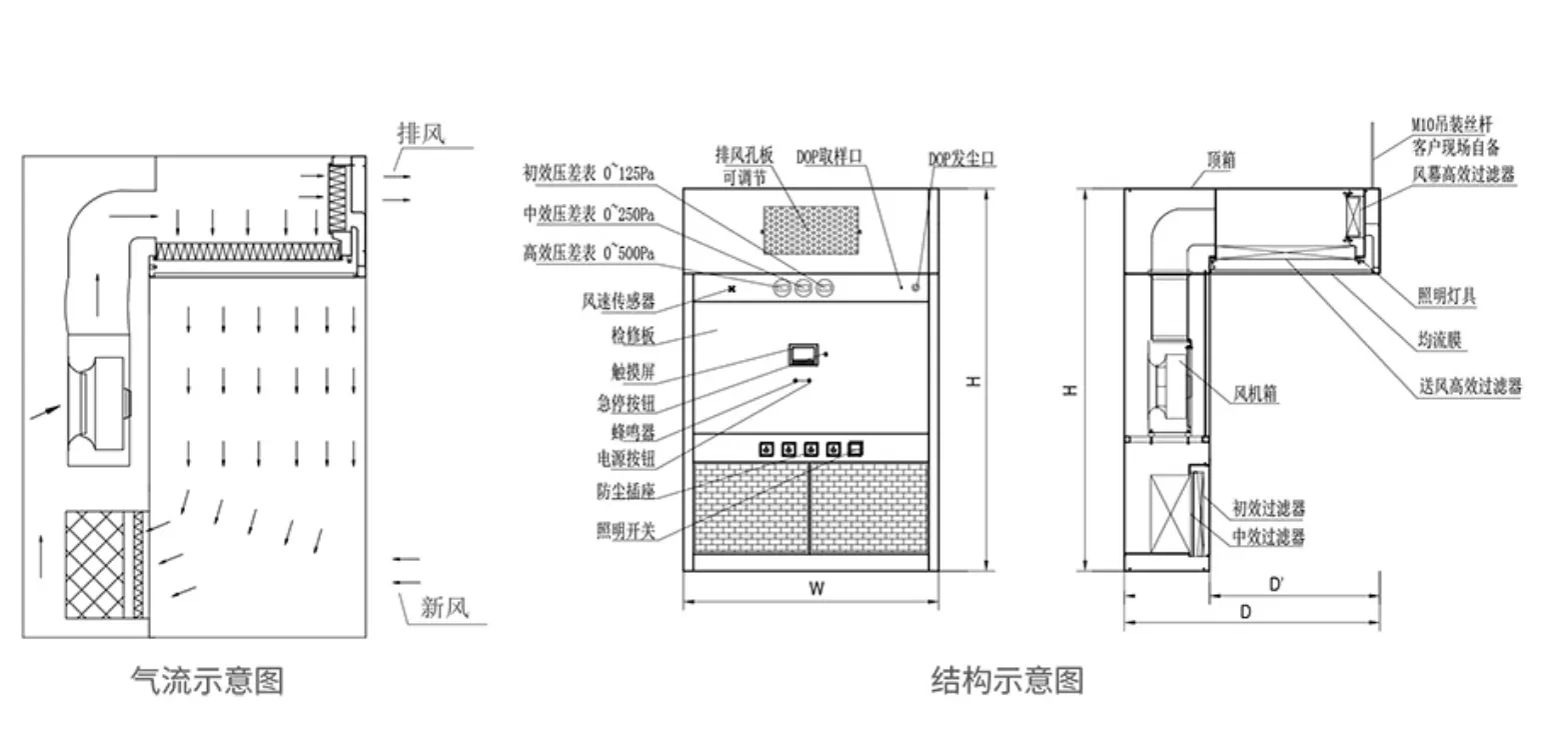

负压称量室原理图
