• Structural components: fan, filter, housing

• Air flow: The fan draws in ambient air, which passes through the filter.

• Filtration process: the filter removes particles (e.g. dust, microorganisms) from the air.

• Clean air release: Filtered clean air is released from the top or bottom.

• HEPA Filter

• ULPA Filter

• Adjustable speed fan

• Fixed speed fan

• Manual control panel

• Digital remote control system

• Monitoring sensors (pressure)

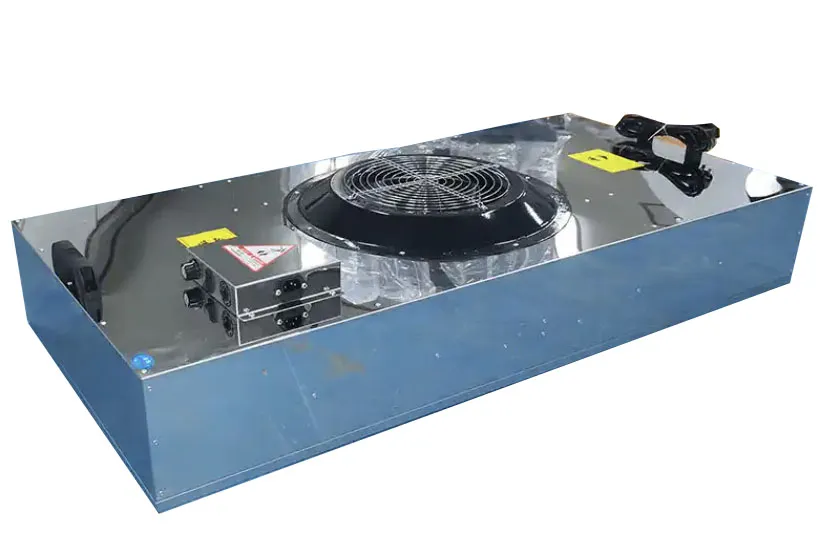

1. What is a Stainless Steel FFU?

A Stainless Steel Fan Filter Unit (FFU) is an essential component in cleanroom environments that provides filtered air to maintain a controlled atmosphere. Constructed from durable SUS 304 stainless steel, it combines a fan and a high-efficiency filter to ensure that the air delivered is free from contaminants. This type of FFU is particularly valued for its corrosion resistance, making it suitable for various industries such as pharmaceuticals, biotechnology, and electronics.

2. How does a Fan Filter Unit work?

A Fan Filter Unit operates by drawing in air through a pre-filter and then through a high-efficiency particulate air (HEPA) filter. The fan inside the unit creates a negative pressure that facilitates the airflow, ensuring that particulates are captured effectively. Once the air is filtered, it is then supplied to the cleanroom or controlled environment, helping to maintain the desired air quality standards.

3. What are the benefits of using SUS 304 for FFUs?

Using SUS 304 stainless steel in Fan Filter Units provides several key advantages:

• Corrosion Resistance: Ideal for environments with high humidity or exposure to chemicals.

• Durability: Ensures a longer lifespan compared to other materials.

• Ease of Cleaning: Smooth surfaces allow for easier maintenance and sanitation.

These benefits contribute to the overall efficiency and reliability of FFUs in critical applications.

4. How to choose the right FFU for a cleanroom?

Choosing the right Fan Filter Unit for a cleanroom involves several considerations. First, assess the cleanliness class required for your application, as this will dictate the type of filter needed. Additionally, evaluate the air volume required to maintain the desired airflow within the space. Other factors include the FFU's noise level, energy efficiency, and compatibility with existing HVAC systems. Consulting with a cleanroom specialist can also help in selecting the most suitable FFU.

5. What is the air volume capacity of a standard FFU?

The air volume capacity of a standard Fan Filter Unit typically ranges from 500 to 2000 cubic meters per hour (m³/h). This capacity can vary depending on the specific design and application of the FFU. It's crucial to select a unit that matches the airflow requirements of the cleanroom to ensure optimal performance and air quality.

6. What are the maintenance requirements for Stainless Steel FFUs?

Maintenance of Stainless Steel FFUs is essential for ensuring their longevity and performance. Regular tasks include:

• Inspecting and replacing filters according to the manufacturer's recommendations.

• Cleaning the unit's exterior and filters to remove dust and contaminants.

• Checking the fan motor and electrical connections for any signs of wear.

A scheduled maintenance plan can help prevent unexpected breakdowns and maintain optimal airflow.

7. How long do FFU filters last?

The lifespan of FFU filters can vary based on several factors, including the environment in which they operate and the level of particulate load they encounter. Generally, HEPA filters used in FFUs can last from 6 months to 3 years, depending on usage and maintenance practices. Regular monitoring of pressure drops across the filters can help determine when they need to be replaced.

8. Are Stainless Steel FFUs suitable for pharmaceuticals?

Yes, Stainless Steel FFUs are highly suitable for pharmaceutical applications. Their ability to provide a controlled environment free from contaminants is critical in manufacturing processes. The corrosion resistance of SUS 304 also makes these units ideal for environments where cleaning agents are frequently used. Additionally, their durability ensures they can withstand the rigorous demands of pharmaceutical production.

9. What are the applications of Fan Filter Units?

Fan Filter Units are versatile and used in various applications, including:

• Pharmaceutical manufacturing

• Biotechnology laboratories

• Electronics production

• Food processing

• Aerospace and automotive industries

Each of these applications requires specific air quality standards, making FFUs a critical component in achieving compliance.

10. How to install a Fan Filter Unit?

Installing a Fan Filter Unit involves several key steps. First, ensure you have the necessary tools and materials ready. Begin by securing the FFU to the ceiling structure, ensuring it is properly aligned with the cleanroom's design. Connect the electrical wiring according to the specifications provided by the manufacturer. Finally, perform a system check to ensure that the fan operates correctly and that there are no air leaks around the unit.

11. What is the difference between FFU and HEPA filters?

The main difference between a Fan Filter Unit (FFU) and a HEPA filter lies in their functionality and design. A HEPA filter is primarily a filtration component that captures particles as small as 0.3 microns with an efficiency of 99.97%. In contrast, an FFU combines a HEPA filter with a fan, which actively draws air through the filter and pushes it into the cleanroom environment. This integration makes FFUs a complete air management solution, whereas HEPA filters alone require additional systems for airflow.

12. Can FFUs be used in laboratories?

Yes, FFUs are widely used in laboratories, especially in environments that require stringent air quality standards. They provide a controlled airflow that is essential for preventing contamination in sensitive experiments and processes. FFUs can be particularly beneficial in biological and chemical labs where clean air is crucial for accurate results and safety. Their ability to filter out particulates also makes them suitable for use in research and development facilities.

13. What is the cost of a Stainless Steel FFU?

The cost of a Stainless Steel FFU can vary significantly based on factors such as size, airflow capacity, and additional features. Generally, prices range from \$1,000 to \$5,000 per unit. Key factors influencing the cost include:

• Size and airflow requirements

• Type of filters used

• Customization options

It's important to assess the specific needs of your cleanroom application to find the most cost-effective solution.

14. How to clean a Fan Filter Unit?

Cleaning a Fan Filter Unit is essential for maintaining its performance and extending its lifespan. Begin by turning off the power and disconnecting the unit. Remove the filters and clean the exterior surfaces using a damp cloth and a mild detergent. For the filters, follow the manufacturer's recommendations, which may include washing or replacing them. Once everything is clean, reinstall the filters, reconnect the power, and run the unit to ensure proper operation.

15. What is the typical noise level of an FFU?

The typical noise level of a Fan Filter Unit ranges from 40 to 60 decibels, depending on the fan speed and design. This level of sound is comparable to a quiet office environment. Selecting a unit with a lower noise output can be important for applications where noise may interfere with sensitive work or communication. Manufacturers often provide sound ratings to help in choosing an appropriate FFU for specific environments.

16. Are Stainless Steel FFUs energy-efficient?

Stainless Steel FFUs are designed to be energy-efficient, particularly when equipped with variable speed fans. These fans can adjust their speed based on the air volume requirements, reducing energy consumption during less demanding periods. Additionally, the high-quality construction of SUS 304 stainless steel minimizes heat exchange, further enhancing energy efficiency. This efficiency not only lowers operational costs but also contributes to sustainability efforts in cleanroom operations.

17. What are the dimensions of a typical FFU?

The dimensions of a typical Fan Filter Unit can vary, but most units are designed to fit standard ceiling grids. Common dimensions for FFUs are:

• 575 mm x 575 mm (24 in x 24 in)

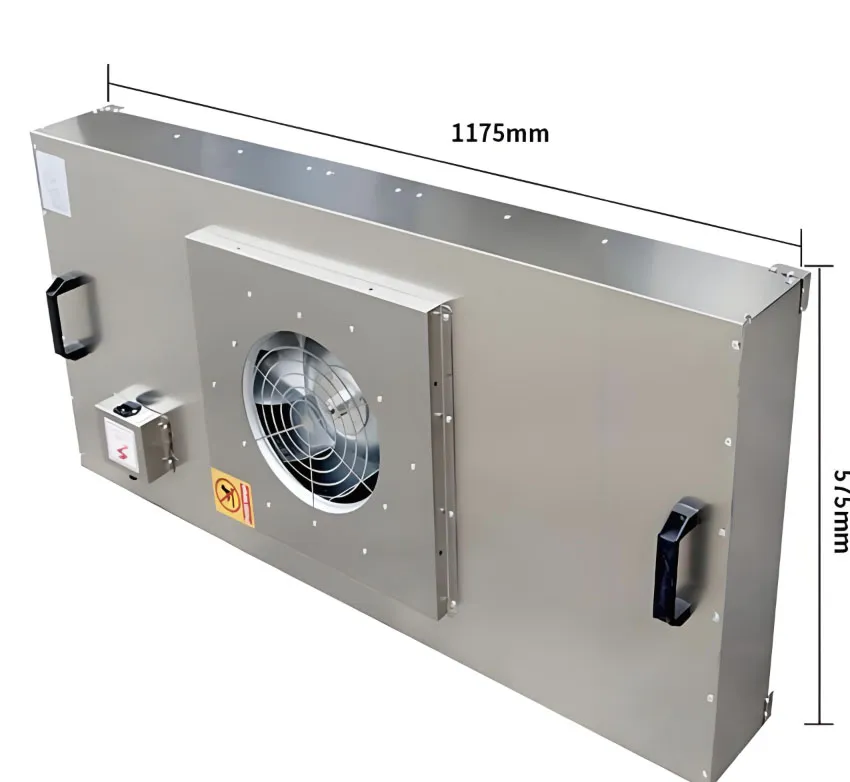

• 1175 mm x 575 mm (48 in x 24 in)

• Other custom sizes are available based on specific requirements.

These dimensions allow for easy installation in various cleanroom configurations, ensuring flexibility in design.
